Genuine Phoenix Contact QUINT-PS/1AC/24DC/20 24VDC 20A DIN Rail Power Supply | QUINT Series – Verified Source

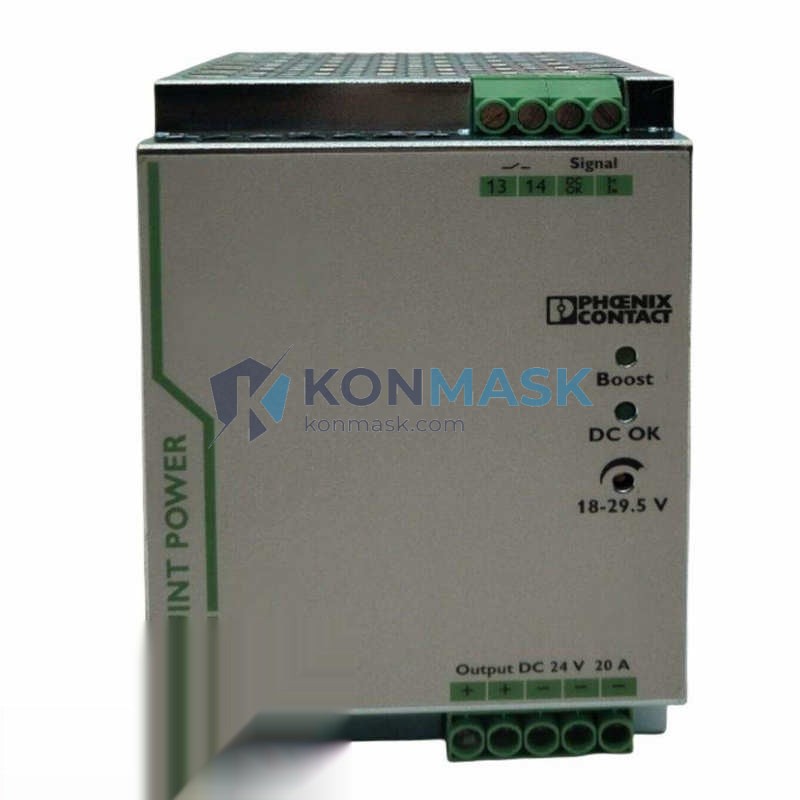

The Phoenix Contact QUINT-PS/1AC/24DC/20 is a high-performance single-phase DIN rail power supply delivering a stable 24 VDC / 20 A (480 W) output. Engineered for demanding industrial environments, this unit features Phoenix Contact’s proprietary SFB Technology (Selective Fuse Breaking) for reliable downstream circuit protection. Konmask.com sources this unit directly from authorized distribution channels — every order is traceable, documented, and backed by our 4-step verification process.
Technical Specifications
- Part Number: QUINT-PS/1AC/24DC/20
- Manufacturer: Phoenix Contact
- Input Voltage: 85–264 VAC (1-phase) / 90–350 VDC
- Input Frequency: 45–65 Hz
- Output Voltage: 24 VDC (adjustable 18–29.5 VDC)
- Output Current: 20 A (continuous)
- Output Power: 480 W
- Efficiency: ≥ 93.5% (typical)
- SFB Boost Current: ≥ 60 A (for 12 ms) — selective fuse breaking
- Mounting: DIN rail (EN 60715 TH 35)
- Protection Class: IP20
- Operating Temperature: −25 °C to +70 °C
- Dimensions (W × H × D): 60 × 130 × 125 mm
- Weight: approx. 0.9 kg
- MTBF: > 500,000 h (at 25 °C, full load)
- Approvals: UL, cUL, CE, GL, ATEX Zone 2, EAC
Our 4-Step Quality Verification Process
Every unit shipped from Konmask.com passes through a documented 4-step inspection before dispatch:
- Step 1 — Source Traceability: Procurement records verified against authorized distributor invoices and manufacturer batch codes.
- Step 2 — Physical Inspection: Housing, label printing, connector quality, and serial number format checked against OEM reference standards.
- Step 3 — Functional Bench Test: Output voltage, current regulation, and SFB boost response validated under load prior to packaging.
- Step 4 — Documentation Package: Each shipment includes a test record, packing list, and certificate of conformity upon request.
Key Features & Benefits
- SFB Technology: Delivers up to 3× rated current for 12 ms to selectively blow downstream fuses — protecting the load without tripping the supply.
- Wide Input Range: Operates on 85–264 VAC globally, eliminating the need for voltage selection switches.
- Active Power Factor Correction (PFC): Reduces harmonic distortion and lowers energy costs in industrial installations.
- Parallel Operation: Supports redundant configurations (1+1 or N+1) for mission-critical uptime requirements.
- Integrated Signaling: Relay output and LED indicators provide real-time status for SCADA and PLC integration.
- Compact DIN Rail Footprint: 60 mm wide — optimized for space-constrained control cabinets.
- Extended Temperature Range: Rated to −25 °C / +70 °C for harsh industrial and outdoor enclosure use.
Typical Applications
- PLC and DCS control panel power distribution
- Factory automation and machine control systems
- Building automation (BMS/HVAC control panels)
- Railway and transportation signaling cabinets
- Oil & gas field instrumentation panels
- Redundant 24 VDC bus architectures
- Process control and SCADA infrastructure
Compatible System Components
- Redundancy Modules: Phoenix Contact QUINT-ORING/24DC/2X20/1AC (for 1+1 redundancy)
- UPS Buffer Modules: QUINT-BUFFER/24DC/40 — seamless bridging during mains failure
- Current Monitoring: QUINT-CHECK/24DC/2X10 — per-channel load monitoring
- Terminal Blocks: Phoenix Contact PTFIX, CLIPLINE, and UK series
- DIN Rail: EN 60715 TH 35 × 7.5 mm or TH 35 × 15 mm
Global Sourcing & Shipping Capabilities
Konmask.com maintains stock and sourcing pipelines for Phoenix Contact QUINT series across multiple regions. We support:
- Domestic (China): Same-day dispatch from Fujian warehouse; SF Express / JD Logistics
- Asia-Pacific: 3–7 business days via DHL Express or EMS
- Europe & Americas: 5–10 business days via FedEx International Priority or UPS Worldwide
- Middle East & Africa: Available on request — contact us for freight quotation
- Customs & Export Documentation: Commercial invoice, packing list, CO, and HS code 8504.40 provided as standard
- Minimum Order: 1 unit; volume pricing available for orders ≥ 5 units
Certifications & Compliance Statement
The QUINT-PS/1AC/24DC/20 carries the following certifications as issued by Phoenix Contact GmbH & Co. KG:
- CE (Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU)
- UL 508 Listed / cUL (Canada)
- GL (Germanischer Lloyd) — marine applications
- ATEX II 3 G Ex nA IIC T4 Gc — Zone 2 hazardous areas
- EAC (Eurasian Conformity)
- RoHS compliant
Konmask.com does not modify, relabel, or repackage OEM products. All units are supplied in original manufacturer packaging with intact seals.
How to Order
- Step 1: Add to cart and proceed to checkout, or contact us for a formal quotation (RFQ).
- Step 2: Specify required quantity, delivery address, and any documentation requirements (COC, test report, etc.).
- Step 3: Receive order confirmation with estimated lead time and tracking information within 1 business day.
- Step 4: Goods dispatched with full shipping documentation; tracking number provided via email.
For bulk orders, OEM project pricing, or urgent requirements, contact our B2B team directly:
📧 support@konmask.com | 📞 +0086 19859288691
Authenticity & Trust FAQ
Q: How do I know this is a genuine Phoenix Contact product?
A: Every unit is sourced from documented supply chains. We provide procurement traceability records and can supply a Certificate of Conformity on request. Serial numbers can be verified directly with Phoenix Contact.
Q: Do you offer a warranty?
A: Yes. We offer a 12-month warranty against manufacturing defects, aligned with Phoenix Contact’s standard warranty terms. DOA (Dead on Arrival) units are replaced at no cost within 7 days of receipt.
Q: Can I request a test report before purchase?
A: Yes. Pre-shipment test reports are available for orders ≥ 3 units. Contact us to arrange.
Q: What if the item is out of stock?
A: We maintain active sourcing relationships. Lead time for restocking is typically 5–15 business days. Contact us to reserve allocation or discuss alternatives.
Q: Do you accept returns?
A: Unused items in original packaging may be returned within 30 days. Return shipping is the buyer’s responsibility unless the item is defective.
