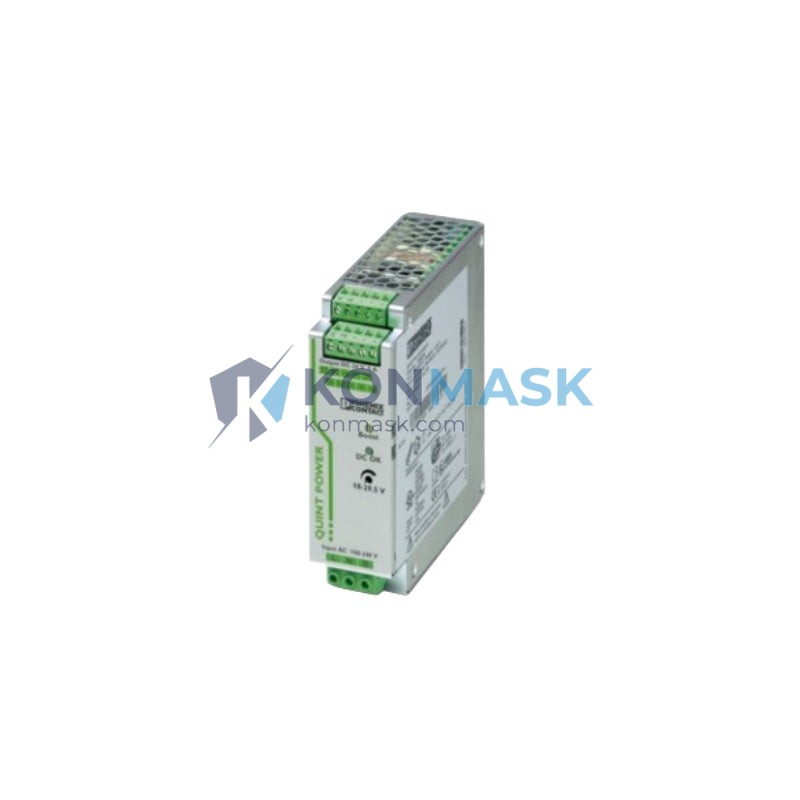

Phoenix Contact QUINT-PS/1AC/24DC/5 – 24VDC 5A Single-Phase DIN Rail Power Supply | QUINT-PS Series
Engineering Background
The QUINT-PS series represents Phoenix Contact’s flagship line of industrial power supplies, engineered for mission-critical automation environments where voltage stability and load response are non-negotiable. Designed and manufactured in Germany, the QUINT-PS/1AC/24DC/5 (Article No. 2866750) delivers 24 VDC at 5 A continuous output from a single-phase AC input, making it the standard choice for compact control cabinets, distributed I/O panels, and PLC power rails across process and factory automation.
Product Positioning
This unit is purpose-built for procurement engineers who require a certified, field-proven power supply with predictable performance under dynamic load conditions. The integrated Static Boost (SFB) technology delivers up to 200% rated current for 12 ms to ensure reliable startup of capacitive and motor loads — eliminating nuisance tripping that plagues standard SMPS units in industrial deployments.
Complete Technical Specifications
- Part Number / SKU: QUINT-PS/1AC/24DC/5 | Article No. 2866750
- Manufacturer: Phoenix Contact GmbH & Co. KG
- Series: QUINT-PS
- Input Voltage: 85 – 264 VAC (single-phase), 90 – 350 VDC
- Input Frequency: 45 – 65 Hz
- Output Voltage: 24 VDC (adjustable 18 – 29.5 VDC)
- Output Current: 5 A continuous
- Output Power: 120 W
- SFB Peak Current: ≥ 10 A (200% for 12 ms)
- Efficiency: ≥ 91% at full load
- Ripple & Noise: ≤ 50 mV peak-to-peak
- Hold-up Time: ≥ 20 ms at 24 VDC / 5 A
- Mounting: DIN rail (EN 60715 TH35)
- Housing Width: 45 mm
- Protection Class: IP20
- Operating Temperature: -25 °C to +70 °C
- Storage Temperature: -40 °C to +85 °C
- Relative Humidity: 5 – 95% (non-condensing)
- MTBF: > 500,000 h (IEC 61709, SN 29500)
- Weight: approx. 1,600 g
- Certifications: CE, UL 508, cULus, GL, ATEX Zone 2, IECEx
- Country of Origin: Germany
Proven Application Environments
- PLC and DCS control panel power rails (Siemens S7, Allen-Bradley, Schneider Modicon)
- Distributed I/O and fieldbus segment power (PROFIBUS, PROFINET, EtherNet/IP)
- Process automation cabinets in oil & gas, chemical, and water treatment plants
- Machine tool and packaging line control systems
- Railway and transportation signaling panels (EN 50155 environments)
- Offshore and marine control systems (GL certified)
- Hazardous area Zone 2 installations (ATEX / IECEx)
Engineering Advantages
- SFB Technology: 200% peak current for 12 ms ensures reliable startup of inductive and capacitive loads without oversizing the PSU
- Wide Input Range: 85–264 VAC universal input eliminates the need for separate SKUs across global installations
- Active Power Factor Correction (PFC): PF > 0.99 reduces harmonic distortion on facility power infrastructure
- Parallel Operation: Supports redundant N+1 configurations with optional decoupling modules
- Signaling Output: Potential-free relay contact for remote monitoring of DC OK status
- Adjustable Output: 18–29.5 VDC trim range accommodates long cable runs and voltage-drop compensation
- Compact 45 mm Width: Maximizes usable DIN rail space in space-constrained enclosures
System Architecture & Signal Flow
AC mains input → EMC input filter (Class B) → Bridge rectifier & PFC stage → High-frequency PWM converter (LLC topology) → Output rectification & filtering → 24 VDC output bus. The integrated SFB circuit monitors output current in real time; upon detecting a load surge, it temporarily boosts output current to 200% rated value for up to 12 ms before reverting to continuous-rated operation. The DC OK relay (NO contact, 24 VDC / 1 A) closes when output voltage is within ±15% of set point, providing a hardware-level health signal to the PLC or SCADA system.
Sourcing & Quality Verification
- All units sourced through authorized Phoenix Contact distribution channels or verified OEM surplus with full traceability
- Each unit inspected for label authenticity, housing integrity, and functional output voltage prior to dispatch
- Original factory packaging, documentation, and CE/UL markings preserved
- Batch and date codes available upon request for quality records
- Certificate of Conformity (CoC) and test reports available for regulated industries
Procurement Process
- Lead Time: In-stock units ship within 1–3 business days; contact us for volume availability
- MOQ: 1 unit; volume pricing available for orders ≥ 5 units
- Payment: T/T, PayPal, credit card; net terms available for qualified accounts
- Export: Worldwide shipping; export documentation (commercial invoice, packing list, CoC) included
- RFQ: Submit BOM or part list to support@konmask.com for consolidated quotation
Technical FAQ
Q: Can this unit operate in parallel for redundancy?
A: Yes. Use Phoenix Contact’s redundancy modules (e.g., QUINT-ORING) to achieve N+1 redundant configurations without load-sharing imbalance.
Q: Is the output voltage adjustable?
A: Yes, via the front-panel potentiometer, output can be trimmed from 18 to 29.5 VDC to compensate for cable voltage drop.
Q: What does the DC OK relay signal?
A: The potential-free NO relay contact closes when output voltage is within ±15% of the set point, providing a hardware health signal to PLC digital inputs or SCADA systems.
Q: Is this unit suitable for ATEX Zone 2 installations?
A: Yes, the QUINT-PS/1AC/24DC/5 carries ATEX and IECEx certification for Zone 2 hazardous area use when installed per the applicable installation guidelines.
Q: What is the warranty?
A: Phoenix Contact standard warranty applies (3 years). Konmask.com provides additional sourcing guarantee — contact us for details.
