SFC Chromatography Solution – JASCO SCF-VCH-BP | 6-Valve Change Unit Series
Where This Product Is Used

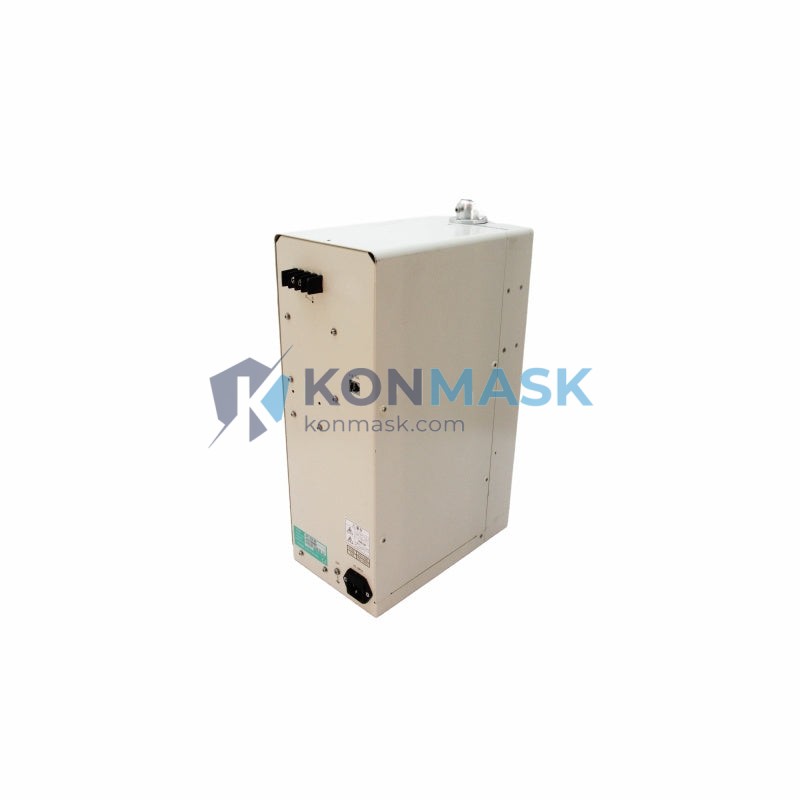

The JASCO SCF-VCH-BP TAB22A-4/PURF2-LF 6-Valve Change Unit is a precision flow-path switching component engineered for Supercritical Fluid Chromatography (SFC) and Supercritical Fluid Extraction (SFE) systems. It is deployed in environments where rapid, reproducible column or solvent switching is critical to throughput and analytical accuracy.
- Pharmaceutical R&D labs – chiral separation, impurity profiling, and method development
- Natural product extraction – CO₂-based extraction of cannabinoids, terpenes, and botanical compounds
- Food & beverage QC – fat-soluble vitamin and lipid analysis under supercritical conditions
- Environmental testing labs – trace contaminant screening with minimal solvent waste
- Chemical synthesis support – online reaction monitoring in flow chemistry setups
- Academic & government research – high-pressure fluid system studies requiring multi-column configurations
Technical Specifications
| Attribute | Value |
|---|---|
| Manufacturer | JASCO |
| Part Number / SKU | SCF-VCH-BP TAB22A-4/PURF2-LF W/ 2L81-000001-14 2L81-050039-41 396uW, 4022.454.71615 5517D-C19 6 |
| Product Type | 6-Valve Change Unit |
| Series | SCF-VCH-BP (SFC Valve Change – Back Pressure) |
| Valve Configuration | 6-port switching valve |
| Actuator Type | TAB22A-4 (pneumatic/electric actuator) |
| Seal Material | PURF2-LF (PTFE-based, low-friction) |
| Sub-Assembly Refs | 2L81-000001-14 / 2L81-050039-41 |
| Power Rating | 396 µW |
| Catalog Reference | 4022.454.71615 / 5517D-C19 |
| Weight | 2.6 kg |
| Compatible Platform | JASCO SFC-4000 / SFE series |
| Operating Medium | Supercritical CO₂ with co-solvent modifier |
Why Engineers Specify This Model
- Zero dead-volume switching – the TAB22A-4 actuator delivers repeatable, leak-free valve actuation at SFC operating pressures (up to 400 bar)
- PURF2-LF seal chemistry – low-friction PTFE formulation resists CO₂ swelling and organic modifier degradation, extending service intervals
- Drop-in OEM compatibility – direct replacement for JASCO SFC-4000 series without system reconfiguration
- Validated sub-assemblies – 2L81-000001-14 and 2L81-050039-41 are factory-matched and tested as a unit
- Ultra-low power draw – 396 µW standby rating supports 24/7 automated lab operation without thermal interference
- Traceable catalog references – dual catalog codes (4022.454.71615 / 5517D-C19) simplify procurement across global JASCO distributors
Complete System Bill of Materials
This unit ships as a validated assembly. Confirmed sub-components:
- SCF-VCH-BP valve body (6-port, back-pressure rated)
- TAB22A-4 actuator module
- PURF2-LF rotor seal set
- Sub-assembly 2L81-000001-14 (valve drive linkage)
- Sub-assembly 2L81-050039-41 (position sensor / feedback board)
- 5517D-C19 connector harness
- Factory test certificate (396 µW power validation)
Contact us to source individual sub-assemblies or complementary SFC system components.
Compliance & Industry Standards
- Designed for use in GMP-compliant pharmaceutical laboratories (21 CFR Part 11 compatible instrumentation)
- Compatible with ISO/IEC 17025 accredited analytical workflows
- Materials comply with RoHS Directive 2011/65/EU
- JASCO factory QC per ISO 9001:2015 manufacturing standards
- Pressure-rated components meet ASME / EN 13480 high-pressure fluid system guidelines
Quality Assurance & Sourcing
Konmask.com sources JASCO SFC components through verified industrial supply channels. Every unit undergoes:
- Visual and dimensional inspection against OEM drawings
- Label and serial number verification (catalog refs 4022.454.71615 / 5517D-C19)
- Functional continuity check on actuator and sensor harness
- Secure anti-static packaging for international shipment
We maintain traceability records for all JASCO parts. Documentation available upon request for regulated lab environments.
How to Source This Part
- Request a Quote – email support@konmask.com with your PO number or project reference
- Confirm Compatibility – share your JASCO SFC system model; our engineers will verify fit
- Lead Time – in-stock units ship within 3–5 business days; special-order lead times quoted individually
- Payment & Terms – T/T, PayPal, and trade credit available for qualified accounts
- Global Shipping – DHL / FedEx express to US, EU, JP, AU, and Southeast Asia
Application-Specific FAQ
Q: Is this unit compatible with the JASCO SFC-4000 series?
A: Yes. The SCF-VCH-BP is the OEM valve change unit for the SFC-4000 platform. Confirm your system’s back-pressure regulator configuration before ordering.
Q: Can the PURF2-LF seals handle methanol/ethanol co-solvents?
A: Yes. PURF2-LF is rated for common SFC modifiers including MeOH, EtOH, IPA, and ACN at standard SFC operating temperatures (30–60 °C).
Q: What is the expected service life of the valve seals?
A: Under normal SFC operating conditions (≤300 bar, ≤60 °C), PURF2-LF seals typically achieve 50,000–100,000 actuation cycles before replacement is recommended.
Q: Do you supply the 2L81-000001-14 and 2L81-050039-41 sub-assemblies separately?
A: Yes, subject to availability. Contact us with your specific sub-assembly requirement.
Q: Is a calibration certificate included?
A: A factory test certificate is included. Third-party calibration can be arranged upon request for ISO 17025 environments.
