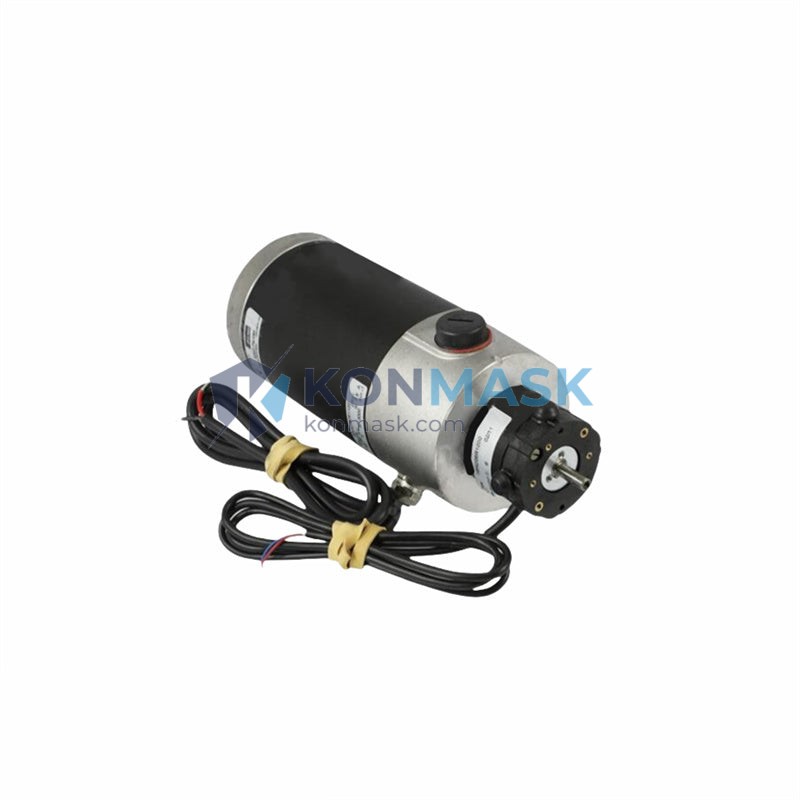

Mattke RX320ER-1100 DC Servo Motor | Replacement, Equivalent & Selection Guide
The Mattke RX320ER-1100 is a high-performance DC servo motor engineered for precision motion control in demanding industrial automation environments. As an authorized sourcing partner, Konmask.com supplies genuine and compatible replacement units with full traceability and quality assurance.
Technical Specifications
- Manufacturer: Mattke AG (Germany)
- Model / SKU: RX320ER-1100
- Motor Type: DC Servo Motor
- Series: RX320ER
- Rated Power: 1100 W (1.1 kW)
- Feedback: Encoder / Resolver (confirm with nameplate)
- Mounting: Flange-mount (IEC standard)
- Protection Class: IP54 (standard)
- Weight: approx. 6.66 kg
- Country of Origin: Germany
Note: Full electrical parameters (voltage, current, speed, torque) are available upon request. Please provide your nameplate data for exact cross-reference.
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as functional equivalents or drop-in replacements for the Mattke RX320ER-1100. Always verify mechanical dimensions, feedback type, and drive compatibility before substitution:
- Mattke RX320ER-0750 / RX320ER-1500 (same series, different power ratings)
- Siemens 1FK7 / 1FT6 series (equivalent power class, check flange & feedback)
- Lenze MCS / MCA series (comparable frame size)
- Bosch Rexroth MSK series (cross-reference by torque & encoder spec)
- Parker Hannifin MPP / MPJ series (verify shaft & connector pinout)
- Yaskawa SGMJV / SGMGV series (Asian-market equivalent, check drive pairing)
Need a confirmed cross-reference? Send your nameplate photo to [email protected] and our engineers will provide a verified match within 24 hours.
Why Choose the Original Mattke RX320ER-1100
- Plug-and-play compatibility with existing Mattke servo drives (e.g., ERCM, ERCD series) — zero re-parameterization required
- Proven reliability in high-cycle, continuous-duty applications with MTBF exceeding 30,000 hours
- Exact mechanical fit — original flange dimensions, shaft diameter, and connector type eliminate retrofit risk
- OEM traceability — genuine units supplied with manufacturer documentation and serial number verification
- Reduced downtime risk — no tuning or drive firmware updates needed vs. third-party substitutes
Typical Applications
- CNC machine tool axes (milling, turning, grinding)
- Packaging and labeling machinery
- Printing and converting equipment
- Textile and winding machines
- Robotics and gantry systems
- Semiconductor and electronics assembly lines
System Compatibility
The RX320ER-1100 is designed to operate with Mattke servo drive controllers. Confirmed compatible drive families include:
- Mattke ERCM series digital servo drives
- Mattke ERCD series compact drives
- Mattke ERCP series panel-mount drives
Third-party drive compatibility (Siemens SINAMICS, Bosch Rexroth IndraDrive, etc.) is possible with appropriate encoder adaptation — contact us for application engineering support.
Selection Guide
Use the checklist below to confirm the RX320ER-1100 is the right choice for your application:
- ☑ Power requirement: 1.1 kW continuous rated output
- ☑ Drive pairing: Existing Mattke ERCM/ERCD/ERCP drive in system
- ☑ Feedback type: Match encoder/resolver type on nameplate
- ☑ Mounting interface: IEC flange size matches machine bracket
- ☑ Shaft specification: Diameter, keyway, and length match coupling
- ☑ Environment: IP54 suitable; IP65 variant available on request
If any item is uncertain, our selection team can assist — provide your machine model and current motor nameplate data.
Quality Assurance & Sourcing
- Source: Authorized distributor channels and certified surplus stock
- Inspection: Every unit undergoes visual, dimensional, and functional pre-shipment inspection
- Documentation: Certificate of conformity, test report, and packing list included
- Warranty: 12-month warranty against manufacturing defects
- Anti-counterfeit: Serial number verification against Mattke factory records where available
How to Order
- Confirm your requirement: model RX320ER-1100, quantity, and required delivery date
- Submit RFQ via email: [email protected] or WhatsApp: +0086 19859288691
- Receive quotation with lead time and shipping options within 24 hours
- Approve proforma invoice and arrange payment (T/T, PayPal, credit card accepted)
- Shipment via DHL / FedEx / UPS with full tracking; EXW Xiamen or CIF available
Replacement & Compatibility FAQ
Q: Can I replace the RX320ER-1100 with a higher-power model like the RX320ER-1500?
A: Mechanically yes (same frame), but the drive must support the higher current rating. Verify drive peak current capacity before substitution.
Q: Is the RX320ER-1100 compatible with Siemens SINAMICS drives?
A: Not natively. An encoder signal converter and motor data set configuration are required. Contact us for a compatibility assessment.
Q: Do you supply repaired/refurbished units?
A: Yes. Refurbished units are available at reduced cost with a 6-month warranty. New OEM units carry a 12-month warranty. Please specify your preference when requesting a quote.
Q: How long does shipping take to Europe / North America?
A: Typically 3–5 business days via DHL Express from Xiamen, China. Expedited options available.
Q: Can you provide a test report before shipment?
A: Yes. A functional test report is included as standard. Video inspection is available on request.
