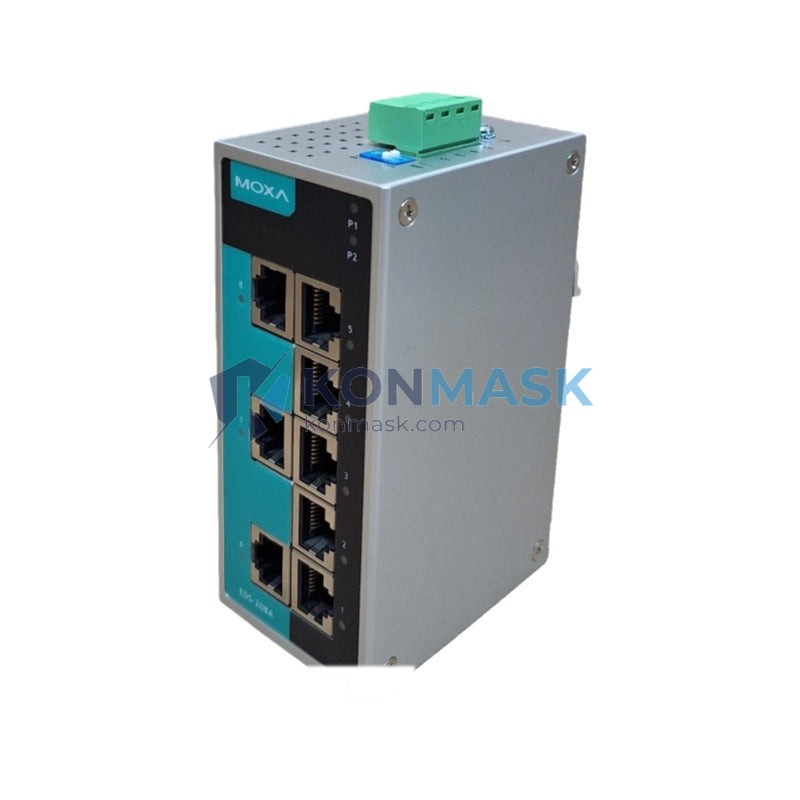

Moxa EDS-208A – 8-Port Unmanaged Industrial Ethernet Switch | EDS Series Platform
Engineering Background
The EDS-208A is part of Moxa’s proven EDS (Ethernet Device Server) Series, engineered specifically for harsh industrial environments where reliability, compact form factor, and plug-and-play simplicity are non-negotiable. Moxa, a global leader in industrial networking since 1987, designed the EDS-208A to meet the demanding requirements of factory automation, process control, and critical infrastructure deployments.
Product Positioning
Targeted at procurement engineers and system integrators who require a cost-effective, zero-configuration Ethernet switch for PLC networks, SCADA backbones, and machine-level connectivity. The EDS-208A delivers enterprise-grade port density in a DIN-Rail-mountable enclosure rated for continuous industrial operation.
Complete Technical Specifications
- Model: EDS-208A
- Manufacturer: Moxa Technologies
- Series: EDS (Ethernet Device Server) Series
- Switch Type: Unmanaged

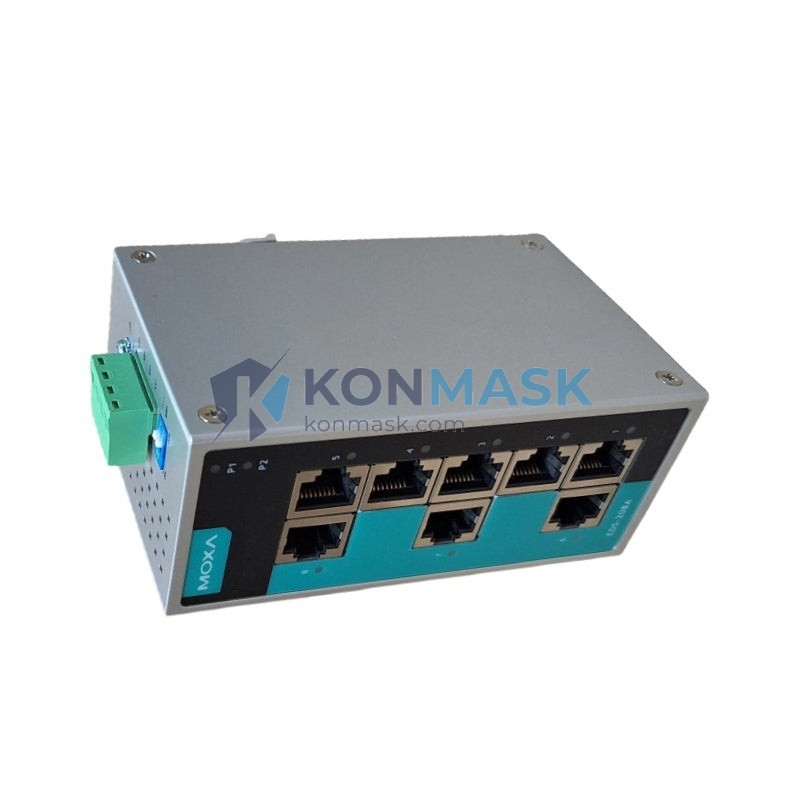

- Total Ports: 8 × 10/100BaseT(X) RJ45 auto-negotiation, auto MDI/MDI-X
- Transmission Speed: 10/100 Mbps per port
- Switching Fabric: Store-and-forward
- MAC Table Size: 1K
- Operating Temperature: -10 to 60°C (14 to 140°F)
- Storage Temperature: -40 to 85°C
- Operating Humidity: 5 to 95% RH (non-condensing)
- Power Input: 12–45 VDC (redundant dual inputs)
- Power Consumption: Max. 2.75 W
- Mounting: DIN-Rail (standard 35 mm)
- Dimensions (W×D×H): 36 × 105 × 75 mm
- Weight: 175 g
- Protection: IP30 enclosure
- LED Indicators: PWR1, PWR2, FAULT, per-port Link/Activity
- MTBF: 1,319,864 hours (Telcordia SR332)
- Certifications: CE, FCC Class A, UL 508, cUL, DNV GL
- EMC: EN 61000-6-2, EN 61000-6-4
- Shock & Vibration: IEC 60068-2-27, IEC 60068-2-6
- Country of Origin: Taiwan
- HS Code: 8517.62.00
Proven Application Environments
- Factory Automation: PLC-to-HMI Ethernet backbone on machine lines
- Process Control: DCS field-level device networking in chemical and petrochemical plants
- Power Utilities: Substation automation and SCADA edge connectivity
- Transportation: Trackside and wayside Ethernet distribution in rail systems
- Oil & Gas: Remote wellhead and pipeline monitoring networks
- Building Automation: BMS controller and sensor network aggregation
- Marine & Offshore: DNV GL-certified for shipboard Ethernet distribution
Engineering Advantages
- Zero Configuration: True plug-and-play — no IP address, no CLI, no commissioning time
- Redundant Power Inputs: Dual 12–45 VDC inputs with fault relay output for power redundancy without additional hardware
- Ultra-Compact DIN-Rail Form Factor: 36 mm wide — fits in tight control cabinet spaces alongside PLCs and I/O modules
- Wide Temperature Range: -10 to 60°C continuous operation without forced cooling
- High MTBF: 1.32 million hours — minimizes unplanned downtime in 24/7 production environments
- Industrial EMC Compliance: Hardened against electrical noise from VFDs, servo drives, and high-current switching
- Auto MDI/MDI-X: Eliminates crossover cable errors during field installation
System Architecture & Signal Flow
The EDS-208A operates as a Layer 2 store-and-forward switch. Incoming Ethernet frames are buffered, error-checked (CRC), and forwarded to the destination port based on the 1K MAC address table. Auto-negotiation on all 8 RJ45 ports allows mixed 10/100 Mbps device connections without manual speed configuration. The dual-input power architecture accepts two independent DC sources; if the primary source fails, the secondary takes over instantly with a fault relay signal output to the supervisory system. The IP30-rated steel enclosure and DIN-Rail clip allow direct mounting inside IEC 60439-compliant control panels.
Sourcing & Quality Verification
- Source: Konmask.com sources EDS-208A units directly from Moxa-authorized distribution channels

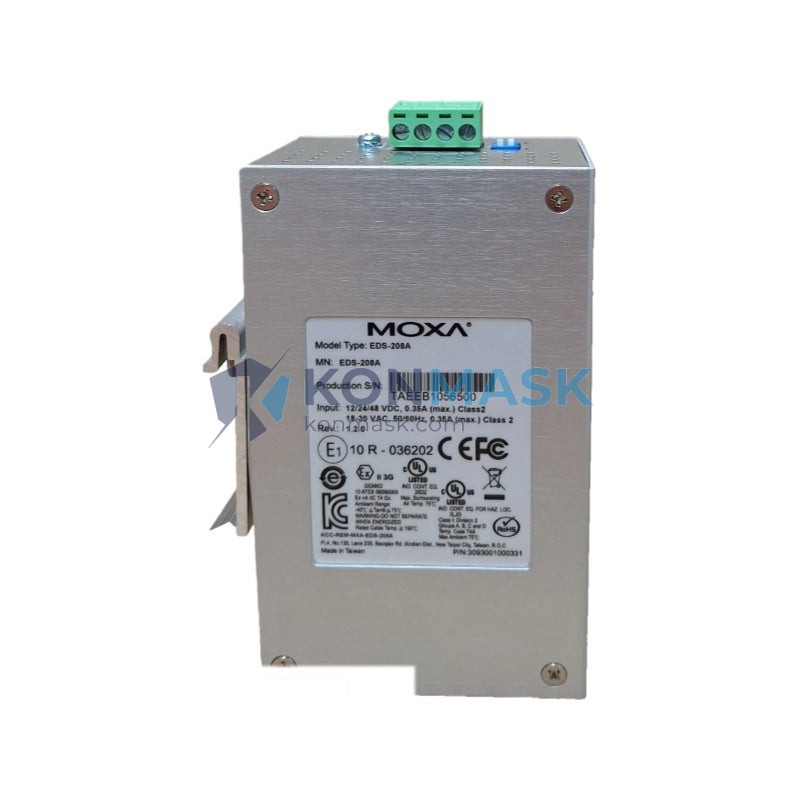

- Authenticity: Every unit ships with original Moxa packaging, serial number, and CE/UL certification markings
- Inspection: Pre-shipment functional test — all 8 ports verified for link negotiation and LED operation
- Documentation: Moxa datasheet, quick installation guide, and warranty card included
- Warranty: 5-year Moxa limited hardware warranty
- Lead Time: In-stock units ship within 1–3 business days; contact us for volume availability
Procurement Process
- Submit your BOM or RFQ to support@konmask.com or call +0086 19859288691
- Receive a formal quotation with unit price, lead time, and shipping options within 24 hours
- Confirm PO — we accept T/T bank transfer, PayPal, and major credit cards
- Shipment with tracking number and commercial invoice provided same day
- Post-delivery technical support available via email and phone
Technical FAQ
Q: Does the EDS-208A support VLANs or QoS?
A: No. As an unmanaged switch, it does not support VLANs, QoS, or SNMP. For managed features, consider the Moxa EDS-308 or EDS-510A series.
Q: Can it operate at -40°C?
A: The standard EDS-208A is rated to -10°C. For -40°C operation, specify the EDS-208A-T wide-temperature variant.
Q: What is the maximum cable length per port?
A: 100 m (328 ft) per IEEE 802.3 standard using Cat5e or better UTP/STP cable.
Q: Is the EDS-208A compatible with Profinet or EtherNet/IP?
A: Yes. As a transparent Layer 2 switch, it is fully compatible with Profinet, EtherNet/IP, Modbus TCP, and all standard industrial Ethernet protocols.
Q: Does it support fiber uplink?
A: The base EDS-208A is all-copper RJ45. Fiber port variants (SC/ST connectors, single/multi-mode) are available in the EDS-208A-MM-SC and EDS-208A-SS-SC models — contact us for availability.
