Industrial Robot Automation Solution – Mitsubishi Electric CR750-02VQ-1 | MELFA Series
Where This Product Is Used

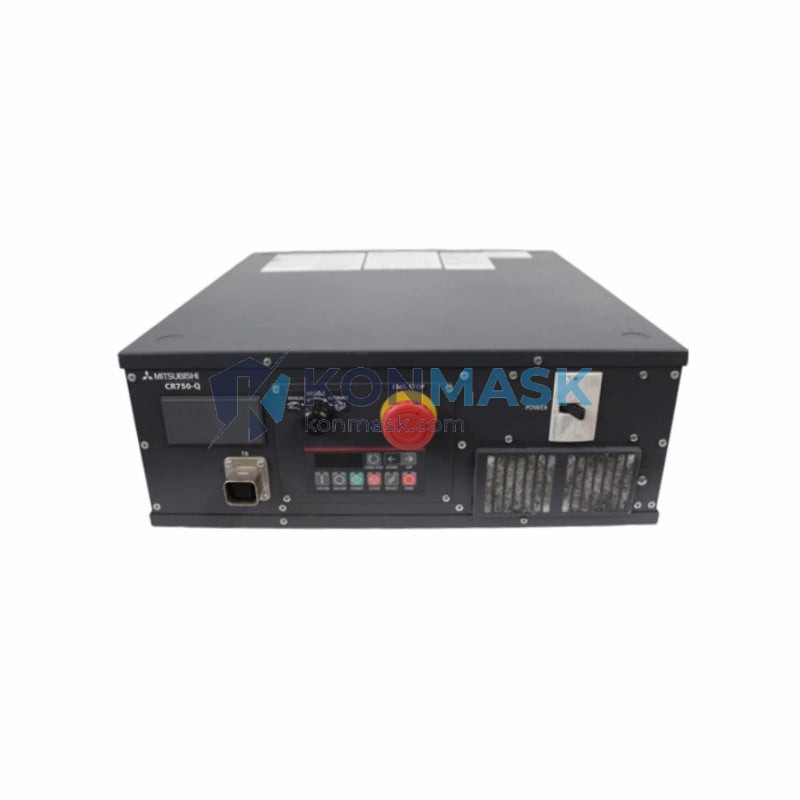

The Mitsubishi Electric CR750-02VQ-1 is a dedicated robot controller designed for the MELFA RV/RH series of industrial robots. It is widely deployed across demanding manufacturing environments where precision, speed, and reliability are non-negotiable:
- Automotive Assembly Lines – Spot welding, body panel handling, and sub-assembly automation requiring sub-millimeter repeatability.
- Electronics Manufacturing – PCB pick-and-place, component insertion, and precision soldering in cleanroom-compatible setups.
- Food & Beverage Packaging – High-speed palletizing, case packing, and hygienic product handling.
- Pharmaceutical & Medical Device Production – Sterile environment dispensing, vial handling, and inspection automation.
- Metal Fabrication – Arc welding, laser cutting path control, and deburring operations.
- Logistics & Warehousing – Goods-to-person picking, bin sorting, and conveyor integration.
Technical Specifications
| Part Number | CR750-02VQ-1 |
| Brand | Mitsubishi Electric |
| Series | MELFA CR750 |
| Compatible Robots | MELFA RV-2F / RV-4F / RV-7F / RH series |
| Control Axes | Up to 6 axes (expandable with additional I/O) |
| Programming Language | MELFA-BASIC VI / RT ToolBox3 |
| Communication Interfaces | Ethernet (100BASE-TX), RS-232C, USB |
| I/O Points | 32 DI / 32 DO (expandable) |
| Power Supply | 3-phase AC 200–230V, 50/60Hz |
| Enclosure Rating | IP20 (panel-mount) |
| Operating Temperature | 0°C to 40°C |
| Weight | Approx. 12.5 kg |
| Safety Standards | ISO 10218-1, IEC 61508 SIL2 |
Why Engineers Specify This Model
- Compact Cabinet Footprint – The CR750 series features a slim, space-saving design that integrates cleanly into standard control panels and robot cells without requiring dedicated floor space.
- High-Speed Trajectory Control – Advanced interpolation algorithms deliver smooth, high-speed path execution critical for arc welding and precision assembly.
- Seamless PLC Integration – Native CC-Link IE Field and PROFINET support enables direct integration with Mitsubishi MELSEC PLCs and third-party automation systems.
- Intuitive Programming Environment – RT ToolBox3 software provides 3D simulation, offline programming, and real-time monitoring, reducing commissioning time significantly.
- Built-in Safety Architecture – Dual-channel safety circuits and SIL2-rated emergency stop functions meet modern collaborative and semi-collaborative cell requirements.
- Long Service Life – Mitsubishi Electric’s proven servo drive technology and robust component selection ensure multi-year MTBF in continuous production environments.
Complete System Bill of Materials
A typical MELFA robot cell using the CR750-02VQ-1 includes the following components:
- Mitsubishi MELFA RV/RH Series Robot Arm (e.g., RV-4F-D)
- CR750-02VQ-1 Robot Controller (this unit)
- RT ToolBox3 Programming Software License
- R32TB / R56TB Teaching Pendant
- Mitsubishi MELSEC iQ-R or iQ-F Series PLC (for cell coordination)
- CC-Link IE Field Network Master Module (e.g., RJ71GF11-T2)
- 24VDC Power Supply (for I/O circuits)
- Safety Relay Module / Safety PLC (e.g., MELSEC WS Series)
- Robot Cell Fencing & Light Curtain (ISO 13857 compliant)
- End-of-Arm Tooling (gripper, welding torch, or application-specific)
Compliance & Industry Standards
- ISO 10218-1 – Robots and robotic devices: Safety requirements for industrial robots
- IEC 61508 SIL2 – Functional safety of electrical/electronic/programmable electronic safety-related systems
- EN 60204-1 – Safety of machinery: Electrical equipment of machines
- CE Marking – Compliant for European market deployment
- RoHS Directive – Restriction of hazardous substances in electrical equipment
- UL Listed – Recognized for North American industrial installations
Quality Assurance & Sourcing
At Konmask.com, every Mitsubishi Electric CR750-02VQ-1 unit is:
- Sourced directly from authorized Mitsubishi Electric distributors or verified OEM supply chains.
- Inspected for physical integrity, firmware version, and label authenticity prior to dispatch.
- Shipped with original manufacturer packaging, documentation, and warranty card where applicable.
- Traceable via serial number to the original production batch for full supply chain transparency.
We maintain strict anti-counterfeit protocols and do not source from grey-market channels. All units are tested functional before shipment.
How to Source This Part
- Add to Cart – Click the purchase button above to place an order directly.
- Request a Quote – For volume orders (3+ units), contact us at [email protected] for preferential pricing.
- Lead Time – In-stock units ship within 1–3 business days. Ex-stock orders may require 2–6 weeks depending on manufacturer availability.
- Export & Customs – We handle export documentation, HS code classification (8537.10), and commercial invoices for international shipments.
- Technical Pre-Sales Support – Our engineers can verify compatibility with your existing robot arm model and cell architecture before purchase.
Application-Specific FAQ
Q: Is the CR750-02VQ-1 compatible with older MELFA RV-2AJ or RV-6S robots?
A: No. The CR750 series is designed for the current MELFA F-series (RV-2F, RV-4F, RV-7F, RV-13F, RH series). Legacy robots require CR1D or CR2D controllers. Please confirm your robot model before ordering.
Q: Can this controller be integrated with a Siemens S7 PLC via PROFINET?
A: Yes. The CR750 supports PROFINET IO as an optional communication protocol, enabling direct integration with Siemens, Beckhoff, and other PROFINET-compatible PLCs.
Q: What is the maximum cable length between the controller and robot arm?
A: Standard cable sets are available in 5m, 10m, and 15m lengths. Custom lengths up to 30m are available as special orders through Mitsubishi Electric.
Q: Does the CR750-02VQ-1 support force/torque sensor integration?
A: Yes, via the optional force sensor interface unit. This enables compliant assembly, insertion tasks, and contact detection applications.
Q: Is this unit suitable for cleanroom (ISO Class 5) environments?
A: The controller itself is rated IP20 and is designed for installation outside the cleanroom. The compatible MELFA RV-F cleanroom variants handle in-cell requirements.
