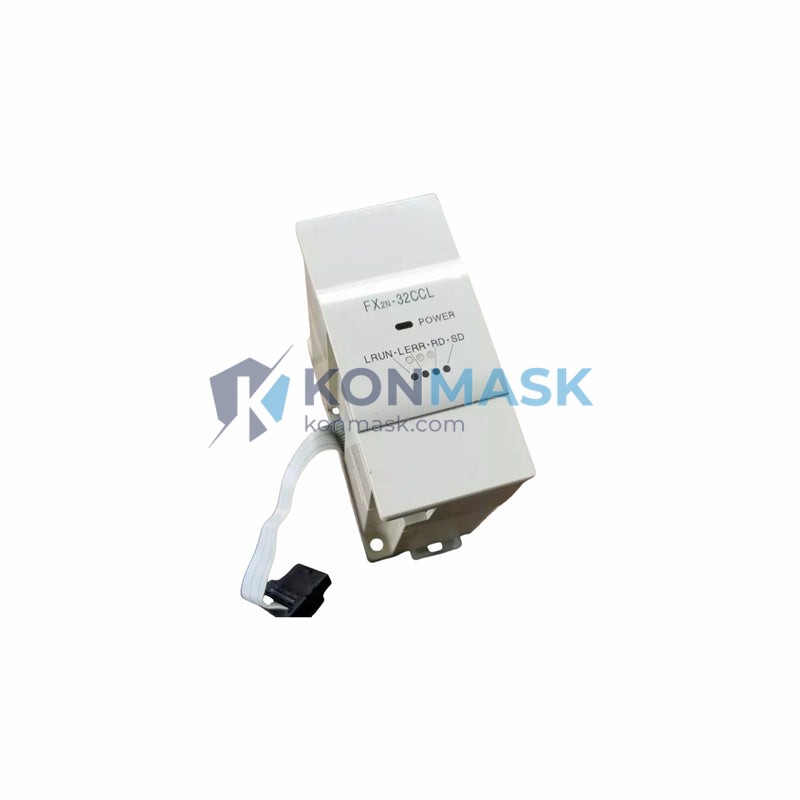

Genuine Mitsubishi FX2N-32CCL CC-Link Communication Module | MELSEC FX2N Series – Verified Source
The Mitsubishi FX2N-32CCL is a dedicated CC-Link remote device station communication module designed for the MELSEC FX2N series PLC. It enables high-speed, deterministic field-bus communication between the FX2N CPU and CC-Link master stations, supporting up to 32 points of remote I/O and remote register data exchange. At Konmask.com, every unit is sourced through verified supply channels and undergoes a rigorous 4-step quality inspection before dispatch.
Technical Specifications
- Model / SKU: FX2N-32CCL
- Series: MELSEC FX2N
- Manufacturer: Mitsubishi Electric Corporation
- Function: CC-Link Remote Device Station Communication Module
- CC-Link Version: Ver. 1.10
- Station Type: Remote Device Station
- Occupied Stations: 1 station
- Remote I/O Points: RX/RY — 32 points each
- Remote Register: RWr/RWw — 4 words each
- Transmission Speed: 156 kbps / 625 kbps / 2.5 Mbps / 5 Mbps / 10 Mbps (auto-detect)
- Power Supply: 5 VDC (supplied via FX2N expansion bus)
- Current Consumption: 90 mA (5 VDC)
- Weight: 850 g (packaged)
- Operating Temperature: 0 °C to 55 °C
- Storage Temperature: −20 °C to 70 °C
- Certifications: CE, UL, cUL
- Country of Origin: Japan
Our 4-Step Quality Verification Process
Every FX2N-32CCL unit shipped from Konmask.com passes through the following verification steps before it reaches you:
- Step 1 — Source Authentication: Units are procured exclusively from authorised distributors or verified OEM surplus channels. Supplier documentation is retained on file.
- Step 2 — Physical Inspection: Label integrity, housing condition, connector pins, and PCB markings are inspected against Mitsubishi Electric factory standards.
- Step 3 — Functional Bench Test: Each module is powered up and communication parameters are verified using a CC-Link master test fixture prior to packaging.
- Step 4 — Packaging & Documentation Check: Original or equivalent protective packaging is confirmed; serial numbers are logged and cross-referenced before shipment.
Key Features & Benefits
- Seamless CC-Link Ver. 1.10 integration with any FX2N CPU unit
- Supports up to 32 remote I/O points — ideal for distributed I/O expansion
- Auto baud-rate detection eliminates manual DIP-switch configuration errors
- Compact form factor mounts directly on the FX2N right-side expansion bus
- Reduces wiring complexity and installation time in multi-node CC-Link networks
- Genuine Mitsubishi Electric hardware — full compatibility with GX Works2 / GX Developer
Typical Applications
- Automotive assembly line distributed I/O control
- Food & beverage conveyor and packaging systems
- Semiconductor and electronics manufacturing equipment
- Building automation and HVAC control panels
- Water treatment and utility monitoring systems
- Machine tool and CNC peripheral communication
Compatible System Components
- Host CPU: FX2N-16M / 32M / 48M / 64M / 80M / 128M series
- CC-Link Master: QJ61BT11N, AJ61QBT11, A1SJ61QBT11
- Extension Cables: FX2N-CNV-BC (bus conversion unit for FX3U compatibility)
- Programming Software: GX Works2, GX Developer Ver. 8.0 or later
- Power Supply: FX2N-PSU-A (if external 5 V bus power is required)
Global Sourcing & Shipping Capabilities
Konmask.com ships the FX2N-32CCL worldwide from our warehouse in China. Standard lead times are 1–3 business days for in-stock units. Express DHL / FedEx / UPS options are available for urgent requirements. All shipments include a commercial invoice, packing list, and optional Certificate of Origin for customs clearance. We serve customers in North America, Europe, Southeast Asia, the Middle East, and beyond.
Certifications & Compliance Statement
The Mitsubishi FX2N-32CCL carries CE (EMC Directive 2014/30/EU), UL 508, and cUL certifications as issued by Mitsubishi Electric. Konmask.com does not modify, re-label, or alter any hardware. All units are supplied in their original manufactured state. Documentation supporting authenticity is available upon request for regulated procurement processes.
How to Order
- Online: Add to cart directly on this page — secure checkout via major credit cards, PayPal, and T/T bank transfer.
- Bulk / OEM Enquiry: Email support@konmask.com with your required quantity and delivery timeline for a volume quotation.
- Phone / WhatsApp: +0086 19859288691 — available Monday–Saturday, 09:00–18:00 CST.
- Lead Time: In-stock units ship within 1–3 business days; out-of-stock units sourced within 7–15 business days.
Authenticity & Trust FAQ
Q: How do I know the FX2N-32CCL is genuine?
A: Every unit passes our 4-step verification process (see above). We provide supplier documentation and bench-test records on request.
Q: Do you offer a warranty?
A: Yes — all units carry a 12-month warranty against manufacturing defects. DOA units are replaced or refunded within 7 days of receipt.
Q: Can I return the product if it is incompatible?
A: Unused, unopened units may be returned within 30 days. Please contact support@konmask.com to initiate a return.
Q: Are you an authorised Mitsubishi Electric distributor?
A: Konmask.com is an independent specialist reseller of industrial automation components. We source from authorised channels and verified OEM surplus. We are not an official Mitsubishi Electric authorised distributor.
Q: What if I need a datasheet or wiring diagram?
A: Technical documentation is available free of charge — email support@konmask.com with your model number.
