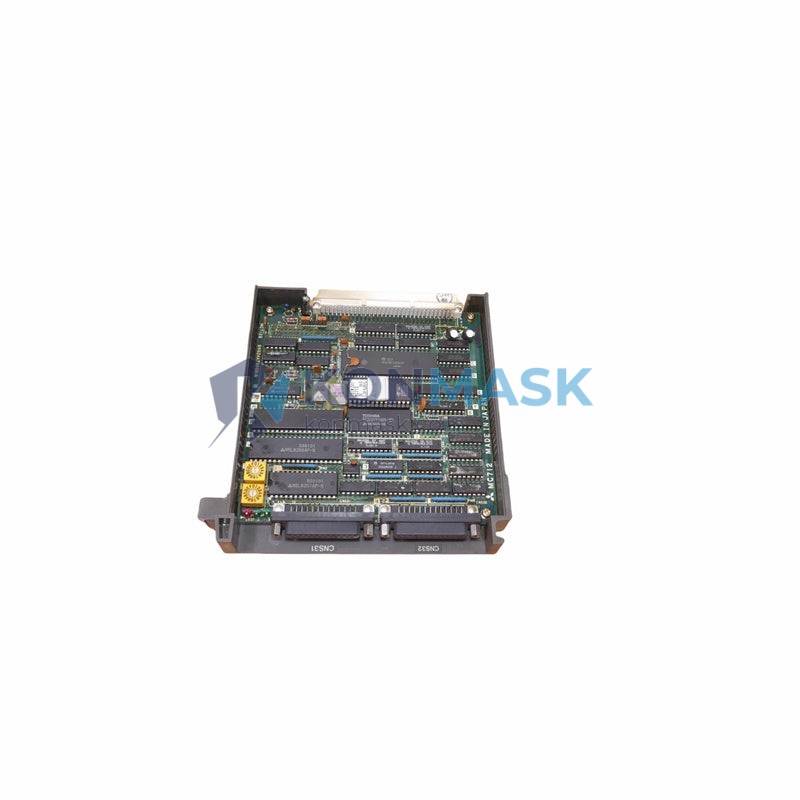

Mitsubishi MC712 Circuit Board – High-Performance CPU Module | MELSEC-A Series Platform
Engineering Background
The Mitsubishi MC712 is a dedicated circuit board module engineered for the MELSEC-A series programmable logic controller (PLC) platform — one of Mitsubishi Electric’s most widely deployed industrial automation architectures. Designed to meet the rigorous demands of continuous process control, discrete manufacturing, and infrastructure automation, the MC712 delivers deterministic scan-cycle performance and robust signal integrity in harsh industrial environments.
Product Positioning
As a core CPU/circuit board component within the MELSEC-A ecosystem, the MC712 is the preferred replacement and upgrade module for maintenance engineers managing legacy A-series installations. Its compatibility with existing backplane infrastructure minimizes downtime during board-level replacements, making it the go-to sourcing choice for MRO (Maintenance, Repair & Operations) procurement teams across automotive, chemical, food & beverage, and utilities sectors.
Complete Technical Specifications
| Part Number / SKU | MC712 |
| Manufacturer | Mitsubishi Electric Corporation |
| Series / Platform | MELSEC-A Series PLC |
| Module Type | CPU Circuit Board |
| Form Factor | PCB Board Module (Rack-mount compatible) |
| Weight | 4,460 g (approx.) |
| Shipping Requirement | Physical shipment required |
| Condition | New / Refurbished / Tested (specify at order) |
| Warranty | 12 months (Konmask standard) |
| Country of Origin | Japan |
| Compliance | CE, RoHS (verify per batch) |
Proven Application Environments
- Automotive Manufacturing – Body-in-white welding lines, paint shop conveyors, and press transfer systems running MELSEC-A PLCs
- Chemical & Petrochemical Plants – Continuous process control loops requiring high-reliability CPU boards with deterministic cycle times
- Food & Beverage Processing – Packaging lines, filling stations, and CIP (Clean-in-Place) systems with legacy A-series infrastructure
- Water & Wastewater Treatment – SCADA-integrated pump control and dosing systems
- Power Generation & Utilities – Substation automation and turbine governor control panels
- Semiconductor Fabrication – Cleanroom material handling and process equipment controllers
Engineering Advantages
- Drop-in Compatibility – Direct replacement for existing MELSEC-A series backplane slots; no rewiring or rack modification required
- Deterministic Scan Performance – Consistent CPU scan cycles critical for time-sensitive control sequences
- Industrial-Grade Reliability – Designed for 24/7 continuous operation in wide temperature and humidity ranges
- Reduced Downtime Risk – Board-level replacement strategy avoids full PLC chassis swap, cutting maintenance windows significantly
- Broad I/O Compatibility – Works with the full range of MELSEC-A digital, analog, and special function I/O modules
- Long-Term Availability – Konmask maintains strategic stock of legacy Mitsubishi modules to support extended plant lifecycles
System Architecture & Signal Flow
The MC712 circuit board operates as the central processing unit within the MELSEC-A series rack. Program execution follows a fixed scan cycle: Input Refresh → Program Execution → Output Refresh → Peripheral Service. The board interfaces directly with the A-series backplane bus, communicating with I/O modules via the internal bus protocol. External programming is performed via GX Developer or GX Works2 software over RS-232C or USB-RS232 adapter connections. For networked installations, the MC712 supports integration with MELSECNET/B and CC-Link communication modules mounted in adjacent rack slots.
Sourcing & Quality Verification
All Mitsubishi MC712 units supplied by Konmask.com undergo a structured incoming inspection protocol:
- Visual inspection for PCB damage, corrosion, and component integrity
- Functional power-on test with LED status verification
- Communication port continuity check
- Firmware version logging and documentation
- Anti-static packaging with humidity indicator card
Traceability documentation (test report, serial number log) is available upon request for quality-critical procurement.
Procurement Process
- Submit RFQ – Contact support@konmask.com with your required quantity, condition preference (new/refurbished), and delivery timeline
- Quotation & Lead Time Confirmation – Receive a formal quotation within 1 business day with stock availability and ETA
- Order Placement – Place order via this product page or via purchase order (PO) for B2B accounts
- Quality Inspection & Dispatch – Units are inspected, tested, and dispatched with full documentation within 2–5 business days
- Delivery & After-Sales Support – DHL / FedEx / SF Express international shipping; 12-month warranty with technical support
Technical FAQ
Q: Is the MC712 compatible with GX Works2 programming software?
A: Yes. The MC712 supports programming via GX Developer and GX Works2 (in GX Developer compatibility mode) over RS-232C interface.
Q: Can the MC712 replace other MELSEC-A CPU boards directly?
A: Compatibility depends on the specific A-series model and firmware version. Please provide your existing CPU part number when submitting an RFQ so our engineers can confirm cross-compatibility.
Q: What is the typical lead time for MC712 units?
A: In-stock units ship within 2–3 business days. For out-of-stock scenarios, lead time is typically 7–15 business days depending on sourcing channel.
Q: Do you provide a test report with each unit?
A: Yes. A functional test report is available upon request at no additional charge for orders of 1 unit or more.
Q: What shipping methods are available for international orders?
A: We ship via DHL Express, FedEx International Priority, and SF Express International. EXW, FOB, and CIF Incoterms are supported for B2B orders.
