CNC Machine Tool & Automation Solution — Mitsubishi MR-JE-70C | MELSERVO-JE Series
Where This Product Is Used

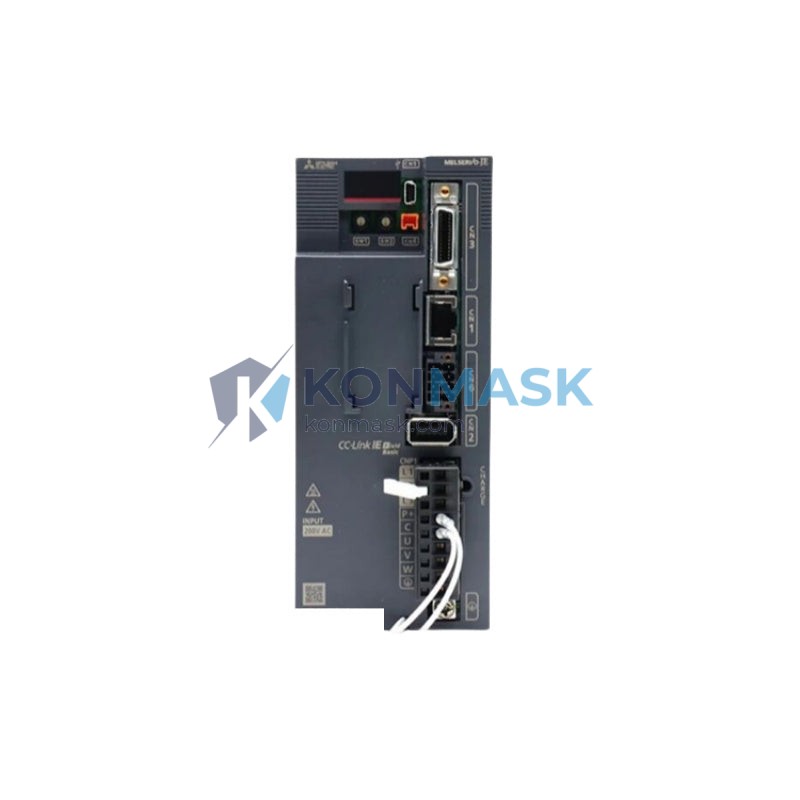

The Mitsubishi MR-JE-70C is a 750 W general-purpose AC servo amplifier from the MELSERVO-JE series, engineered for demanding motion-control applications across industrial automation. Typical deployment environments include:
- CNC Machine Tools — Precision axis control for milling, turning, and grinding centers requiring tight positioning repeatability.
- Packaging Machinery — High-speed pick-and-place, form-fill-seal, and labeling lines where synchronised multi-axis motion is critical.
- Semiconductor & Electronics Assembly — SMT placement machines, wafer-handling robots, and PCB drilling equipment demanding sub-micron accuracy.
- Conveyor & Material Handling — Indexing tables, palletisers, and automated guided vehicles (AGV) requiring smooth torque delivery.
- Printing & Converting — Web-tension control and register correction on flexographic and gravure presses.
- Robotics & Collaborative Arms — Joint-drive axes in SCARA and Cartesian robots integrated with Mitsubishi iQ-R / iQ-F PLC platforms.
Technical Specifications
| Model | MR-JE-70C |
| Series | MELSERVO-JE |
| Manufacturer | Mitsubishi Electric |
| Rated Output | 750 W (0.75 kW) |
| Control Mode | Position / Speed / Torque (switchable) |
| Command Interface | CC-Link IE Field Basic (Ethernet-based) |
| Encoder Compatibility | 22-bit high-resolution encoder (4,194,304 pulses/rev) |
| Input Voltage | Single-phase / Three-phase 200–240 V AC, 50/60 Hz |
| Dynamic Brake | Built-in |
| Regenerative Option | External regenerative resistor (MR-RB series) |
| Ambient Temperature | 0 °C to 55 °C (operating) |
| Protection Rating | IP20 |
| Dimensions (W×H×D) | 45 × 170 × 168 mm |
| Mass | Approx. 1.0 kg |
| Compliance | CE, UL, RoHS |
Why Engineers Specify This Model
- Compact 45 mm Width — Slim profile reduces control-cabinet footprint without sacrificing power density at 750 W.
- CC-Link IE Field Basic — Standard Ethernet wiring eliminates proprietary cabling; enables seamless integration with Mitsubishi iQ-R, iQ-F, and third-party controllers.
- 22-Bit Encoder Resolution — Over 4 million counts per revolution delivers exceptional positioning accuracy for precision machining and assembly tasks.
- One-Touch Tuning — Adaptive auto-tuning minimises commissioning time and compensates for load inertia changes during operation.
- Built-in Safety — STO (Safe Torque Off) function meets IEC 61800-5-2 SIL 2 / PLd requirements without external safety relays.
- Vibration Suppression — Advanced filter algorithms suppress mechanical resonance up to 4,500 Hz, extending machine service life.
Complete System Bill of Materials
A fully operational servo axis based on the MR-JE-70C typically requires the following components:
- Servo Amplifier: MR-JE-70C (this unit)
- Servo Motor: HG-KN73J or HG-SN72J (750 W, matched encoder)
- Encoder Cable: MR-J3ENCBL_M-A1-L / A2-L (specify length)
- Power Cable: MR-PWS1CBL_M-A1-L / A2-L
- Setup Software: MR Configurator2 (SW1DNC-MRC2, free download)
- USB Communication Cable: MR-J3USBCBL3M
- Regenerative Resistor (if required): MR-RB032 / MR-RB12
- EMC Filter (recommended): FR-BSF01 / FR-BLF
Compliance & Industry Standards
- CE Marking — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- UL 508C — Power Conversion Equipment (North American market)
- RoHS 2 (2011/65/EU) — Restriction of hazardous substances
- IEC 61800-5-2 — Functional safety: STO SIL 2 / PLd
- IEC 61800-3 — EMC requirements for variable-speed drive systems
- ISO 13849-1 — Safety of machinery, performance level assessment
Quality Assurance & Sourcing
Konmask.com sources Mitsubishi Electric servo products exclusively through authorised distribution channels and verified industrial surplus networks. Every unit offered is subject to the following quality process:
- Visual inspection for physical damage, corrosion, and counterfeit indicators
- Label and date-code verification against Mitsubishi Electric factory records
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator cards for transit protection
- Full traceability documentation available on request
How to Source This Part
- Add to Cart — Proceed directly if quantity and delivery timeline meet your project schedule.
- Request a Quote — Contact support@konmask.com for volume pricing, lead-time confirmation, or export documentation.
- Provide Your BOM — Send your complete bill of materials; our team will cross-reference availability and suggest compatible alternatives if required.
- Expedited Sourcing — For urgent plant-down situations, call +0086 19859288691 for priority handling.
Application-Specific FAQ
Q: Is the MR-JE-70C compatible with Mitsubishi iQ-F (FX5) PLCs?
A: Yes. Via CC-Link IE Field Basic over standard Ethernet, the MR-JE-70C integrates natively with the FX5U/FX5UC and iQ-R series without additional communication modules.
Q: Can this amplifier drive a motor larger than 750 W?
A: No. The MR-JE-70C is rated for matched 750 W servo motors only. For higher power requirements, consider the MR-JE-100C (1 kW) or MR-JE-200C (2 kW).
Q: What is the difference between MR-JE-C and MR-JE-A series?
A: The “-C” suffix denotes CC-Link IE Field Basic (Ethernet) command interface; the “-A” suffix uses pulse-train (analog/pulse) input. Specify based on your controller’s output type.
Q: Does the unit include a regenerative resistor?
A: The MR-JE-70C has a built-in regenerative circuit but does not include an external resistor. For applications with frequent deceleration or vertical axes, add an MR-RB series resistor.
Q: What warranty and after-sales support is available?
A: Konmask.com provides a standard inspection warranty. For OEM warranty claims, Mitsubishi Electric regional service centres handle repairs. Contact us for RMA procedures.
