Allen-Bradley MPL-B320P-MK24AA Servo Motor | Replacement, Equivalent & Selection Guide

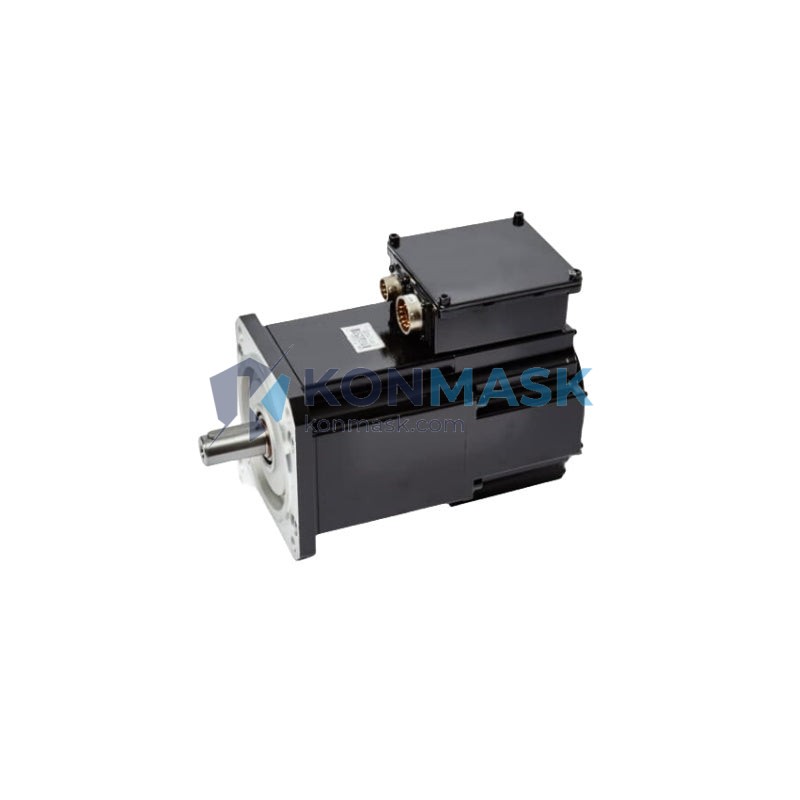

The Allen-Bradley MPL-B320P-MK24AA is a low-inertia, permanent-magnet AC servo motor from Rockwell Automation’s MPL (Bulletin MPL) series, engineered for high-dynamic motion control applications. Designed to pair seamlessly with Kinetix servo drives, it delivers precise torque, speed, and position control in demanding industrial environments. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Part Number: MPL-B320P-MK24AA
- Brand: Allen-Bradley / Rockwell Automation
- Series: MPL (Bulletin MPL) — Low-Inertia Servo Motor
- Frame Size: B (63 mm)
- Continuous Stall Torque: 0.96 N·m (8.5 lb·in)
- Peak Torque: 2.87 N·m (25.4 lb·in)
- Rated Speed: 5000 RPM
- Voltage: 460V AC, 3-Phase
- Feedback Device: Multi-turn absolute encoder (2048 ppr)
- Shaft: Smooth (no keyway) — indicated by “P” in model code
- Brake: No brake — indicated by “M” in model code
- Connector Style: SpeedTec DIN (rotating) — indicated by “K24”
- Insulation Class: F
- IP Rating: IP65 (shaft seal)
- Operating Temperature: 0°C to 40°C ambient
- Weight: Approx. 0.42 kg
- Mounting: IEC flange
Compatible Replacement & Equivalent Models
The following models are functionally equivalent or direct replacements for the MPL-B320P-MK24AA. Always verify electrical and mechanical compatibility before substitution.
- MPL-B320P-MK22AA — Same motor, standard DIN connector (non-rotating); drop-in mechanical replacement
- MPL-B320P-SK24AA — Keyed shaft variant; compatible if drive/coupling allows keyway
- MPL-B320P-HK24AA — With holding brake; use when axis requires power-off braking
- MPL-B320E-MK24AA — Extended temperature range (-20°C to 55°C); suitable for harsh environments
- VPL-B0631F-PJ12AA — Kinetix VP series equivalent; same frame, higher IP rating (IP67)
- TLY-A120T-HK64AA (Kollmorgen) — Cross-brand equivalent for legacy system retrofits
Note: Cross-brand replacements require drive parameter re-tuning. Contact Konmask for compatibility verification.
Why Choose the Original Model
- Plug-and-play with Kinetix drives: Native auto-configuration via ECAT/EtherNet/IP — no manual motor file loading required
- Proven reliability: Rockwell Automation’s MPL series has a multi-decade field track record in automotive, packaging, and semiconductor applications
- Full Logix integration: Seamless integration with Studio 5000 Logix Designer for motion axis configuration
- Genuine warranty: Original Allen-Bradley parts carry Rockwell Automation’s standard warranty and global service network support
- Traceability: Factory-serialized with full lot traceability — critical for regulated industries (pharma, food & beverage)
Typical Applications
- Packaging machinery (pick-and-place, form-fill-seal)
- Semiconductor wafer handling and precision positioning
- CNC machine tool axes (small-frame, high-speed spindle assist)
- Robotics joint drives and SCARA arm axes
- Printing and converting equipment
- Medical device assembly automation
System Compatibility
The MPL-B320P-MK24AA is compatible with the following Kinetix servo drive families:
- Kinetix 5700 (2198-Dxxx) — Recommended for new designs; EtherNet/IP motion
- Kinetix 5500 (2198-Hxxx) — Single-axis EtherNet/IP drive
- Kinetix 5100 (2198-Exxx) — Entry-level EtherNet/IP servo drive
- Kinetix 6500 (2094-BCxx) — Legacy integrated motion on EtherNet/IP
- Kinetix 6200 / 6000 — SERCOS III / analog interface (requires motor file)
Cable compatibility: Use 2090-XXNPMF-xxSxx series SpeedTec power cables and 2090-XXNFMF-xxSxx feedback cables for the K24 connector style.
Selection Guide
Use the MPL model number decoder to select the correct variant:
- MPL — Bulletin: Low-inertia permanent magnet servo motor
- B — Frame size: B = 63 mm
- 320 — Continuous stall torque code
- P — Shaft: P = Smooth (plain), S = Keyed
- M — Brake: M = No brake, H = Holding brake
- K24 — Connector: K24 = SpeedTec DIN rotating, K22 = SpeedTec DIN standard
- AA — Feedback: AA = Multi-turn absolute encoder (standard)
Torque-speed selection tip: For applications requiring >3000 RPM continuous, verify the motor’s torque-speed curve against your load profile. The MPL-B320P series maintains rated torque to 5000 RPM with appropriate drive bus voltage.
Quality Assurance & Sourcing
- Authenticity: All units sourced through authorized distribution channels or verified surplus with full inspection
- Inspection: Each unit undergoes visual, dimensional, and electrical continuity checks before shipment
- Packaging: Original OEM packaging preserved where available; anti-static and moisture-barrier packaging for all units
- Documentation: Certificate of conformance and test report available upon request
- Lead time: In-stock units ship within 1–3 business days; sourced units 5–15 business days
How to Order
- Confirm your exact part number: MPL-B320P-MK24AA
- Specify quantity and required delivery date
- Contact us via email or phone for pricing and availability
- Receive proforma invoice → confirm payment → shipment with tracking
For bulk orders (>5 units) or system-level procurement (motor + drive + cables), request a Kinetix system quote for bundled pricing.
Replacement & Compatibility FAQ
Q: Can I replace MPL-B320P-MK24AA with MPL-B320P-MK22AA?
A: Yes. The only difference is the connector rotation style (SpeedTec rotating vs. standard). Electrically and mechanically identical. Verify cable connector compatibility.
Q: Is this motor compatible with Kinetix 5700?
A: Yes. The Kinetix 5700 drive auto-recognizes MPL series motors via the feedback cable. No manual motor file configuration required.
Q: Can I use a third-party servo motor as a replacement?
A: Functionally possible with parameter re-tuning, but not recommended for safety-critical or regulated applications. Contact us for cross-brand equivalency analysis.
Q: What is the difference between MPL and VPL series?
A: VPL (Kinetix VP) motors offer higher IP rating (IP67) and stainless-steel shaft options for washdown environments. MPL is the standard industrial series. Both are Kinetix-compatible.
Q: Do you provide a warranty on surplus units?
A: Yes. All units sold by Konmask carry a 90-day functional warranty. Extended warranty available upon request.
