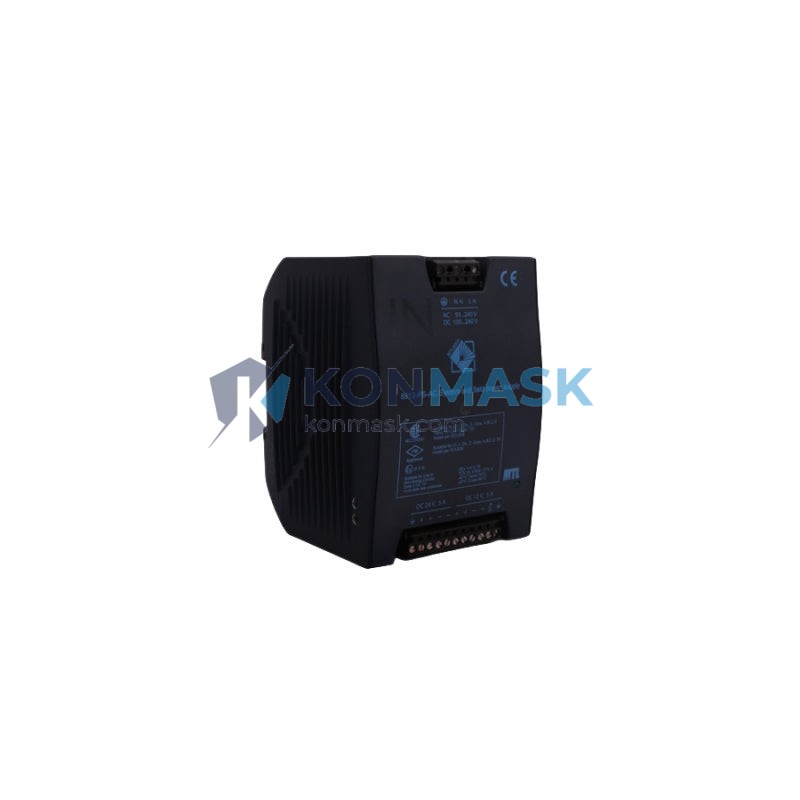

MTL Instruments MTL8913-PS-AC – Dual Voltage AC System Power Supply | MTL 8000 Series
Engineering Background
The MTL 8000 series is MTL Instruments’ flagship platform for intrinsically safe signal conditioning and power distribution in hazardous-area process automation. Designed to IEC 60079 standards, the series is widely deployed in oil & gas, petrochemical, and chemical processing facilities where reliable, certified power delivery is non-negotiable. The MTL8913-PS-AC is the dual-voltage AC mains power supply module that anchors the entire backplane ecosystem, converting AC line power into the regulated DC rails required by all 8000-series I/O and signal-conditioning modules.
Product Positioning
The MTL8913-PS-AC is the recommended primary power source for MTL 8000 series DIN-rail backplanes. It accepts a wide-range AC input, delivers dual regulated DC output rails, and supports hot-swap replacement without interrupting field-side signals — making it the preferred choice for procurement engineers specifying high-availability control architectures in classified hazardous areas.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Model | MTL8913-PS-AC |
| Manufacturer | MTL Instruments (Eaton MTL) |
| Series | MTL 8000 |
| Function | Dual Voltage AC System Power Supply |
| Input Voltage | 85–264 V AC, 47–63 Hz (universal range) |
| Output Voltage | Dual regulated DC rails (refer to MTL datasheet for exact values) |
| Output Power | Per MTL 8913-PS-AC datasheet |
| Mounting | DIN-rail, MTL 8000 series backplane |
| Weight | 1,500 g (approx.) |
| Certifications | ATEX, IECEx, cULus (verify current cert sheet) |
| Operating Temperature | –20 °C to +60 °C |
| Protection Class | IP20 (module), IP54+ when installed in rated enclosure |
| SKU / Part Number | 8913-PS-AC |
Note: Always cross-reference with the current MTL Instruments product datasheet before final BOM submission.
Proven Application Environments
- Oil & gas upstream wellhead and SCADA panels
- Petrochemical and refinery DCS/ESD power distribution
- Offshore platform intrinsically safe I/O backplanes
- Chemical plant process control cabinets (Zone 1/2, Div. 1/2)
- Pipeline telemetry and remote terminal unit (RTU) enclosures
- Power generation and utilities control rooms
Engineering Advantages
- Universal AC Input: 85–264 V AC wide-range input eliminates the need for separate 110 V / 220 V SKUs, simplifying global procurement.
- Dual Regulated DC Rails: Simultaneously powers both the logic and field-side circuits of MTL 8000 modules from a single supply unit.
- Hot-Swap Capable: Designed for in-service replacement on the MTL 8000 backplane without de-energising field instruments.
- Hazardous-Area Certified: ATEX/IECEx certification supports direct installation in Zone 2 / Div. 2 classified areas (verify enclosure rating).
- High MTBF: Industrial-grade components and conservative thermal design deliver long service life in continuous-duty process environments.
- Compact DIN-Rail Form Factor: Integrates seamlessly into standard 35 mm DIN-rail panels alongside MTL 8000 I/O modules.
System Architecture & Signal Flow
The MTL8913-PS-AC mounts directly onto the MTL 8000 series backplane. AC mains enters the module through a dedicated terminal block; internal switching circuitry converts and regulates the input to dual DC output rails distributed across the backplane bus. Each MTL 8000 I/O or signal-conditioning module draws power from these rails without individual external wiring. The dual-rail architecture ensures that a fault on one rail does not collapse the other, supporting partial-redundancy designs. For full power redundancy, two MTL8913-PS-AC units can be installed in parallel with appropriate diode-OR circuitry per MTL application guidance.
Sourcing & Quality Verification
- All MTL8913-PS-AC units sourced by Konmask.com are procured through authorised distribution channels or directly from MTL Instruments / Eaton MTL.
- Each unit ships with original manufacturer packaging, labels, and documentation.
- Batch traceability records and certificates of conformance (CoC) are available upon request.
- Konmask.com does not supply counterfeit, refurbished-as-new, or grey-market product.
- Pre-shipment inspection available for orders ≥ 5 units.
Procurement Process
- Step 1 – Enquiry: Submit your BOM or part number via the enquiry form or email support@konmask.com.
- Step 2 – Quote: Receive a formal quotation with lead time, unit price, and shipping options within 1 business day.
- Step 3 – Order Confirmation: Issue a purchase order; Konmask.com confirms stock availability and delivery schedule.
- Step 4 – Shipment: Units dispatched with full documentation; tracking number provided upon dispatch.
- Step 5 – After-Sales: Technical support and warranty claims handled directly by Konmask.com engineering team.
Technical FAQ
Q: Can the MTL8913-PS-AC be used with 110 V AC supplies?
A: Yes. The universal input range (85–264 V AC) covers both 110 V and 220 V mains without any hardware modification.
Q: Is the MTL8913-PS-AC compatible with all MTL 8000 series backplanes?
A: It is designed for the MTL 8000 series backplane ecosystem. Confirm compatibility with your specific backplane model against the MTL 8000 system manual.
Q: Can two MTL8913-PS-AC units be run in redundant configuration?
A: Yes, parallel redundant operation is supported per MTL application guidance. Consult the MTL 8000 system manual for wiring details.
Q: What certifications does the MTL8913-PS-AC carry?
A: ATEX and IECEx certifications are standard; cULus listing is also available. Always verify the current certificate revision against the MTL Instruments website before specifying for a safety-critical application.
Q: What is the lead time for the MTL8913-PS-AC?
A: In-stock units ship within 3–5 business days. For out-of-stock situations, typical lead time is 4–8 weeks from MTL Instruments. Contact Konmask.com for current availability.
