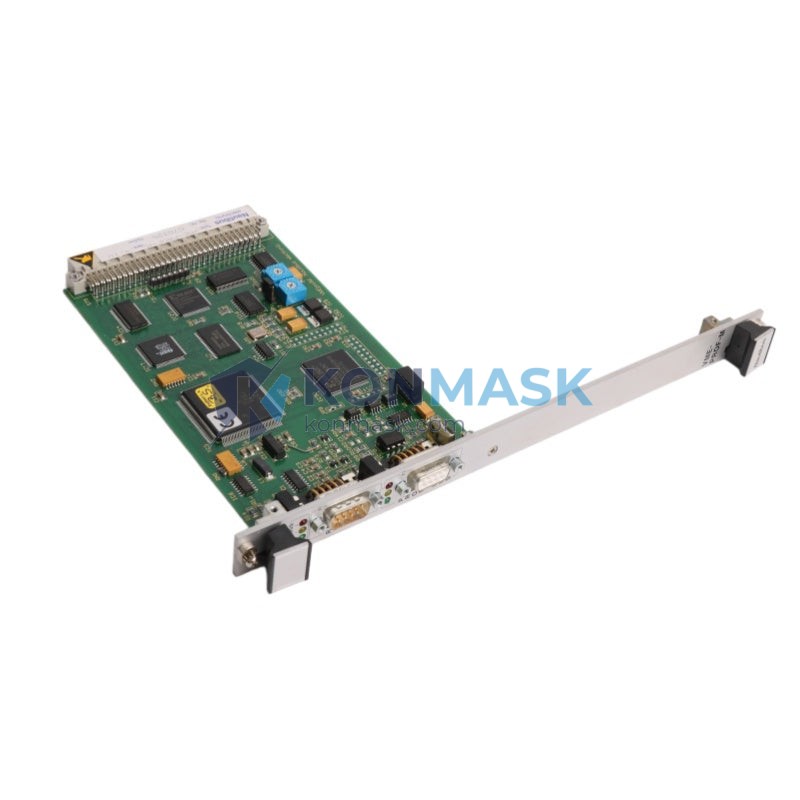

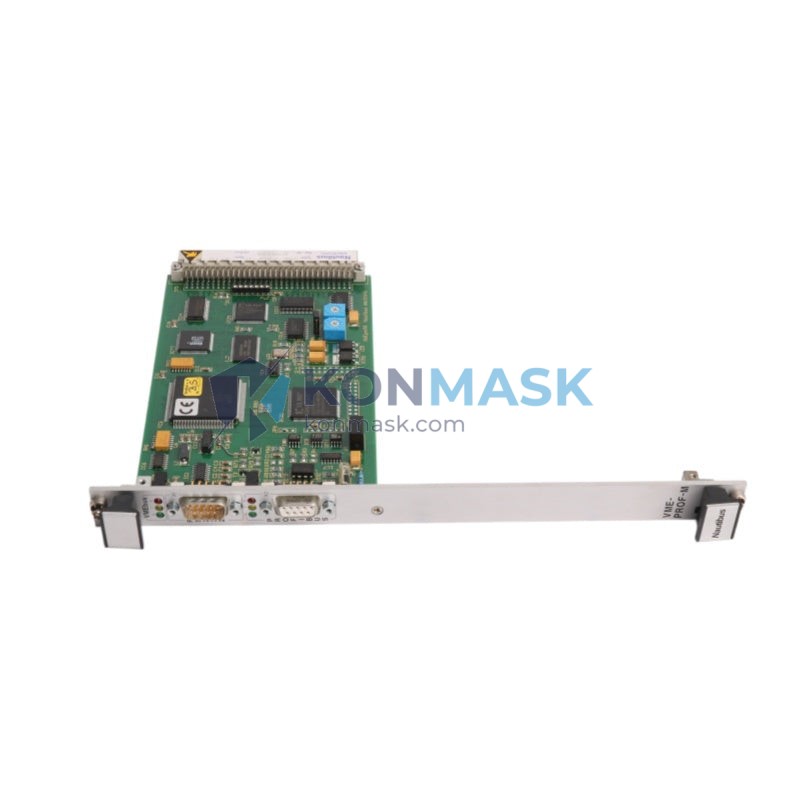

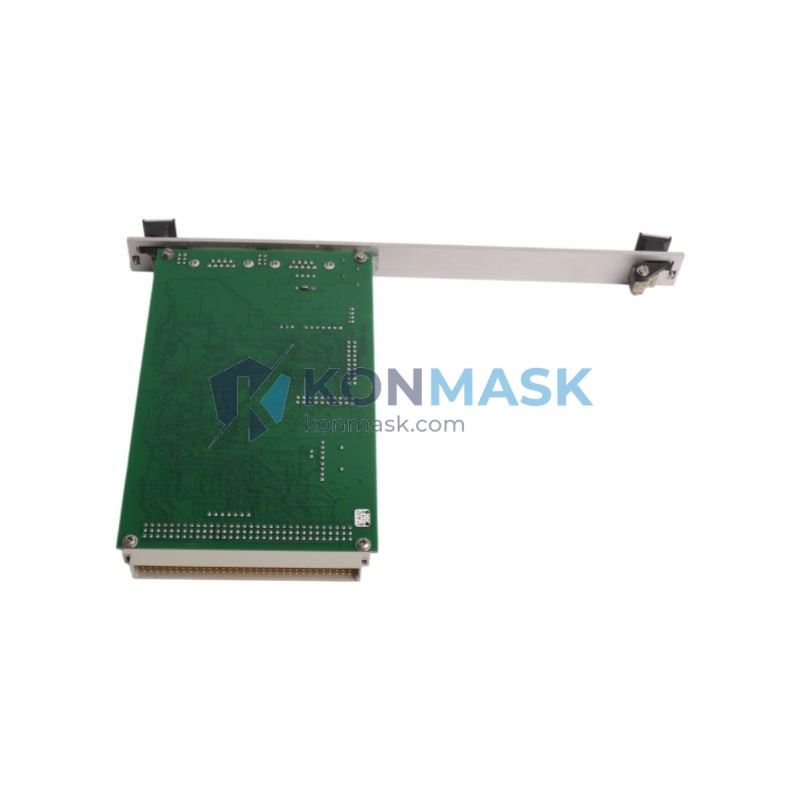

Nautibus VME-PROF-M Profibus DP Master Module | Replacement, Equivalent & Selection Guide
The Nautibus VME-PROF-M is a VME-bus Profibus DP Master communication module designed for industrial automation systems. It enables high-speed, deterministic communication between VME-based controllers and Profibus DP field devices such as drives, I/O stations, and sensors. This page provides full technical specifications, compatible replacement options, and a structured selection guide to help engineers source the right module for their application.
Technical Specifications
- Part Number: VME-PROF-M
- Manufacturer: Nautibus Electronic GmbH
- Bus Interface: VMEbus (IEEE 1014)
- Fieldbus Protocol: Profibus DP (EN 50170 / IEC 61158)
- Mode: DP Master (Class 1)
- Max Slaves: Up to 125 Profibus DP slaves
- Baud Rate: 9.6 kbps – 12 Mbps (auto-detect)
- Connector: DB9 female (Profibus standard)
- VME Format: 6U single-slot
- Operating Temperature: 0°C to +60°C
- Power Supply: +5V via VMEbus backplane
- Weight: ~150 g
- Certifications: CE
Compatible Replacement & Equivalent Models
If the VME-PROF-M is discontinued or unavailable, the following modules offer compatible functionality for VME Profibus DP master applications:
- Hilscher CIF50-PB – VME Profibus DP Master, up to 125 slaves, 12 Mbps
- SST-PB3-VME (Woodhead/Molex) – VME Profibus DP Master module, Class 1 & 2
- VIPA 300-1BF01 – Profibus DP Master for VME-compatible backplanes
- Softing PB-VME-DP/M – VME Profibus DP Master with diagnostic support
- Custom FPGA-based VME Profibus cards – for legacy system integration
Note: Always verify VME slot compatibility, interrupt levels, and driver support before substituting modules.
Why Choose the Original VME-PROF-M
- Proven reliability in long-running VME-based control systems
- Native Profibus DP Class 1 Master with full GSD file support
- Deterministic cycle times critical for real-time process control
- Seamless integration with Nautibus VME CPU boards and OS-9/VxWorks environments
- Minimal re-engineering required for existing VME rack installations
Typical Applications
- Process automation in chemical, oil & gas, and power generation plants
- Machine tool control with distributed Profibus I/O
- Railway signaling and transportation control systems
- Legacy VME system upgrades requiring Profibus DP connectivity
- Test & measurement systems with Profibus field device integration
System Compatibility
- VMEbus Standard: IEEE 1014 (VME64 compatible)
- Operating Systems: OS-9, VxWorks, LynxOS, Linux (with driver support)
- Profibus Conformance: EN 50170 Vol. 2, IEC 61158 Type 3
- Compatible CPUs: Nautibus VME CPU boards; third-party VME SBCs with A24/D16 or A32/D32 access
- Configuration Tools: Profibus configuration tools supporting GSD files (e.g., Siemens STEP 7, Sycon.net)
Selection Guide
Use the following criteria to confirm the VME-PROF-M is the right choice — or to identify the best replacement:
- Step 1 – Confirm bus type: Verify your rack uses VMEbus (IEEE 1014). If using CompactPCI or PCI, a different module family is required.
- Step 2 – Confirm role: VME-PROF-M is a DP Master. If you need a DP Slave, select the VME-PROF-S or equivalent.
- Step 3 – Count slaves: Confirm your slave count does not exceed 125 nodes per master.
- Step 4 – Check baud rate: Ensure your network baud rate (up to 12 Mbps) is within spec.
- Step 5 – OS/driver support: Confirm driver availability for your real-time OS (OS-9, VxWorks, Linux).
- Step 6 – Slot availability: Verify one free 6U VME slot is available in your chassis.
Quality Assurance & Sourcing
At Konmask.com, all industrial automation modules — including the Nautibus VME-PROF-M — are sourced through verified supply channels. Each unit undergoes:
- Visual and functional inspection prior to shipment
- Anti-static packaging with humidity indicators
- Traceability documentation available on request
- Warranty coverage and return policy per our standard terms
We specialize in hard-to-find, legacy, and obsolete industrial components for mission-critical systems.
How to Order
- Part Number: VME-PROF-M
- Manufacturer: Nautibus Electronic GmbH
- Add to cart directly, or contact us for bulk pricing, lead time, and availability confirmation.
- Email: support@konmask.com
- Phone/WhatsApp: +0086 19859288691
- We accept T/T, PayPal, and major credit cards. Global shipping available.
Replacement & Compatibility FAQ
Q: Is the VME-PROF-M still in production?
A: The VME-PROF-M is a legacy product. Availability is subject to stock. Contact us to confirm current inventory.
Q: Can I use a Hilscher CIF50-PB as a direct replacement?
A: The CIF50-PB offers equivalent Profibus DP Master functionality on VMEbus and is a widely accepted replacement. Driver migration may be required.
Q: Does the VME-PROF-M support Profibus PA?
A: No. The VME-PROF-M supports Profibus DP only. A DP/PA coupler (e.g., Siemens DP/PA Link) is required for PA segments.
Q: What is the maximum cable length for Profibus DP at 12 Mbps?
A: At 12 Mbps, the maximum segment length is 100 m. Use repeaters for longer runs.
Q: Can I use this module with a non-Nautibus VME CPU?
A: Yes, provided the CPU supports A24/D16 or A32/D32 VME access and a compatible driver is available for your OS.
