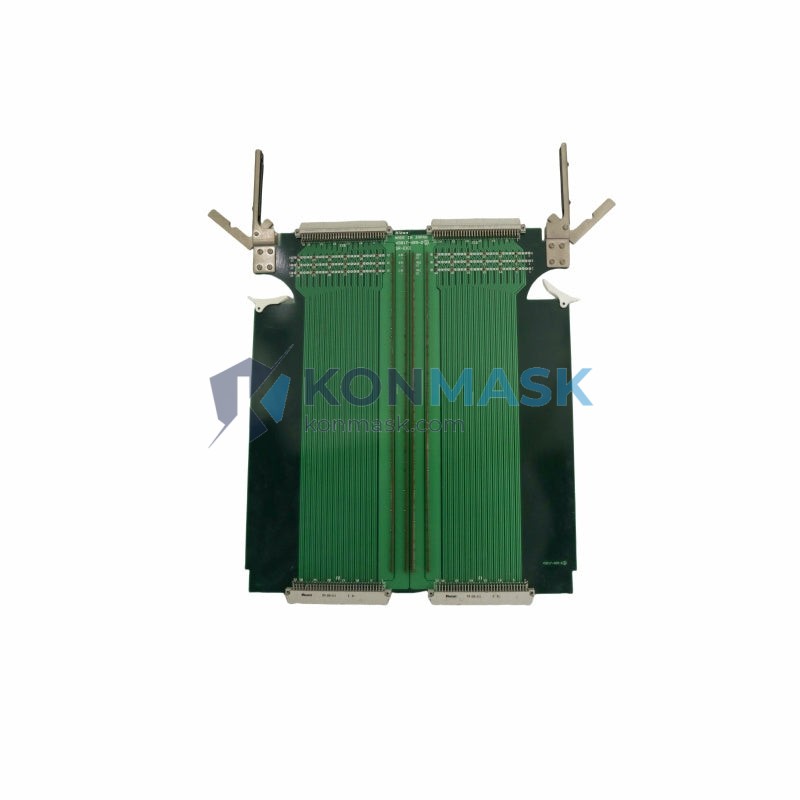

NIKON SR-EX3 PCB ASSY 4S017-489-2 / 0021-12555 / LBC-GX / 400-0332-000B | Replacement, Equivalent & Selection Guide
Konmask.com supplies the NIKON SR-EX3 PCB Assembly (part numbers: 4S017-489-2, 0021-12555, LBC-GX, 400-0332-000B) — a precision control board used in NIKON SR-EX3 series semiconductor lithography and precision alignment systems. This page provides full technical specifications, compatible replacement options, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Manufacturer: NIKON Corporation
- Product Series: SR-EX3
- Component Type: PCB Assembly (Printed Circuit Board Assembly)
- Primary Part Numbers: 4S017-489-2 / 0021-12555 / LBC-GX / 400-0332-000B
- Board Function: Logic/control board for SR-EX3 precision motion and alignment subsystem
- Weight: Approx. 2,600 g (with packaging)
- Condition Available: New OEM, Refurbished, Tested Used
- Lead Time: Contact us for current stock status
Compatible Replacement & Equivalent Models
The following part numbers are cross-referenced as direct replacements or functional equivalents for the NIKON SR-EX3 PCB ASSY. Always verify connector pinout and firmware revision before installation:
- NIKON 4S017-489-2 (primary OEM reference)
- NIKON 0021-12555 (alternate OEM catalog number)
- NIKON LBC-GX (board-level designation)
- NIKON 400-0332-000B (assembly revision B)
- Compatible with SR-EX3 platform variants — confirm system revision with your field engineer
Why Choose the Original Model
- OEM Precision: Designed and validated specifically for NIKON SR-EX3 systems, ensuring zero compatibility risk
- Firmware Integrity: Factory-programmed firmware maintains calibration parameters and motion control accuracy
- Reliability: Manufactured to NIKON’s semiconductor-grade quality standards for high-uptime environments
- Warranty Compliance: Using OEM boards preserves system warranty and service contract eligibility
- Traceability: Full OEM part traceability for ISO-certified fabs and cleanroom environments
Typical Applications
- NIKON SR-EX3 series semiconductor lithography steppers
- Precision wafer alignment and stage control systems
- Flat panel display (FPD) exposure equipment
- Semiconductor fab maintenance, repair, and overhaul (MRO)
- Spare parts inventory for high-availability production lines
System Compatibility
- Primary System: NIKON SR-EX3
- Subsystem: LBC-GX logic/control board slot
- Interface: Verify backplane connector and revision level (Rev. B confirmed for 400-0332-000B)
- Firmware: Must match system controller firmware version — consult NIKON service documentation or contact Konmask for guidance
Selection Guide
Use the following criteria to select the correct PCB assembly for your SR-EX3 system:
- Step 1 — Identify your system revision: Check the SR-EX3 system nameplate or service manual for the platform revision code.
- Step 2 — Match the board designation: Confirm LBC-GX slot designation in your system’s board layout diagram.
- Step 3 — Verify part number suffix: 400-0332-000B indicates Revision B. Do not substitute Revision A boards without engineering approval.
- Step 4 — Check firmware version: Request the firmware version label from your current board before ordering a replacement.
- Step 5 — Contact Konmask: Share your system serial number and current part number — we will confirm exact compatibility before shipment.
Quality Assurance & Sourcing
- All boards are inspected and tested prior to shipment
- Refurbished units undergo full functional verification on SR-EX3 compatible test fixtures
- Packaging: ESD-safe anti-static bag + foam-lined carton
- Documentation: Certificate of conformance available on request
- Sourced from decommissioned OEM systems, authorized distributors, or direct OEM channels
How to Order
- Online: Add to cart directly on this page
- Email: [email protected] — include your system serial number and required part number
- Phone/WhatsApp: +0086 19859288691
- RFQ: For bulk orders or long-term supply agreements, request a formal quotation
- Lead Time: In-stock items ship within 1–3 business days; sourced items 5–15 business days
Replacement & Compatibility FAQ
Q: Can I use 4S017-489-2 and 400-0332-000B interchangeably?
A: These are cross-referenced OEM part numbers for the same assembly. Confirm the revision suffix (000B) matches your system’s requirement.
Q: Is a refurbished board as reliable as a new OEM board?
A: Refurbished boards from Konmask are fully tested and functionally equivalent. We recommend new OEM for critical production environments and refurbished for backup/spare inventory.
Q: Do you provide installation support?
A: We provide part-level technical documentation. For system-level installation, consult a certified NIKON field service engineer.
Q: What is the return policy?
A: We offer a 30-day return window for unused items in original packaging. Tested/refurbished items carry a 90-day functional warranty.
Q: Can you source other NIKON SR-EX3 spare parts?
A: Yes. Contact us with your full BOM or part list — we specialize in hard-to-find semiconductor equipment spares.
