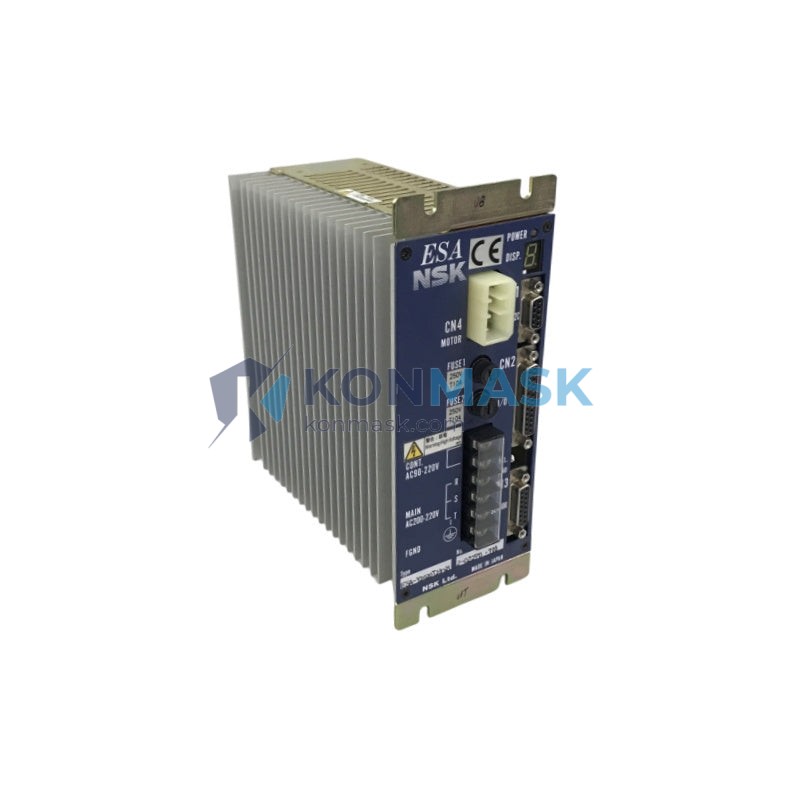

NSK ESA-Y2020T23-21 – AC Servo Driver | Megatorque Motor System Platform
Engineering Background: The NSK ESA-Y2020T23-21 is a precision AC servo driver engineered for NSK’s Megatorque direct-drive motor ecosystem. Designed to deliver high-torque, low-speed positioning with exceptional repeatability, this driver is a cornerstone component in semiconductor handling, precision assembly, and advanced robotics applications where micron-level accuracy is non-negotiable.
Product Positioning: As a verified industrial automation distributor, Konmask.com sources the ESA-Y2020T23-21 through authenticated supply channels. Each unit undergoes multi-point inspection before dispatch, ensuring procurement engineers receive a component that meets OEM performance standards — not a compromise.
Part Numbers Cross-Reference: ESA-Y2020T23-21 | 0240-15510 | 715-011985-106-B
Complete Technical Specifications
| Manufacturer | NSK Ltd. |
| Model / Part No. | ESA-Y2020T23-21 |
| Cross-Reference P/N | 0240-15510 / 715-011985-106-B |
| Product Series | Megatorque Motor System (ESA Series) |
| Driver Type | AC Servo Driver / Amplifier |
| Compatible Motor | NSK Megatorque Direct-Drive Series |
| Control Mode | Position / Speed / Torque |
| Interface | Serial / Pulse Train Input |
| Feedback | Encoder Feedback (Closed-Loop) |
| Weight (Unit) | Approx. 2.6 kg |
| Condition | New / Refurbished (specify on inquiry) |
| Origin | Japan |
Proven Application Environments
- Semiconductor Wafer Handling: Precision θ-axis and R-axis positioning in EFEM and sorter systems
- PCB Assembly Equipment: High-speed pick-and-place rotary axis control
- Optical Inspection Systems: Sub-micron stage rotation for lens and sensor alignment
- Medical Device Manufacturing: Sterile-environment compatible motion control for assembly robots
- Laser Processing Machines: Rotary axis servo control for cutting and marking systems
- Industrial Robotics: Joint-level servo amplification in articulated arm configurations
Engineering Advantages
- Direct-Drive Architecture: Eliminates gearbox backlash — delivers zero-backlash torque transmission critical for precision indexing
- High Torque Density: Megatorque platform achieves high continuous torque in a compact form factor, reducing machine footprint
- Closed-Loop Stability: Encoder feedback with advanced gain tuning ensures stable velocity and position control under variable load
- Multi-Mode Operation: Seamlessly switches between position, speed, and torque control modes via parameter configuration
- Robust EMC Design: Shielded signal paths and filtered power stages minimize interference in electrically noisy factory environments
- Long Service Life: NSK’s proven thermal management and component selection support extended MTBF in 24/7 production environments
System Architecture & Signal Flow
The ESA-Y2020T23-21 operates as the intelligence layer between the host controller and the Megatorque motor. The signal flow is as follows:
- Command Input: Host PLC or motion controller sends position/speed commands via pulse train or serial interface to the ESA driver
- Processing: The driver’s DSP interprets commands, applies configured gain parameters, and generates the appropriate PWM output waveform
- Motor Excitation: Three-phase AC power is modulated and delivered to the Megatorque motor stator windings
- Feedback Loop: The motor encoder returns real-time position data to the driver for closed-loop error correction
- Status Output: Driver outputs alarm, ready, and in-position signals back to the host controller for system-level interlocking
Sourcing & Quality Verification
Konmask.com applies a structured 4-step verification protocol to every servo driver unit:
- Source Authentication: Units are traced to authorized distributors or verified OEM surplus channels — no grey-market or counterfeit sources
- Physical Inspection: Label integrity, serial number consistency, connector condition, and housing integrity are checked against OEM reference standards
- Functional Bench Test: Where applicable, units are powered and tested for basic communication response and alarm-free initialization
- Documentation Package: Each shipment includes a packing list, inspection record, and available datasheet or wiring diagram
Procurement Process
- Submit Inquiry: Email support@konmask.com with your required part number, quantity, and delivery timeline
- Receive Quote: Our technical team responds within 1 business day with pricing, lead time, and stock confirmation
- Order Confirmation: Approve the proforma invoice and confirm payment terms (T/T, PayPal, or trade finance options available)
- Inspection & Dispatch: Unit passes final QC check, is securely packaged with anti-static and shock-absorbing materials, and shipped with full tracking
- After-Sales Support: Our engineers remain available post-delivery for integration questions and warranty claim processing
Technical FAQ
Q: Is the ESA-Y2020T23-21 compatible with non-NSK motors?
A: No. The ESA series drivers are specifically engineered for NSK Megatorque direct-drive motors. Using with third-party motors is not supported and may cause damage.
Q: What is the difference between part numbers 0240-15510 and 715-011985-106-B?
A: These are cross-reference part numbers used by different OEM customers or internal NSK revision tracking. They refer to the same physical unit: ESA-Y2020T23-21.
Q: Can you provide a wiring diagram or parameter manual?
A: Yes. Available documentation is included with shipment. Contact us prior to ordering if specific documentation is required for your engineering review.
Q: Do you offer warranty on this unit?
A: Yes. Konmask.com provides a 90-day functional warranty on all verified units. Extended warranty options are available — inquire at time of order.
Q: What is the lead time for this part?
A: Typically 3–7 business days for in-stock units. For sourced units, lead time is 10–21 business days depending on origin. Expedited options available.
Q: Can you ship internationally?
A: Yes. We ship globally via DHL, FedEx, and UPS Express. Export documentation including commercial invoice and packing list is provided for customs clearance.
