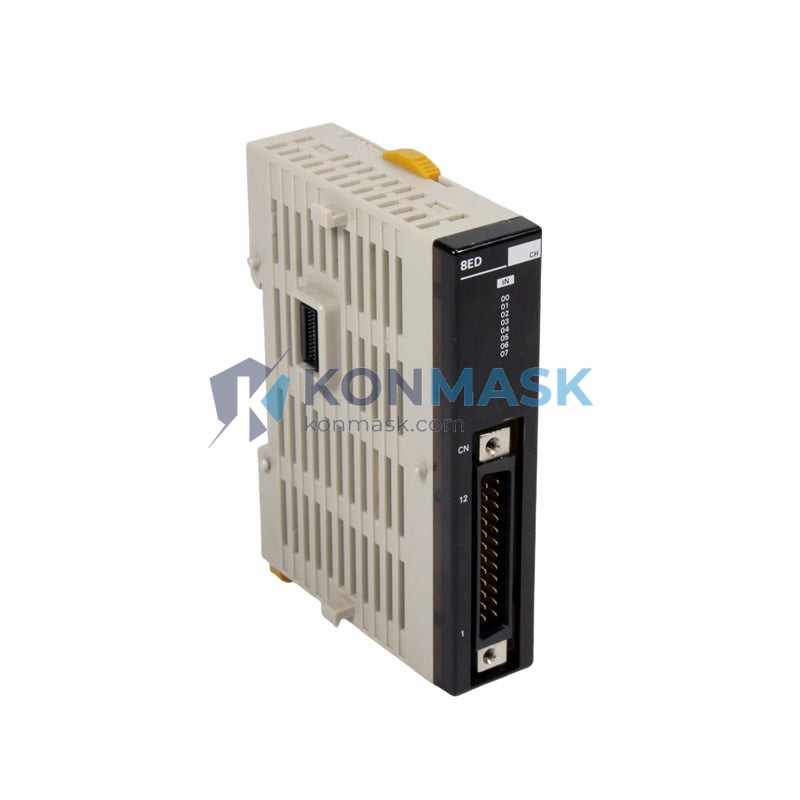

OMRON CPM2C-8EDM – Compact PLC CPU Unit with 8 I/O | CPM2C Series
Engineering Background
The OMRON CPM2C Series represents OMRON’s high-density compact PLC platform, engineered for space-constrained industrial environments where reliability and deterministic control are non-negotiable. The CPM2C-8EDM is an Expansion I/O Unit (DC input / transistor output) designed to extend the I/O capacity of a CPM2C CPU system, enabling modular, scalable machine control architectures.
Product Positioning
Targeted at OEM machine builders, panel integrators, and process automation engineers, the CPM2C-8EDM delivers proven OMRON ladder-logic execution in a slim DIN-rail form factor. It is the preferred choice for applications requiring compact footprint, fast scan cycles, and robust NPN transistor output switching in 24 VDC environments.
Complete Technical Specifications
| Manufacturer | OMRON Corporation |
| Model / SKU | CPM2C-8EDM |
| Series / Platform | CPM2C Compact PLC Series |
| Unit Type | Expansion I/O Unit (CPU-bus connected) |
| Total I/O Points | 8 points (4 DC inputs + 4 transistor outputs) |
| Input Type | DC Input (24 VDC, NPN/PNP selectable) |
| Output Type | Transistor Output (NPN, open collector) |
| Output Rated Current | 0.3 A per point |
| Power Supply | Supplied via CPM2C CPU bus connector |
| Communication | CPU bus (direct expansion) |
| Mounting | DIN rail / direct panel mount |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | -20 °C to 75 °C |
| Humidity | 10% to 90% RH (non-condensing) |
| Vibration Resistance | 10 to 57 Hz, 0.075 mm amplitude; 57 to 150 Hz, 9.8 m/s² |
| Shock Resistance | 147 m/s², 3 times each in X, Y, Z axes |
| Degree of Protection | IP20 |
| Weight | Approx. 100 g |
| Certifications | CE, UL, cUL |
| Country of Origin | Japan |
Proven Application Environments
- Packaging Machinery – High-speed transistor outputs drive servo drives and solenoid valves with sub-millisecond response.
- Conveyor & Material Handling – DC inputs interface directly with proximity sensors and photoelectric sensors for position detection.
- Injection Molding & Press Control – Deterministic scan cycle ensures precise timing for mold open/close sequences.
- Semiconductor & Electronics Assembly – Compact form factor fits inside tight control cabinets on SMT lines.
- HVAC & Building Automation – Reliable 24 VDC I/O integrates with BMS field devices.
- Food & Beverage Processing – Vibration-resistant design withstands production floor conditions.
Engineering Advantages
- Modular Expansion Architecture – Snap-connect directly to CPM2C CPU units; no additional wiring harness required.
- High-Density I/O – 8 I/O points in an ultra-compact housing reduces panel space by up to 40% vs. discrete relay modules.
- Fast Transistor Switching – NPN open-collector outputs with 0.3 A capacity support direct drive of small actuators and indicator lamps.
- OMRON CX-Programmer Compatible – Full ladder diagram, function block, and structured text programming via CX-One suite.
- Proven MTBF – OMRON CPM2C series has documented field reliability exceeding 10 years in continuous industrial operation.
- Global Certifications – CE, UL, cUL markings satisfy compliance requirements for North American, European, and Asian markets.
System Architecture & Signal Flow
The CPM2C-8EDM connects to the CPM2C CPU unit via the dedicated expansion I/O bus connector on the right side of the CPU. Signal flow is as follows:
- Field Sensors → DC Inputs (IN0–IN3): 24 VDC NPN/PNP signals are optically isolated and read by the CPU on each scan cycle.
- CPU Ladder Logic Execution: The CPM2C CPU processes input states and updates output coils per the user program.
- Transistor Outputs (OUT0–OUT3) → Field Actuators: NPN open-collector outputs switch load circuits up to 0.3 A / 24 VDC to drive solenoids, relays, or indicator devices.
- Expansion Bus Power: 5 VDC logic power is supplied internally via the CPU bus; no separate power supply required for the expansion unit.
Up to 3 expansion units can be connected to a single CPM2C CPU, providing a maximum system I/O of 32 points (CPU + expansions).
Sourcing & Quality Verification
- Authentic OMRON Product: All units sourced through verified industrial distribution channels with full traceability.
- Pre-shipment Inspection: Each unit undergoes visual inspection, label verification, and functional power-on check before dispatch.
- Original Packaging: Shipped in OMRON OEM packaging with original documentation where available.
- Warranty: 12-month warranty against manufacturing defects; DOA replacement within 7 days of receipt.
- Counterfeit Prevention: Serial number and date code verification performed on every unit. Certificates of conformance available on request.
Procurement Process
- Inquiry – Submit your BOM or part number via email to [email protected] or WhatsApp +0086 19859288691.
- Quotation – Receive a formal quotation with unit price, lead time, and shipping options within 24 hours.
- Order Confirmation – Place order via this product page or via proforma invoice for bank transfer / L/C payment.
- Quality Check & Dispatch – Units inspected, packed, and dispatched via DHL / FedEx / UPS with full tracking.
- After-Sales Support – Technical support available for integration, programming, and troubleshooting via email or video call.
Technical FAQ
Q: Is the CPM2C-8EDM compatible with CPM1A or CQM1 CPUs?
A: No. The CPM2C-8EDM uses the CPM2C-specific expansion bus connector and is only compatible with CPM2C series CPU units.
Q: Can I mix CPM2C-8EDM with other CPM2C expansion units?
A: Yes. Up to 3 expansion units of any CPM2C expansion type can be connected in series to a single CPM2C CPU.
Q: What is the output load voltage range?
A: The transistor outputs support load voltages of 4.5 VDC to 26.4 VDC with a maximum current of 0.3 A per point.
Q: Do I need a separate power supply for the CPM2C-8EDM?
A: No. The unit draws its 5 VDC logic power from the CPM2C CPU bus. Only the output load circuit requires an external 24 VDC supply.
Q: Is programming software included?
A: Programming is performed via OMRON CX-Programmer (part of CX-One suite), available separately from OMRON. Konmask can advise on software licensing.
Q: What is the lead time for this part?
A: In-stock units ship within 1–3 business days. For bulk orders, contact us for lead time confirmation.
