Genuine OMRON F3SJ-A0245P14-L F3SJ-A (Advanced Safety Light Curtain) - Industrial Automation Part

OMRON F3SJ-A0245P14-L Safety Light Curtain | Advanced Series

Q: What does the -L suffix mean in F3SJ-A0245P14-L?

The -L suffix designates the left-side cable exit configuration on the receiver unit, which is important for installation planning in tight machine enclosures.

Request a Fast Quote Email Directly

Send your required quantity, target delivery time, and destination country. Konmask will reply with availability and lead time.

Description

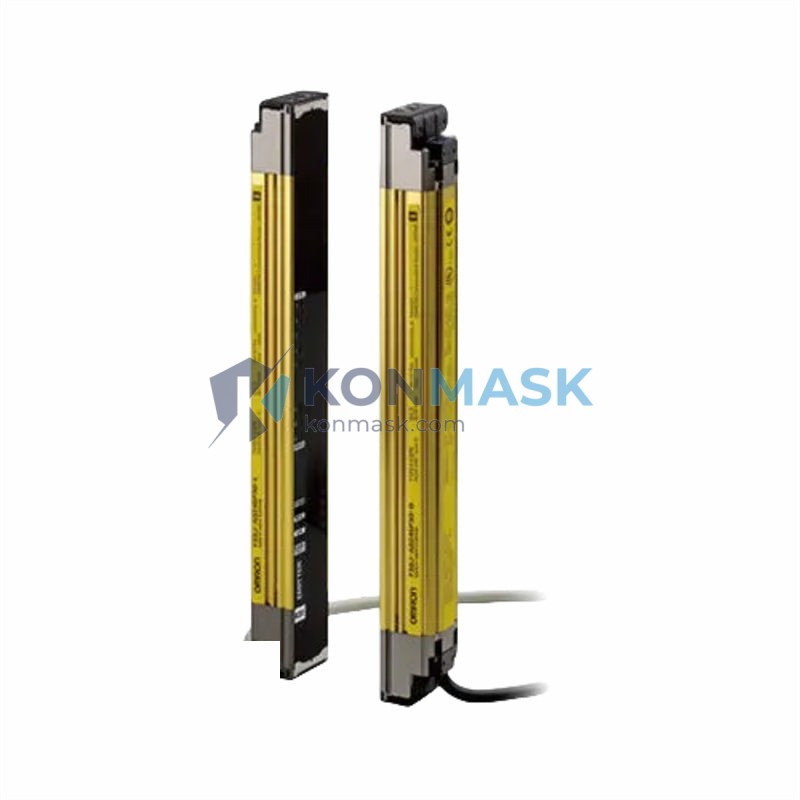

OMRON F3SJ-A0245P14-L Safety Light Curtain – F3SJ-A Advanced Series

Imagine a high-speed stamping press operating without a reliable safety barrier — a momentary lapse in operator attention could result in a catastrophic injury, production shutdown, and costly regulatory penalties. In modern industrial environments, the safety light curtain is not optional; it is the last line of defense between human operators and dangerous machinery. The OMRON F3SJ-A0245P14-L is engineered precisely for this mission-critical role, delivering reliable, certified personnel protection that keeps production lines running safely and compliantly.

Within OMRON’s F3SJ-A Advanced Series, the F3SJ-A0245P14-L occupies a precision-guarding position: a 245mm protective height with a 14mm optical resolution — fine enough to detect fingers and hands entering hazardous zones. As a Type 4 safety device per IEC 61496 and compliant with ISO 13849 PLe / SIL3, this model is trusted by machine builders and safety engineers across automotive, electronics, packaging, and heavy manufacturing sectors worldwide. OMRON’s F3SJ-A series is recognized globally as a benchmark for reliability and ease of integration in safety-critical automation systems.

Technical Specifications

Model Number: F3SJ-A0245P14-L
Brand: OMRON
Series: F3SJ-A (Advanced Safety Light Curtain)
Protective Height: 245 mm
Optical Resolution: 14 mm (finger/hand detection)
Safety Category: Type 4 (IEC 61496-1/-2)
Performance Level: PLe / SIL3 (ISO 13849 / IEC 62061)
Operating Range: 0.2 m – 7 m (standard)
Response Time: ≤ 10 ms
Output: 2 x PNP safety outputs (OSSD)
Supply Voltage: 24 VDC ±20%
IP Rating: IP65
Connection: M12 connector
Weight: Approx. 840 g
Suffix -L: Indicates left-side cable exit configuration

Key Features & Benefits

Finger & Hand Detection: 14mm resolution ensures reliable detection of fingers entering the hazard zone, meeting the most stringent machine guarding requirements.
Compact & Robust Housing: Slim aluminum profile fits tight machine installations without compromising structural integrity.
Auto-Reset & Manual-Reset Modes: Configurable restart interlock supports both automated and manually supervised restart scenarios.
Muting & Blanking Functions: Built-in support for muting and fixed/floating blanking enables flexible integration with material-handling processes.
Cascading Capability: Multiple F3SJ-A units can be cascaded to protect larger openings with a single safety controller connection.
Diagnostic LED Indicators: Clear status LEDs on both emitter and receiver simplify commissioning and fault diagnosis.
Global Safety Certifications: CE, UL, cUL, TÜV — accepted by safety authorities in North America, Europe, and Asia-Pacific.

Industry & Equipment Applications

Automotive Manufacturing: Robotic welding cells, press brakes, and assembly line guarding.
Electronics & Semiconductor: SMT pick-and-place machines, wafer handling equipment.
Packaging Machinery: Cartoning lines, palletizers, and case erectors requiring access guarding.
Metal Fabrication: Punch presses, laser cutting machines, and bending centers.
Food & Beverage: Conveyor systems and filling/sealing machines with hygienic guarding needs.
Logistics & Warehousing: Automated storage and retrieval systems (AS/RS), AGV corridors.

System Integration & Compatible Parts

The F3SJ-A0245P14-L is designed for seamless integration within OMRON’s safety ecosystem and third-party safety PLCs:

Safety Controllers: OMRON G9SP, NE1A Series Safety Network Controllers; Pilz PNOZ; Sick Flexi Soft.
Mounting Brackets: F39-LJ (standard L-bracket), F39-LJB (swivel bracket) for flexible positioning.
Muting Controllers: F3SX-E-□ series for advanced muting lamp and sensor integration.
Cables & Connectors: F39-JC□R (emitter/receiver M12 cables), compatible with standard 4-pin M12 safety cables.
PLC Integration: Direct OSSD connection to Siemens S7-300/400/1200/1500 safety CPUs, Allen-Bradley GuardLogix, Mitsubishi MELSEC-WS.

Our Quality Assurance Process

At Konmask.com, every OMRON F3SJ-A0245P14-L unit we supply undergoes a rigorous sourcing and verification process:

Authorized Supply Chain: Sourced exclusively from verified OMRON distributors and authorized channel partners.
Authenticity Verification: Serial number and label inspection against OMRON’s product authentication standards.
Functional Pre-check: Visual and packaging integrity inspection prior to dispatch.
Documentation Package: Original datasheet, CE declaration of conformity, and test certificates available upon request.
Secure Packaging: Anti-static, shock-resistant packaging to protect optical components during international shipping.

How to Order

Submit your inquiry via the Contact Us form or email [email protected].
Provide your required quantity, delivery destination, and any project timeline requirements.
Receive a formal quotation within 1 business day.
Confirm the order and arrange payment via T/T, PayPal, or other agreed terms.
Shipment dispatched with full tracking and documentation within the agreed lead time.

Why Choose Konmask.com?

✅ Industrial Automation Specialists: Focused exclusively on PLC, DCS, safety, and automation components — not a generalist marketplace.
✅ Global B2B Export Experience: Serving engineering teams, OEMs, and system integrators across 30+ countries.
✅ Fast Inquiry Response: Dedicated technical sales team responds within 24 hours.
✅ Competitive Pricing: Direct sourcing relationships enable cost-effective pricing for both small and large orders.
✅ After-Sales Support: Technical guidance on installation, wiring, and integration available post-purchase.

Frequently Asked Questions

Q: What does the “-L” suffix mean in F3SJ-A0245P14-L?
A: The “-L” suffix designates the left-side cable exit configuration on the receiver unit, which is important for installation planning in tight machine enclosures.

Q: Is the F3SJ-A0245P14-L suitable for finger detection?
A: Yes. With a 14mm optical resolution, this model reliably detects fingers (minimum detectable object: 14mm diameter) entering the protective field, meeting Type 4 requirements per IEC 61496.

Q: Can this light curtain be used with a Siemens safety PLC?
A: Yes. The dual PNP OSSD outputs are directly compatible with Siemens S7-300F/400F/1200F/1500F safety CPUs and standard safety relay modules.

Q: What is the maximum sensing range?
A: The F3SJ-A0245P14-L supports a sensing range of 0.2 m to 7 m between emitter and receiver under standard conditions.

Q: Do you provide the original OMRON datasheet and certificates?
A: Yes. We provide the original OMRON product datasheet and CE declaration of conformity. TÜV test certificates are available upon request for specific project requirements.

Q: What is the minimum order quantity (MOQ)?
A: We supply from 1 unit. There is no minimum order quantity for standard stock items. Contact us for volume pricing on larger orders.
