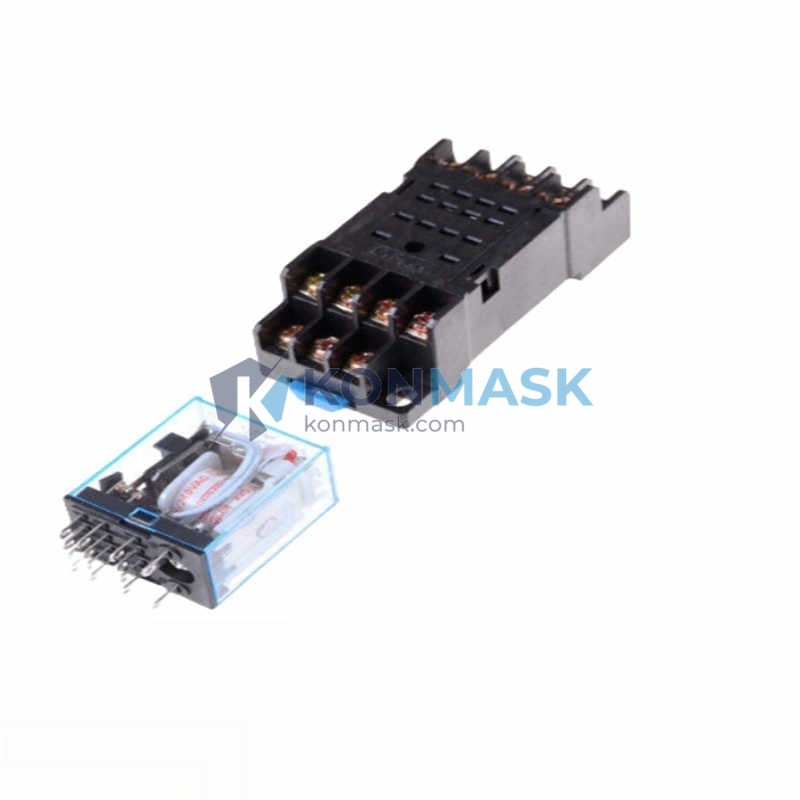

Genuine OMRON MY4NJ Power Relay | 4PDT 14-Pin Coil Relay – Verified Source
The OMRON MY4NJ is a 4PDT (4-pole double-throw) general-purpose power relay in the MY Series, designed for demanding industrial control applications. Konmask.com sources this component directly through verified distribution channels — every unit is traceable, inspected, and guaranteed authentic.
Technical Specifications
- Model: MY4NJ
- Manufacturer: OMRON Corporation
- Series: MY (General-Purpose Relay)
- Contact Configuration: 4PDT (4 Poles, Double Throw)
- Pin Configuration: 14-pin (DIN rail / socket mount)
- Rated Load: 5 A at 250 VAC / 5 A at 30 VDC
- Coil Voltage Options: AC 6V ~ 240V / DC 6V ~ 110V (specify at order)
- Insulation Resistance: 1,000 MΩ min. (at 500 VDC)
- Dielectric Strength: 2,000 VAC (50/60 Hz, 1 min)
- Operate Time: 20 ms max.
- Release Time: 20 ms max.
- Mechanical Life: 50,000,000 operations min.
- Electrical Life: 100,000 operations min. (rated load)
- Ambient Temperature: -40°C to +70°C (operating)
- Weight: Approx. 50 g
- Approvals: UL, CSA, VDE, CE
Our 4-Step Quality Verification Process
Every OMRON MY4NJ unit shipped from Konmask.com passes through our internal verification protocol before dispatch:
- Step 1 — Source Validation: Units are procured exclusively from authorized OMRON distributors or factory-direct channels. Purchase records are retained for traceability.
- Step 2 — Physical Inspection: Packaging integrity, label printing quality, hologram verification, and date-code consistency are checked against OMRON’s current production standards.
- Step 3 — Functional Spot-Check: Coil actuation, contact continuity, and insulation resistance are sampled per batch using calibrated test equipment.
- Step 4 — Documentation Match: Serial numbers and batch codes are cross-referenced with supplier delivery notes before shipment is released.
Key Features & Benefits
- ✅ 4PDT contact form — maximum switching flexibility in a compact 14-pin footprint
- ✅ Plug-in socket compatibility — fits PYF14A and equivalent sockets for tool-free replacement
- ✅ LED indicator & diode options — MY4NJ variant includes built-in surge suppression for coil protection
- ✅ Wide coil voltage range — single SKU covers most AC/DC control voltage requirements
- ✅ High mechanical endurance — 50 million operations rated life reduces maintenance intervals
- ✅ Global safety approvals — UL, CSA, VDE, CE for multi-market compliance
- ✅ Transparent sourcing — full supply chain documentation available on request
Typical Applications
- PLC output interface and signal isolation circuits
- Machine tool and CNC control panels
- HVAC and building automation systems
- Conveyor and material handling control
- Power distribution and load switching panels
- Test & measurement equipment interlocks
- Process control and instrumentation loops
Compatible System Components
- Relay Socket: OMRON PYF14A (14-pin, DIN rail)
- Hold-down Clip: OMRON PTF08A-E / PYC-A1
- Test Button: Available on select socket variants
- Surge Suppressor: Built-in (MY4NJ coil suppression diode)
- DIN Rail: Standard 35 mm TS-35 rail compatible
Need a complete relay + socket assembly? Contact us for bundled pricing.
Global Sourcing & Shipping Capabilities
- Stock Location: Mainland China (Fujian Province)
- Lead Time: In-stock orders typically ship within 1–3 business days
- Shipping Methods: DHL Express, FedEx International, EMS, sea freight (bulk orders)
- Export Experience: Regularly ships to Southeast Asia, Middle East, Europe, and the Americas
- Customs Documentation: Commercial invoice, packing list, and certificate of origin provided
- Bulk & OEM Orders: Volume pricing available — contact us for a formal quotation
Certifications & Compliance Statement
The OMRON MY4NJ carries the following third-party safety certifications:
- UL Listed (Underwriters Laboratories, USA)
- CSA Certified (Canadian Standards Association)
- VDE Approved (Verband der Elektrotechnik, Germany)
- CE Marked (European Conformity — LVD & EMC Directives)
- RoHS Compliant — meets EU Directive 2011/65/EU on hazardous substances
Konmask.com does not manufacture or modify components. All certifications are issued by OMRON Corporation and apply to genuine factory-produced units only.
How to Order
- Confirm coil voltage — specify AC or DC and the required voltage (e.g., 24VDC, 110VAC, 220VAC) in your order notes or via email.
- Select quantity — standard packs of 1, 5, or 10 units; bulk pricing available for 50+ units.
- Add to cart & checkout — or contact us directly for a formal proforma invoice (PI) for B2B procurement.
- Receive tracking — shipment confirmation with carrier tracking number sent within 24 hours of dispatch.
📧 Email: support@konmask.com
📞 Phone / WhatsApp: +0086 19859288691
🌐 Website: https://konmask.com
Authenticity & Trust FAQ
Q: How do I know this is a genuine OMRON product?
A: We source exclusively from authorized distributors and factory channels. Batch documentation and supplier invoices are available upon request for B2B buyers.
Q: Can you provide a Certificate of Conformance (CoC)?
A: Yes. A CoC can be issued for orders of 10 units or more. Please request this at the time of order.
Q: What if I receive a defective unit?
A: We offer a 12-month warranty against manufacturing defects. Defective units will be replaced or refunded — contact support@konmask.com with photos and your order number.
Q: Do you accept returns?
A: Unused, unopened units in original packaging may be returned within 30 days. Return shipping is the buyer’s responsibility unless the item is confirmed defective.
Q: Can I get a sample before placing a bulk order?
A: Yes. Sample orders (1–2 units) are available at standard pricing. Contact us to discuss sample arrangements for large-volume evaluations.
Q: Are you an authorized OMRON distributor?
A: Konmask.com is an independent reseller sourcing from authorized channels. We are not an official OMRON authorized distributor but maintain strict sourcing standards to ensure product authenticity.
