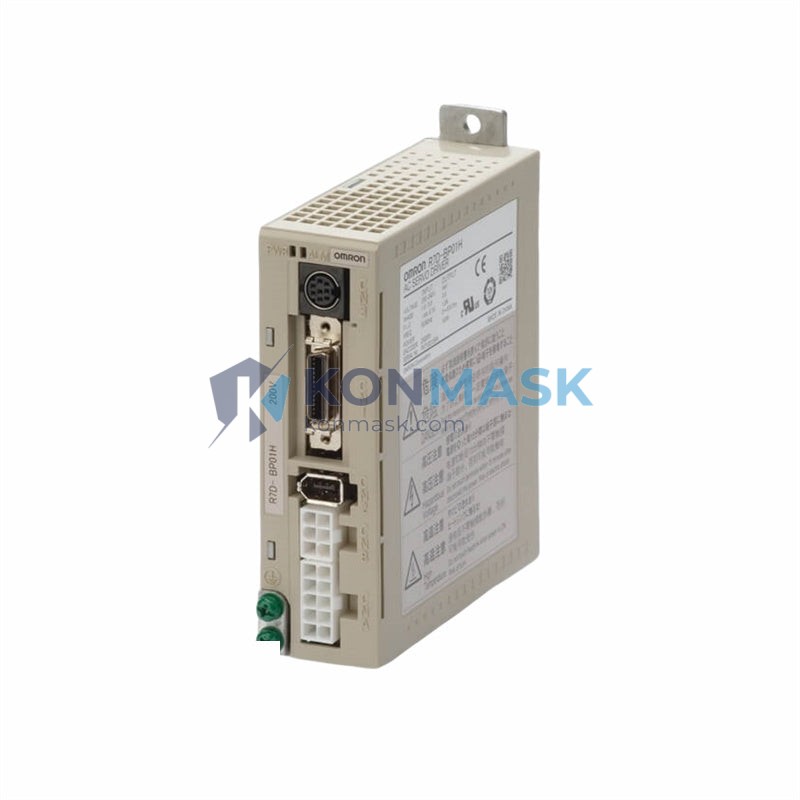

OMRON R7D-BP04H-Z 400W AC Servo Drive – SMARTSTEP 2 Series
Imagine a high-speed packaging line suddenly losing positional accuracy mid-cycle — products misaligned, rejects piling up, and the entire production halted while engineers scramble to diagnose the fault. In precision-driven industrial environments, the servo drive is the invisible backbone of every coordinated motion axis. Without a reliable, spec-matched drive like the OMRON R7D-BP04H-Z, even the most sophisticated machine design becomes vulnerable to costly downtime, erratic positioning, and cascading system failures.
The R7D-BP04H-Z is a 400W single-phase AC servo drive from OMRON’s SMARTSTEP 2 series — a compact, high-performance motion control solution engineered for demanding OEM and end-user applications. Within the SMARTSTEP 2 lineup, this model occupies the mid-range power tier, delivering the precision and responsiveness required for multi-axis coordination in packaging, semiconductor handling, and precision assembly. OMRON’s SMARTSTEP 2 series is globally recognized for its plug-and-play compatibility with R7M-series servo motors, simplified parameter setup, and robust EMC performance, making it a preferred choice for system integrators across Asia, Europe, and the Americas.
Technical Specifications
- Model: R7D-BP04H-Z
- Brand: OMRON
- Series: SMARTSTEP 2
- Rated Output Power: 400W
- Power Supply: Single-Phase 200–230 VAC, 50/60 Hz
- Control Method: IGBT PWM Sinusoidal Drive
- Encoder Feedback: Incremental encoder (2,000 P/R)
- Control Modes: Position, Speed, Torque
- Max Speed: 3,000 rpm (motor dependent)
- Communication: RS-232C / RS-485 (CX-Drive compatible)
- Protective Functions: Overcurrent, Overvoltage, Undervoltage, Overload, Encoder error, Regeneration error
- Ambient Temperature: 0–55°C (operating), -20–65°C (storage)
- Humidity: 90% RH max (non-condensing)
- Weight: Approx. 4.46 kg
- Compliance: CE, UL
Note: All specifications are based on OMRON official documentation. Verify with the official datasheet before final system design.
Key Features & Benefits
- Plug-and-Play Motor Matching: Pre-configured for OMRON R7M-series servo motors — eliminates manual parameter tuning and reduces commissioning time significantly.
- Compact Form Factor: Space-efficient design fits into tight control cabinet layouts without sacrificing thermal performance.
- Auto-Tuning: Built-in auto-gain tuning adapts to load inertia changes in real time, maintaining positioning accuracy under variable load conditions.
- Vibration Suppression: Notch filter and adaptive vibration suppression reduce mechanical resonance, extending machine service life.
- Comprehensive Protection: Multi-layer fault detection safeguards both the drive and connected motor from electrical and mechanical anomalies.
- CX-Drive Software Compatible: Full parameter management, monitoring, and diagnostics via OMRON’s CX-Drive PC tool.
- CE & UL Certified: Meets international safety and EMC standards for global machine export compliance.
Industry & Equipment Applications
- Packaging Machinery: Servo-controlled film feeding, cutting, and sealing axes requiring precise position repeatability.
- Semiconductor & Electronics Manufacturing: Pick-and-place, wafer handling, and PCB drilling where sub-millimeter accuracy is critical.
- Printing & Labeling: Register control and tension management in web-fed printing systems.
- Textile Machinery: Yarn tension control and pattern synchronization in high-speed looms.
- Conveyor & Material Handling: Synchronized multi-axis transport systems in automotive and logistics facilities.
- Medical Device Assembly: Low-vibration, high-repeatability motion for precision assembly lines.
System Integration & Compatible Parts
- Compatible Servo Motors: OMRON R7M-A40030-S1, R7M-A40030-BS1 (400W, 3,000 rpm)
- Regenerative Resistor: OMRON R88A-RR series (external, application-dependent)
- Cables: R7A-CAB series encoder cables; R7A-PWR series power cables
- PC Software: OMRON CX-Drive (parameter setup, monitoring, diagnostics)
- Controller Compatibility: OMRON CJ/CS/NJ/NX series PLC via pulse train or analog command
- EMC Filter: Recommended external line filter for CE-compliant installations
Our Quality Assurance Process
At Konmask.com, every OMRON R7D-BP04H-Z unit undergoes a rigorous multi-stage verification process before shipment:
- Source Verification: Units are sourced exclusively from authorized distributors and verified OEM channels with full traceability documentation.
- Visual & Label Inspection: Serial number, firmware label, and physical condition are cross-checked against OMRON’s official product identification standards.
- Functional Pre-Check: Where applicable, power-on and communication response tests are conducted prior to packaging.
- Anti-Static Packaging: All servo drives are packed in ESD-safe materials with moisture-barrier protection for safe international transit.
- Documentation: Each shipment includes a packing list, inspection record, and available original OMRON documentation.
How to Order
- Submit your inquiry via the Contact Us form or email support@konmask.com with your required quantity and delivery timeline.
- Our technical team will confirm availability, lead time, and provide a formal quotation within 1 business day.
- Upon order confirmation, we arrange secure packaging and international freight (DHL, FedEx, UPS, or sea freight for bulk orders).
- Tracking information and shipping documents (commercial invoice, packing list, COO if required) are provided upon dispatch.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on PLC modules, servo systems, DCS components, and automation hardware — not a generalist marketplace.
- Global B2B Supply: Serving OEMs, system integrators, and MRO procurement teams across 40+ countries.
- Technical Pre-Sales Support: Our engineers can assist with compatibility verification, wiring diagrams, and parameter guidance before you commit to an order.
- Competitive Lead Times: Extensive supplier network enables fast sourcing even for discontinued or hard-to-find OMRON parts.
- Transparent Documentation: Full shipping and customs documentation provided for smooth import clearance worldwide.
Frequently Asked Questions
- Q: Is the R7D-BP04H-Z compatible with 380V three-phase power supplies?
- A: No. The R7D-BP04H-Z is rated for single-phase 200–230 VAC input only. For three-phase 380V applications, please refer to the OMRON R7D-BP series with appropriate voltage ratings.
- Q: Can this drive be used with non-OMRON servo motors?
- A: The R7D-BP04H-Z is optimized for OMRON R7M-series motors. Use with third-party motors is not officially supported and may result in parameter incompatibility or protection faults.
- Q: What is the difference between R7D-BP04H and R7D-BP04H-Z?
- A: The “-Z” suffix typically denotes a specific regional or revision variant. Please confirm the exact suffix requirement with your system documentation or contact our team for clarification.
- Q: Do you provide a warranty on this product?
- A: Yes. We offer a standard warranty period on all units. Please contact support@konmask.com for specific warranty terms applicable to your order.
- Q: Can you supply multiple units for a production line upgrade?
- A: Yes. We handle both single-unit and bulk B2B orders. Volume pricing is available — please include your required quantity in your inquiry.
