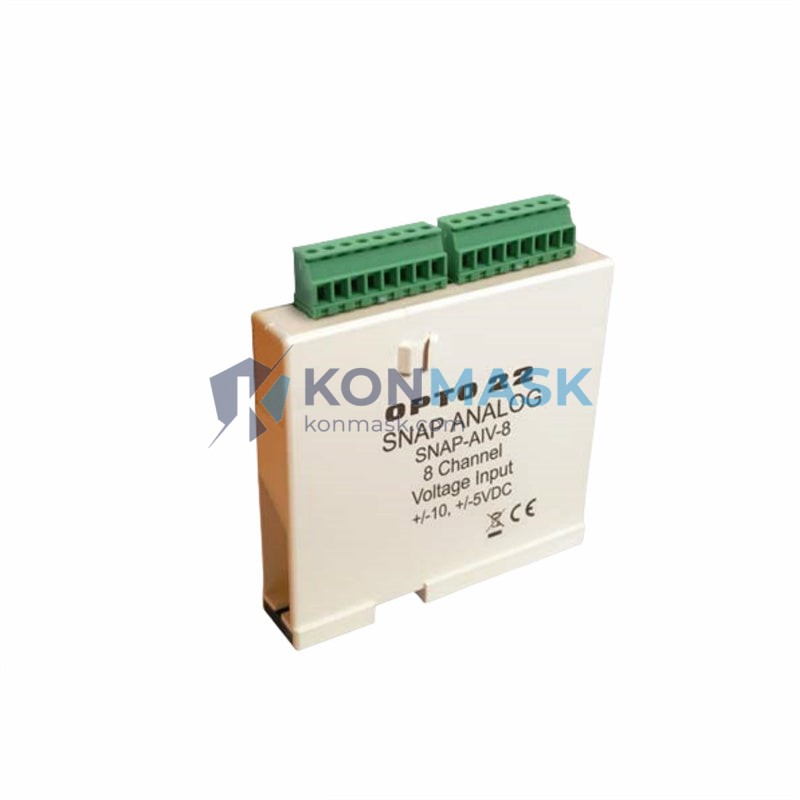

OPTO 22 SNAP-AIV-8 8-Channel Analog Voltage Input Module | Replacement, Equivalent & Selection Guide
The OPTO 22 SNAP-AIV-8 is an 8-channel analog voltage input module designed for the SNAP PAC and SNAP Ultimate I/O systems. It accepts ±10 VDC signals and delivers high-resolution analog data acquisition for industrial automation, process control, and data logging applications. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Part Number: SNAP-AIV-8
- Manufacturer: OPTO 22
- Series: SNAP PAC / SNAP Ultimate I/O
- Module Type: Analog Voltage Input
- Number of Channels: 8
- Input Range: ±10 VDC
- Resolution: 16-bit
- Input Impedance: 200 kΩ (typical)
- Isolation: 4,000 V optical isolation (channel-to-backplane)
- Backplane Compatibility: SNAP PAC SB-series, SNAP Ultimate brains
- Operating Temperature: 0°C to 70°C
- Weight: ~1,280 g (module + packaging)
- Certifications: UL, CE, RoHS
Compatible Replacement & Equivalent Models
If the SNAP-AIV-8 is discontinued, long lead-time, or out of budget, the following models offer functional equivalence or drop-in compatibility:
- OPTO 22 SNAP-AIV-4 — 4-channel version; same voltage range, same backplane; use two units to match 8-channel capacity
- OPTO 22 SNAP-AIMA-8 — 8-channel analog input, milliamp (4–20 mA) variant; suitable when signal type can be converted
- OPTO 22 SNAP-AIV32-8 — higher-density 32-channel variant for large-scale systems
- Advantech ADAM-6017 — 8-channel analog input module with Modbus TCP; requires gateway integration
- Wago 750-459 — 8-channel ±10 V analog input for Wago 750 fieldbus coupler; compatible via Modbus mapping
- Phoenix Contact AXL F AI8 I 1H — 8-channel analog input for Axioline F system; requires protocol adapter
Note: Third-party replacements may require firmware configuration or signal conditioning. Contact Konmask for pre-sales compatibility verification.
Why Choose the Original SNAP-AIV-8
- ✅ Native plug-and-play compatibility with all SNAP PAC brains (SB1, SB2, SB2L, R-series)
- ✅ 16-bit resolution ensures high-accuracy analog acquisition
- ✅ 4,000 V optical isolation protects controllers from field-side transients
- ✅ 8 simultaneous channels reduce wiring complexity and cabinet footprint
- ✅ Proven reliability in 24/7 industrial environments
- ✅ Full OPTO 22 PAC Project software integration with no additional drivers
Typical Applications
- Process temperature and pressure monitoring (via voltage-output transmitters)
- Motor drive speed feedback acquisition
- Weighing and load cell signal conditioning (with signal converter)
- Building automation: HVAC sensor data collection
- Water/wastewater treatment plant instrumentation
- Laboratory test & measurement data acquisition
- Renewable energy: solar irradiance and wind speed monitoring
System Compatibility
- Compatible Brains: SNAP-PAC-SB1, SNAP-PAC-SB2, SNAP-PAC-SB2L, SNAP-PAC-R1, SNAP-PAC-R2, SNAP-ULTIMATE
- Compatible Racks: SNAP-B3M, SNAP-B6M, SNAP-B12M, SNAP-B16M, SNAP-B32M
- Software: PAC Project Basic / Professional, PAC Control, PAC Display
- Communication Protocols: Ethernet/IP, Modbus TCP (via brain)
- Not Compatible With: SNAP-LCE, SNAP-LCSX legacy brains (use SNAP-AIV-8 only with PAC-generation brains)
Selection Guide
| Requirement | Recommended Model |
|---|---|
| 8-ch ±10 V input, SNAP PAC system | SNAP-AIV-8 ✅ (this product) |
| 4-ch ±10 V input, cost reduction | SNAP-AIV-4 |
| 8-ch 4–20 mA input, SNAP PAC system | SNAP-AIMA-8 |
| 8-ch ±10 V, standalone Modbus TCP | Advantech ADAM-6017 |
| High-density 32-ch analog input | SNAP-AIV32-8 |
| Wago fieldbus system | Wago 750-459 |
Quality Assurance & Sourcing
- 🔒 All units sourced from authorized distributors or verified surplus channels
- 🔒 Each module undergoes visual inspection and functional verification before shipment
- 🔒 Original manufacturer packaging and documentation preserved where available
- 🔒 Traceability records maintained for B2B and OEM customers
- 🔒 Anti-counterfeit verification available upon request
How to Order
- Confirm your SNAP PAC brain model and rack configuration
- Verify signal type: ±10 VDC voltage input (if 4–20 mA, select SNAP-AIMA-8 instead)
- Add SNAP-AIV-8 to cart or contact us for bulk/OEM pricing
- Provide your PO number, delivery address, and any special requirements
- Receive order confirmation and tracking within 1 business day
📧 Email: support@konmask.com
📞 Phone/WhatsApp: +0086 19859288691
🌐 Website: https://Konmask.com
Replacement & Compatibility FAQ
Q: Can I use SNAP-AIV-8 with legacy SNAP-LCE brains?
A: No. The SNAP-AIV-8 is designed for SNAP PAC generation brains only. For legacy systems, consult OPTO 22’s migration guide or contact Konmask for alternatives.
Q: Is SNAP-AIV-8 compatible with ±5 V signals?
A: The module is rated for ±10 VDC. ±5 V signals are within range and will be read accurately, but resolution is effectively halved. Consider SNAP-AIV-4 with software scaling for precision applications.
Q: What is the lead time for SNAP-AIV-8?
A: In-stock units ship within 1–3 business days. For large quantities or special configurations, contact us for availability.
Q: Can Konmask provide a Certificate of Conformance (CoC)?
A: Yes. CoC and test reports are available for qualified B2B orders upon request.
Q: Are third-party replacements covered under warranty?
A: Third-party equivalents carry their respective manufacturer warranties. Konmask provides a 90-day functional guarantee on all verified surplus units.
