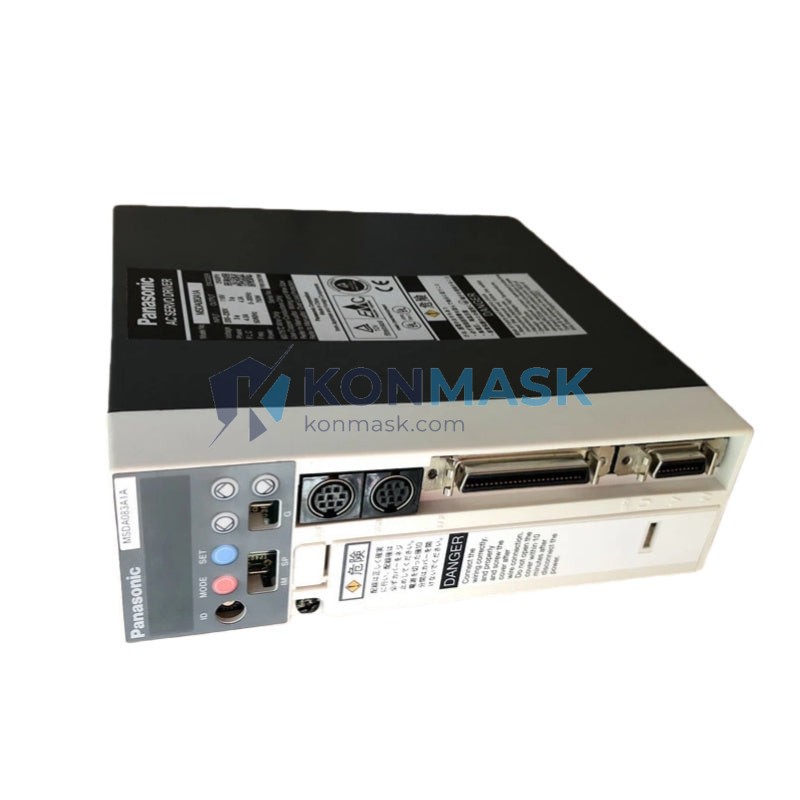

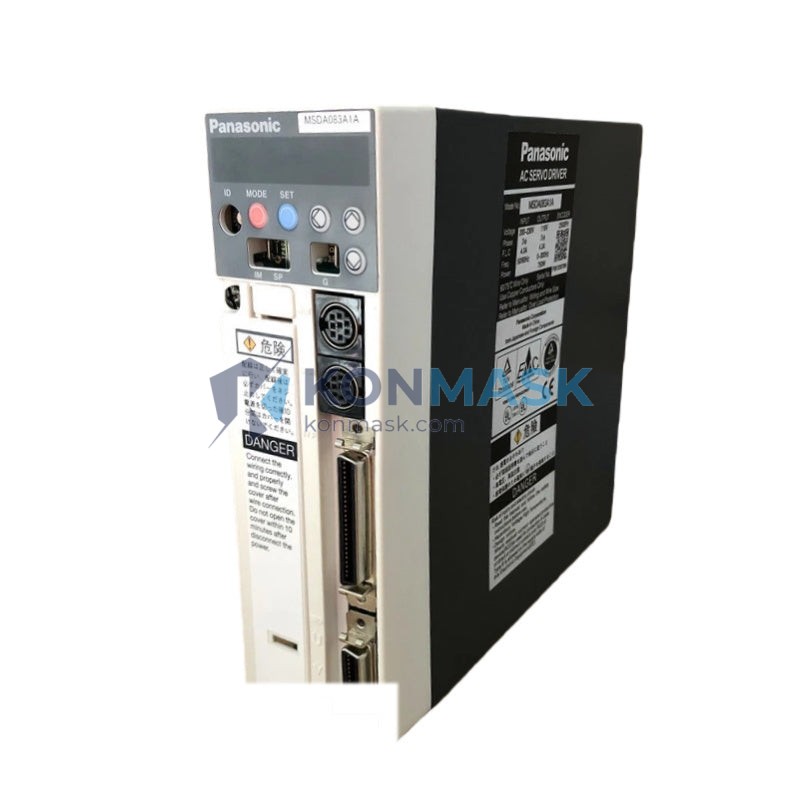

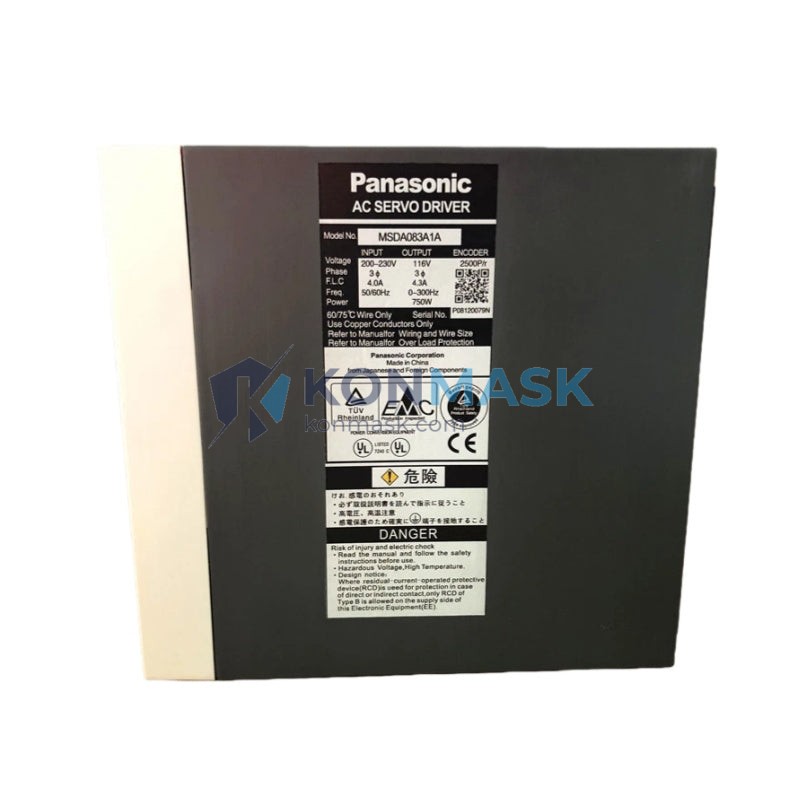

Genuine Panasonic MSDA083A1A AC Servo Driver | MINAS A Series – Verified Source
The Panasonic MSDA083A1A is a high-performance AC servo driver from the MINAS A Series, rated at 750W (0.75 kW) output power. Designed for precision motion control in demanding industrial environments, this unit delivers reliable torque response, smooth velocity control, and seamless integration with Panasonic MINAS servo motors. Every unit sold through Konmask.com is sourced through verified supply channels and undergoes our 4-step quality verification process before shipment.
Technical Specifications
- Model / SKU: MSDA083A1A
- Brand: Panasonic
- Series: MINAS A Series
- Rated Output Power: 750 W (0.75 kW)
- Input Voltage: Single-phase / Three-phase 200–230 VAC, 50/60 Hz
- Rated Output Current: 3.8 A
- Control Mode: Position / Velocity / Torque
- Encoder Interface: Incremental encoder (2500 P/R)
- Communication: RS-232C / RS-485
- Regenerative Resistor: Built-in
- Protection Class: IP20
- Operating Temperature: 0 °C to 55 °C
- Weight: Approx. 1.5 kg
- Dimensions (W × H × D): 70 × 160 × 170 mm (approx.)
Our 4-Step Quality Verification Process
- Source Authentication – Units are procured exclusively from authorized distributors, OEM surplus channels, or factory-direct sources. Counterfeit supply chains are systematically excluded.
- Physical Inspection – Each unit is inspected for label integrity, serial number consistency, housing condition, and connector completeness upon receipt.
- Functional Bench Test – Where applicable, units are powered on and tested for basic drive initialization, fault-free startup, and parameter readback via RS-232C.
- Documentation Review – Firmware version, production date codes, and packaging markings are cross-referenced against Panasonic’s published specifications before dispatch.
Key Features & Benefits
- ✅ Genuine Panasonic component – not a clone or third-party substitute
- ✅ Compact footprint – fits standard DIN-rail and panel-mount enclosures
- ✅ Multi-mode control – position, velocity, and torque modes in a single unit
- ✅ Built-in regenerative resistor – reduces external component count
- ✅ RS-232C / RS-485 interface – easy integration with PLCs and HMIs
- ✅ Wide operating temperature range – suitable for factory floor environments
- ✅ Auto-tuning function – reduces commissioning time significantly
Typical Applications
- CNC machine tool axes (X/Y/Z positioning)
- Semiconductor wafer handling and pick-and-place systems
- Packaging and labeling machinery
- Textile and printing equipment
- Robotic arm joint control
- Conveyor and indexing systems requiring precise speed regulation
Compatible System Components
- Compatible Motors: Panasonic MINAS A Series servo motors (e.g., MSMA082A1G, MSMA082A1S)
- Recommended Cable: Panasonic encoder cable MFECA0030EAM / power cable MFMCA0030EAM
- Programming Tool: Panasonic PANATERM software (Windows compatible)
- Communication Adapter: RS-232C to USB converter for PC-based parameter setup
- Regenerative Unit: External resistor DV0P4281 (for high-duty-cycle applications)
Global Sourcing & Shipping Capabilities
Konmask.com operates as a specialist industrial automation parts supplier serving customers across Asia, Europe, North America, and the Middle East. We maintain stock of hard-to-find Panasonic servo components and can fulfill both single-unit and bulk orders.
- Lead Time: In-stock items ship within 1–3 business days
- Packaging: Anti-static foam-lined carton with moisture barrier
- Shipping Methods: DHL Express, FedEx International Priority, sea freight for bulk
- Export Documentation: Commercial invoice, packing list, and COO available upon request
- Minimum Order: 1 unit (no MOQ restriction for standard orders)
Certifications & Compliance Statement
The Panasonic MSDA083A1A is manufactured under Panasonic’s ISO 9001-certified quality management system. Units supplied by Konmask.com are:
- CE marked (EMC Directive 2014/30/EU compliant)
- RoHS compliant (Directive 2011/65/EU)
- UL recognized component (where applicable by production batch)
Konmask.com does not manufacture this product. We are an independent distributor. All trademarks and brand names remain the property of Panasonic Corporation.
How to Order
- Add to Cart – Click “Add to Cart” for immediate checkout at the listed price.
- Request a Quote – For bulk orders (5+ units) or special pricing, email [email protected] with your required quantity and delivery timeline.
- Provide Your PO – B2B customers may submit a purchase order; net payment terms available for approved accounts.
- Confirm & Ship – We confirm stock, issue a proforma invoice, and dispatch within the agreed lead time.
Authenticity & Trust FAQ
Q: How do I know this is a genuine Panasonic unit?
A: Every unit passes our 4-step verification process. We provide the serial number and production date code upon request so you can cross-check with Panasonic’s records.
Q: Do you offer a warranty?
A: Yes. We offer a 90-day return-to-base warranty covering manufacturing defects. Units damaged by incorrect wiring or overvoltage are excluded.
Q: Can I return the unit if it doesn’t match my application?
A: Unused units in original packaging may be returned within 14 days. Please contact us before returning.
Q: Do you have other MINAS A Series models in stock?
A: Yes. We stock a wide range of MINAS A and MINAS A5 series drivers and motors. Contact us with your model number for availability.
Q: Can you provide a datasheet or wiring diagram?
A: Yes. The Panasonic MSDA083A1A technical manual is available upon request. Email [email protected].
