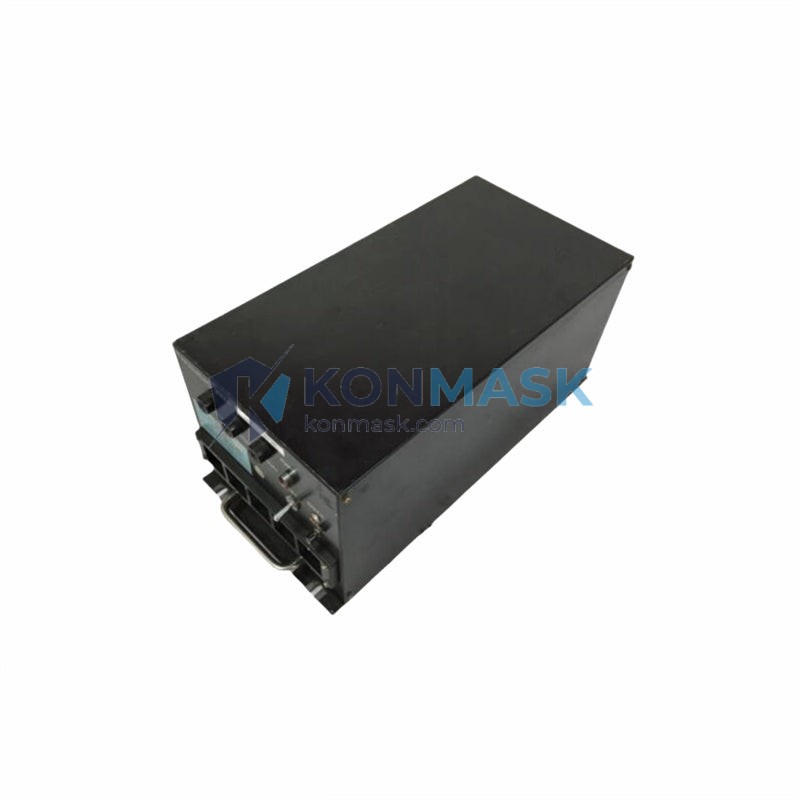

AC Servo Motion Control Solution – Panasonic PANADAC-332A P332AZ1.5KW | PANADAC Series
Where This Product Is Used
The Panasonic PANADAC-332A P332AZ1.5KW AC servo power supply unit is engineered for demanding industrial motion control environments. Typical deployment scenarios include:
- CNC Machining Centers – Provides stable servo axis power for multi-axis milling, turning, and grinding machines requiring precise torque and speed regulation.
- Industrial Robotics – Powers servo drives in articulated and SCARA robot arms used in automotive assembly, welding, and material handling.
- Automated Production Lines – Integrated into conveyor indexing, pick-and-place, and packaging machinery where consistent 1.5 kW servo output is critical.
- Injection Molding Machines – Supplies regulated AC servo power for clamping and injection axis control in plastics manufacturing.
- Semiconductor & Electronics Assembly – Used in high-precision positioning stages and wafer-handling equipment requiring low-ripple power delivery.
- Textile & Printing Machinery – Drives servo motors in web-tension control and register systems demanding dynamic response.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | PANADAC-332A / P332AZ1.5KW |
| Brand | Panasonic (Matsushita Electric) |
| Series | PANADAC |
| Rated Output Power | 1.5 kW |
| Unit Type | AC Servo Power Supply Unit |
| Input Voltage | AC 200–230 V, 3-Phase / Single-Phase (refer to nameplate) |
| Output | DC Bus for PANADAC Series Servo Amplifiers |
| Cooling Method | Forced Air / Natural Convection (model dependent) |
| Weight | 2,140 g (2.14 kg) |
| Country of Origin | Japan |
| Condition | New / Refurbished (specify at order) |
Note: Full electrical specifications are available in the Panasonic PANADAC Series technical manual. Contact us for datasheet access.
Why Engineers Specify This Model
- PANADAC Ecosystem Compatibility – Designed as the dedicated power supply backbone for Panasonic PANADAC servo amplifier series, ensuring matched impedance and bus voltage stability.
- 1.5 kW Capacity Sweet Spot – Covers the majority of single- and dual-axis servo applications without oversizing, reducing panel footprint and cost.
- Proven Reliability – Panasonic’s PANADAC platform has decades of field deployment in Japanese and global OEM machinery, with a well-documented MTBF record.
- Regenerative Energy Handling – Supports regenerative braking energy management when paired with compatible PANADAC amplifiers, protecting the DC bus during deceleration.
- Direct Replacement Availability – Stocked as a drop-in replacement for aging PANADAC installations, minimizing machine downtime during maintenance cycles.
Complete System Bill of Materials
For a complete PANADAC servo axis, the following components are typically specified alongside the PANADAC-332A:
- Panasonic PANADAC Series Servo Amplifier (e.g., PANADAC-332 amplifier module)
- Panasonic MINAS Series AC Servo Motor (matched kW rating)
- Encoder feedback cable (Panasonic standard or absolute encoder type)
- Motor power cable (shielded, rated for servo duty cycle)
- DIN rail mounting hardware and panel breaker (15–20 A, 3-phase)
- EMC line filter (recommended for CE/UL compliance installations)
- Regenerative resistor unit (if high-inertia load or frequent deceleration)
Contact support@konmask.com for a complete BOM quotation tailored to your machine specification.
Compliance & Industry Standards
- CE Marking – Compliant with EU Low Voltage Directive and EMC Directive (original Panasonic factory certification).
- UL/cUL Recognition – Panasonic PANADAC series components carry UL recognition for North American installations (verify specific suffix).
- RoHS Compliance – Manufactured under Panasonic’s environmental compliance program; RoHS declaration available on request.
- ISO 9001 Manufacturing – Produced at Panasonic’s ISO 9001-certified servo manufacturing facilities.
- IEC 61800 Series – Designed in alignment with IEC 61800 adjustable-speed electrical power drive systems standards.
Quality Assurance & Sourcing
At Konmask.com, every PANADAC-332A unit undergoes the following before shipment:
- Visual inspection for physical damage, corrosion, and component integrity.
- Power-on functional test verifying DC bus output voltage within specification.
- Firmware/label verification against Panasonic factory part number P332AZ1.5KW.
- Anti-static packaging with humidity indicator card for safe international transit.
- Traceability documentation provided upon request for MRO and OEM procurement teams.
We source directly from authorized Panasonic distributors and certified industrial surplus channels. Counterfeit-free guarantee backed by our sourcing policy.
How to Source This Part
- Add to Cart – Click the purchase button above to place an order directly.
- Request a Quote – For volume orders (3+ units) or project BOM requirements, email support@konmask.com for preferential pricing.
- Lead Time – In-stock units ship within 1–3 business days. Out-of-stock units: 2–6 weeks sourcing lead time.
- Global Shipping – DHL Express, FedEx International, and sea freight options available. Export documentation (commercial invoice, packing list, COO) provided.
- Payment – T/T bank transfer, PayPal, and major credit cards accepted.
Application-Specific FAQ
Q: Is the PANADAC-332A compatible with all PANADAC servo amplifiers?
A: The PANADAC-332A power supply is designed for the PANADAC series. Compatibility depends on the specific amplifier model and DC bus voltage requirements. Please share your amplifier model number for confirmation before ordering.
Q: Can this unit replace a failed power supply in an existing PANADAC system?
A: Yes. The P332AZ1.5KW is a direct form-fit-function replacement for PANADAC installations of the same power class. Verify the connector pinout against your existing wiring diagram.
Q: What is the warranty on this unit?
A: Konmask offers a 90-day functional warranty on all tested units. Extended warranty options are available for OEM and MRO customers.
Q: Do you provide the original Panasonic technical manual?
A: Yes. The PANADAC series installation and maintenance manual is available as a PDF upon request. Contact support@konmask.com.
Q: Is this product available for export to the EU, USA, or Southeast Asia?
A: Yes. We ship globally with full export documentation. Customs HS code and COO (Japan) documentation are provided for all international shipments.
