Parker C3M050D6F11I20F30M00S0 Compax3 Servo Drive Module | Replacement, Equivalent & Selection Guide

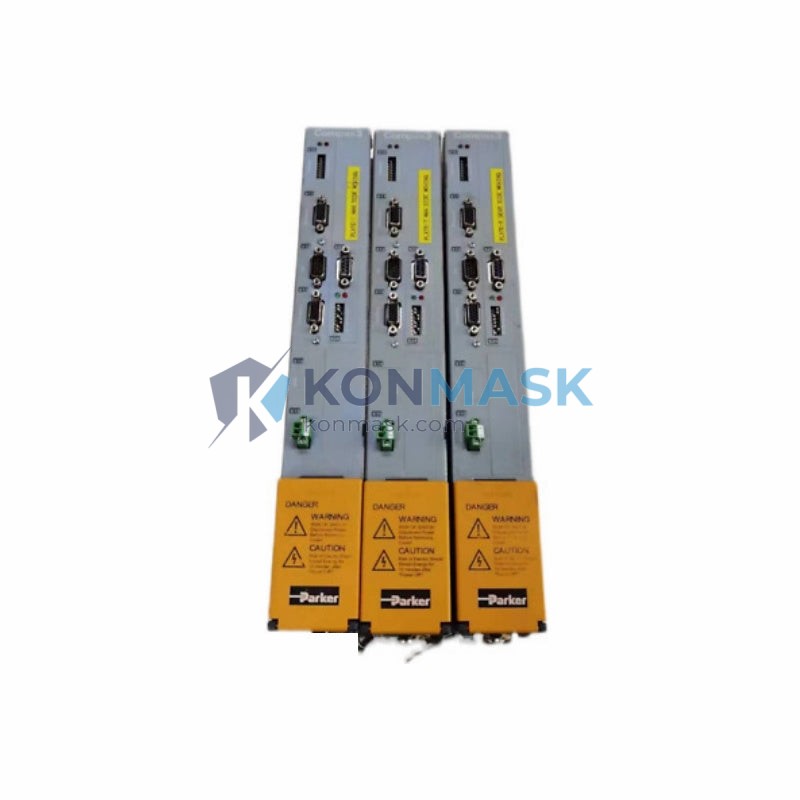

The Parker C3M050D6F11I20F30M00S0 is a high-performance servo drive module from the Parker Hannifin Compax3 series, engineered for precision motion control in demanding industrial automation environments. This page provides full technical specifications, compatible replacement models, application guidance, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Part Number: C3M050D6F11I20F30M00S0
- Brand: Parker Hannifin
- Series: Compax3
- Module Type: Servo Drive / Motion Controller Module
- Continuous Output Current: 5.0 A (RMS)
- Supply Voltage: 3-phase 200–480 VAC, 50/60 Hz
- Communication Interface: PROFIBUS-DP (F11 option)
- Feedback Interface: Resolver / Encoder (I20 option)
- I/O Option: F30 (digital I/O expansion)
- Form Factor: Modular DIN-rail / panel-mount
- Weight: Approx. 1.6 kg
- Compliance: CE, UL
- Operating Temperature: 0 °C to +45 °C
- Protection Class: IP20
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the C3M050D6F11I20F30M00S0. Always verify electrical and communication compatibility before substitution.
- Parker C3M075D6F11I20F30M00S0 – Higher current (7.5 A) variant, same Compax3 platform and PROFIBUS interface; drop-in upgrade for higher-torque applications.
- Parker C3M050D6F11I11F30M00S0 – Same current rating, alternate encoder feedback (I11 SinCos); suitable when resolver feedback is not required.
- Parker C3S050V4F10I20T40M00S0 – Single-axis standalone variant; compatible firmware and parameter structure, different form factor.
- Bosch Rexroth IndraDrive Cs HCS01.1E-W0013 – Cross-brand equivalent for PROFIBUS servo applications; requires parameter remapping and motor re-tuning.
- Siemens SINAMICS S120 CU320-2 DP – Enterprise-grade alternative with PROFIBUS-DP; broader ecosystem but higher integration effort.
- Lenze i700 Servo Inverter – Compact modular alternative; evaluate bus topology and feedback wiring before substitution.
Note: Cross-brand replacements require engineering validation. Contact support@konmask.com for compatibility assessment.
Why Choose the Original Model
- Exact parameter compatibility: Retains all existing Compax3 project files, motion programs, and tuning data — zero re-commissioning overhead.
- Native PROFIBUS-DP integration: Plug-and-play with existing PLC/DCS networks without gateway hardware.
- Proven reliability: Parker Compax3 series has a documented MTBF exceeding 50,000 hours in continuous industrial duty.
- Resolver feedback (I20): Superior noise immunity vs. incremental encoders in high-EMI environments such as welding cells and press lines.
- Modular scalability: Easily expands within the Compax3 multi-axis system without additional power supply redesign.
Typical Applications
- CNC machine tool axes (milling, turning, grinding)
- Packaging machinery — pick-and-place, form-fill-seal
- Printing and converting lines — register control
- Semiconductor handling and wafer transport
- Robotics and gantry systems
- Textile and winding machinery
- Injection molding clamping and ejection axes
System Compatibility
- PLC / DCS: Siemens S7-300/400/1500 (via PROFIBUS-DP), Rockwell ControlLogix (via PROFIBUS scanner), Schneider Modicon M340/M580
- Motors: Parker MPP, MPJ, and MPS servo motor series; third-party motors with resolver feedback (verify resolver excitation voltage)
- Software: Parker C3 ServoManager (commissioning), Parker Motion Architect (multi-axis coordination)
- Power Supply: Compatible with Parker Compax3 shared DC bus and standalone AC supply configurations
- Fieldbus: PROFIBUS-DP V1, supports acyclic parameter access (DPV1 class 1 & 2)
Selection Guide
Use the table below to identify the correct Compax3 variant for your application:
| Parameter | C3M050D6F11I20F30M00S0 | C3M075D6F11I20F30M00S0 | C3M050D6F11I11F30M00S0 |
|---|---|---|---|
| Continuous Current | 5.0 A | 7.5 A | 5.0 A |
| Supply Voltage | 200–480 VAC | 200–480 VAC | 200–480 VAC |
| Fieldbus | PROFIBUS-DP | PROFIBUS-DP | PROFIBUS-DP |
| Feedback | Resolver (I20) | Resolver (I20) | SinCos Encoder (I11) |
| I/O Expansion | F30 | F30 | F30 |
| Best For | Standard torque, high-EMI | High-torque axes | High-resolution positioning |
Selection tip: If your motor nameplate current exceeds 4.5 A continuous, select the C3M075 variant. If your application requires sub-micron positioning, consider the I11 SinCos feedback option.
Quality Assurance & Sourcing
- Authenticity: All units sourced through authorized Parker Hannifin distribution channels or verified surplus with full traceability documentation.
- Inspection: Each module undergoes visual inspection, firmware version verification, and functional power-on test prior to shipment.
- Warranty: 12-month warranty against manufacturing defects. Extended warranty available on request.
- Certification: CE and UL markings verified. Counterfeit-free guarantee backed by serial number validation.
- Lead Time: In-stock units ship within 1–3 business days. Out-of-stock lead time: 4–8 weeks (contact us for current availability).
How to Order
- Confirm your exact part number: C3M050D6F11I20F30M00S0
- Specify quantity and required delivery date.
- Add to cart and proceed to checkout, or contact us for bulk pricing and freight quotes.
- For urgent requirements, email support@konmask.com or call +0086 19859288691 for same-day response.
- Export documentation (commercial invoice, packing list, CO) available for international orders.
Replacement & Compatibility FAQ
Q: Can I replace C3M050D6F11I20F30M00S0 with a C3M075 without changing the motor?
A: Yes, provided the motor’s resolver is compatible. The C3M075 is backward-compatible with the same motor wiring and Compax3 project files.
Q: Is PROFIBUS-DP the only fieldbus option for this module?
A: The F11 option designates PROFIBUS-DP. Other Compax3 variants support EtherCAT (F12), CANopen (F13), and DeviceNet (F14). Specify the correct F-code when ordering.
Q: Can this drive work with a third-party servo motor?
A: Yes, with resolver feedback motors. You must configure resolver excitation voltage and motor data in C3 ServoManager. Contact us for motor compatibility verification.
Q: What is the difference between I20 and I11 feedback options?
A: I20 uses resolver feedback (robust, no battery, suited for harsh environments). I11 uses SinCos encoder feedback (higher resolution, suited for precision positioning). Both are supported within the Compax3 platform.
Q: Do you provide commissioning support?
A: Yes. Remote commissioning assistance via C3 ServoManager is available. Contact support@konmask.com to arrange a session.
