Schneider Electric XBTF024510 HMI Operator Panel | Replacement, Equivalent & Selection Guide

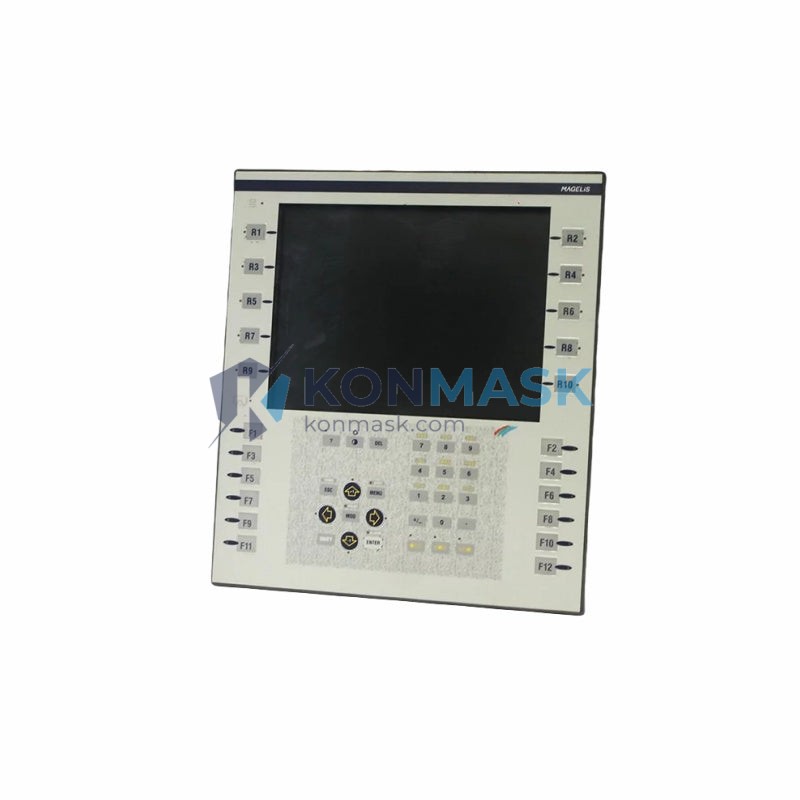

The Schneider Electric XBTF024510 is a compact, high-performance HMI (Human-Machine Interface) operator panel from the Magelis XBTF series, designed for industrial automation environments. This touch-screen panel delivers reliable real-time process visualization and operator control, making it a trusted choice for OEM machine builders and system integrators worldwide.
Technical Specifications
- Part Number / SKU: XBTF024510
- Brand: Schneider Electric
- Series: Magelis XBTF
- Type: HMI Operator Panel (Touch Screen)
- Display: 5.7″ STN Color LCD
- Resolution: 320 × 240 px (QVGA)
- Touch Type: Resistive touch screen
- Memory: 512 KB application memory
- Communication Ports: RS-232C / RS-485 serial; USB programming port
- Power Supply: 24 V DC
- Operating Temperature: 0 °C to +50 °C
- Protection Rating: IP65 (front panel)
- Weight: Approx. 4.6 kg (with mounting hardware)
- Software: Vijeo Designer
- Certifications: CE, UL, cUL
Compatible Replacement & Equivalent Models
If the XBTF024510 is discontinued, out of stock, or outside your budget, the following models offer compatible or equivalent functionality:
- Schneider Electric XBTGT2330 – Magelis GTO series, 3.8″ color TFT, direct upgrade path with Vijeo Designer compatibility
- Schneider Electric XBTGT4330 – 5.7″ color TFT, higher resolution, drop-in replacement candidate for XBTF024510 applications
- Schneider Electric HMIGTO2310 – Magelis GTO advanced series, enhanced connectivity, suitable for modernization projects
- Proface GP2301-LG41-24V – Third-party equivalent, 5.7″ STN, RS-232/RS-485, widely used as a cross-brand replacement
- Weintek MT6050i – Cost-effective alternative, 4.3″ TFT, Ethernet + serial, suitable for budget-sensitive retrofits
Note: Always verify communication protocol, resolution, and software compatibility before substituting. Contact Konmask.com for a free compatibility assessment.
Why Choose the Original XBTF024510
- ✅ Proven reliability in harsh industrial environments (IP65 front protection)
- ✅ Native Vijeo Designer support – no re-programming required for existing projects
- ✅ Seamless integration with Schneider Electric PLCs (Modicon M340, Premium, Quantum series)
- ✅ Long field service history – extensive spare parts and technical documentation available
- ✅ OEM-grade quality – sourced directly from authorized supply chains
Typical Applications
- Machine tool control panels and CNC operator interfaces
- Packaging and conveyor line HMI stations
- Water treatment and HVAC monitoring panels
- Food & beverage process control
- Building automation and energy management systems
- Retrofit and modernization of legacy Schneider Electric control systems
System Compatibility
The XBTF024510 communicates natively with the following Schneider Electric PLC families via serial (RS-232C / RS-485) using the Uni-Telway or Modbus RTU protocol:
- Modicon TSX Micro / TSX Premium / TSX Quantum
- Modicon M340 (via serial adapter)
- Twido series PLCs
- Third-party PLCs supporting Modbus RTU (Siemens S7-200, Mitsubishi FX, Allen-Bradley Micro820 with protocol converter)
Selection Guide
Use this guide to confirm the XBTF024510 is the right panel for your application, or to identify the best alternative:
- Need 5.7″ STN display + RS-232/485 + 24 VDC + IP65? → XBTF024510 is your exact match.
- Need higher resolution (TFT color) on same footprint? → Consider XBTGT4330.
- Need Ethernet connectivity? → Upgrade to HMIGTO2310 or HMIGTU series.
- Budget retrofit with third-party HMI? → Proface GP2301 or Weintek MT6050i are proven alternatives.
- Replacing a failed unit with identical program? → Source original XBTF024510 from Konmask.com for zero re-programming cost.
Quality Assurance & Sourcing
- All units at Konmask.com are sourced from verified, traceable supply chains
- Each unit undergoes incoming inspection: visual check, label verification, and power-on test where applicable
- Original factory packaging and documentation preserved where available
- Counterfeit-risk screening applied to all Schneider Electric products
- Warranty: 12 months from date of shipment (DOA replacement policy)
How to Order
- Confirm your part number: XBTF024510
- Specify quantity and required delivery timeline
- Contact us via email or phone for stock availability and lead time
- Receive a formal quotation with shipping options (DHL / FedEx / sea freight)
- Payment: T/T bank transfer, PayPal, or trade assurance
📧 [email protected] | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Is the XBTF024510 still in production?
A: The XBTF series has been superseded by the Magelis GTO/GTU series. However, new and refurbished XBTF024510 units remain available through Konmask.com for maintenance and retrofit purposes.
Q: Can I use Vijeo Designer software with the XBTF024510?
A: Yes. Vijeo Designer (v4.x and later) fully supports the XBTF024510 for program creation, upload, and download.
Q: What is the direct replacement for XBTF024510?
A: Schneider Electric’s recommended upgrade path is the XBTGT4330 (5.7″ TFT color). Program migration is required using Vijeo Designer’s conversion tool.
Q: Does Konmask.com ship internationally?
A: Yes. We ship worldwide via DHL, FedEx, and sea freight. Export documentation (commercial invoice, packing list, CO) provided upon request.
Q: Can you supply a certificate of conformity or test report?
A: Yes, available upon request for quality-critical procurement.
