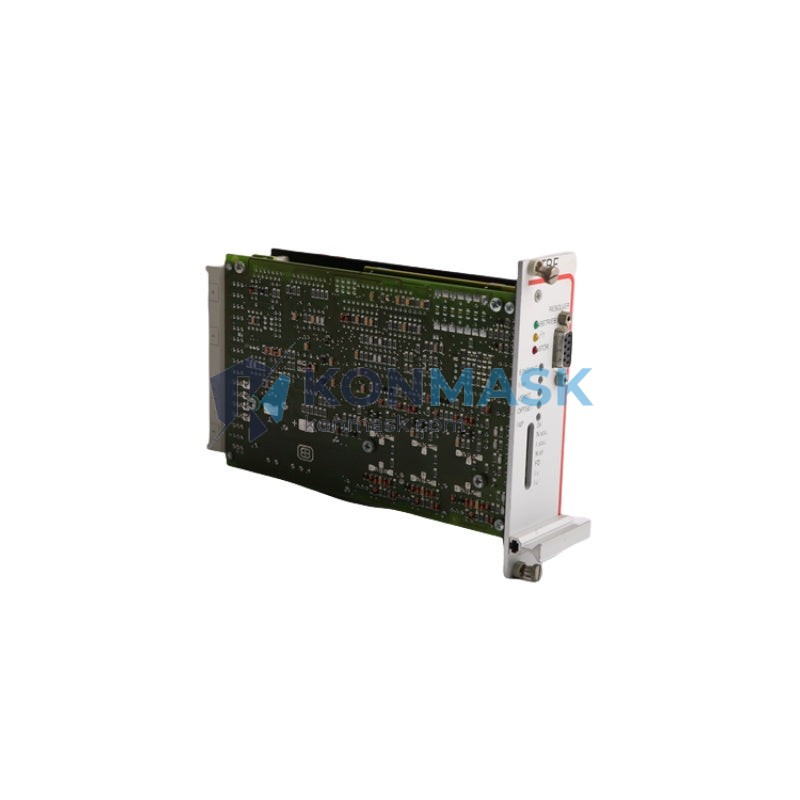

Parker TBF60/5R Servo Controller – 5-Axis Precision Motion Control | Compax Series
Engineering Background
Parker Hannifin is a global leader in motion and control technologies, serving aerospace, industrial automation, and process control markets for over a century. The TBF60/5R is engineered within Parker’s Compax servo drive platform, designed to meet the exacting demands of multi-axis coordinated motion in high-throughput manufacturing environments.
Product Positioning
The Parker TBF60/5R is a 5-axis servo controller module purpose-built for procurement engineers and system integrators who require deterministic, high-precision motion control in demanding industrial applications. It delivers synchronized multi-axis coordination, robust I/O interfacing, and seamless integration with Parker’s broader automation ecosystem.
Complete Technical Specifications
- Part Number: TBF60/5R
- Manufacturer: Parker Hannifin Corporation
- Series / Platform: Compax Servo Drive Series
- Axes Supported: 5-axis coordinated motion control
- Control Type: Servo (closed-loop position, velocity, torque)
- Communication Interface: Compatible with Parker motion bus and standard industrial fieldbus protocols
- Input Voltage: Per Compax series specification (consult datasheet for exact ratings)
- Enclosure / Form Factor: DIN-rail / panel-mount module
- Weight: 420 g
- Country of Origin: United States
- HS Code: 853710
- Compliance: CE, RoHS (verify with current Parker documentation)
Proven Application Environments
- CNC machining centers and multi-axis gantry systems
- Automated assembly lines requiring synchronized servo coordination
- Packaging machinery with high-speed pick-and-place operations
- Semiconductor and electronics manufacturing equipment
- Robotics and material handling systems
- Printing and converting machinery
- Medical device manufacturing with precision positioning requirements
Engineering Advantages
- 5-Axis Synchronization: Enables complex coordinated motion profiles across multiple servo axes from a single controller module, reducing system complexity and wiring overhead.
- Compax Platform Integration: Native compatibility with Parker’s Compax drive family ensures seamless parameter management, diagnostics, and firmware updates via Parker’s Motion Manager software.
- Deterministic Control: Real-time servo loop execution ensures consistent cycle times critical for high-speed automation.
- Scalable Architecture: Modular design allows system expansion without controller replacement, protecting capital investment.
- Robust Industrial Design: Built to withstand industrial EMI environments, vibration, and temperature variations typical of factory floors.
System Architecture & Signal Flow
The TBF60/5R operates as the central motion coordinator within a Parker Compax servo system. The controller receives motion commands from the host PLC or motion computer via the fieldbus interface, executes real-time trajectory planning across all 5 axes, and outputs closed-loop servo commands to individual Compax drive modules. Encoder feedback from each servo axis is processed by the controller to maintain position accuracy. I/O signals for homing, limits, and interlocks are managed through the integrated I/O interface, enabling fully autonomous motion sequences without host PLC intervention during execution.
Sourcing & Quality Verification
- Source: Konmask.com sources Parker TBF60/5R units from authorized distribution channels and verified industrial surplus inventories.
- Inspection: Each unit undergoes visual inspection and functional verification prior to shipment.
- Authenticity: Original Parker part markings, labels, and serial numbers are preserved and verifiable.
- Documentation: Original Parker datasheets and compliance certificates available upon request.
- Warranty: Contact Konmask.com for current warranty and return policy terms.
Procurement Process
- Confirm part number TBF60/5R matches your system’s Compax controller slot requirements.
- Verify firmware version compatibility with your existing Compax drive modules and Parker Motion Manager version.
- Submit your purchase order or inquiry via Konmask.com or contact support@konmask.com for volume pricing and lead time.
- Receive order confirmation with tracking information within 1 business day.
- Expedited shipping available for urgent MRO and production-down situations.
Technical FAQ
Q: Is the TBF60/5R compatible with all Compax drive variants?
A: The TBF60/5R is designed for the Compax series platform. Compatibility depends on the specific Compax drive generation and firmware revision. Please consult the Parker Compax system manual or contact our technical team for confirmation.
Q: Can this controller be used as a drop-in replacement for an existing TBF60 series unit?
A: In most cases, yes — provided the firmware and hardware revision are compatible. We recommend verifying the revision code on your existing unit before ordering.
Q: What programming environment is used to configure the TBF60/5R?
A: Parker Motion Manager software is the standard configuration and commissioning tool for Compax series controllers.
Q: Do you offer technical support for integration?
A: Yes. Konmask.com provides pre-sales technical consultation. Contact support@konmask.com or call +0086 19859288691.
Q: What is the lead time for in-stock units?
A: In-stock units typically ship within 1–2 business days. Contact us for current stock status.
