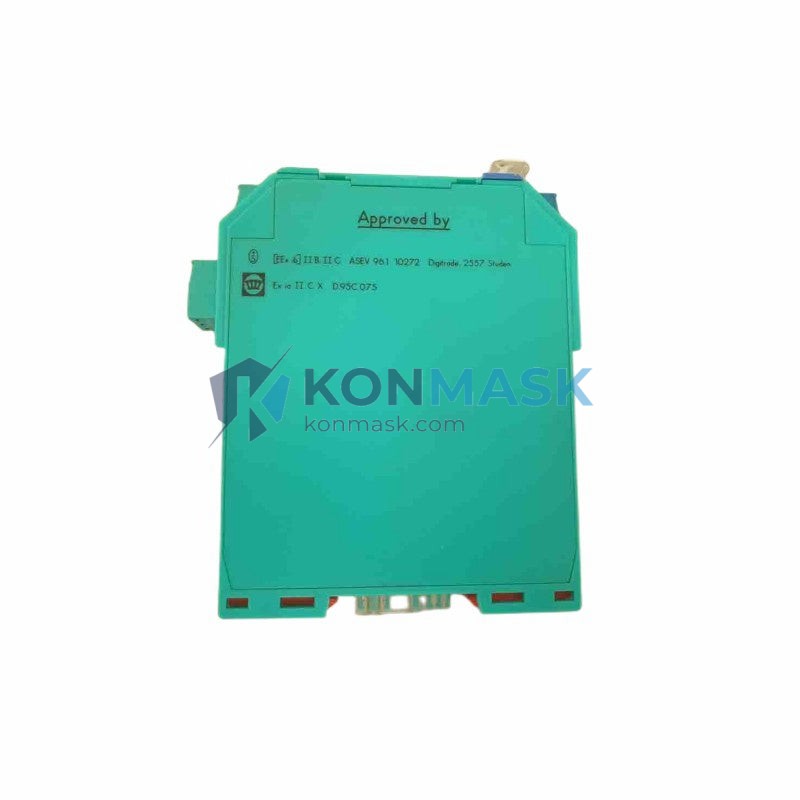

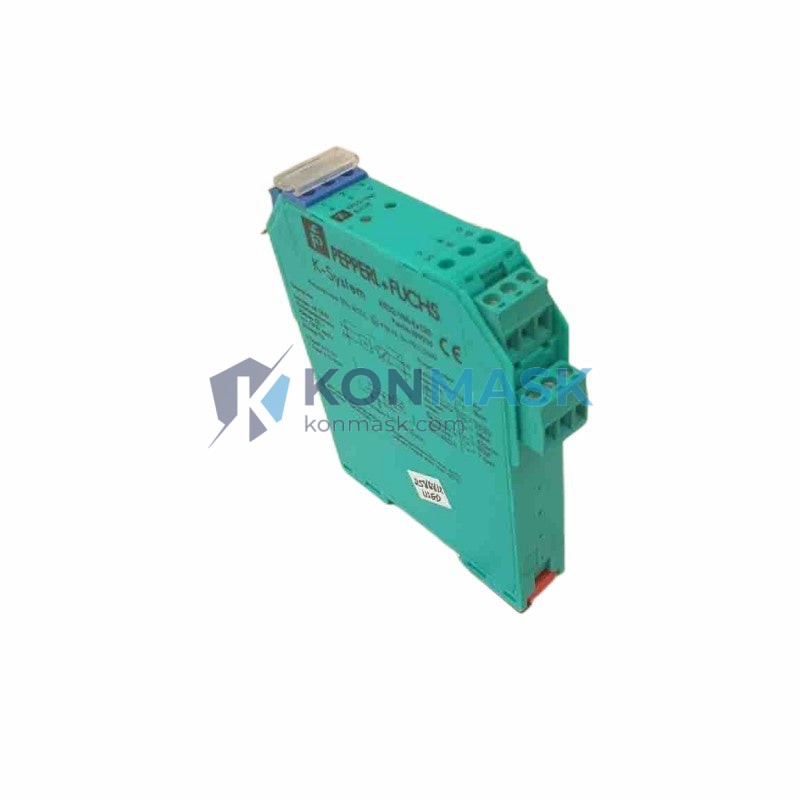

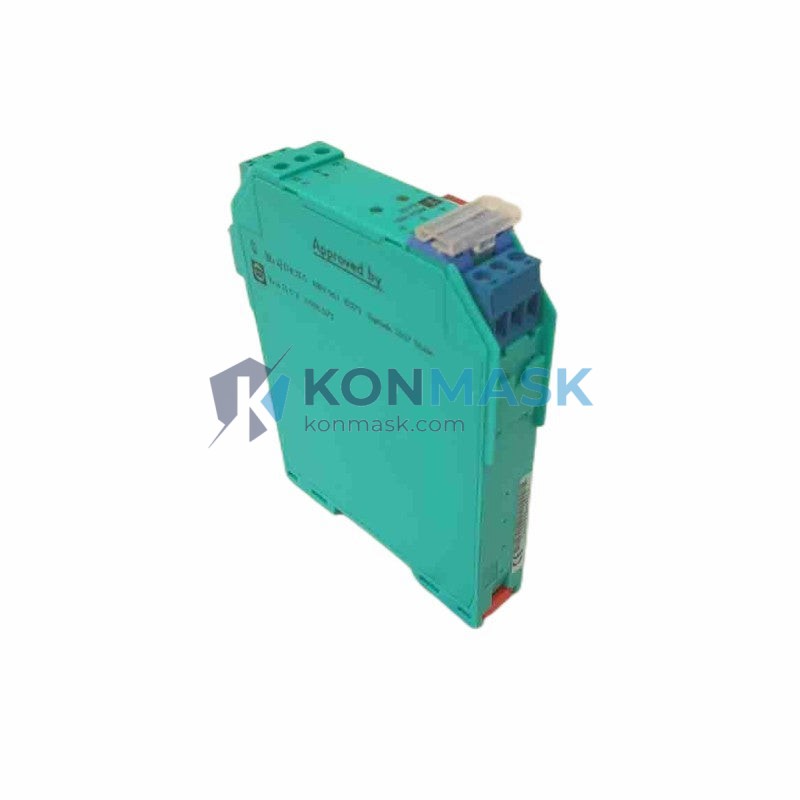

P+F KFD2-VM-EX1.35 Solenoid Driver – KFD2 Series Intrinsically Safe Signal Conditioner
Imagine a critical process valve in a Zone 1 hazardous area failing to respond — not because of a mechanical fault, but because the solenoid driver in the safe area lost its ability to deliver a reliable, isolated switching signal. In petrochemical plants, offshore platforms, and pharmaceutical production lines, this single point of failure can trigger emergency shutdowns, production losses, and serious safety incidents. The P+F KFD2-VM-EX1.35 exists precisely to eliminate this risk, providing a robust, certified interface between your safe-area control system and Ex-zone solenoid valves.
Within the Pepperl+Fuchs KFD2 product family — one of the most trusted NAMUR-compliant signal conditioner series in global process automation — the KFD2-VM-EX1.35 occupies a specialized position as a single-channel solenoid/valve driver designed for intrinsically safe applications. Pepperl+Fuchs, headquartered in Mannheim, Germany, has been a benchmark supplier for explosion protection and industrial sensing technology for over 75 years, and the KFD2 series reflects that engineering heritage with its compact DIN rail form factor, universal 24 V DC power rail compatibility, and broad international approvals.
Technical Specifications
- Model: KFD2-VM-EX1.35
- Manufacturer: Pepperl+Fuchs (P+F)
- Series: KFD2 — Intrinsically Safe Signal Conditioners
- Function: Single-channel solenoid/valve driver
- Supply Voltage: 20–35 V DC via Power Rail or terminals
- Output: Intrinsically safe output for solenoid valves in Zone 0/1/2 and Div. 1/2
- Hazardous Area Classification: Ex ia IIC / Ex ib IIC (ATEX / IECEx)
- Mounting: DIN rail (35 mm), compact 20 mm width
- Ambient Temperature: -20 °C to +60 °C
- Protection Degree: IP20
- Approvals: ATEX, IECEx, cULus (refer to datasheet for full approval list)
- LED Indication: Power and output status LEDs
- Isolation: Galvanic isolation between input, output, and power supply
Note: All specifications are sourced from official Pepperl+Fuchs documentation. Always verify against the current product datasheet before engineering design.
Key Features & Benefits
- Intrinsic Safety Certified: ATEX and IECEx approvals allow direct deployment in Zone 0, Zone 1, and Zone 2 hazardous locations without additional enclosures.
- Galvanic Isolation: Three-way isolation (input / output / power) protects both the control system and field devices from ground loops and transient interference.
- Universal Power Rail Compatibility: Integrates seamlessly with the Pepperl+Fuchs KFD2 Power Rail system, reducing wiring complexity and cabinet footprint.
- Compact 20 mm Width: High-density DIN rail mounting maximizes panel space — critical in retrofit and brownfield projects.
- Diagnostic LED Indicators: Instant visual status feedback for power and output state, reducing commissioning and troubleshooting time.
- SIL Capability: Suitable for use in safety instrumented systems (SIS) — consult the Safety Manual for SIL assessment details.
- Wide Ambient Temperature Range: Reliable operation from -20 °C to +60 °C covers demanding outdoor and process environments.
Industry & Equipment Applications
- Oil & Gas: Wellhead control panels, pipeline isolation valves, compressor station ESD systems
- Petrochemical & Refining: Reactor feed valve control, flare system isolation, tank farm automation
- Pharmaceutical & Fine Chemical: CIP/SIP valve sequencing in classified areas, solvent handling systems
- Pulp & Paper / Power Generation: Boiler feed valve control, turbine bypass systems
- Water & Wastewater: Pump station valve automation in potentially explosive atmospheres
- Mining: Underground ventilation and fire suppression valve control
System Integration & Compatible Parts
The KFD2-VM-EX1.35 is designed to integrate within the broader Pepperl+Fuchs KFD2 ecosystem. Compatible and complementary components include:
- Power Supply / Power Rail: KFD2-EB2 (Power Rail Bus), KFD2-SR2-Ex2.W (relay output modules)
- Segment Couplers: Compatible with FOUNDATION Fieldbus and PROFIBUS PA segment coupler architectures
- DCS / PLC Interface: Direct connection to 24 V DC digital output cards from Siemens, Emerson DeltaV, Honeywell Experion, ABB 800xA, and Yokogawa CENTUM
- Field Devices: NAMUR-compatible solenoid valves from ASCO, Bürkert, Parker, and Festo
- Accessories: ZH-908 (DIN rail end clamps), KFD2-EB2.R (Power Rail with redundancy)
Contact our technical team at support@konmask.com for system architecture review and BOM assistance.
Our Quality Assurance Process
At Konmask.com, every P+F KFD2-VM-EX1.35 unit we supply undergoes a structured verification process before shipment:
- Source Verification: Units are sourced exclusively from authorized distributors and verified supply chains — no grey-market or counterfeit risk.
- Visual & Label Inspection: Each unit is inspected for physical integrity, correct labeling, and matching serial/batch numbers against manufacturer records.
- Documentation Package: We provide the original manufacturer datasheet, EU Declaration of Conformity (where applicable), and test certificates upon request.
- Packaging Integrity: Products are shipped in original or equivalent ESD-safe packaging with appropriate cushioning for international transit.
- Post-Sale Support: Our engineering team is available for installation guidance, compatibility queries, and warranty coordination.
How to Order
- Submit your inquiry via the “Contact Us” button or email support@konmask.com with your required quantity and delivery timeline.
- Our team will confirm stock availability, lead time, and provide a formal quotation within 1 business day.
- Upon PO confirmation, we arrange shipment via DHL / FedEx / UPS with full tracking and export documentation.
- For large-volume or project orders, request a dedicated account manager for priority handling.
Minimum Order Quantity: 1 unit | Lead Time: Subject to stock — contact us for current availability.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation: We focus exclusively on PLC, DCS, safety, and process control components — not a generalist marketplace.
- ✅ Verified Supply Chain: Every product is traceable to authorized sources with full documentation.
- ✅ Global B2B Export Experience: We serve engineering firms, EPC contractors, and MRO buyers across Asia, the Middle East, Europe, and the Americas.
- ✅ Technical Pre-Sales Support: Our team understands your application — we help you select the right part, not just sell you a part number.
- ✅ Fast Response: Quotations within 24 hours, urgent orders handled same day.
- ✅ Competitive Pricing: Direct relationships with distributors allow us to offer market-competitive pricing on genuine products.
Frequently Asked Questions
- Q: Is the KFD2-VM-EX1.35 suitable for Zone 0 hazardous areas?
- A: The KFD2-VM-EX1.35 provides an intrinsically safe output certified for use with field devices located in Zone 0 (Ex ia). The module itself is installed in the safe area. Always verify the specific approval certificate for your regional requirements.
- Q: Can this module be used without the KFD2 Power Rail?
- A: Yes. The KFD2-VM-EX1.35 can be powered via direct terminal connections (20–35 V DC) without the Power Rail bus, offering flexibility for smaller installations or retrofit projects.
- Q: What is the difference between KFD2-VM-EX1.35 and KFD2-VM-EX1.26?
- A: Both are solenoid drivers in the KFD2 family, but they differ in output current capacity and approval scope. The .35 variant is optimized for specific solenoid load profiles. Contact us with your solenoid valve datasheet for a definitive selection recommendation.
- Q: Do you provide the original Pepperl+Fuchs datasheet and certificates?
- A: Yes. We provide the manufacturer datasheet and, upon request, the EU Declaration of Conformity and ATEX/IECEx certificates for compliance documentation.
- Q: What is your lead time for the KFD2-VM-EX1.35?
- A: Lead time depends on current stock levels. Please contact us at support@konmask.com for real-time availability. Urgent project requirements can often be accommodated.
- Q: Can Konmask.com support a full BOM for a KFD2 marshalling cabinet?
- A: Absolutely. We regularly support EPC and system integrator clients with complete BOM fulfillment for KFD2-based marshalling cabinets. Send us your BOM and we will provide a consolidated quotation.
