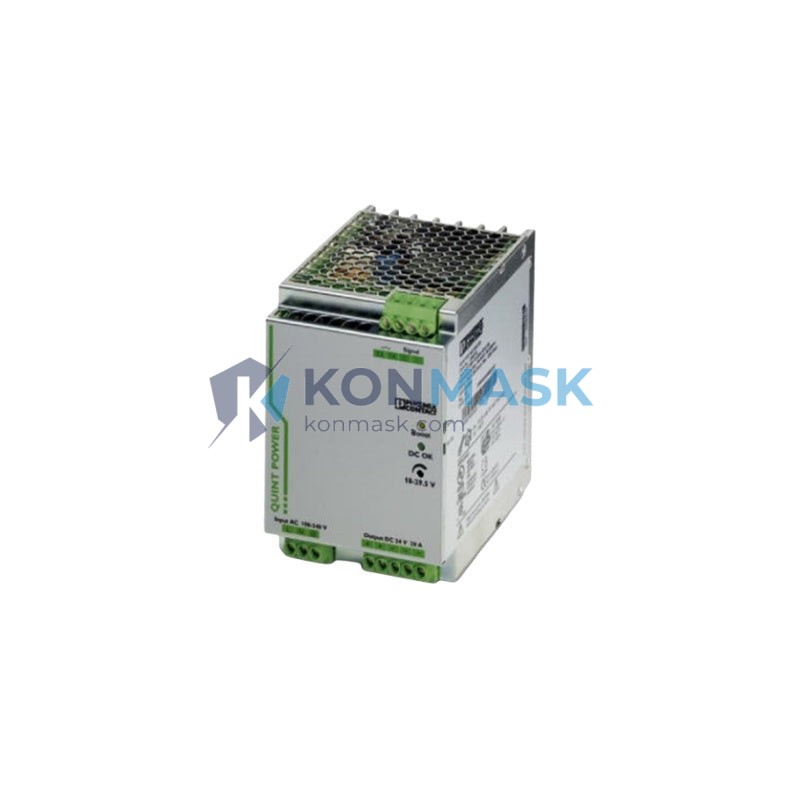

Genuine PHOENIX CONTACT QUINT-PS/1AC/24DC/20 24VDC 20A DIN Rail Power Supply | QUINT Series – Verified Source
Konmask.com is a verified distributor of genuine PHOENIX CONTACT industrial automation components. Every unit we supply undergoes a rigorous 4-step quality verification process before shipment, ensuring you receive authentic, specification-compliant hardware for your critical control systems.
Technical Specifications
| Part Number (SKU) | QUINT-PS/1AC/24DC/20 |
| Order Number | 2866776 |
| Brand | PHOENIX CONTACT |
| Series | QUINT-PS (Primary-Switched Power Supply) |
| Input Voltage | 85–264 VAC / 90–350 VDC (1-phase) |
| Output Voltage | 24 VDC (adjustable 18–29.5 VDC) |
| Output Current | 20 A |
| Output Power | 480 W |
| Mounting | DIN rail (EN 60715 TH 35) |
| Protection Class | IP20 |
| Operating Temperature | -25°C to +70°C |
| Weight | 1,600 g |
| Dimensions (W×H×D) | 60 mm × 130 mm × 125 mm |
| Efficiency | ≥ 93% |
| MTBF | > 500,000 h (at 25°C, full load) |
Our 4-Step Quality Verification Process
Every PHOENIX CONTACT unit shipped from Konmask.com passes through the following verification stages:
- Source Authentication – Units are procured exclusively from authorized PHOENIX CONTACT distribution channels or verified OEM surplus with traceable documentation.
- Visual & Mechanical Inspection – Housing, labeling, serial numbers, and connector integrity are inspected against factory reference standards.
- Electrical Functional Test – Output voltage, current regulation, and protection circuits (OVP, OCP, SFB) are bench-tested prior to packaging.
- Documentation Review – Batch records, CE/UL markings, and date codes are cross-referenced with PHOENIX CONTACT’s official product database before dispatch.
Key Features & Benefits
- QUINT POWER SFB Technology – Static Boost function delivers up to 200% rated current for 12 ms to reliably trip downstream circuit breakers, eliminating nuisance faults.
- Active Power Factor Correction (PFC) – Reduces harmonic distortion and lowers energy costs in demanding industrial environments.
- Wide-Range Input – Accepts 85–264 VAC globally; no manual voltage selection required.
- Preventive Function Monitoring – Built-in signal contact provides early warning before output failure, enabling predictive maintenance.
- Parallel Operation Ready – Supports redundant and power-boost configurations without additional diode modules.
- Compact DIN Rail Form Factor – 60 mm width maximizes panel space efficiency in tight enclosures.
Typical Applications
- PLC and DCS control panel power distribution
- Industrial automation and process control systems
- Machine tool and robotics power supply rails
- Building automation and HVAC control panels
- Railway and transportation control systems
- Oil & gas and chemical plant instrumentation
Compatible System Components
- Redundancy Modules: PHOENIX CONTACT QUINT-ORING series
- Buffer Modules: QUINT-BUFFER/24DC series for UPS bridging
- Circuit Breakers: PHOENIX CONTACT TMCP / CLIPLINE series
- PLCs: Siemens S7-300/400/1200/1500, Allen-Bradley ControlLogix, Schneider Modicon M340/M580
- DIN Rail Systems: EN 60715 TH 35 standard rail
Global Sourcing & Shipping Capabilities
Konmask.com ships genuine PHOENIX CONTACT components worldwide from our warehouse in China. We support urgent and scheduled procurement for MRO, OEM, and project-based buyers.
- Lead Time: In-stock units ship within 1–3 business days
- Packaging: Original or equivalent anti-static, shock-protected packaging
- Export Compliance: HS code classification and commercial invoice provided for customs clearance
- Regions Served: Asia-Pacific, Europe, Middle East, Americas, Africa
- Freight Options: DHL Express, FedEx, UPS, sea freight LCL/FCL, and local courier
Certifications & Compliance Statement
- CE Marking – EN 61204-3, EN 55011, EN 61000 series
- UL Listed – UL 508 (Industrial Control Equipment)
- cULus Recognized
- IEC 61131-2 compliant for PLC supply applications
- RoHS 2 compliant (Directive 2011/65/EU)
- ATEX / IECEx: consult Konmask for zone-rated variants
How to Order
- Confirm the part number: QUINT-PS/1AC/24DC/20 and order number 2866776.
- Contact us via [email protected] or +0086 19859288691 for quantity pricing, lead time, and export documentation.
- Submit your purchase order or proceed to checkout. We accept T/T bank transfer, PayPal, and major credit cards.
- Receive your shipment with full traceability documentation and our authenticity guarantee.
Authenticity & Trust FAQ
Q: Are these units genuine PHOENIX CONTACT products?
A: Yes. All units are sourced from authorized channels or verified OEM surplus. We provide batch documentation upon request.
Q: Can you provide a Certificate of Conformance (CoC)?
A: Yes. A CoC is available for all orders. Please request it at the time of purchase.
Q: What is your return policy for defective units?
A: We offer a 30-day inspection window. Defective or non-conforming units are replaced or refunded after verification.
Q: Do you support urgent/emergency procurement?
A: Yes. Contact us directly for same-day quotation and expedited shipping arrangements.
Q: Can I verify the serial number with PHOENIX CONTACT?
A: Yes. We encourage buyers to verify serial numbers through PHOENIX CONTACT’s official product verification portal.
