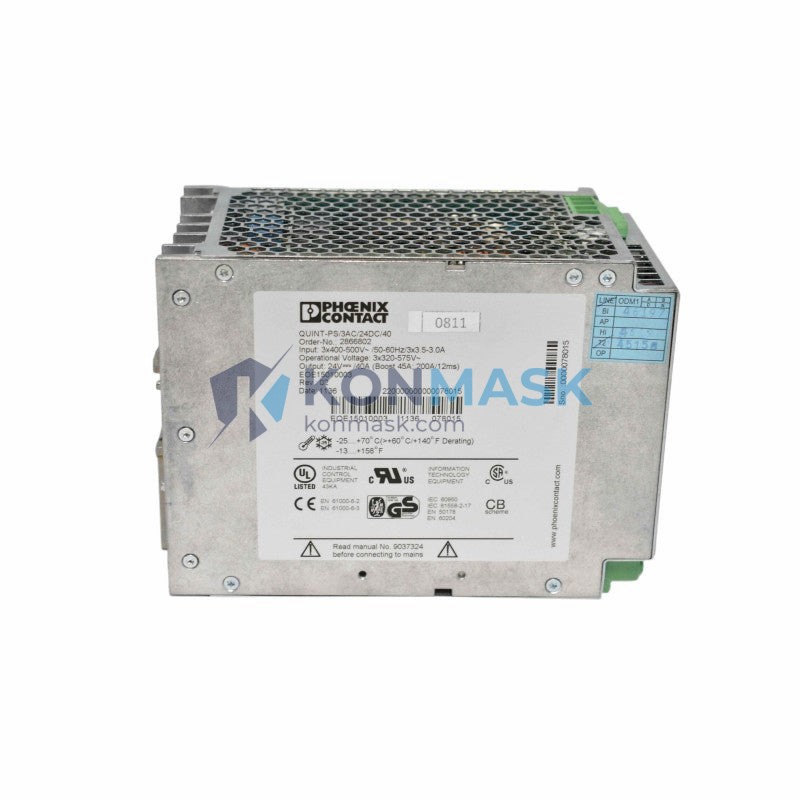

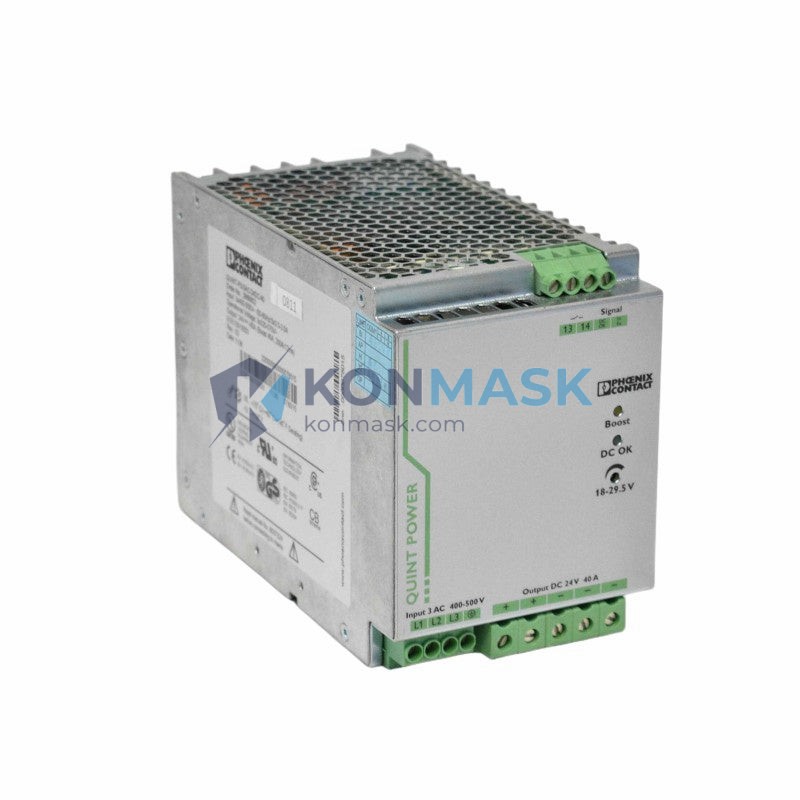

Phoenix Contact QUINT-PS/3AC/24DC/40 Three-Phase 24VDC/40A Industrial Power Supply – QUINT Power Series
When a critical 24 VDC bus collapses on the factory floor, every second of unplanned downtime translates directly into scrapped batches, missed SLAs, and emergency maintenance costs that dwarf the price of the power supply itself. Conveyor lines freeze, safety PLCs lose their keep-alive signal, and SCADA screens go dark — all because a single power supply failed to deliver. The Phoenix Contact QUINT-PS/3AC/24DC/40 was engineered precisely to prevent that scenario, delivering a rock-solid 40 A of regulated 24 VDC from a three-phase AC input with the redundancy intelligence and diagnostic depth that mission-critical installations demand.
Within the QUINT Power Series — Phoenix Contact’s flagship line for demanding industrial environments — the QUINT-PS/3AC/24DC/40 occupies the high-current, three-phase tier. It is the go-to choice for large control cabinets, heavy-duty process skids, and multi-axis servo systems where single-phase supplies simply cannot provide the current density or the phase-balanced loading that grid operators and plant engineers require. Globally, the QUINT Power Series is recognized as a benchmark for DIN-rail power supplies, trusted by system integrators across automotive, oil & gas, water treatment, and semiconductor manufacturing.
Technical Specifications
- Part Number / SKU: 2866802
- Input Voltage: 3-phase AC, 400–500 V (3 × 400/500 VAC, 50/60 Hz)
- Output Voltage: 24 VDC (adjustable 18–29.5 V)
- Output Current: 40 A nominal
- Output Power: 960 W
- Efficiency: ≥ 95 % at full load
- SFB Technology: Selective Fuse Breaking — delivers up to 200 % rated current for ≥ 12 ms to blow downstream fuses selectively
- Static Voltage Regulation: ≤ 0.1 %
- Ripple & Noise: ≤ 50 mV peak-to-peak

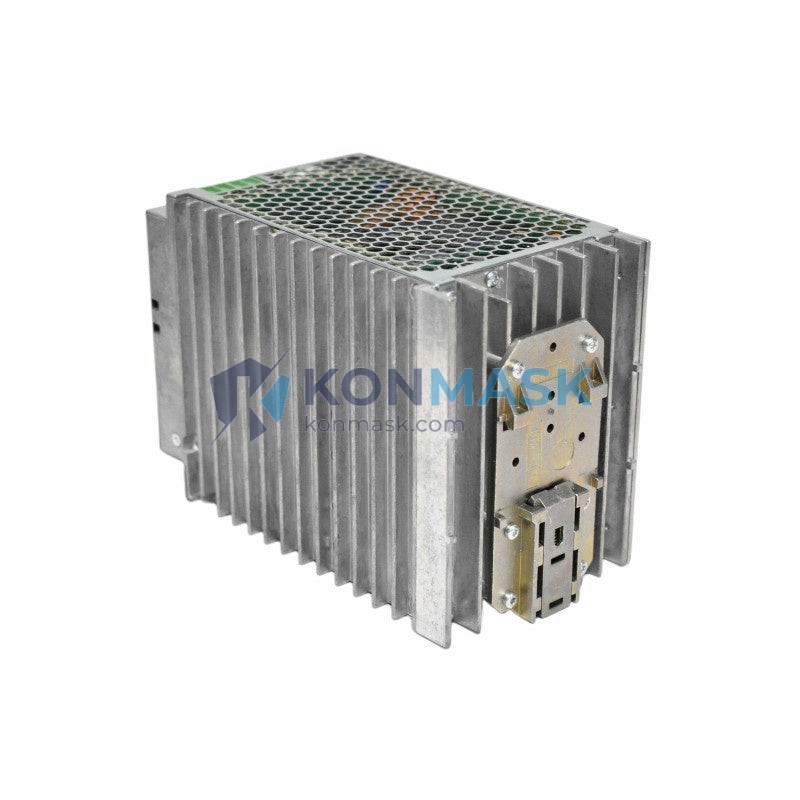

- Mounting: DIN rail (EN 60715 TH 35)
- Protection Class: IP20
- Operating Temperature: −25 °C to +70 °C
- Dimensions (W × H × D): 130 × 130 × 175 mm (approx.)
- Weight: approx. 2.5 kg
- Certifications: UL, cUL, CE, GL, DNV, ATEX Zone 2
- MTBF: > 500,000 hours
Key Features & Benefits
- SFB (Selective Fuse Breaking) Technology: Provides up to 200 % boost current to selectively blow downstream fuses without tripping the supply — maintaining power to all other loads while isolating the fault.
- Dynamic DC OK Signal: Relay and floating signal contact for PLC integration; provides early warning before output voltage drops below threshold.
- Active Power Factor Correction (PFC): Reduces harmonic distortion on the three-phase grid, protecting upstream transformers and switchgear.
- Wide Input Voltage Range: Tolerates grid fluctuations from 400 V to 500 V three-phase without derating.
- Parallel Redundancy Ready: Supports N+1 redundancy configurations with optional decoupling modules for zero-downtime architectures.
- Preventive Function Monitoring: Continuous self-diagnostics with LED status indication and remote signaling — catch aging before failure.
- Compact DIN-Rail Footprint: High power density minimizes cabinet space while delivering 960 W of clean DC power.
- Extended Temperature Range: Operates reliably from −25 °C to +70 °C, suitable for outdoor enclosures and harsh environments.
Industry & Equipment Applications
- Automotive Manufacturing: Body-in-white welding lines, paint shop conveyors, and end-of-line test benches requiring stable 24 VDC for PLCs and vision systems.
- Oil & Gas / Petrochemical: ATEX Zone 2 rated — suitable for classified areas; powers safety instrumented systems (SIS) and ESD panels.
- Water & Wastewater Treatment: Pump station control panels, SCADA RTUs, and chemical dosing systems with 24/7 uptime requirements.
- Semiconductor & Electronics Manufacturing: Cleanroom automation, wafer handling robots, and precision motion controllers.
- Railway & Transportation Infrastructure: Trackside signaling cabinets and station automation systems (GL/DNV certified for marine applications as well).
- Building Automation & Data Centers: Large BMS controllers, UPS bypass panels, and server room environmental monitoring.
System Integration & Compatible Parts
The QUINT-PS/3AC/24DC/40 is designed to integrate seamlessly within Phoenix Contact’s broader QUINT Power ecosystem and standard industrial control architectures:
- Redundancy Modules: QUINT-ORING/24DC/2X20/1AC — diode-based decoupling for N+1 parallel operation.
- Buffer Modules: QUINT-BUFFER/24DC/40 — provides bridging time extension during mains interruptions.
- Surge Protection: TRABTECH PT 2X2-24DC-ST — protects the 24 VDC output bus from transient overvoltages.
- DIN Rail Terminal Blocks: Phoenix Contact PTFIX or UK series for organized load distribution.
- Compatible PLCs: Siemens S7-300/400/1500, Allen-Bradley ControlLogix/CompactLogix, Schneider Electric Modicon M340/M580, Mitsubishi MELSEC iQ-R.
Our Quality Assurance Process
At Konmask.com, every Phoenix Contact QUINT-PS/3AC/24DC/40 unit we supply undergoes a rigorous multi-stage verification process before shipment:
- Authenticity Verification: Cross-referenced against Phoenix Contact’s official part database by SKU (2866802) and date code.
- Visual & Physical Inspection: Housing integrity, label legibility, connector condition, and DIN-rail clip function checked by trained technicians.
- Documentation Package: Original manufacturer datasheet, certificate of conformity, and test report available on request.
- Secure Packaging: Anti-static, moisture-barrier packaging with shock-absorbing foam inserts for international freight.
- Traceability: Each order is logged with batch/lot number for full supply-chain traceability.
How to Order
- Submit an RFQ via the “Get a Quote” button or email [email protected].
- Provide your required quantity, delivery timeline, and destination country.
- Receive a formal quotation with lead time, unit price, and shipping options within 24 business hours.
- Confirm the order with a purchase order (PO) or advance payment per agreed terms.
- Track your shipment with a dedicated tracking number provided upon dispatch.
Minimum Order Quantity: 1 unit | Lead Time: Subject to stock availability — contact us for real-time inventory status.
Why Choose Konmask.com?
- ✅ Specialized in Industrial Automation Components — PLC modules, DCS parts, drives, and power supplies from leading global brands.
- ✅ Genuine Parts Guaranteed — We source directly from authorized distributors and verified supply chains.
- ✅ Global Shipping — Export-ready documentation (commercial invoice, packing list, COO) for smooth customs clearance worldwide.
- ✅ Technical Pre-Sales Support — Our engineers help you confirm compatibility before you commit to an order.
- ✅ Competitive Lead Times — Extensive network of stocking partners to fulfill urgent requirements.
- ✅ After-Sales Service — DOA replacement policy and warranty claim assistance.
Frequently Asked Questions
- Q: Is the QUINT-PS/3AC/24DC/40 suitable for single-phase input?
- A: No. This model is designed exclusively for three-phase AC input (3 × 400/500 VAC). For single-phase applications, please refer to the QUINT-PS/1AC/24DC series.
- Q: Can I connect two units in parallel for 80 A output?
- A: Yes, with the appropriate QUINT-ORING decoupling module to prevent reverse current flow. Contact us for the recommended redundancy configuration.
- Q: What does SFB technology mean in practice?
- A: SFB (Selective Fuse Breaking) allows the power supply to deliver up to 200 % of rated current for a short burst, enabling downstream branch fuses to blow selectively — isolating only the faulted circuit while keeping all other loads powered.
- Q: Is this unit ATEX certified for hazardous areas?
- A: The QUINT-PS/3AC/24DC/40 carries ATEX Zone 2 approval, making it suitable for installation in areas where explosive atmospheres may occasionally be present. Always verify the full ATEX certificate for your specific installation requirements.
- Q: What is the warranty on this product?
- A: Phoenix Contact offers a standard manufacturer warranty. Konmask.com additionally provides a DOA (Dead on Arrival) replacement guarantee. Contact us for full warranty terms applicable to your region.
- Q: Do you provide an export-ready commercial invoice and packing list?
- A: Yes. All international orders include a full export documentation package. We can also provide a Certificate of Origin upon request.
