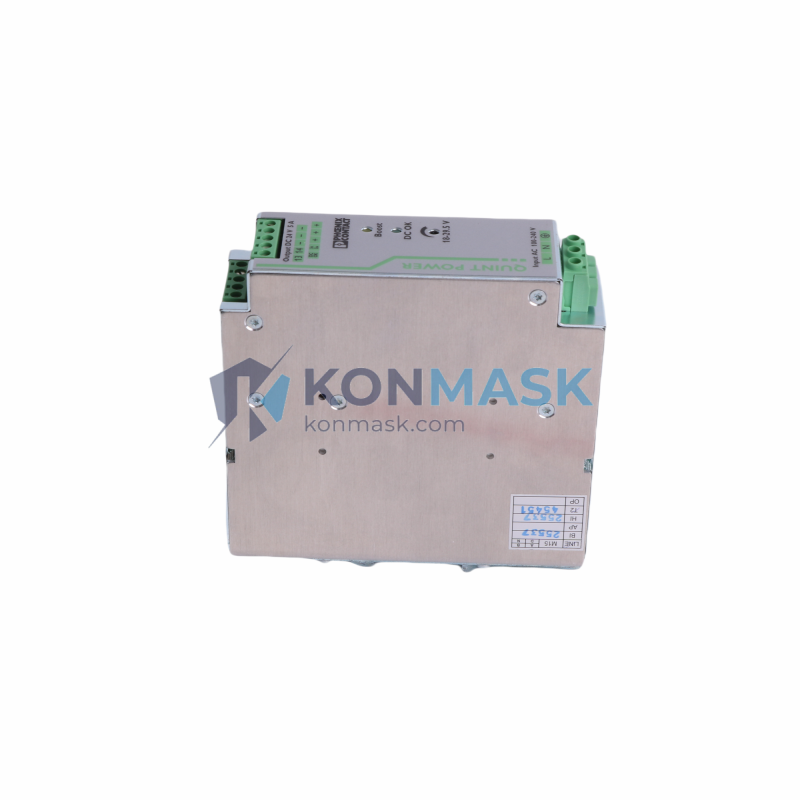

Phoenix Contact QUINT-PS/1AC/24DC/5 24VDC 5A DIN Rail Power Supply | Replacement, Equivalent & Selection Guide
The Phoenix Contact QUINT-PS/1AC/24DC/5 is a high-performance single-phase DIN rail power supply delivering a stable 24 VDC / 5 A (120 W) output. Engineered for demanding industrial environments, it features active power boost, SFB (Selective Fuse Breaking) technology, and comprehensive diagnostics — making it a benchmark choice for PLC panels, control cabinets, and automation systems worldwide.
Technical Specifications
| Parameter | Value |
|---|---|
| Model / SKU | QUINT-PS/1AC/24DC/5 |
| Manufacturer | Phoenix Contact |
| Series | QUINT POWER |
| Input Voltage | 85 – 264 VAC (1-phase) / 90 – 350 VDC |
| Input Frequency | 45 – 65 Hz |
| Output Voltage | 24 VDC (adjustable 18 – 29.5 V) |
| Output Current | 5 A (continuous) |
| Output Power | 120 W |
| Power Boost | Up to 3× rated current (15 A) for 12 ms |
| Efficiency | ≥ 93% |
| Mounting | DIN rail (EN 60715 / 35 mm) |
| Protection Class | IP20 |
| Operating Temperature | -25 °C to +70 °C |
| Dimensions (W×H×D) | 45 × 130 × 125 mm |
| Weight | approx. 760 g |
| Certifications | UL, cUL, CE, ATEX Zone 2, GL, DNV |
| MTBF | > 500,000 h (at 25 °C, full load) |
Compatible Replacement & Equivalent Models
The table below lists direct replacements and functional equivalents for the QUINT-PS/1AC/24DC/5. Always verify electrical ratings and form factor before substituting.
| Brand | Model | Output | Notes |
|---|---|---|---|
| Phoenix Contact | QUINT4-PS/1AC/24DC/5 | 24 V / 5 A | Next-gen QUINT 4 series — direct upgrade, same footprint |
| Phoenix Contact | TRIO-PS/1AC/24DC/5 | 24 V / 5 A | Economy TRIO series, no SFB; suitable for standard loads |
| Siemens | 6EP1332-1SH52 (SITOP PSU100S) | 24 V / 5 A | Functional equivalent; different DIN width (50 mm) |
| Siemens | 6EP1332-2BA20 (SITOP Smart) | 24 V / 5 A | Budget alternative; no diagnostics output |
| Puls | QS5.241 | 24 V / 5 A | High-efficiency alternative; 40 mm width |
| Meanwell | SDR-120-24 | 24 V / 5 A | Cost-effective; no active boost; suitable for non-critical loads |
| ABB | CP-E 24/5.0 | 24 V / 5 A | Functional equivalent; 45 mm width |
| Weidmüller | PRO ECO 120W 24V 5A | 24 V / 5 A | Comparable output; no SFB technology |
Why Choose the Original Model
- SFB Technology: Selective Fuse Breaking delivers up to 3× rated current for 12 ms — reliably trips downstream fuses without nuisance tripping the PSU.
- Active Power Boost: Handles high inrush loads (motors, solenoids) without oversizing the supply.
- Integrated Diagnostics: Relay contact + LED signaling for remote monitoring and predictive maintenance.
- Wide Input Range: 85–264 VAC covers global mains voltages without manual switching.
- Proven Reliability: MTBF > 500,000 h; backed by Phoenix Contact’s global service network.
- Certifications: UL, CE, ATEX Zone 2, GL, DNV — accepted in hazardous and marine environments.
Typical Applications
- PLC and DCS control panel power rails
- Industrial automation and robotics systems
- Building automation (BMS/HVAC control)
- Railway and transportation control systems
- Oil & gas and chemical plant control cabinets (ATEX Zone 2)
- Marine and offshore control systems (DNV/GL certified)
- Machine tool and press control panels
System Compatibility
The QUINT-PS/1AC/24DC/5 is compatible with the following control system platforms and brands:
- PLC: Siemens S7-300/400/1200/1500, Allen-Bradley CompactLogix / MicroLogix, Mitsubishi MELSEC, Omron CJ/CS/NX, Schneider Modicon M340/M580
- DCS: ABB 800xA, Honeywell Experion, Emerson DeltaV, Yokogawa CENTUM VP
- I/O Systems: Phoenix Contact Inline, Beckhoff EtherCAT, Wago 750 series
- Bus Systems: PROFIBUS, PROFINET, EtherNet/IP, Modbus RTU/TCP
Selection Guide
Use the following criteria to confirm the QUINT-PS/1AC/24DC/5 is the right choice — or to select an appropriate alternative:
| Requirement | Recommended Model |
|---|---|
| 24 V / 5 A with SFB + diagnostics (standard choice) | QUINT-PS/1AC/24DC/5 ✓ |
| 24 V / 5 A, latest generation, same footprint | QUINT4-PS/1AC/24DC/5 |
| 24 V / 5 A, budget, no SFB needed | TRIO-PS/1AC/24DC/5 or Meanwell SDR-120-24 |
| 24 V / 10 A (higher load) | QUINT-PS/1AC/24DC/10 |
| 24 V / 5 A, 3-phase input | QUINT-PS/3AC/24DC/5 |
| 24 V / 5 A, ATEX Zone 1 | Consult Phoenix Contact for Ex-rated variants |
| 48 VDC output required | QUINT-PS/1AC/48DC/5 |
Quality Assurance & Sourcing
- All units sourced from authorized distributors and verified supply chains.
- Each unit undergoes incoming inspection: label verification, packaging integrity, and functional check.
- Traceability documentation (CoC, test reports) available on request.
- Konmask.com specializes in industrial automation components — PLC modules, DCS parts, and control hardware from leading global brands.
- We do not sell counterfeit or refurbished units without explicit disclosure.
How to Order
- Confirm your required output voltage, current, and input phase (1AC or 3AC).
- Check DIN rail space: QUINT-PS/1AC/24DC/5 requires 45 mm width.
- Add to cart or contact us for volume pricing and lead time.
- For urgent requirements, email support@konmask.com with your project details.
- OEM / project quotations available for orders of 5+ units.
Replacement & Compatibility FAQ
Q: Can I replace QUINT-PS/1AC/24DC/5 with QUINT4-PS/1AC/24DC/5?
A: Yes. The QUINT 4 is the direct successor with the same 45 mm footprint, identical terminal layout, and improved efficiency. It is a drop-in upgrade.
Q: Is the Siemens SITOP PSU100S 5A a direct replacement?
A: Functionally equivalent (24 V / 5 A), but the SITOP is 50 mm wide vs. 45 mm. Verify DIN rail space before substituting.
Q: Can I use a Meanwell SDR-120-24 as a replacement?
A: For non-critical loads, yes. The Meanwell lacks SFB technology and active boost, so it is not recommended for panels with multiple fused branches or high-inrush loads.
Q: What is the difference between QUINT-PS and TRIO-PS?
A: QUINT-PS includes SFB technology, active power boost, and a diagnostic relay contact. TRIO-PS is the economy series without these features — suitable for simpler applications.
Q: Does Konmask.com provide a warranty?
A: Yes. We offer a 12-month warranty on all units. Contact support@konmask.com for warranty claims.
