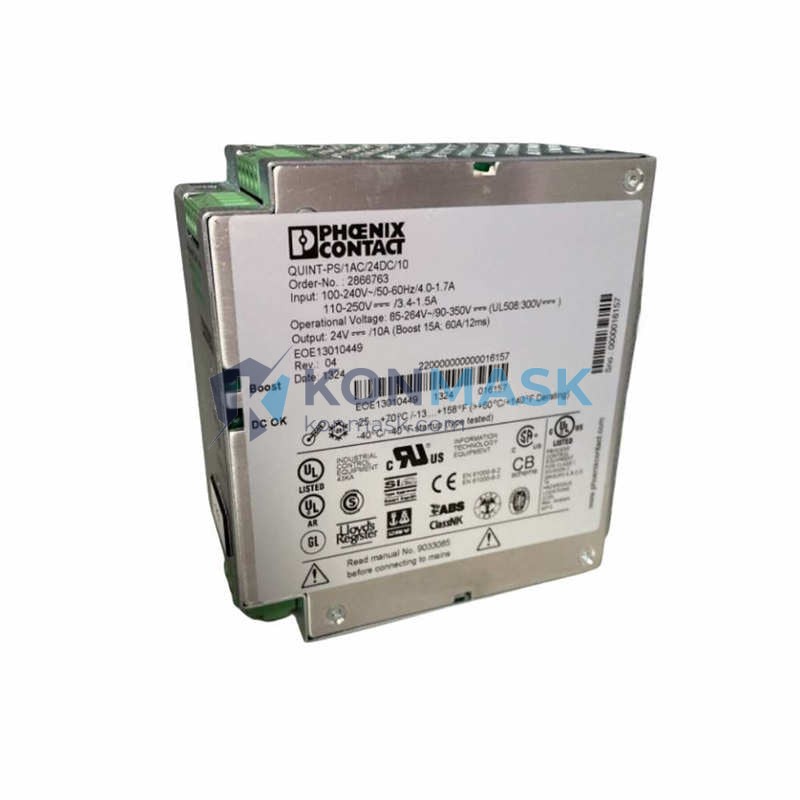

Phoenix Contact QUINT PS/1AC/24DC/10 — Primary-Switched Power Supply Unit | QUINT POWER Series
Engineering Background
The QUINT POWER series represents Phoenix Contact’s flagship line of industrial power supplies, engineered for mission-critical 24 VDC bus systems in factory automation, process control, and infrastructure applications. The QUINT PS/1AC/24DC/10 delivers a regulated 24 VDC / 10 A (240 W) output from a universal single-phase AC input, combining SFB (Selective Fuse Breaking) technology with active power boost to ensure downstream circuit protection without nuisance tripping.
Product Positioning
Designed for procurement engineers who require a verifiable, drop-in replacement or primary-fit PSU for Siemens, Rockwell, Schneider, or Phoenix Contact control panels. The QUINT PS/1AC/24DC/10 is a globally recognized part number stocked by authorized distributors and OEM panel builders worldwide. Konmask.com supplies genuine units with full traceability, making it the preferred sourcing channel for MRO and project procurement teams across Asia-Pacific and beyond.
Complete Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | QUINT PS/1AC/24DC/10 (Order No. 2866763) |
| Input Voltage (AC) | 85 – 264 VAC (universal, auto-ranging) |
| Input Frequency | 45 – 65 Hz |
| Output Voltage | 24 VDC (adjustable 18 – 29.5 VDC) |
| Output Current (nominal) | 10 A |
| Output Power | 240 W |
| Peak Current (SFB Boost) | Up to 30 A (≥ 12 ms) for selective fuse breaking |
| Efficiency (typical) | ≥ 93 % |
| Ripple & Noise | < 50 mVpp |
| Hold-up Time | ≥ 20 ms at full load |
| Inrush Current | < 20 A (cold start) |
| Mounting | DIN rail (EN 60715 TH 35) |
| Housing Width | 45 mm (2.5 TE) |
| Protection Class | IP20 |
| Operating Temperature | -25 °C … +70 °C (derating above 60 °C) |
| Storage Temperature | -40 °C … +85 °C |
| Relative Humidity | 5 – 95 % (non-condensing) |
| MTBF | > 500,000 h (IEC 61709, SN 29500) |
| Certifications | UL 508, UL 60950-1, CE, cULus, GL, ATEX Zone 2, IECEx |
| Weight | approx. 300 g |
| Country of Origin | Germany |
Proven Application Environments
- Discrete Manufacturing: PLC I/O bus power, servo drive 24 V logic rails, safety relay circuits
- Process & Chemical Plants: DCS field instrument loops, HART transmitter power, solenoid valve panels
- Building Automation & Infrastructure: BMS controllers, access control panels, fire & gas detection systems
- Transportation & Rail: Trackside signalling cabinets, rolling stock auxiliary power (EN 50155 environments)
- Oil & Gas / Hazardous Areas: Zone 2 / Div 2 certified installations with ATEX / IECEx compliance
- Renewable Energy: Wind turbine nacelle control, solar inverter monitoring racks
Engineering Advantages
- SFB Technology (Selective Fuse Breaking): Delivers up to 3× rated current for ≥ 12 ms to reliably blow downstream branch fuses without tripping the upstream breaker — eliminating nuisance shutdowns.
- Active Power Boost: Handles high inrush loads (motors, solenoids) without output voltage collapse, maintaining bus stability during transient events.
- Universal AC Input: 85 – 264 VAC auto-ranging eliminates the need for input voltage selection switches, simplifying global panel standardization.
- High Efficiency ≥ 93 %: Reduces heat dissipation inside enclosures, lowering cooling requirements and extending component life.
- Integrated Diagnostics: Green/red LED status indication and potential-free signalling contact for remote monitoring via PLC or SCADA.
- Compact 45 mm DIN Rail Footprint: Maximizes panel real estate in space-constrained enclosures.
- Long MTBF > 500,000 h: Minimizes unplanned downtime and lifecycle replacement costs.
System Architecture & Signal Flow
The QUINT PS/1AC/24DC/10 operates as a primary-switched (switch-mode) topology:
- AC Input Stage: EMC filter → bridge rectifier → bulk capacitor bank (PFC passive)
- DC-DC Conversion: High-frequency PWM switching (≥ 100 kHz) → transformer isolation → synchronous rectification
- Output Regulation: Closed-loop voltage regulation with ±1 % load/line regulation; adjustable via front-panel potentiometer (18 – 29.5 VDC)
- SFB Boost Circuit: Dedicated current-boost path activates on output short/overload, delivering 3× Inom for selective downstream fuse clearing
- Signalling Output: Potential-free relay contact (24 VDC / 1 A) opens on undervoltage — wired to PLC DI for remote fault annunciation
Sourcing & Quality Verification
- ✅ Genuine Phoenix Contact product — sourced through authorized supply channels with full manufacturer traceability
- ✅ Batch & date code documentation available on request for IQ/OQ validation
- ✅ Anti-counterfeit inspection: All units verified against Phoenix Contact holographic labels, PCB markings, and firmware revision before dispatch
- ✅ Export compliance: HS Code 8504.40 — suitable for CN export documentation; ECCN EAR99
- ✅ Warranty: 3-year Phoenix Contact manufacturer warranty (subject to standard terms)
Procurement Process
- Inquiry: Submit RFQ via support@konmask.com or WhatsApp +0086 19859288691 with quantity and required delivery date.
- Quotation: Formal quotation issued within 1 business day including unit price, lead time, and shipping options (DHL / FedEx / sea freight).
- Order Confirmation: Purchase order accepted via email; proforma invoice issued for prepayment or net terms (approved accounts).
- Inspection & Dispatch: Units inspected, photographed, and packed in anti-static ESD packaging before shipment.
- Documentation: Commercial invoice, packing list, COO certificate, and test report provided with every shipment.
Technical FAQ
Q: Can this PSU operate in parallel for redundancy?
A: Yes. Two QUINT PS/1AC/24DC/10 units can be paralleled using the Phoenix Contact QUINT-DIODE/40AC/2X20/1X40 redundancy module for 1+1 redundant 24 VDC systems.
Q: What is the difference between QUINT and TRIO power supplies?
A: QUINT features SFB technology and active power boost; TRIO is a cost-optimized line without boost capability. QUINT is recommended for applications with branch circuit protection requirements.
Q: Is derating required above 60 °C?
A: Yes. Output current must be linearly derated from 10 A at 60 °C to 8 A at 70 °C. Consult the Phoenix Contact datasheet (Doc. No. 107547_en_01) for the full derating curve.
Q: What fuse is recommended on the AC input?
A: Phoenix Contact recommends a 6.3 A / 250 VAC slow-blow fuse on the L conductor for single-phase 230 VAC installations.
Q: Can output voltage be adjusted in the field?
A: Yes. The front-panel potentiometer allows adjustment from 18 VDC to 29.5 VDC without tools. Set to 24.0 VDC for standard 24 V bus systems.
