Genuine PHOENIX TRIO-DIODE/48DC/2X10/1X20 Redundancy Diode Module | TRIO Series – Verified Source

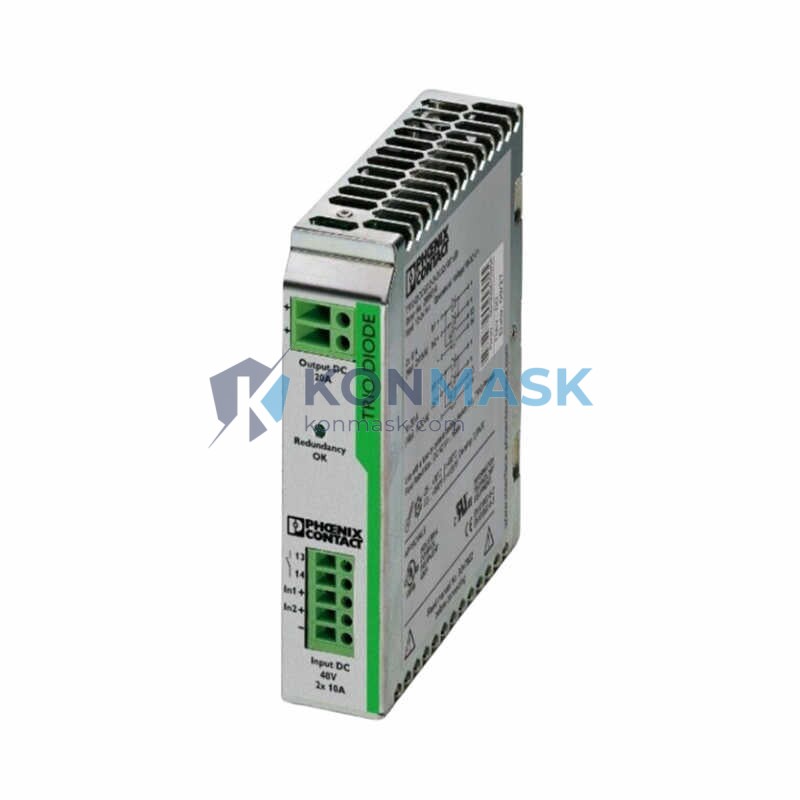

The PHOENIX Contact TRIO-DIODE/48DC/2X10/1X20 (Part No. 2866527) is a high-performance redundancy decoupling module engineered for mission-critical 48 VDC power supply systems. Designed to eliminate single points of failure in industrial control panels, this module enables true N+1 redundancy by combining two 10 A input channels and one 20 A output channel with minimal voltage drop. Sourced directly through verified distribution channels, every unit sold by Konmask.com undergoes our 4-step quality verification process before dispatch.
Technical Specifications
- Manufacturer: PHOENIX Contact
- Part Number / Order No.: 2866527
- Model: TRIO-DIODE/48DC/2X10/1X20
- Function: Redundancy Decoupling Diode Module
- Nominal Input Voltage: 48 VDC
- Input Channels: 2 × 10 A
- Output Channel: 1 × 20 A
- Mounting: DIN rail (EN 60715 TH 35)
- Protection Class: IP20
- Operating Temperature: −25 °C to +70 °C
- Dimensions (W × H × D): Approx. 45 × 130 × 124 mm
- Weight: Approx. 400 g
- Certifications: CE, UL, cULus, ATEX (refer to datasheet)
- Series: TRIO Power
Our 4-Step Quality Verification Process
Every PHOENIX Contact module shipped from Konmask.com passes through the following verification steps before leaving our facility:
- Step 1 – Source Traceability: We verify the supply chain origin and cross-reference batch codes against manufacturer records to confirm genuine provenance.
- Step 2 – Physical Inspection: Housing integrity, label authenticity, connector condition, and DIN rail clip function are checked against OEM reference samples.
- Step 3 – Electrical Bench Test: Input/output voltage, current rating, and diode forward-voltage drop are measured under load to confirm specification compliance.
- Step 4 – Documentation Review: CE declaration, datasheet revision, and packaging seal are verified before final packaging and dispatch.
Key Features & Benefits
- ✅ True N+1 Redundancy: Combines two independent 48 VDC power supply outputs into one reliable 20 A bus — no single PSU failure interrupts the load.
- ✅ Low Voltage Drop: MOSFET-based decoupling minimizes power loss compared to conventional diode bridges, reducing heat generation in the panel.
- ✅ Plug-and-Play DIN Rail Installation: Snap-on mounting with tool-free wiring via push-in or screw terminals (model-dependent).
- ✅ Wide Temperature Range: Rated for harsh industrial environments from −25 °C to +70 °C.
- ✅ Status Indication: LED indicators for each input channel provide instant visual diagnostics without additional instrumentation.
- ✅ Compact Footprint: Slim 45 mm width conserves valuable panel space in high-density control cabinets.
Typical Applications
- Industrial control panels requiring 48 VDC redundant power architectures
- Process automation systems (DCS, SCADA, PLC cabinets)
- Railway and transportation control equipment
- Oil & gas field junction boxes and remote I/O panels
- Telecommunications and data center DC power distribution
- Building automation and smart infrastructure control rooms
Compatible System Components
The TRIO-DIODE/48DC/2X10/1X20 is designed to work seamlessly within the PHOENIX Contact TRIO Power ecosystem. Typical companion products include:
- TRIO-PS/1AC/48DC/10 – 48 VDC / 10 A primary-switched power supply (redundant input unit)
- TRIO-PS/1AC/48DC/20 – 48 VDC / 20 A primary-switched power supply
- MINI-SYS-PS 100-240AC/24DC/1.5 – Auxiliary 24 VDC supply for control logic
- PHOENIX Contact DIN rail terminal blocks, circuit breakers, and surge protection devices
Contact us if you need a complete bill-of-materials (BOM) for your redundant 48 VDC panel design.
Global Sourcing & Shipping Capabilities
- Stock Status: In-stock units typically ship within 1–3 business days; lead-time orders available for larger quantities.
- Shipping Regions: Worldwide — including mainland China, Southeast Asia, Europe, Middle East, and the Americas.
- Export Compliance: All shipments are accompanied by commercial invoices, packing lists, and country-of-origin certificates as required.
- Customs Support: We provide HS code documentation (HS 8504.40) and can assist with import declaration paperwork upon request.
- Packaging: Original OEM packaging preserved where available; ESD-safe secondary packaging for all units.
Certifications & Compliance Statement
The PHOENIX Contact TRIO-DIODE/48DC/2X10/1X20 (2866527) carries the following certifications as issued by the manufacturer. Konmask.com does not modify, re-label, or alter any product. All compliance documentation is available upon request prior to purchase:
- CE Marking (Low Voltage Directive & EMC Directive)
- UL / cULus Listed
- ATEX / IECEx (zone-rated variants — confirm with datasheet)
- RoHS Compliant
- EN 61204-7 / IEC 61204-7 Power Supply Standard
How to Order
- Add to Cart directly on this page for standard in-stock quantities.
- Request a Quote for orders of 5+ units or project-based procurement — email support@konmask.com with your required quantity and delivery timeline.
- Provide Your PO — we accept purchase orders from registered companies. Net-30 terms available for approved accounts.
- Confirm Lead Time — for out-of-stock or high-volume orders, our team will confirm availability and estimated ship date within 24 business hours.
📞 Phone / WhatsApp: +0086 19859288691
📧 Email: support@konmask.com
🌐 Website: https://Konmask.com
Authenticity & Trust FAQ
Q: How do I know the product is genuine PHOENIX Contact?
A: Every unit is sourced through traceable supply chains and passes our 4-step verification process. We provide batch codes and can supply manufacturer certificates of conformance (CoC) upon request.
Q: Can I return the product if it does not match the specification?
A: Yes. We offer a 30-day return policy for items that do not match the advertised specification. Contact support@konmask.com within 30 days of receipt.
Q: Do you provide a warranty?
A: All products carry a minimum 12-month warranty against manufacturing defects. Extended warranty options are available for project orders.
Q: Can you provide a datasheet or technical drawing?
A: Yes — the official PHOENIX Contact datasheet for part number 2866527 is available on request. Email us or use the live chat.
Q: Are you an authorized PHOENIX Contact distributor?
A: Konmask.com is an independent specialist supplier of industrial automation components. We source from authorized channels and verified secondary markets. We are transparent about our supply chain and welcome pre-purchase verification inquiries.
