Industrial Control Panel Solution – PHOENIX CONTACT QUINT-PS/1AC/24DC/10/CO | QUINT Power Series
Where This Product Is Used

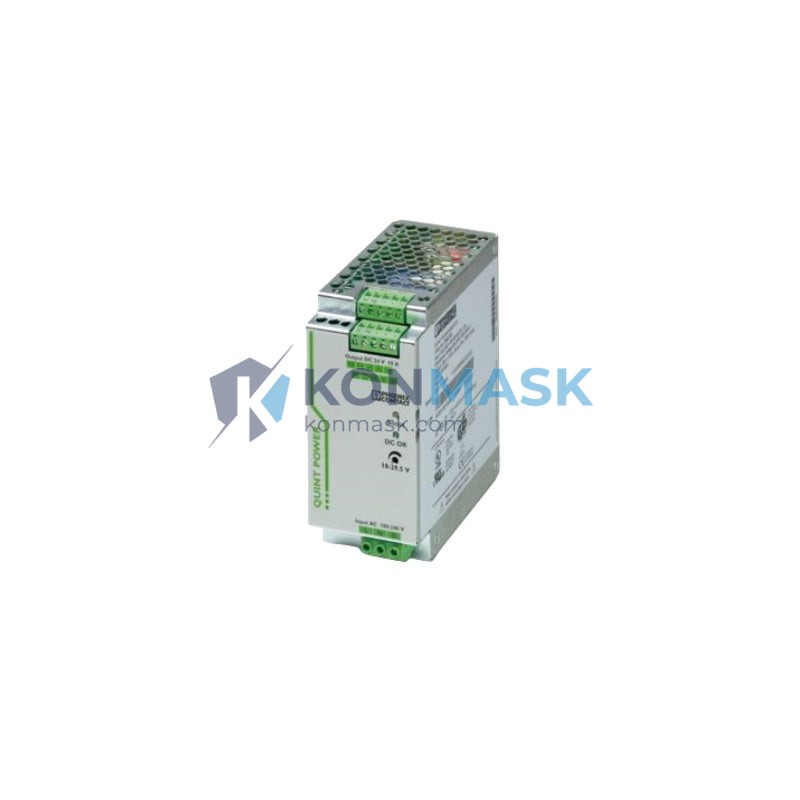

The PHOENIX CONTACT QUINT-PS/1AC/24DC/10/CO (Part No. 2320911) is a 24 VDC / 10 A single-phase DIN rail power supply engineered for demanding industrial environments. It is widely deployed in:
- PLC Control Panels – Primary 24 VDC rail supply for Siemens S7, Allen-Bradley CompactLogix, Mitsubishi MELSEC, and Omron NX/NJ controllers.
- Machine Automation Cabinets – Powering I/O modules, servo drives, HMI panels, and safety relays in OEM machinery.
- Process Control Systems (DCS) – Redundant 24 VDC bus supply in oil & gas, chemical, and water treatment facilities.
- Building Automation & HVAC – BACnet/Modbus gateway panels, VAV controllers, and fire alarm auxiliary circuits.
- Railway & Transportation – EN 50155-compliant rolling stock auxiliary power distribution.
- Renewable Energy Inverter Panels – Control-circuit supply for solar string combiner boxes and wind turbine nacelle panels.
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | 2320911 |
| Order Code | QUINT-PS/1AC/24DC/10/CO |
| Input Voltage | 85 – 264 VAC (1-phase) / 90 – 350 VDC |
| Input Frequency | 45 – 65 Hz |
| Output Voltage | 24 VDC (adjustable 18 – 29.5 V) |
| Output Current | 10 A nominal; up to 20 A (SFB boost, 5 s) |
| Output Power | 240 W |
| Efficiency | ≥ 93 % |
| SFB Technology | Static Boost up to 200 % for circuit-breaker tripping |
| Parallel Operation | Yes (redundancy & power boost) |
| Signaling Contact (CO) | Floating changeover relay, 24 VDC / 1 A |
| Mounting | DIN rail EN 60715 (35 mm) |
| Protection Class | IP20 |
| Operating Temperature | −25 °C to +70 °C (derating above 60 °C) |
| Dimensions (W × H × D) | 45 × 130 × 125 mm |
| Weight | approx. 420 g |
| MTBF | > 500,000 h (IEC 61709, 40 °C) |
Why Engineers Specify This Model
- SFB (Selective Fuse Breaking) Technology – Delivers up to 200 % rated current for 5 seconds, ensuring downstream MCBs trip selectively without nuisance shutdowns of the entire 24 V bus.
- Preventive Maintenance Signaling – The integrated changeover (CO) relay output signals impending output voltage drop to a PLC or SCADA before a fault occurs, enabling planned maintenance instead of emergency shutdowns.
- Wide-Range AC Input – Accepts 85–264 VAC globally; no tap switching required for international machine exports.
- Parallel Redundancy Ready – Two units can be paralleled with QUINT-DIODE/40AC/2X20/1X40 for N+1 redundancy without external OR-ing diodes.
- Compact 45 mm Width – Saves panel real estate versus comparable 10 A supplies; fits standard 24-module DIN rail enclosures.
- Extended Temperature Range – Rated to −25 °C, suitable for outdoor enclosures and cold-storage automation.
Complete System Bill of Materials
Typical 24 VDC control panel BOM pairing with this supply:
- PHOENIX CONTACT QUINT-PS/1AC/24DC/10/CO 2320911 – This unit (primary supply)
- PHOENIX CONTACT QUINT-PS/1AC/24DC/10/CO 2320911 × 2 + QUINT-DIODE/40AC/2X20/1X40 – N+1 redundant configuration
- PHOENIX CONTACT CLIPLINE PTFIX distribution block – 24 VDC bus distribution
- PHOENIX CONTACT TRABTECH surge arrester – Input-side SPD protection
- Siemens 5SY MCB (C2 / C4 characteristic) – Branch circuit protection per SFB rating
- PHOENIX CONTACT UPS-IQ-CONF / QUINT-UPS – Battery backup extension
Compliance & Industry Standards
- CE Marking – Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- UL 508 Listed (Industrial Control Equipment)
- IEC/EN 61131-2 (PLC power supply requirements)
- IEC/EN 60950-1 / IEC 62368-1
- GL (Germanischer Lloyd) Marine Approval
- ATEX / IECEx Zone 2 suitability (with appropriate enclosure)
- RoHS 2011/65/EU compliant
Quality Assurance & Sourcing
Konmask.com sources PHOENIX CONTACT QUINT-PS/1AC/24DC/10/CO 2320911 exclusively through authorized distribution channels and verified industrial surplus networks. Every unit undergoes:
- Visual inspection for label authenticity and housing integrity
- Output voltage and current load test at rated conditions
- SFB boost function verification
- CO relay continuity and switching test
- Anti-static packaging with ESD-safe handling
Traceability documentation (date codes, batch records) available on request for MRO and OEM procurement teams.
How to Source This Part
- Add to Cart – Click Buy Now for immediate checkout.
- Request a Quote – Email [email protected] for volume pricing (5+ units), lead-time confirmation, or project BOM review.
- WhatsApp / WeChat – Reach our technical sales team at +0086 19859288691 for urgent requirements.
- Datasheet & Drawings – Available upon request; reference Part No. 2320911.
Application-Specific FAQ
Q: Can this supply power a Siemens S7-1500 PLC with 8 × SM modules?
A: Yes. A fully loaded S7-1515 with 8 signal modules typically draws 4–6 A at 24 VDC. The QUINT 10 A provides ample headroom and SFB protection for branch MCBs.
Q: What is the difference between QUINT-PS/1AC/24DC/10 and QUINT-PS/1AC/24DC/10/CO?
A: The /CO suffix adds a floating changeover relay output for remote fault signaling to a PLC digital input or SCADA alarm card. The base electrical performance is identical.
Q: Can two units be paralleled for 20 A output?
A: Yes, using the QUINT-DIODE/40AC/2X20/1X40 OR-ing module. This also provides N+1 redundancy; if one PSU fails, the second carries the full 10 A load without interruption.
Q: Is this unit suitable for 110 VAC North American panels?
A: Yes. The wide-range input (85–264 VAC) accepts 110/120 VAC without any configuration change.
Q: What is the warranty?
A: Konmask.com provides a 12-month functional warranty. PHOENIX CONTACT factory warranty terms apply to new-in-box units.
