Dental Imaging Control Solution – PLANMECA PROMAX 121-10-03-D 10001225 | PROMAX Series
Where This Product Is Used

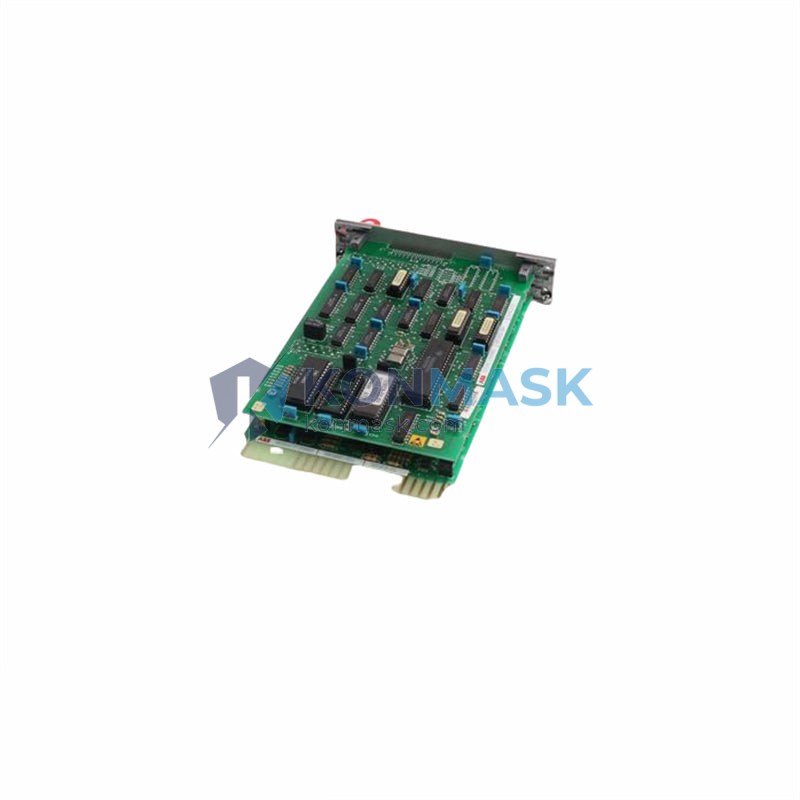

The PLANMECA PROMAX 121-10-03-D 10001225 Controller Card Module is a core control board designed for the PLANMECA PROMAX series of dental panoramic and CBCT (Cone Beam Computed Tomography) X-ray imaging systems. It is deployed in:
- Dental clinics and oral radiology departments requiring panoramic X-ray imaging
- Maxillofacial surgery centers using CBCT for 3D diagnostic imaging
- Orthodontic practices relying on PROMAX for cephalometric analysis
- Hospital dental departments and imaging suites
- Biomedical equipment service centers performing PLANMECA system repairs and maintenance
Technical Specifications
- Part Number: 121-10-03-D
- Reference Number: 10001225
- Compatible System: PLANMECA PROMAX Series (Panoramic / CBCT X-Ray)
- Module Type: Controller Card / Control Board
- Form Factor: PCB Card Module
- Weight: 1,250 g (packaged)
- Condition: OEM Replacement / Refurbished Available
- Origin: Finland (PLANMECA OEM)
Why Engineers Specify This Model
- OEM Compatibility: Exact match to PLANMECA factory specifications — no firmware conflicts or calibration drift
- System-Critical Function: Controls X-ray exposure sequencing, rotation motor coordination, and image acquisition triggering in PROMAX units
- Reduced Downtime: Drop-in replacement minimizes equipment downtime versus sourcing through OEM channels with extended lead times
- Verified Part Numbers: Dual-referenced by both board revision (121-10-03-D) and PLANMECA catalog number (10001225) for unambiguous identification
- Global Sourcing: Available through Konmask.com with international shipping to clinics and service centers worldwide
Complete System Bill of Materials
When servicing a PLANMECA PROMAX unit, the following components are commonly replaced alongside this controller card:
- PLANMECA PROMAX High-Voltage Generator Board
- PLANMECA PROMAX Rotation Motor Assembly
- PLANMECA PROMAX Power Supply Unit (PSU)
- PLANMECA PROMAX Sensor Interface Board
- PLANMECA PROMAX Collimator Module
Contact support@konmask.com to source complete BOM kits for PROMAX system overhauls.
Compliance & Industry Standards
- Designed for use in CE-marked PLANMECA PROMAX dental imaging systems
- Compatible with IEC 60601-1 (Medical Electrical Equipment) compliant installations
- Suitable for use in FDA 510(k)-cleared PLANMECA PROMAX configurations
- Meets RoHS requirements as per original PLANMECA OEM design
Quality Assurance & Sourcing
- Each unit is visually inspected and cross-referenced against PLANMECA part documentation prior to dispatch
- Sourced from verified biomedical equipment suppliers and authorized dismantlers
- Packaged in anti-static ESD-safe materials to protect sensitive PCB components during transit
- Batch traceability maintained for all units shipped from Konmask.com
How to Source This Part
- Confirm your PLANMECA PROMAX model and serial number from the unit’s identification plate
- Cross-reference part number 121-10-03-D and catalog number 10001225 with your service manual
- Add to cart or contact support@konmask.com for bulk pricing or expedited shipping
- Provide your shipping destination for accurate freight cost and lead time confirmation
Application-Specific FAQ
Q: Is this controller card compatible with all PLANMECA PROMAX variants?
A: This card is identified by part number 121-10-03-D (catalog 10001225). Please verify against your specific PROMAX model’s service documentation. Contact us if you need compatibility confirmation.
Q: Can this be installed without PLANMECA factory calibration?
A: Replacement of this controller card typically requires recalibration by a qualified biomedical engineer or PLANMECA-certified service technician. Konmask.com can advise on service partner referrals.
Q: Do you offer a warranty on this part?
A: Yes. All units shipped from Konmask.com include a standard 90-day functional warranty. Extended warranty options are available — contact support for details.
Q: What is the lead time for international orders?
A: Standard international shipping is 5–12 business days depending on destination. Express options are available at checkout.
