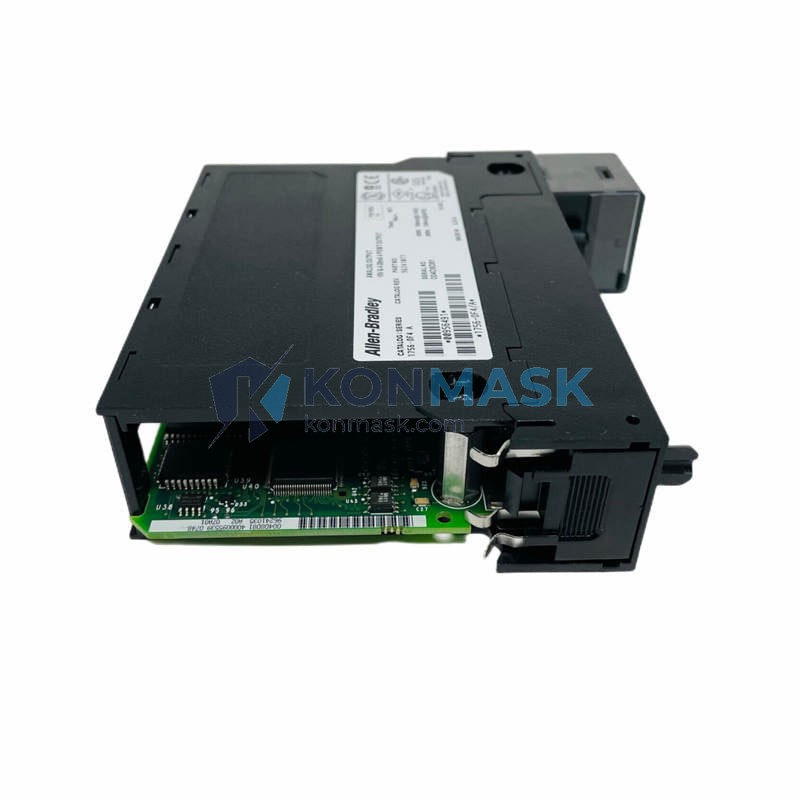

Allen-Bradley 1756-OF4 ControlLogix Analog Output Module | Replacement, Equivalent & Selection Guide
The Allen-Bradley 1756-OF4 is a 4-channel analog output module designed for the Rockwell Automation ControlLogix platform. It delivers precise voltage and current output signals for process control applications including drives, valves, and positioners. This page provides full technical specifications, compatible replacement models, selection guidance, and sourcing information to help engineers and procurement teams make confident decisions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Catalog Number | 1756-OF4 |
| Platform | Allen-Bradley ControlLogix |
| Output Channels | 4 (isolated) |
| Output Signal Types | Voltage: ±10 V DC; Current: 0–20 mA / 4–20 mA |
| Resolution | 16-bit |
| Update Rate | ~2 ms per channel (RPI configurable) |
| Backplane Current Draw | 125 mA @ 5 V DC; 2 mA @ 24 V DC |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -40 °C to 85 °C |
| Relative Humidity | 5%–95% (non-condensing) |
| Certifications | UL, CE, C-Tick |
| Dimensions (H × W × D) | 94.0 × 94.5 × 58.5 mm |
| Weight | ~300 g |
| Firmware Compatibility | RSLogix 5000 / Studio 5000 Logix Designer |
Compatible Replacement & Equivalent Models
The following modules are commonly evaluated as replacements or functional equivalents for the 1756-OF4. Always verify electrical and firmware compatibility before substitution.
| Model | Brand | Channels | Output Type | Notes |
|---|---|---|---|---|
| 1756-OF8 | Allen-Bradley | 8 | V / mA | Expanded channel count; same platform |
| 1756-OF8H | Allen-Bradley | 8 | V / mA | HART-enabled version |
| 1756-OF6VI | Allen-Bradley | 6 | Voltage only | Isolated voltage outputs |
| 1756-OF6CI | Allen-Bradley | 6 | Current only | Isolated current outputs |
| 1756-OF4 (Series B/C) | Allen-Bradley | 4 | V / mA | Direct drop-in; confirm series revision |
| SM332 AO 4×16Bit | Siemens S7-300 | 4 | V / mA | Cross-brand; requires full system re-engineering |
| NI-9265 | National Instruments | 4 | Current (0–20 mA) | cDAQ platform; not a direct drop-in |
Note: Cross-brand replacements require hardware re-wiring, software re-programming, and full validation. Consult your system integrator before proceeding.
Why Choose the Original 1756-OF4
- Seamless ControlLogix Integration — Native backplane communication with zero gateway overhead.
- 16-bit Resolution — High-precision output for demanding process control loops.
- Isolated Channels — Eliminates ground loops and protects field devices.
- Proven Reliability — Widely deployed in oil & gas, automotive, and water treatment industries.
- Studio 5000 Native Support — Full Add-On Instruction (AOI) and tag-based programming support.
- Long Service Life — Rockwell Automation provides extended lifecycle support and spare parts availability.
Typical Applications
- Variable frequency drive (VFD) speed reference signals
- Control valve and actuator positioning (4–20 mA loops)
- Process setpoint transmission to field instruments
- Pressure and flow control in oil & gas pipelines
- Temperature regulation in industrial furnaces and HVAC systems
- Batch process control in food & beverage and pharmaceutical plants
System Compatibility
- Chassis: All 1756 ControlLogix chassis (4, 7, 10, 13, 17-slot)
- Controllers: 1756-L6x, 1756-L7x, 1756-L8x series (ControlLogix and GuardLogix)
- Software: RSLogix 5000 v16+, Studio 5000 Logix Designer v21+
- Power Supplies: 1756-PA72, 1756-PB72, 1756-PA75, and compatible 1756 series PSUs
- Not compatible with: CompactLogix (1769), MicroLogix, or SoftLogix platforms without a gateway
Selection Guide
Use the following criteria to determine whether the 1756-OF4 is the right module for your application:
- Channel Count: Need exactly 4 analog outputs? The OF4 is optimal. For 6–8 channels, consider 1756-OF6CI/VI or 1756-OF8.
- Signal Type: Requires both voltage and current outputs? The OF4 supports both. Current-only loops → 1756-OF6CI; Voltage-only → 1756-OF6VI.
- HART Communication: If field devices require HART protocol, select 1756-OF8H instead.
- Resolution Requirements: 16-bit is sufficient for most process control. For ultra-high-precision applications, evaluate dedicated signal conditioners.
- Budget vs. New: Refurbished 1756-OF4 units are available for cost-sensitive projects. Ensure firmware revision compatibility with your controller.
- Lifecycle Stage: Verify the module’s lifecycle status with Rockwell Automation. If approaching end-of-life, plan migration to 1756-OF8 or newer equivalents.
Quality Assurance & Sourcing
- All modules sourced through authorized distributors or verified secondary-market suppliers.
- Each unit undergoes visual inspection, functional power-on test, and firmware version verification prior to shipment.
- Original factory packaging preserved where available; anti-static packaging used for all shipments.
- Certificates of conformity and test reports available upon request.
- Traceability documentation (lot number, serial number, revision) provided for every order.
How to Order
- Confirm your ControlLogix chassis slot availability and power budget.
- Verify the firmware revision required by your Studio 5000 project.
- Select quantity and specify new, refurbished, or exchange unit preference.
- Contact us via the form below or email support@konmask.com for a quote.
- Provide your shipping address for freight cost calculation (DHL / FedEx / sea freight available).
Replacement & Compatibility FAQ
Q: Can I replace a 1756-OF4 Series A with a Series B without reprogramming?
A: In most cases yes — the module profile is backward compatible. However, always verify the series revision in your Studio 5000 project and update the module definition if prompted.
Q: Is the 1756-OF4 compatible with a 1756-L83E controller?
A: Yes. The 1756-OF4 is compatible with all 1756-L8x series controllers running Studio 5000 v21 or later.
Q: Can I use a Siemens SM332 as a direct replacement?
A: No. Cross-brand substitution requires complete hardware re-wiring, PLC re-programming, and system re-validation. It is not a drop-in replacement.
Q: What is the lead time for a new 1756-OF4?
A: Stock units ship within 1–3 business days. For new factory orders, lead time may be 4–12 weeks depending on Rockwell Automation availability. Contact us for current stock status.
Q: Do you provide a warranty?
A: Yes. All units carry a minimum 90-day functional warranty. Extended warranty options are available upon request.
