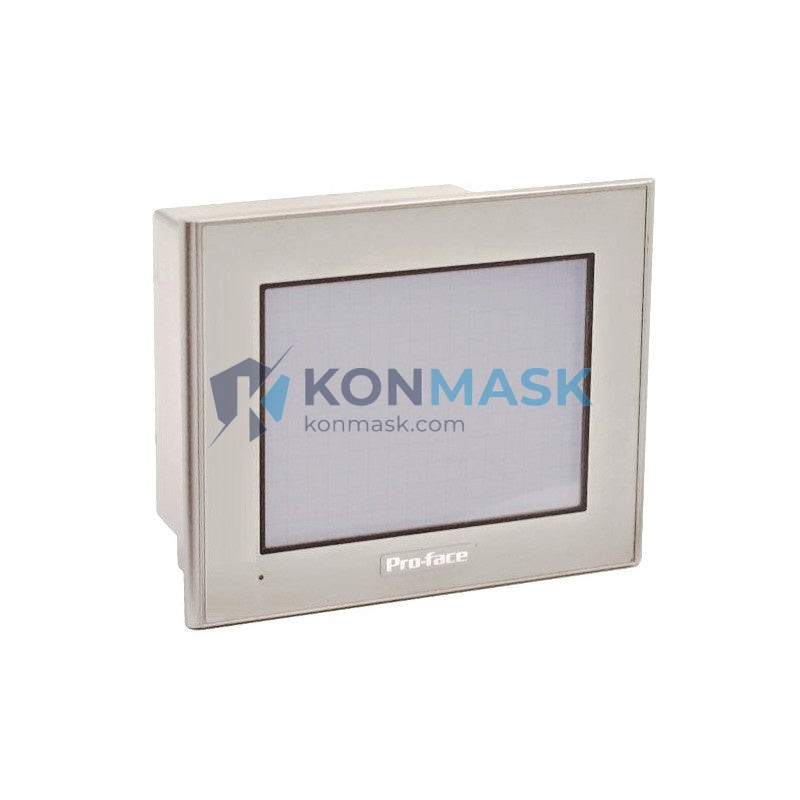

Proface GP2301-LG41-24V Graphic Operator Interface – GP2000 Series
When a production line loses its human-machine interface, operators are left blind. Alarms go unacknowledged, process parameters cannot be adjusted, and the entire system grinds to a halt — costing thousands of dollars per hour in unplanned downtime. The Proface GP2301-LG41-24V is the critical link between your operators and your automation system, delivering real-time process visibility and control at the machine level.
Within the GP2000 Series lineup, the GP2301-LG41-24V occupies a proven mid-range position — offering a compact yet capable operator panel that has earned its place in manufacturing facilities, water treatment plants, and packaging lines worldwide. Proface (a brand of Schneider Electric) is recognized globally as a pioneer in industrial HMI technology, and the GP2000 Series remains one of the most widely deployed operator interface platforms in the Asia-Pacific and European industrial markets.
Technical Specifications
- Part Number: GP2301-LG41-24V
- Brand: Proface (Schneider Electric)
- Series: GP2000
- Power Supply: 24VDC
- Display Type: STN Monochrome LCD
- Display Size: 5.7 inch
- Resolution: 320 × 240 pixels (QVGA)
- Touchscreen Type: Analog resistive
- Communication Ports: RS-232C / RS-422/485 serial
- Memory: Built-in flash memory for screen data
- Operating Temperature: 0°C to 50°C
- Storage Temperature: -20°C to 60°C
- Protection Rating: IP65 (front panel)
- Weight: Approx. 300 g
- Certifications: CE, UL (verify with datasheet for specific approvals)
Note: All specifications are based on published Proface documentation. Please request the official datasheet for full electrical and environmental ratings before installation.
Key Features & Benefits
- IP65 Front Panel Sealing — Protects against dust ingress and water jets, suitable for wash-down environments and harsh factory floors.
- 24VDC Operation — Directly compatible with standard industrial control panel power supplies, simplifying panel design and reducing BOM complexity.
- Compact 5.7″ Form Factor — Fits standard DIN-rail enclosure cutouts, enabling easy retrofit into existing control panels without mechanical modification.
- Multi-Protocol Serial Communication — RS-232C and RS-422/485 ports allow direct connection to a wide range of PLCs, drives, and controllers without additional gateways.
- Proven GP2000 Platform — Extensive installed base means abundant spare parts availability, experienced integrators, and mature GP-PRO/PBIII programming software support.
- Resistive Touchscreen — Operable with gloved hands, ideal for operators in food processing, chemical, and heavy manufacturing environments.
- Long-Term Spare Parts Availability — As a widely deployed legacy platform, replacement units and compatible accessories remain available through specialist distributors like Konmask.com.
Industry & Equipment Applications
- Discrete Manufacturing: Machine tool control panels, assembly line operator stations, robotic cell HMI interfaces.
- Food & Beverage: Filling machine controls, conveyor speed adjustment panels, batch process monitoring.
- Water & Wastewater Treatment: Pump station local control, dosing system operator interfaces.
- Packaging Machinery: Wrapping machine parameter entry, labeling line speed control.
- HVAC & Building Automation: Chiller plant local control panels, air handling unit interfaces.
- Chemical Processing: Reactor monitoring stations, valve control interfaces in hazardous-area adjacent panels.
System Integration & Compatible Parts
The GP2301-LG41-24V is designed to integrate seamlessly within Proface GP2000 Series ecosystems and communicates with a broad range of third-party PLCs via its serial ports. Commonly paired components include:
- Proface GP2000 Series communication cables (RS-232C / RS-422)
- Mitsubishi MELSEC Q/FX Series PLCs
- Omron CS/CJ/CP Series PLCs
- Siemens S7-200/300 Series via appropriate protocol drivers
- Schneider Electric Modicon M340 / Premium Series
- GP-PRO/PBIII or GP-Pro EX programming software (PC-side)
- Proface replacement touchscreen panels and backlights for maintenance
Contact our technical team at support@konmask.com to confirm compatibility with your specific PLC model and firmware version before ordering.
Our Quality Assurance Process
At Konmask.com, every industrial automation component goes through a structured sourcing and verification process before it reaches your facility:
- Authorized & Verified Supply Chain: We source from authorized distributors and verified secondary market suppliers with documented traceability.
- Visual & Functional Inspection: Each unit is inspected for physical integrity — housing, connectors, display, and touchscreen response — prior to dispatch.
- Authenticity Verification: Serial numbers and labeling are cross-referenced against manufacturer records where applicable.
- Secure Packaging: Anti-static packaging with foam cushioning ensures safe transit for sensitive electronics.
- Documentation: Datasheet, test report, and packing list provided upon request.
How to Order
- Submit an Inquiry: Email support@konmask.com or call +0086 19859288691 with your part number (GP2301-LG41-24V) and required quantity.
- Receive a Quote: Our team will respond within 1 business day with pricing, lead time, and availability confirmation.
- Order Confirmation: Review and approve the proforma invoice. Payment terms available for qualified B2B accounts.
- Shipment & Tracking: We ship via DHL, FedEx, or UPS with full tracking. Export documentation (commercial invoice, packing list) included.
- After-Sales Support: Our technical team remains available post-delivery for integration questions.
Why Choose Konmask.com?
- Industrial Automation Specialists: We focus exclusively on industrial control components — PLCs, HMIs, drives, and DCS parts — giving us deep product knowledge your generalist distributor cannot match.
- Global B2B Export Experience: We serve OEMs, system integrators, and MRO buyers across Southeast Asia, the Middle East, Europe, and the Americas.
- Hard-to-Find Parts: Specializing in both current and legacy/obsolete components, we source parts that are no longer available through standard channels.
- Responsive Technical Support: Direct access to engineers who understand your application, not just a call center reading from a script.
- Competitive Lead Times: Stocked items ship within 3–5 business days; sourced items typically within 2–4 weeks.
- Transparent Documentation: Full traceability documentation available for quality-critical procurement.
Frequently Asked Questions
Q: Is the GP2301-LG41-24V still in production?
A: The GP2000 Series has been superseded by newer Proface platforms, but the GP2301-LG41-24V remains available as a replacement/spare part through specialist distributors. Contact us for current stock status.
Q: What programming software is required?
A: The GP2301-LG41-24V is programmed using Proface GP-PRO/PBIII software. It is also compatible with GP-Pro EX for screen data conversion in some configurations. Please confirm your software version with our team.
Q: Can this HMI communicate with non-Proface PLCs?
A: Yes. The GP2301-LG41-24V supports a wide range of PLC communication protocols via its RS-232C and RS-422/485 ports, including Mitsubishi, Omron, Siemens, and Modbus RTU-compatible devices. Protocol driver availability should be confirmed for your specific PLC model.
Q: What is the warranty on this product?
A: Konmask.com offers a standard 90-day warranty against defects in materials and workmanship on all verified units. Extended warranty options are available — please inquire at the time of order.
Q: Do you provide export documentation for customs clearance?
A: Yes. We provide a commercial invoice, packing list, and certificate of origin upon request. Additional documentation (e.g., FORM E for ASEAN preferential tariffs) can be arranged where applicable.
Q: What is the minimum order quantity (MOQ)?
A: There is no minimum order quantity for standard inquiries. We serve both single-unit replacement needs and bulk OEM procurement.
