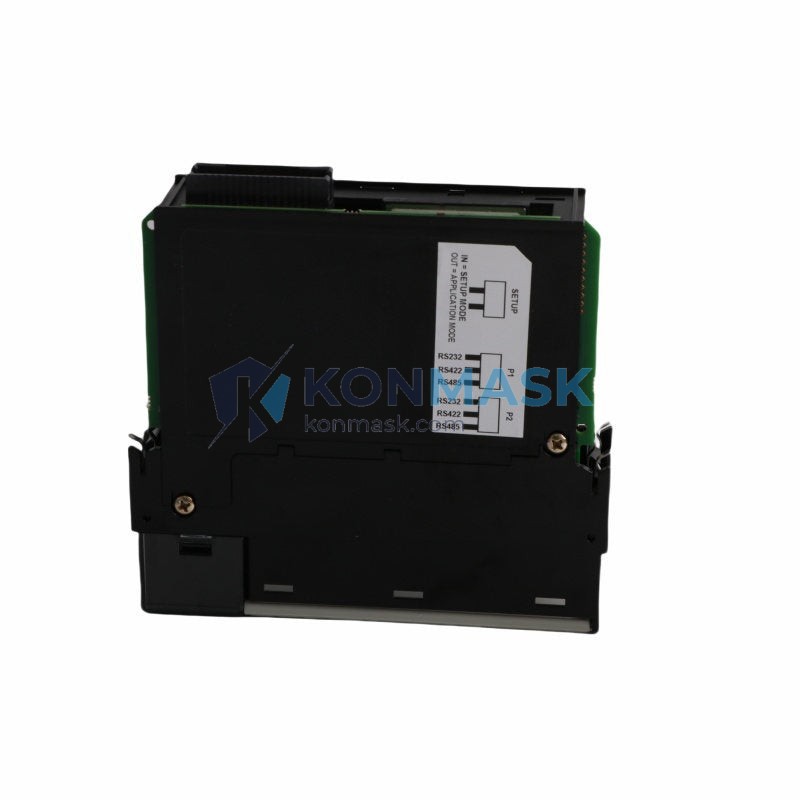

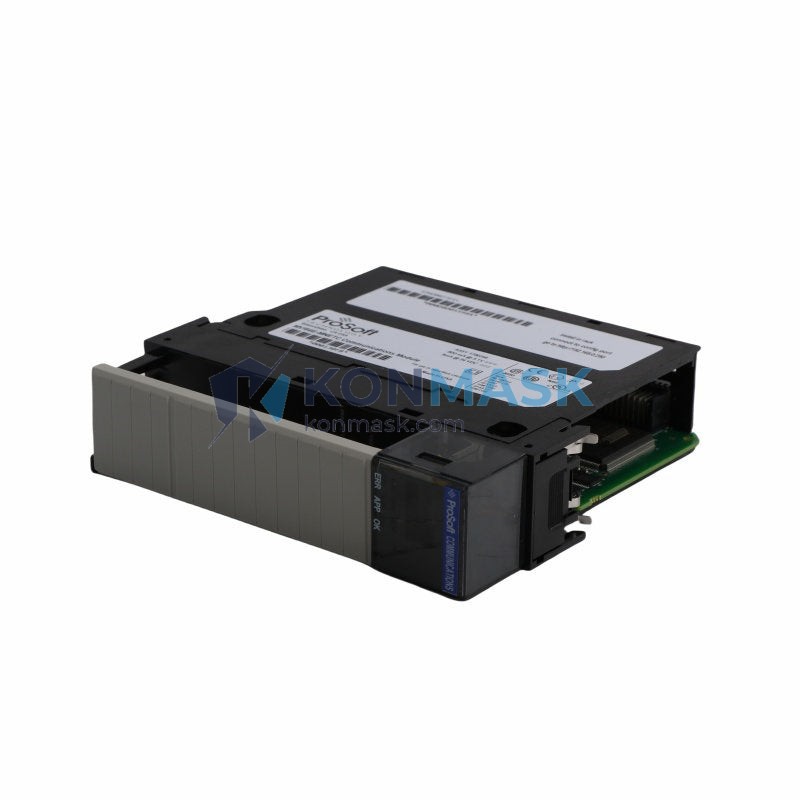

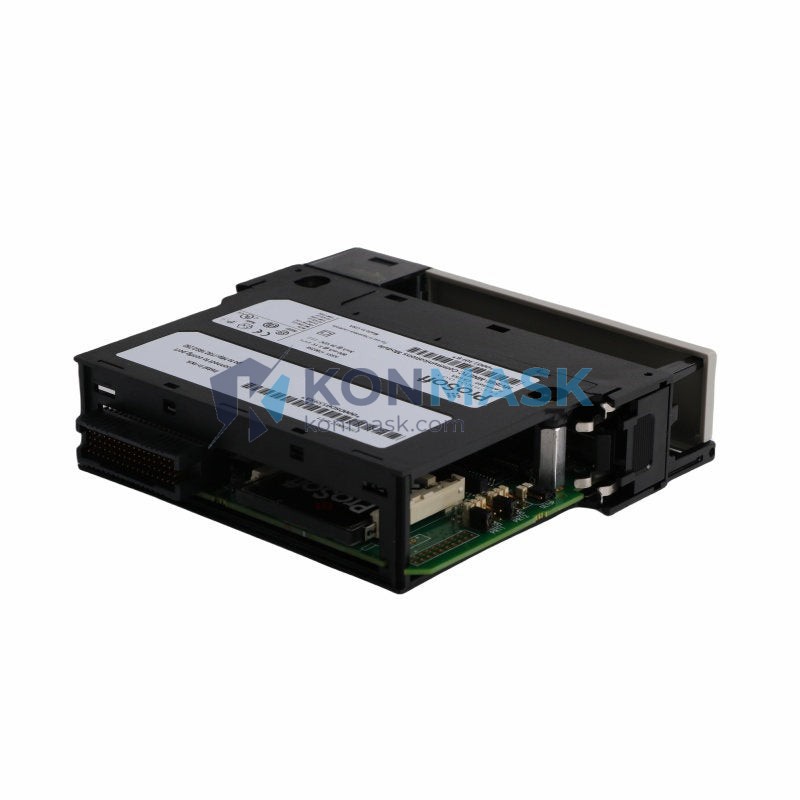

Modbus TCP/IP Communication Solution – ProSoft Technology MVI56-MNETC | MVI56 Series
Where This Product Is Used
The ProSoft MVI56-MNETC is deployed wherever Allen-Bradley ControlLogix PLCs must exchange real-time data over Modbus TCP/IP Ethernet networks. Typical application environments include:
- Water & Wastewater Treatment Plants — SCADA integration between ControlLogix controllers and third-party RTUs, flow meters, and pump drives using Modbus TCP
- Oil & Gas Pipelines — Remote terminal unit (RTU) polling across long-distance Ethernet backbones; master/slave configurations for pressure and flow instrumentation
- Power Generation & Utilities — Substation automation linking ControlLogix to protective relays, energy meters, and IEDs that speak Modbus TCP
- Automotive & Discrete Manufacturing — Machine-level data acquisition from servo drives, VFDs, and vision systems on the plant Ethernet segment
- Food & Beverage Processing — Integration of weighing systems, filling machines, and temperature controllers into a unified ControlLogix architecture
- Building Automation & HVAC — BMS gateway applications bridging Modbus TCP field devices to Rockwell Automation control systems
Technical Specifications
| Attribute | Value |
|---|---|
| Part Number / SKU | MVI56-MNETC |
| Manufacturer | ProSoft Technology |
| Series | MVI56 (ControlLogix Platform) |
| Protocol | Modbus TCP/IP (Client & Server) |
| Backplane Interface | Allen-Bradley ControlLogix 1756 backplane |
| Ethernet Port | 10/100 Mbps RJ-45 (auto-negotiation) |
| Client Connections | Up to 16 simultaneous Modbus TCP client connections |
| Server Connections | Up to 16 simultaneous Modbus TCP server connections |
| Data Table Size | Up to 5,000 registers (read/write) |
| Power Consumption | 800 mA @ 5 VDC (from ControlLogix backplane) |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 5% to 95% non-condensing |
| Weight | 280 g |
| Certifications | UL, CE, RoHS |
| Form Factor | Single-slot ControlLogix module |
Why Engineers Specify This Model
- Simultaneous Client & Server — The MVI56-MNETC operates as both a Modbus TCP client (initiating polls) and server (responding to external masters) in the same module, eliminating the need for two separate gateways.
- Ladder Logic Configuration — All connection parameters are configured directly in RSLogix 5000 / Studio 5000 via MSG instructions and Add-On Instructions (AOI), keeping engineering within the familiar Rockwell environment.
- Deterministic Data Transfer — Backplane data exchange with the ControlLogix processor is synchronised to the PLC scan cycle, ensuring consistent, predictable latency for process-critical data.
- Scalable Architecture — Supports up to 16 client + 16 server connections per module; multiple modules can be installed in the same chassis for high-density applications.
- Proven Field Reliability — Widely deployed across water, oil & gas, and power sectors for over a decade; extensive ProSoft documentation and sample code available.
Complete System Bill of Materials
A typical ControlLogix + MVI56-MNETC integration requires the following components:
- 1756-L7x / 1756-L8x ControlLogix Processor
- 1756-A7 / 1756-A10 / 1756-A13 Chassis
- 1756-PA72 or 1756-PB72 Power Supply
- MVI56-MNETC Communication Module (this item)
- Managed Ethernet switch (100 Mbps or Gigabit, industrial-rated)
- Cat5e / Cat6 shielded Ethernet cable
- RSLogix 5000 / Studio 5000 software license
- ProSoft MVI56-MNETC Sample Code & AOI (free download from ProSoft)
Compliance & Industry Standards
- UL Listed — UL 508 Industrial Control Equipment
- CE Marked — EMC Directive 2014/30/EU; Low Voltage Directive 2014/35/EU
- RoHS Compliant — Directive 2011/65/EU (restriction of hazardous substances)
- Modbus Protocol — Compliant with Modbus.org specification (TCP/IP variant)
- ATEX / IECEx — Not rated for hazardous area; use appropriate barriers if required
Quality Assurance & Sourcing
All ProSoft modules supplied by Konmask.com are sourced through verified industrial distribution channels. Each unit undergoes the following before dispatch:
- Visual inspection for physical damage and label authenticity
- Firmware version verification against ProSoft’s current release matrix
- Functional power-on test where applicable
- Anti-static packaging with humidity indicator card
- Traceable lot documentation available on request
How to Source This Part
To request a quote or confirm lead time for the ProSoft MVI56-MNETC:
- 📧 Email: support@konmask.com
- 📞 Phone / WhatsApp: +0086 19859288691
- 🌐 Online: https://konmask.com
Provide your required quantity, target delivery date, and destination country. We respond within 1 business day.
Application-Specific FAQ
Q: Can the MVI56-MNETC poll multiple Modbus TCP slave devices simultaneously?
A: Yes. As a client, it supports up to 16 concurrent TCP connections, each independently configured with its own IP address, port, and register map.
Q: Does it work with Studio 5000 Logix Designer v32 and later?
A: Yes. ProSoft provides updated AOIs and sample programs compatible with Studio 5000 v21 through v36+. Always download the latest package from ProSoft’s website.
Q: What is the maximum number of MVI56-MNETC modules per ControlLogix chassis?
A: Limited only by available chassis slots and backplane current budget. Practically, 4–6 modules per chassis is common in high-density gateway applications.
Q: Is the module compatible with 1756-EN2T or 1756-EN3TR Ethernet bridges?
A: The MVI56-MNETC has its own dedicated RJ-45 Ethernet port and does not rely on the ControlLogix Ethernet bridge for Modbus TCP traffic. Both can coexist in the same chassis.
Q: Can it act as a Modbus TCP server for a SCADA system like Ignition or Wonderware?
A: Yes. In server mode, the module exposes its internal data table to any Modbus TCP master, including Ignition, Wonderware, iFIX, and most HMI/SCADA platforms.
