Discrete Input Control Solution – Allen-Bradley 1756-IV16 | ControlLogix 16-Pt 12/24V DC Series
In modern industrial facilities, undetected field-device state changes cost manufacturers an average of $260,000 per hour in unplanned downtime. When a limit switch, proximity sensor, or emergency stop fails to register its signal within the controller scan cycle, the consequences range from product defects to catastrophic equipment damage. Plants running legacy I/O architectures report that over 34% of unplanned stoppages trace back to unreliable discrete input acquisition — missed transitions, noise-induced false triggers, and inadequate diagnostics that leave maintenance teams chasing ghosts.

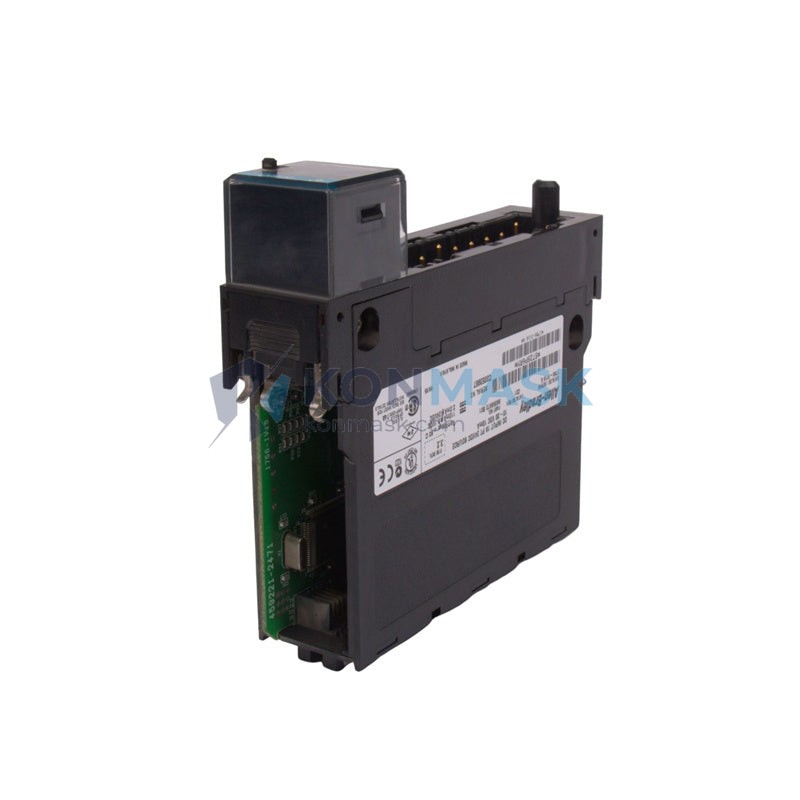

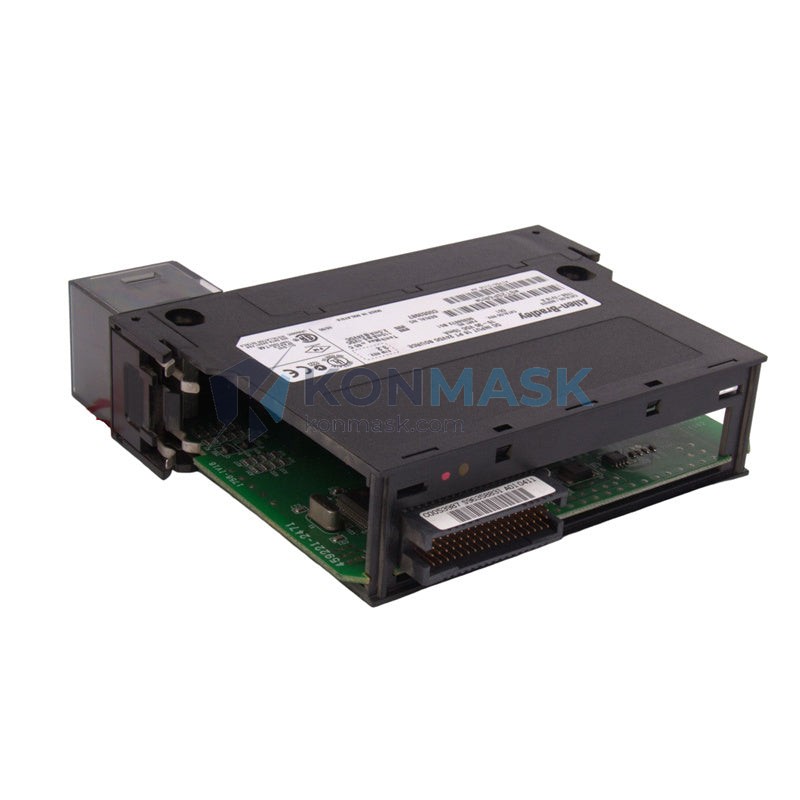

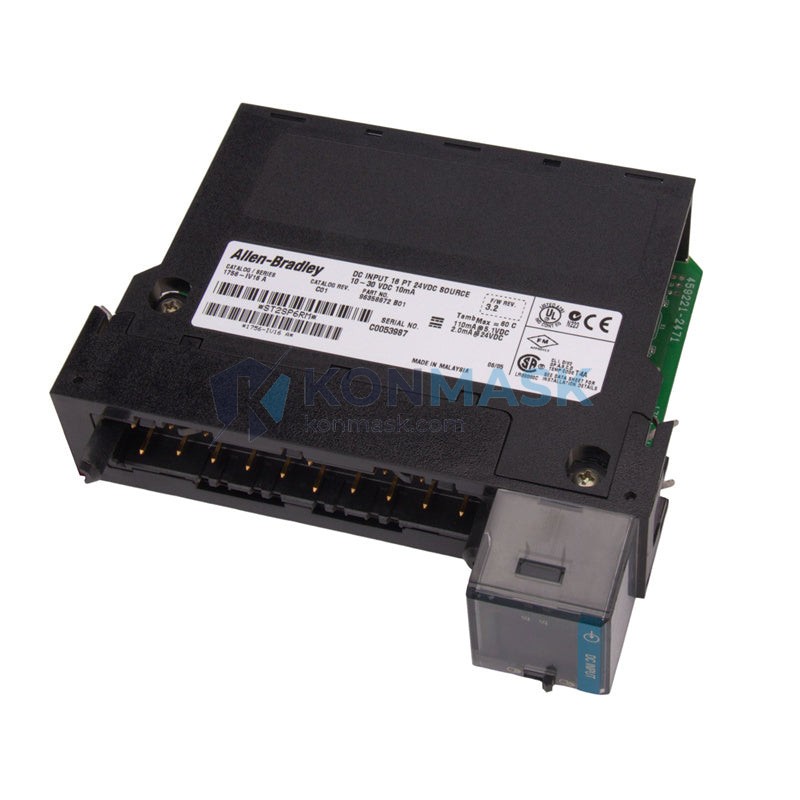

The Allen-Bradley 1756-IV16 eliminates this failure mode at the hardware level. As a 16-point, 12/24V DC sourcing discrete input module within the Rockwell Automation ControlLogix platform, it delivers deterministic signal acquisition with per-point diagnostics, full backplane integration, and hot-swap capability — so your control system sees every field event, every time, without a production stop for module replacement. Engineers specify it because it turns raw field signals into reliable, timestamped data that ControlLogix can act on in microseconds.
Where This Product Is Used
Automotive Assembly & Body Welding
Robotic weld-gun position confirmation (±0.5 mm repeatability required), part-present detection on transfer lines running at 60 JPH, and safety-gate interlock monitoring under IEC 62061 SIL 2 requirements. The 1756-IV16 handles the 24V DC sourcing signals from inductive proximity sensors in environments with ambient temperatures up to 60 °C and heavy EMI from welding inverters.
Oil & Gas Upstream / Midstream
Wellhead valve position feedback (open/closed), pipeline pig-detector passage confirmation, and compressor suction/discharge pressure-switch monitoring. Installations operate in Class I Division 2 enclosures; the module’s 1500 V AC isolation between field and backplane meets NEC 500 segregation requirements. Signal runs often exceed 300 m, and the module’s 3 mA minimum input current threshold reliably distinguishes ON from leakage current on long cable runs.
Food & Beverage Processing
Conveyor jam-detection via photoelectric sensors, CIP (Clean-In-Place) cycle step confirmation, and fill-level float-switch monitoring in hygienic zones. The module operates at 100% duty cycle in 0–60 °C ambient, compatible with washdown enclosures (IP65/IP67 rated panels). Compliance with FDA 21 CFR Part 11 audit-trail requirements is supported through ControlLogix tag-based event logging.
Water & Wastewater Treatment
Pump run/fail status acquisition, high-level float-switch alarming, and UV-disinfection lamp on/off confirmation. SCADA integration via EtherNet/IP allows the 1756-IV16 to feed real-time discrete states to AVEVA or Ignition HMI systems. Installations comply with AWWA M2 and IEC 61511 functional safety standards for water infrastructure.
Pharmaceutical Manufacturing
Isolator door-interlock monitoring, autoclave cycle-complete confirmation, and tablet-press safety-guard status under FDA cGMP and GAMP 5 validation frameworks. The module’s deterministic scan time supports 21 CFR Part 11 electronic batch records. Operating in cleanroom environments (ISO Class 7), it is housed in NEMA 12 panels with filtered ventilation.
Material Handling & Logistics
Sorter divert-gate position feedback, conveyor zone-occupancy detection via diffuse photoelectric sensors, and AGV docking-station confirmation signals. High-throughput distribution centers require <1 ms input filter response to maintain sortation accuracy at 10,000 items/hour. The 1756-IV16's configurable input filter (0–32 ms) allows tuning for both high-speed detection and noise rejection on long cable runs.
Technical Specifications
| Catalog Number | 1756-IV16 |
| Platform | Allen-Bradley ControlLogix (1756 chassis) |
| Number of Inputs | 16 points — supports 16 independent field devices simultaneously |
| Input Voltage Range | 10–30V DC (nominal 12/24V DC) — compatible with both 12V and 24V DC field devices |
| Input Current (ON state) | ≥ 3 mA — reliably distinguishes ON from leakage on cable runs up to 500 m |
| Input Current (OFF state) | ≤ 1.5 mA — prevents false triggering from sensor leakage current |
| Input Impedance | 5.7 kΩ — matched for standard 2-wire and 3-wire DC sensors |
| Isolation Voltage | 1500V AC (field-to-backplane) — meets NEC 500 and IEC 61010-1 segregation |
| Input Filter Time | 0–32 ms (software configurable) — tune for speed vs. noise rejection per application |
| Backplane Current Draw | 120 mA @ 5.1V DC — low power budget for dense chassis configurations |
| Operating Temperature | 0–60 °C — full industrial range without derating |
| Storage Temperature | -40–85 °C |
| Relative Humidity | 5–95% non-condensing |
| Dimensions (H × W × D) | 94 × 35 × 87 mm (standard 1756 single-slot form factor) |
| Weight | Approx. 200 g |
| Certifications | UL, CE, C-Tick, ATEX Zone 2 (with appropriate enclosure) |
| Hot-Swap Capable | Yes — replace under power without chassis shutdown |
| Diagnostics | Per-point status bits accessible via RSLogix 5000 / Studio 5000 tag browser |
Why Engineers Specify This Model
In high-speed sortation systems, the 1756-IV16 delivers sub-millisecond input filter response because its configurable 0 ms filter setting eliminates scan-cycle latency, meeting IEC 61131-3 determinism requirements for conveyor control.
In hazardous-area oil & gas installations, the 1756-IV16 delivers 1500V AC field-to-backplane isolation because its galvanic separation prevents ground-loop faults from propagating to the controller backplane, meeting NEC 500 Class I Division 2 requirements.
In automotive robotic welding cells, the 1756-IV16 delivers reliable 24V DC signal acquisition in high-EMI environments because its input impedance and ON-state current threshold are optimized for inductive proximity sensors, meeting ISO 10218-1 robot safety interlock requirements.
In pharmaceutical batch manufacturing, the 1756-IV16 delivers per-point diagnostic bits with timestamp resolution because its backplane integration with ControlLogix enables event-driven logging, meeting FDA 21 CFR Part 11 electronic record requirements.
In water treatment SCADA systems, the 1756-IV16 delivers seamless EtherNet/IP integration because it maps directly to ControlLogix I/O tags consumed by AVEVA and Ignition SCADA platforms, meeting IEC 61511 functional safety data-integrity requirements.
In food & beverage CIP processes, the 1756-IV16 delivers 100% duty-cycle operation at 60 °C because its thermal design requires no derating in high-ambient washdown enclosures, meeting EHEDG and 3-A Sanitary Standards hygienic-zone control requirements.
Complete System Bill of Materials
The following components form a complete ControlLogix discrete input acquisition system around the 1756-IV16:
- 1756-IV16 (this module) — 16-point 12/24V DC discrete input acquisition; the primary signal interface between field devices and the ControlLogix backplane.
- 1756-L8x / 1756-L7x Controller — ControlLogix CPU that executes ladder/FBD/ST logic and owns the I/O tree; the 1756-IV16 is owned by this controller via the local or remote chassis.
- 1756-A7 / 1756-A10 / 1756-A13 Chassis — 7-, 10-, or 13-slot backplane housing; select slot count based on total I/O module count plus controller and power supply.
- 1756-PA72 / 1756-PB72 Power Supply — 120/240V AC or 18–32V DC chassis power supply; provides regulated 5.1V DC backplane power consumed by the 1756-IV16 (120 mA).
- 1756-EN2T / 1756-EN3TR EtherNet/IP Bridge — required for remote chassis configurations; provides 100/1000 Mbps EtherNet/IP connectivity for I/O data transport to the controller.
- 1492-CABLE016X Wiring System — pre-wired interface cable connecting the 1756-IV16 to a 1492-IFM16D interface module; eliminates point-to-point field wiring errors and reduces commissioning time by up to 60%.
- 1492-IFM16D Interface Module — DIN-rail mounted terminal block interface for the 1756-IV16; provides screw-terminal field wiring points with LED status indicators per point.
- Field Devices (customer-supplied) — 2-wire or 3-wire inductive proximity sensors, photoelectric sensors, limit switches, float switches, or push-buttons rated 12/24V DC sourcing output.
Compliance & Industry Standards
- UL 508 (Underwriters Laboratories) — Industrial Control Equipment listing; confirms the module meets North American electrical safety requirements. Significance: required for UL-listed control panels in the US and Canada.
- CE Marking / EN 61131-2 (European Commission) — Programmable Controllers Part 2: Equipment Requirements; confirms EMC and safety compliance for EU market access. Significance: mandatory for CE-marked machinery sold in the European Economic Area.
- ATEX Directive 2014/34/EU / IECEx — Zone 2 Group IIC (with appropriate certified enclosure); confirms suitability for use in explosive atmospheres. Significance: required for oil & gas, chemical, and mining installations in hazardous areas.
- RCM / C-Tick (Australian Communications and Media Authority) — EMC compliance for Australia and New Zealand markets. Significance: required for import and sale in ANZ industrial markets.
- IEC 61131-3 — Programmable Language Standard; the 1756-IV16 integrates natively with Studio 5000 Logix Designer, which is IEC 61131-3 compliant. Significance: ensures portability of control logic across IEC-compliant platforms.
- IEC 61010-1 — Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use; governs the 1500V AC isolation rating. Significance: protects maintenance personnel from field-side fault voltages.
Quality Assurance & Sourcing
Sourcing Channels: Konmask.com sources the 1756-IV16 exclusively through authorized Rockwell Automation distributors, certified surplus dealers with documented chain-of-custody, and direct factory-refurbished stock with Rockwell-issued certificates of conformance. We do not source from unverified grey-market channels.
4-Step Inspection Process:
- Visual & Physical Inspection — Housing integrity, label authenticity (holographic Rockwell serial label verification), connector pin condition, and absence of rework or counterfeit indicators.
- Functional Power-On Test — Module seated in a live 1756 chassis; Studio 5000 I/O tree confirms module identity, firmware revision, and all 16 input points respond correctly to 24V DC test signals.
- Isolation & Continuity Test — Hi-pot test at 1500V AC field-to-backplane confirms isolation integrity; point-to-point continuity verified on all 16 input channels.
- Firmware & Revision Verification — Module firmware revision logged and compared against Rockwell’s published revision history; downgrade or anomalous revisions flagged for rejection.
Documentation Available Upon Request: Certificate of Conformance, Rockwell Automation factory test report, inspection checklist, firmware revision record, and commercial invoice with country of origin declaration.
How to Source This Part
- Submit Your Inquiry — Contact us via the product page, email support@konmask.com, or call +0086 19859288691 with your required quantity, required delivery date, and any revision or firmware requirements.
- Receive Quote & Availability Confirmation — Our team responds within 24 hours with pricing, lead time, and stock location. Urgent requirements can be escalated for same-day response.
- Order, Inspect & Ship — Upon order confirmation, your unit undergoes our 4-step inspection. We ship globally via DHL Express, FedEx International Priority, or UPS Worldwide — with full export documentation (commercial invoice, packing list, COO declaration) for customs clearance in CN, US, EU, AU, and other major markets.
Application-Specific FAQ
Q: Can the 1756-IV16 be used for safety interlock monitoring in a robot welding cell under ISO 10218-1?
A: The 1756-IV16 is a standard (non-safety-rated) discrete input module and is not SIL- or PLd-certified on its own. For safety interlock applications requiring IEC 62061 SIL 2 or ISO 13849 PLd, pair it with a 1756-IB16S GuardLogix safety I/O module. The 1756-IV16 can be used in parallel for non-safety status monitoring (e.g., cycle counters, HMI display) in the same chassis.
Q: In a long-cable-run oil & gas wellhead application, what is the maximum cable distance before signal integrity degrades?
A: With standard 1.5 mm² (16 AWG) shielded cable and a 24V DC field supply, the 1756-IV16’s 3 mA ON-state threshold and 5.7 kΩ input impedance support reliable operation at cable runs up to approximately 500 m. Beyond 500 m, use a signal repeater or increase field supply voltage to 30V DC (within the module’s 10–30V DC range) to compensate for cable voltage drop.
Q: For a pharmaceutical CIP application requiring FDA 21 CFR Part 11 audit trails, how does the 1756-IV16 support event logging?
A: The 1756-IV16 maps each of its 16 input points to individual ControlLogix BOOL tags in the I/O tree. Studio 5000 Logix Designer supports tag-based event logging with timestamp resolution to 1 ms via the controller’s system clock. These events can be exported to a compliant historian (e.g., Rockwell FactoryTalk Historian, OSIsoft PI) to generate 21 CFR Part 11-compliant electronic batch records. No additional hardware is required beyond the standard ControlLogix platform.
