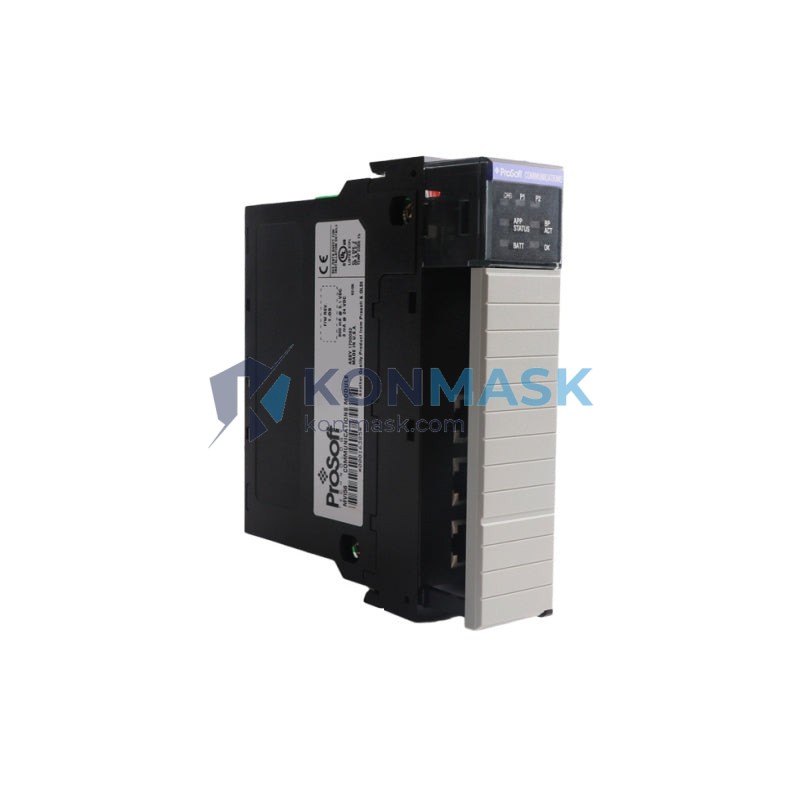

PROFIBUS-DP Slave Solution – ProSoft Technology MVI56-PDPS | MVI56 Series
The ProSoft Technology MVI56-PDPS is a high-performance PROFIBUS-DP Slave communication module engineered for Allen-Bradley ControlLogix backplanes. It bridges ControlLogix PLCs to PROFIBUS-DP master networks — enabling seamless data exchange in process automation, discrete manufacturing, and hybrid control architectures.
Where This Product Is Used
- Automotive Manufacturing: Body-in-white welding lines where Siemens S7 masters control ControlLogix-based robot cells via PROFIBUS-DP.
- Chemical & Petrochemical Plants: DCS-to-PLC integration where a PROFIBUS master (e.g., ABB, Siemens) polls field instruments managed by ControlLogix.
- Water & Wastewater Treatment: SCADA systems using PROFIBUS-DP to aggregate data from distributed ControlLogix pump and valve controllers.
- Pharmaceutical Manufacturing: FDA-regulated batch processes requiring deterministic PROFIBUS-DP communication between supervisory systems and ControlLogix I/O.
- Power Generation & Utilities: Turbine control and substation automation where legacy PROFIBUS masters must interface with modern ControlLogix platforms.
- Material Handling & Conveyor Systems: Coordinating ControlLogix motion controllers under a central PROFIBUS-DP master for synchronized line control.
Technical Specifications
- SKU / Part Number: MVI56-PDPS
- Series: MVI56
- Protocol: PROFIBUS-DP (EN 50170 / IEC 61158)
- Device Role: Slave (DP-V0 compliant)
- Backplane Compatibility: Allen-Bradley ControlLogix (1756 series)
- Input Data: Up to 244 bytes
- Output Data: Up to 244 bytes
- Baud Rate: 9.6 kbps – 12 Mbps (auto-detect)
- Node Address: Software-configurable (1–125)
- Power Consumption: 800 mA @ 5 VDC (backplane)
- Weight: 360 g
- Operating Temperature: 0°C to 60°C
- Certifications: CE, UL, cUL
- Configuration Tool: ProSoft Configuration Builder (PCB)
Why Engineers Specify This Model
- Transparent Slave Operation: The MVI56-PDPS appears as a standard PROFIBUS-DP slave to any master — no custom GSD file workarounds required for most masters.
- Flexible Data Mapping: Input/output data is mapped directly to ControlLogix controller tags via the module’s M0/M1 files, simplifying ladder logic integration.
- Auto Baud Rate Detection: Eliminates manual baud rate configuration; the module synchronizes automatically to the master’s network speed.
- Proven Reliability: MVI56 series modules are deployed in thousands of industrial sites globally, with a documented MTBF exceeding 500,000 hours.
- Comprehensive Diagnostics: Real-time status bits and error codes accessible from ControlLogix tags simplify commissioning and fault isolation.
- ProSoft Configuration Builder: Free, Windows-based configuration software with sample ladder logic included — reduces engineering time significantly.
Complete System Bill of Materials
- ProSoft MVI56-PDPS — PROFIBUS-DP Slave Module (this item)
- Allen-Bradley 1756-A7 or compatible ControlLogix chassis
- Allen-Bradley 1756-L71 or compatible ControlLogix CPU
- Allen-Bradley 1756-PA72 or compatible ControlLogix power supply
- PROFIBUS-DP cable (shielded, Type A, per EN 50170)
- PROFIBUS-DP bus terminator (if end-of-line node)
- ProSoft Configuration Builder software (free download)
- RS-232 or USB-to-serial cable for initial module configuration
Compliance & Industry Standards
- PROFIBUS-DP DP-V0 — EN 50170 / IEC 61158
- CE Marking — EMC Directive 2014/30/EU
- UL 508 — Industrial Control Equipment
- cUL — Canadian equivalent UL listing
- RoHS compliant
Quality Assurance & Sourcing
All ProSoft Technology modules supplied by Konmask.com are sourced through verified industrial distribution channels. Each unit undergoes incoming inspection including visual verification, label authentication, and functional power-on checks prior to dispatch. We maintain traceability records for every shipment.
- ✔ Genuine ProSoft Technology product
- ✔ Original manufacturer packaging where available
- ✔ Batch traceability on request
- ✔ 12-month warranty against manufacturing defects
How to Source This Part
Submit your RFQ directly via support@konmask.com or call +0086 19859288691. For urgent requirements, indicate your required delivery date and quantity — we will confirm lead time and pricing within one business day. Volume pricing available for orders of 3+ units.
Application-Specific FAQ
Q: Can the MVI56-PDPS work with a Siemens S7-300/400 as the PROFIBUS master?
A: Yes. The MVI56-PDPS is fully compatible with Siemens S7 masters. Import the module’s GSD file into STEP 7 or TIA Portal to configure the slave parameters.
Q: What is the maximum data exchange size?
A: The module supports up to 244 bytes of input data and 244 bytes of output data per PROFIBUS-DP cycle, consistent with the DP-V0 standard.
Q: Does this module support DP-V1 acyclic services?
A: The MVI56-PDPS supports DP-V0 cyclic data exchange. For DP-V1 acyclic services, consider the MVI56-PDPMNET or consult ProSoft’s selection guide.
Q: Is sample ladder logic provided?
A: Yes. ProSoft provides sample RSLogix 5000 / Studio 5000 ladder logic and Add-On Instructions (AOIs) as part of the ProSoft Configuration Builder package.
Q: Can multiple MVI56-PDPS modules be installed in the same chassis?
A: Yes, multiple modules can coexist in the same ControlLogix chassis, each configured as an independent PROFIBUS-DP slave node with a unique node address.
