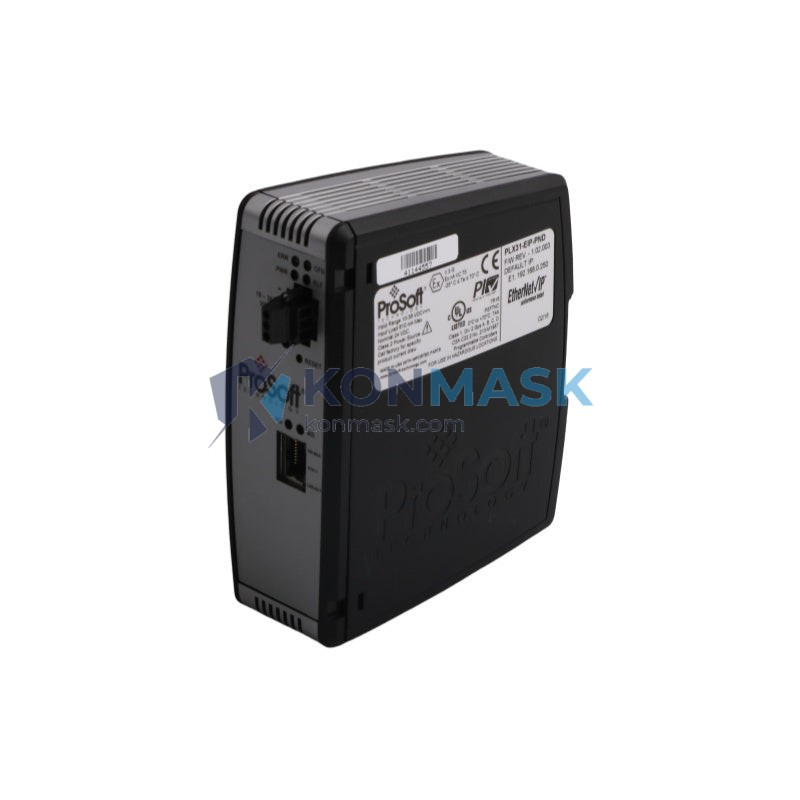

ProSoft PLX31-EIP-PND EtherNet/IP to PROFINET Device Gateway – PLX31 Series
Imagine a modern automotive assembly line where a Siemens S7 PROFINET controller needs to exchange real-time data with an Allen-Bradley EtherNet/IP network — but the two protocols are fundamentally incompatible. Without a reliable protocol gateway, engineers face costly custom middleware, extended downtime, and integration risks that can halt production for days. The ProSoft PLX31-EIP-PND eliminates this barrier entirely, acting as a transparent, high-speed bridge between EtherNet/IP and PROFINET IO networks with zero custom programming required.
Within the ProSoft PLX31 Series — a family of compact, DIN-rail-mounted industrial protocol gateways — the PLX31-EIP-PND occupies a critical position as the definitive EtherNet/IP ↔ PROFINET IO solution. ProSoft Technology is a globally recognized leader in industrial protocol conversion, with over 30 years of deployment experience across automotive, oil & gas, water treatment, and discrete manufacturing sectors. The PLX31-EIP-PND is trusted by system integrators and OEMs worldwide to deliver deterministic, low-latency data exchange in mission-critical environments.
Technical Specifications
- Model: PLX31-EIP-PND
- Brand: ProSoft Technology
- Series: PLX31
- Protocol Side A: EtherNet/IP (Scanner & Adapter)
- Protocol Side B: PROFINET IO (Controller & Device)
- Mounting: DIN-rail
- Power Supply: 10–28 VDC
- Operating Temperature: -20°C to +70°C (-4°F to +158°F)
- Enclosure Rating: IP20
- Weight: Approx. 240 g
- Configuration: Web browser-based, no software installation required
- Data Mapping: Up to 248 bytes input / 248 bytes output per connection
- Certifications: CE, UL (refer to ProSoft datasheet for current listing)
Key Features & Benefits
- Bidirectional Protocol Translation: Seamlessly maps data between EtherNet/IP and PROFINET IO in real time, eliminating the need for custom code or middleware.
- Dual-Role Flexibility: Operates as EtherNet/IP Scanner or Adapter AND PROFINET IO Controller or Device — configurable per project requirement.
- Browser-Based Configuration: Intuitive web UI means no proprietary software licenses; configure from any PC on the network.
- Compact DIN-Rail Form Factor: Fits directly into existing control panels without additional enclosure space.
- Wide Temperature Range: Rated for harsh industrial environments from -20°C to +70°C.
- Rapid Deployment: Pre-tested protocol stacks reduce commissioning time from days to hours.

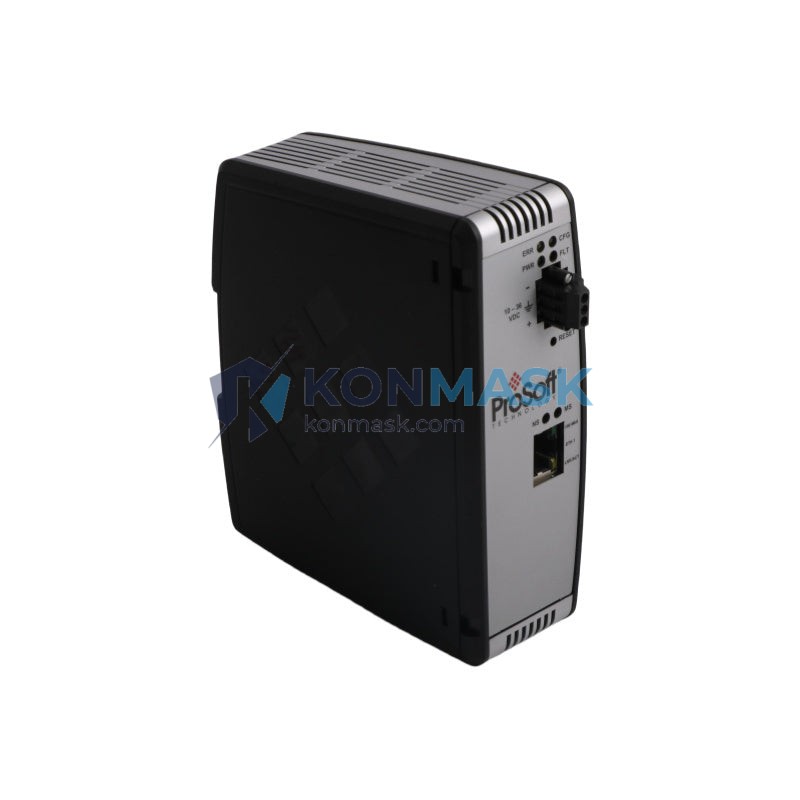

- Diagnostic LEDs: On-board status indicators for instant network health visibility.
- Proven Reliability: Deployed in thousands of installations globally across safety-critical industries.
Industry & Equipment Applications
- Automotive Manufacturing: Connecting Siemens PROFINET robot controllers with Rockwell EtherNet/IP PLCs on assembly lines.
- Oil & Gas: Integrating legacy EtherNet/IP field devices into modern PROFINET-based DCS architectures.
- Water & Wastewater Treatment: Bridging mixed-vendor SCADA systems for unified monitoring and control.
- Food & Beverage: Enabling cross-protocol communication in hygienic processing lines with mixed PLC brands.
- Discrete Manufacturing: Linking EtherNet/IP motion controllers with PROFINET safety PLCs.
- Building Automation: Integrating industrial HVAC and energy management systems across protocol boundaries.
System Integration & Compatible Parts
The PLX31-EIP-PND is designed to integrate with leading industrial automation platforms. Typical compatible systems include:
- EtherNet/IP Side: Allen-Bradley / Rockwell Automation ControlLogix, CompactLogix, MicroLogix, Micro800 series PLCs
- PROFINET Side: Siemens SIMATIC S7-300, S7-400, S7-1200, S7-1500 series; Beckhoff TwinCAT; Phoenix Contact PLCs
- Related ProSoft Gateways: PLX31-EIP-MBS (EtherNet/IP ↔ Modbus Serial), PLX31-EIP-MBTCP (EtherNet/IP ↔ Modbus TCP), PLX31-MBTCP-PND (Modbus TCP ↔ PROFINET)
- Power Accessories: Standard 24 VDC DIN-rail power supplies (Phoenix Contact, Weidmuller, or equivalent)
Our Quality Assurance Process
At Konmask.com, every ProSoft PLX31-EIP-PND unit is subject to a rigorous multi-stage quality process before shipment:
- Authenticity Verification: Units are sourced exclusively from authorized distributors and verified against ProSoft Technology’s official product database.

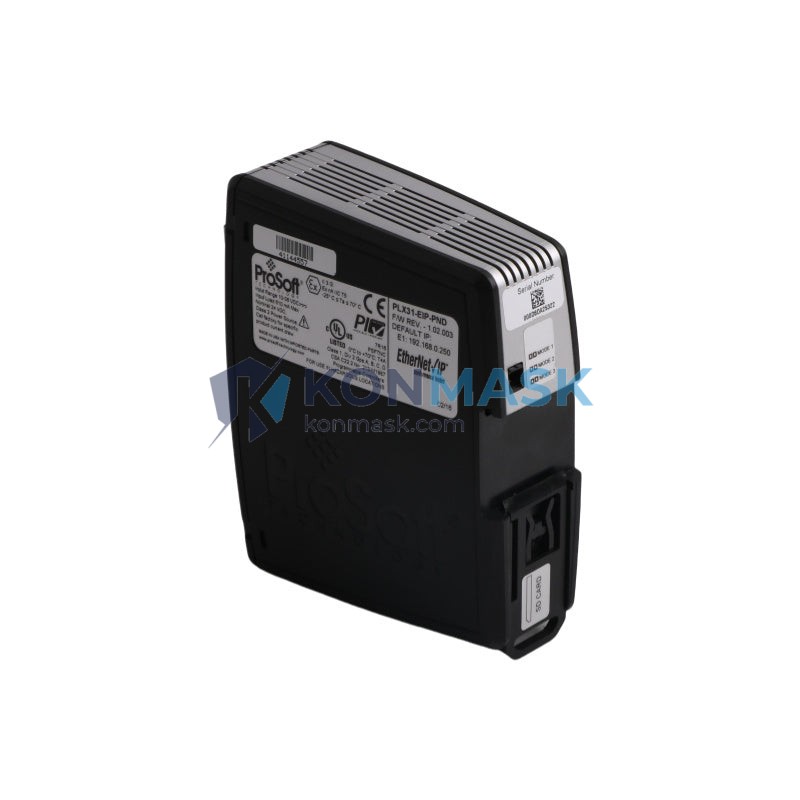

- Visual & Physical Inspection: Each unit is inspected for label integrity, connector condition, and packaging completeness.
- Functional Pre-Check: Power-on testing confirms LED status and basic communication readiness.
- Secure Packaging: Anti-static packaging with shock-absorbing materials ensures safe international transit.
- Documentation: Original datasheet, certificate of conformity, and warranty card included where available.
How to Order
- Submit an inquiry via the “Request a Quote” button on this page, or email support@konmask.com.
- Provide your required quantity, delivery timeline, and destination country.
- Our technical team will confirm availability, lead time, and pricing within 24 business hours.
- Upon agreement, we issue a proforma invoice and arrange secure payment.
- Units are shipped with full tracking via DHL, FedEx, or UPS Express.
Why Choose Konmask.com?
- Specialized B2B Expertise: We focus exclusively on industrial automation components — no consumer electronics, no distractions.
- Global Sourcing Network: Access to genuine ProSoft Technology inventory from verified supply chains worldwide.
- Technical Pre-Sales Support: Our engineers can assist with compatibility checks, wiring diagrams, and configuration guidance before you buy.
- Fast International Shipping: DHL/FedEx Express to 200+ countries, with export documentation handled by our team.
- Competitive Pricing: Volume discounts available for system integrators, OEMs, and MRO procurement teams.
- After-Sales Assistance: Post-delivery technical support to ensure successful commissioning.
Frequently Asked Questions
Q: Does the PLX31-EIP-PND require any special software to configure?
A: No. Configuration is performed entirely through a standard web browser. No proprietary software or licenses are required.
Q: Can the PLX31-EIP-PND act as both an EtherNet/IP Scanner and a PROFINET IO Device simultaneously?
A: Yes. The gateway supports multiple role combinations — it can function as an EtherNet/IP Scanner while simultaneously acting as a PROFINET IO Device, or other combinations depending on your network topology.
Q: What is the maximum data throughput of the PLX31-EIP-PND?
A: The gateway supports up to 248 bytes of input and 248 bytes of output data per connection. For exact RPI (Requested Packet Interval) and cycle time specifications, refer to the official ProSoft Technology datasheet.
Q: Is the PLX31-EIP-PND suitable for use in hazardous locations?
A: The standard PLX31-EIP-PND carries an IP20 rating and is designed for installation inside control panels. It is not rated for direct use in hazardous (Ex) zones without appropriate enclosure protection.
Q: How long does delivery take to my country?
A: Standard international express delivery via DHL or FedEx typically takes 3–7 business days depending on destination. Contact us for a precise lead time estimate.
Q: Do you provide a warranty on the PLX31-EIP-PND?
A: Yes. All units sold through Konmask.com are covered by the manufacturer’s standard warranty. Extended warranty options may be available — please inquire at the time of order.
