PROVIBTECH TM0180-A08-B00-C12-D10 Proximity Probe | Replacement, Equivalent & Selection Guide

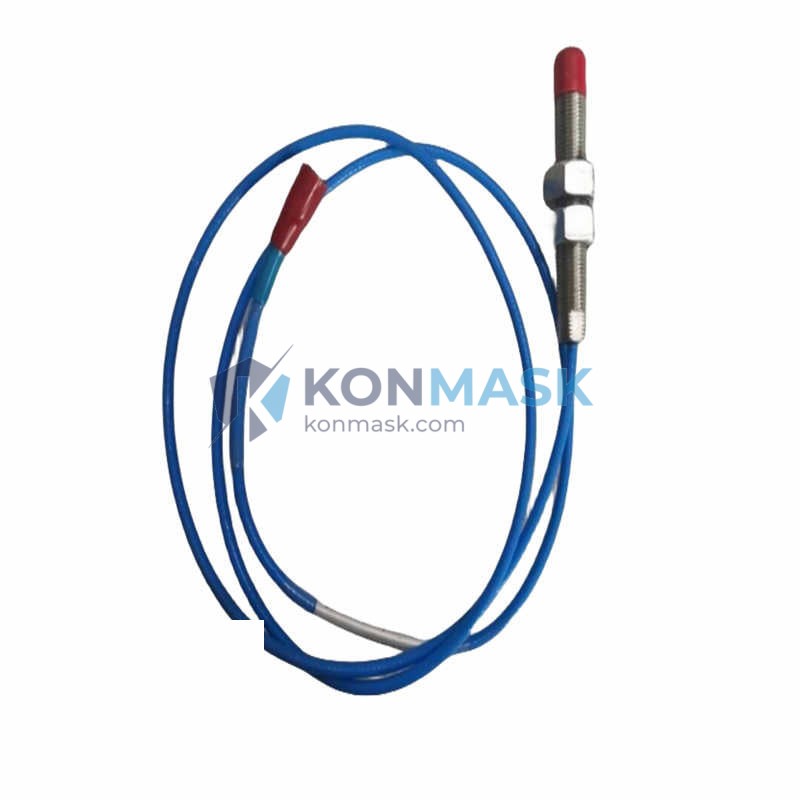

The PROVIBTECH TM0180-A08-B00-C12-D10 is an eddy-current proximity probe designed for continuous, non-contact measurement of shaft vibration, position, and displacement in rotating machinery. This page provides full technical specifications, compatible replacement models, application guidance, and sourcing information to help engineers and procurement teams make confident selection decisions.
Technical Specifications
- Part Number: TM0180-A08-B00-C12-D10
- Brand: PROVIBTECH
- Type: Eddy-Current Proximity Probe
- Probe Tip Diameter: 8 mm (A08)
- Cable Length: 1.0 m integral cable (C12 = 1.2 m extension, D10 = 1.0 m driver cable — verify per configuration)
- Sensing Range: Typically 0–2 mm linear range (eddy-current standard)
- Output: Compatible with standard Bently Nevada–style signal conditioning (–24 VDC bias)
- Connector: Standard coaxial, compatible with TM series drivers/monitors
- Housing Material: Stainless steel
- Operating Temperature: –40 °C to +120 °C (typical for TM series)
- Weight: Approx. 70 g
- Compliance: API 670 compatible system when used with matched driver and monitor
Note: Always verify exact sub-parameters (cable lengths, gap range) against the PROVIBTECH TM0180 datasheet for your specific configuration code.
Compatible Replacement & Equivalent Models
The TM0180-A08-B00-C12-D10 is electrically and mechanically compatible with the following industry-standard proximity probes. Confirm gap calibration and driver matching before substitution:
- Bently Nevada 330101-00-06-10-02-00 — 8 mm probe, 1 m cable, –24 VDC; direct functional equivalent in most API 670 systems
- Bently Nevada 330103 series — 8 mm extended-range probes; suitable where longer linear range is required
- EPRO PR6423 series — 8 mm eddy-current probes; compatible with EPRO CON021/CON041 drivers
- Metrix ST5484E — 8 mm proximity probe; verify driver compatibility
- PROVIBTECH TM0180-A08-B00-C05-D05 — same probe tip, shorter cable configuration
- PROVIBTECH TM0180-A05 series — 5 mm tip variant for tighter installation envelopes
⚠ Important: Proximity probe systems are three-component (probe + extension cable + driver/oscillator). Always replace as a matched set or verify system calibration after substitution.
Why Choose the Original Model
- Factory-calibrated system: The TM0180 is calibrated as a matched probe-driver pair, ensuring traceable sensitivity (typically 7.87 V/mm or 200 mV/mil)
- API 670 compliance: Designed to meet machinery protection standards for critical rotating equipment
- Proven field reliability: Widely deployed in turbines, compressors, pumps, and gearboxes across oil & gas, power generation, and petrochemical industries
- OEM interchangeability: Drop-in replacement for legacy Bently Nevada installations with correct driver pairing
- Stainless steel construction: Resistant to process fluids, high temperatures, and vibration fatigue
Typical Applications
- Steam and gas turbine shaft radial vibration monitoring
- Centrifugal compressor rotor position and vibration measurement
- Pump and motor shaft displacement monitoring
- Gearbox and expander vibration surveillance
- Axial thrust position measurement (with appropriate mounting)
- API 670 machinery protection systems
System Compatibility
The TM0180-A08-B00-C12-D10 probe is designed to operate within the PROVIBTECH TM series signal conditioning ecosystem. It is also compatible with the following monitors and drivers when gap and sensitivity are verified:
- PROVIBTECH TM0182 / TM0183 — matched extension cables
- PROVIBTECH TM0184 / TM0186 — matched driver/oscillators
- Bently Nevada 3300 XL / 3500 series monitors — with correct driver substitution
- EPRO MMS 6000 / MMS 6350 series — verify sensitivity scaling
- Metrix MX2033 / MX2034 monitors — confirm input impedance compatibility
Selection Guide
Use the following criteria to confirm the TM0180-A08-B00-C12-D10 is the right probe for your application, or to identify the correct alternative:
- Probe tip diameter: A08 = 8 mm. Choose A05 (5 mm) for tight radial clearances or A14 (14 mm) for extended range requirements.
- Cable length: C12 = 1.2 m integral cable. Match total probe + extension cable length to your installation distance to the driver.
- Driver cable: D10 = 1.0 m driver cable. Total system cable length must match driver calibration (typically 5 m or 9 m total).
- Target material: Eddy-current probes are calibrated for AISI 4140 steel. Correction factors apply for other shaft materials (stainless, titanium, Inconel).
- Gap range: Standard linear range is 0.25–2.25 mm. Confirm shaft-to-probe gap is within this window at installation.
- Environment: Confirm operating temperature, chemical exposure, and pressure rating against your process conditions.
Quality Assurance & Sourcing
- All units sourced through authorized distribution channels or verified surplus with full traceability documentation
- Pre-shipment inspection available: visual, dimensional, and continuity checks
- Calibration certificates available upon request for new OEM units
- Counterfeit-risk mitigation: Konmask.com sources only from traceable supply chains — no gray-market or unverified stock
- Packaging: original OEM packaging preserved where available; protective anti-static packaging for all shipments
How to Order
- Part Number: TM0180-A08-B00-C12-D10
- Brand: PROVIBTECH
- Add to cart directly, or contact us for bulk pricing, lead time confirmation, or matched-set (probe + extension + driver) orders
- Email: [email protected]
- Phone/WhatsApp: +0086 19859288691
- Expedited sourcing available for shutdown and emergency replacement requirements
Replacement & Compatibility FAQ
Q: Can I replace the TM0180-A08-B00-C12-D10 with a Bently Nevada 330101?
A: Yes, in most cases. Both are 8 mm eddy-current probes with –24 VDC bias. You must use a matched Bently Nevada driver and verify system sensitivity calibration (200 mV/mil) before returning to service.
Q: Can I replace just the probe without replacing the extension cable and driver?
A: Only if the replacement probe is from the same calibrated system family. Mixing probe, extension, and driver from different manufacturers or calibration batches will result in measurement error. Always recalibrate or replace as a matched set.
Q: What is the standard sensitivity of this probe?
A: 7.87 V/mm (200 mV/mil) when used with the matched PROVIBTECH driver, calibrated against AISI 4140 steel target.
Q: Is this probe suitable for axial position measurement?
A: Yes, with appropriate mounting hardware and a flat target surface. Confirm with your machinery OEM that the probe gap and range meet axial thrust position requirements.
Q: Do you supply the full three-component system (probe + extension + driver)?
A: Yes. Contact us with your total cable length requirement and monitor type for a matched-set quotation.
