PROVIBTECH TM0181-A40-B00 Extension Cable | Replacement, Equivalent & Selection Guide

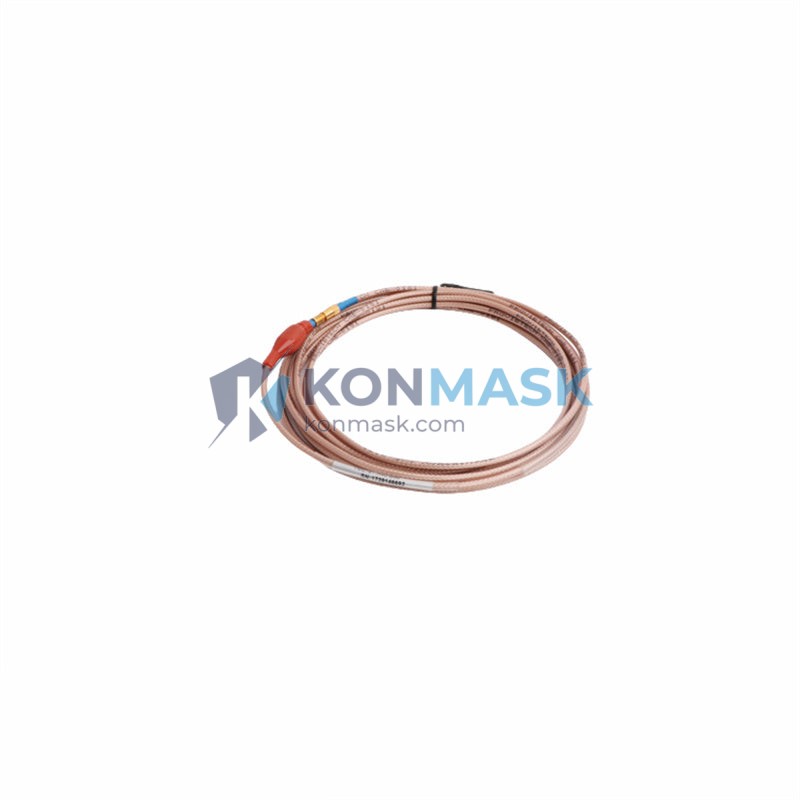

The PROVIBTECH TM0181-A40-B00 is a precision-grade extension cable designed for use with eddy-current proximity probes and vibration monitoring systems. It serves as the critical signal-transmission link between the probe tip and the signal conditioner/driver, maintaining measurement accuracy in demanding industrial environments. Konmask.com supplies genuine and compatible TM0181-A40-B00 cables for condition monitoring, machinery protection, and predictive maintenance applications.
Technical Specifications
- Part Number / SKU: TM0181-A40-B00
- Manufacturer: PROVIBTECH
- Product Type: Extension Cable (Proximity Probe Extension)
- Series: TM0181 Series
- Cable Length: 40 inches (approx. 1.0 m) — suffix -A40 indicates length
- Connector Type: Standard coaxial / BNC-compatible (per PROVIBTECH TM0181 series spec)
- Impedance: 50 Ω nominal
- Operating Temperature: -40°C to +125°C
- Jacket Material: Stainless steel armored / PTFE-insulated inner conductor
- Weight: Approx. 380 g
- Application: Eddy-current probe extension, vibration/displacement signal transmission
- Suffix Explanation: TM0181 = series | A40 = 40-inch length | B00 = standard termination
Compatible Replacement & Equivalent Models
The following models are commonly evaluated as replacements or equivalents for the TM0181-A40-B00. Always verify electrical and mechanical compatibility before substitution:
- Bently Nevada 330130-040-00-00 — 3300 XL 8mm Extension Cable, 1.0 m; widely used cross-reference in API 670 systems
- Bently Nevada 330130-080-00-00 — 2.0 m variant; use when longer cable run is required
- Epro PR6423/010-040 — Epro eddy-current extension cable, compatible with PR6400 series probes
- PROVIBTECH TM0181-A20-B00 — Shorter 20-inch variant; same series, different length
- PROVIBTECH TM0181-A80-B00 — Longer 80-inch variant; same termination standard
- Metrix 5480-001 — General-purpose proximity extension cable; verify connector pinout before use
Note: Cross-brand substitution requires confirmation of probe/driver system compatibility. Contact Konmask.com for application-specific guidance.
Why Choose the Original TM0181-A40-B00
- System-matched performance: Designed and calibrated specifically for PROVIBTECH probe-driver systems, ensuring accurate gap voltage and sensitivity curves
- API 670 compliance: Meets machinery protection standards for turbomachinery and rotating equipment
- Signal integrity: Precision coaxial construction minimizes capacitance variation and signal noise over the full cable length
- Environmental durability: Armored jacket resists oil, vibration, and high-temperature industrial environments
- Traceability: OEM part with full documentation support for regulated plant environments
Typical Applications
- Steam and gas turbine shaft vibration monitoring
- Compressor and pump rotor displacement measurement
- API 670-compliant machinery protection systems
- Predictive maintenance and condition monitoring programs
- Motor and gearbox bearing proximity sensing
- Power generation and petrochemical plant instrumentation
System Compatibility
The TM0181-A40-B00 extension cable is designed to work within the PROVIBTECH TM series probe-driver system. Typical compatible system components include:
- Probes: PROVIBTECH TM0180 series eddy-current proximity probes (5 mm, 8 mm tip diameter)
- Drivers / Oscillator-Demodulators: PROVIBTECH TM0182 series signal conditioners
- Monitors: PROVIBTECH TM series vibration monitors and API 670 protection racks
- Cross-system note: May be evaluated for use with Bently Nevada 3300/3500 series with appropriate adapter verification
Selection Guide
Use the table below to select the correct TM0181 extension cable for your application:
- TM0181-A20-B00 — 20 inches (~0.5 m): Short-reach installations, tight panel spaces
- TM0181-A40-B00 — 40 inches (~1.0 m): Standard reach (this model), most common field installation
- TM0181-A80-B00 — 80 inches (~2.0 m): Extended reach, remote probe locations
- TM0181-A160-B00 — 160 inches (~4.0 m): Long-run installations, large machinery housings
Key selection criteria: Probe-to-driver distance → cable length | System brand → connector compatibility | Environment → jacket/armor rating | Regulatory requirement → OEM vs. equivalent
Quality Assurance & Sourcing
- All PROVIBTECH TM0181-A40-B00 cables supplied by Konmask.com are sourced from authorized distribution channels or verified surplus with full traceability
- Each unit undergoes visual inspection and continuity/impedance verification prior to shipment
- Certificates of conformance (CoC) and test reports available upon request
- Packaging: Original OEM packaging preserved where available; anti-static protective packaging for all shipments
- Lead time: In-stock items ship within 1–3 business days; sourced items within 5–10 business days
How to Order
- Part Number: TM0181-A40-B00
- Manufacturer: PROVIBTECH
- Add to cart directly, or contact us for bulk pricing, urgent requirements, or cross-reference verification
- Email: [email protected]
- Phone / WhatsApp: +0086 19859288691
- Website: https://konmask.com
- For OEM cross-reference orders (e.g., Bently Nevada equivalent), please specify your existing system model number when inquiring
Replacement & Compatibility FAQ
Q: Can the TM0181-A40-B00 replace a Bently Nevada 330130-040-00-00?
A: These cables serve the same functional role (1.0 m proximity probe extension) but are calibrated for their respective probe-driver systems. Direct substitution requires verification of sensitivity, capacitance, and connector compatibility. Contact us for a compatibility assessment.
Q: What is the difference between TM0181-A40-B00 and TM0181-A40-B01?
A: The B-suffix typically denotes termination or connector variant. B00 is the standard termination. Confirm with your system documentation or contact Konmask.com before ordering a B01 variant.
Q: Is this cable compatible with 5 mm and 8 mm probes?
A: The TM0181 series is designed for use with PROVIBTECH TM0180 probes. Compatibility with specific probe tip diameters depends on the matched probe model. Please specify your probe part number when ordering.
Q: Do you supply the complete probe-cable-driver system?
A: Yes. Konmask.com can supply complete PROVIBTECH TM series systems including probes (TM0180), extension cables (TM0181), and signal conditioners (TM0182). Contact us for system pricing.
Q: What is your return policy for industrial cables?
A: Unused items in original condition may be returned within 30 days. Custom-length or special-order cables are non-returnable. See our full policy at konmask.com.
