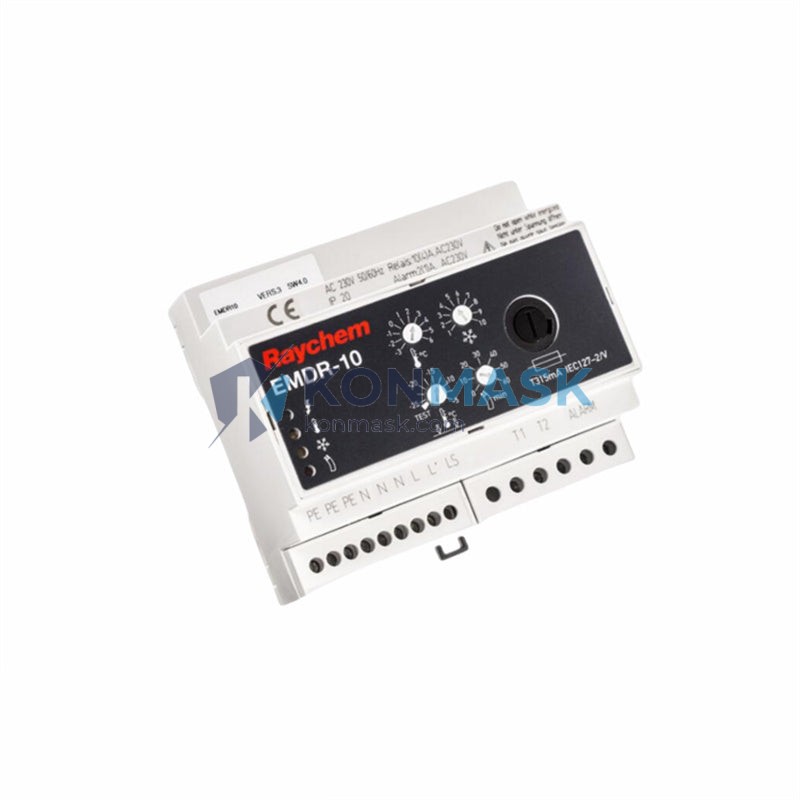

RAYCHEM EMDR-10 Electric Heat Tracing Control Unit

Description

RAYCHEM EMDR-10 Electric Heat Tracing Control Unit – EMDR Series

When a heat tracing control unit fails on a critical pipeline, the consequences are immediate and severe: pipes freeze, viscous fluids solidify, process temperatures drop out of specification, and production halts. In hazardous or remote environments, an uncontrolled shutdown can escalate into a safety incident. The RAYCHEM EMDR-10 Control Unit exists precisely to prevent this scenario — delivering reliable, continuous monitoring and switching control for electric heat tracing circuits in demanding industrial applications.

The EMDR-10 occupies a well-established position within Nvent RAYCHEM’s EMDR control series, designed for single-circuit electric heat tracing management. RAYCHEM is globally recognized as the benchmark brand in heat tracing technology, with installations across oil & gas, chemical processing, power generation, and infrastructure projects on every continent. The EMDR-10 reflects that heritage: engineered for long service life, straightforward commissioning, and dependable operation in environments where failure is not an option.

Technical Specifications

Model: EMDR-10
Brand: RAYCHEM (nVent)
Series: EMDR Control Series
Function: Single-circuit electric heat tracing control unit
Application: Freeze protection & process temperature maintenance
Weight: 1,560 g
Condition: New / Surplus / Refurbished (specify on inquiry)

Note: Detailed electrical ratings, ambient temperature range, enclosure classification, and input/output specifications are available upon request. We do not publish unverified parameters.

Key Features & Benefits

Single-Circuit Dedicated Control: Optimized for precise management of one heat tracing circuit, reducing complexity and fault risk.
RAYCHEM Engineering Pedigree: Built to nVent RAYCHEM’s stringent quality standards, trusted in safety-critical installations worldwide.
Reliable Switching Logic: Ensures heat tracing cables are energized only when needed, extending cable life and reducing energy consumption.
Robust Construction: Designed to withstand industrial environments including vibration, moisture ingress, and wide temperature swings.
Simplified Commissioning: Straightforward wiring and configuration reduce installation time and the risk of commissioning errors.
Long Service Life: RAYCHEM components are specified for multi-decade operational lifespans in continuous-duty applications.

Industry & Equipment Applications

Oil & Gas: Wellhead freeze protection, pipeline temperature maintenance, instrument impulse line heating.
Chemical & Petrochemical: Viscosity control for process fluids, reactor feed line heating, tank farm temperature maintenance.
Power Generation: Turbine lube oil system heating, instrument protection in outdoor substations.
Water & Wastewater: Freeze protection for exposed pipework, pump station heating.
Infrastructure & Commercial: Roof and gutter de-icing, floor heating control in industrial facilities.

System Integration & Compatible Parts

The RAYCHEM EMDR-10 is designed to integrate with RAYCHEM self-regulating and constant-wattage heat tracing cables, as well as associated junction boxes, end seals, and power connection kits from the RAYCHEM ecosystem. For multi-circuit installations, it can be deployed alongside RAYCHEM’s NGC (Network Grade Controller) systems or paired with additional EMDR units for zone-by-zone control. Please contact us with your system layout for compatibility confirmation.

Our Quality Assurance Process

At Konmask.com, every RAYCHEM component we supply undergoes a structured verification process:

Source traceability documentation reviewed prior to listing.
Physical inspection for label integrity, housing condition, and connector completeness.
Cross-reference against RAYCHEM/nVent official part number databases.
Secure anti-static packaging for shipment to prevent ESD damage in transit.

We supply only parts we can stand behind. If we cannot verify a unit’s provenance, we do not list it.

How to Order

Submit an Inquiry: Use the contact form or email support@konmask.com with your required quantity and any application details.
Receive a Quote: Our team will respond within 1 business day with pricing, lead time, and availability confirmation.
Order Confirmation: Upon agreement, we issue a proforma invoice and confirm shipping arrangements.
Shipment & Tracking: Parts are shipped with full tracking. Export documentation is provided for international orders.

Why Choose Konmask.com?

Industrial Automation Specialists: We focus exclusively on industrial control and automation components — this is our domain.
Global Supply Network: We source from verified channels to support customers in over 30 countries.
Technical Support: Our team includes engineers who understand the application context, not just the part number.
Responsive Communication: Inquiries answered within 1 business day. Urgent requirements accommodated.
Transparent Process: No hidden fees. Clear documentation. Honest lead times.

Frequently Asked Questions

Q: Is the RAYCHEM EMDR-10 still in production?: A: Product lifecycle status varies. Please contact us to confirm current availability — we maintain access to both current-production and surplus stock.
Q: Can you supply the EMDR-10 with a certificate of conformance?: A: Documentation availability depends on the specific stock source. Please specify your documentation requirements when submitting your inquiry.
Q: Do you ship internationally?: A: Yes. We ship globally and can provide export documentation, commercial invoices, and packing lists for customs clearance.
Q: What is the lead time for the EMDR-10?: A: Lead time depends on current stock levels. Contact us for a real-time availability check.
Q: Can the EMDR-10 control multiple heat tracing circuits?: A: The EMDR-10 is a single-circuit controller. For multi-circuit applications, multiple units or a higher-capacity RAYCHEM controller would be appropriate — our team can advise.

{
