Redback Networks ATMDS-3-600-0103 REV 03 VAC1DD0AAA SMS1000 Controller Card Module | Replacement, Equivalent & Selection Guide

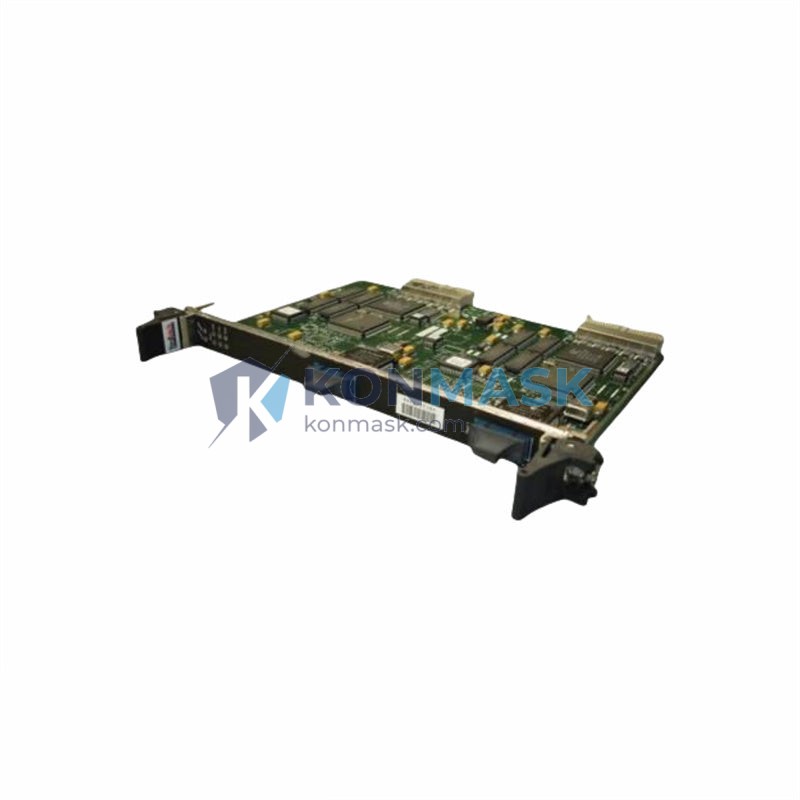

The Redback Networks ATMDS-3-600-0103 REV 03 VAC1DD0AAA is a controller card module designed for the SMS1000 platform. This page provides full technical specifications, compatible replacement options, and a structured selection guide to help engineers and procurement teams make informed sourcing decisions.
Technical Specifications
- Manufacturer: Redback Networks (now Ericsson)
- Part Number / SKU: ATMDS-3-600-0103 REV 03-VAC1DD0AAA-SMS1000
- Revision: REV 03
- Variant Code: VAC1DD0AAA
- Platform: SMS1000 (SmartEdge Multi-Service Switch)
- Module Type: Controller Card Module
- Form Factor: Line Card / Controller Blade
- Weight: 1,380 g (approx.)
- Condition Available: New / Refurbished / Tested Pull
Compatible Replacement & Equivalent Models
If the exact part number is unavailable, the following models may serve as functional equivalents or drop-in replacements depending on firmware and chassis revision. Always verify hardware revision compatibility before substitution.
- Redback Networks ATMDS-3-600-0103 REV 02-VAC1DD0AAA-SMS1000 (earlier revision)
- Redback Networks ATMDS-3-600-0103 REV 04-VAC1DD0AAA-SMS1000 (later revision, if backward compatible)
- Ericsson SmartEdge SMS1000 equivalent controller blades (post-acquisition rebranded variants)
- Third-party compatible SMS1000 controller cards (consult datasheet for slot and interface compatibility)
Note: Konmask.com recommends confirming chassis firmware version and slot assignment before ordering a replacement. Contact our team for pre-sales compatibility verification.
Why Choose the Original Model
- Guaranteed Compatibility: Factory-matched to SMS1000 chassis without firmware patching.
- Stable Revision: REV 03 is a mature, field-proven revision with known errata resolved.
- OEM Traceability: Full part number and revision traceability for audit and compliance.
- Reduced Integration Risk: No interoperability testing required when using the exact OEM part.
Typical Applications
- Telecom carrier-grade multi-service edge switching (SMS1000 platform)
- Broadband aggregation and DSL termination networks
- Enterprise WAN edge and MPLS backbone deployments
- Spare/replacement controller card for existing SMS1000 installations
- Lab and test environments requiring SMS1000 controller redundancy
System Compatibility
- Chassis: Redback Networks SMS1000 SmartEdge Multi-Service Switch
- Platform Generation: SMS1000 series (pre-Ericsson acquisition)
- Interface: Refer to VAC1DD0AAA variant code for slot and backplane interface details
- Firmware: Compatible with SMS1000 OS versions supporting ATMDS-3 controller family
- Not Compatible With: SMS10000, SmartEdge 1000 (Ericsson rebranded) without hardware verification
Selection Guide
Use the following criteria to determine if this module is the right choice for your application:
- Step 1 – Confirm Chassis: Verify your chassis is an SMS1000 (not SMS10000 or SE1000).
- Step 2 – Check Slot: Confirm the controller slot accepts ATMDS-3 family cards.
- Step 3 – Match Revision: REV 03 is recommended; check if your system supports this revision or requires REV 02.
- Step 4 – Verify Variant Code: VAC1DD0AAA defines the specific hardware configuration — confirm this matches your BOM or existing card.
- Step 5 – Assess Condition: Choose New for critical production; Refurbished/Tested Pull for lab or backup use.
Quality Assurance & Sourcing
- All units sourced through verified supply chain channels with full traceability.
- Pre-shipment functional testing available on request.
- Anti-counterfeit inspection performed on all incoming stock.
- Packaging: ESD-safe anti-static bag with foam protection.
- Warranty: 90-day replacement warranty on tested units (terms apply).
How to Order
- Add this item to your cart or contact us for bulk/project pricing.
- Provide your chassis model and current firmware version for compatibility confirmation.
- Specify required condition: New / Refurbished / Tested Pull.
- Our team will confirm lead time and issue a proforma invoice within 1 business day.
- Shipping: DHL / FedEx international express available. Export documentation provided.
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I use REV 02 instead of REV 03?
A: In most cases yes, but REV 03 includes hardware fixes not present in REV 02. We recommend using the same revision as your existing card unless Redback/Ericsson release notes confirm cross-revision compatibility.
Q: Is this card compatible with the Ericsson SmartEdge 1000?
A: The SmartEdge 1000 (SE1000) is the Ericsson-rebranded successor. Physical compatibility may exist, but firmware and management software differences require verification. Contact us before ordering.
Q: Do you offer tested/refurbished units?
A: Yes. All refurbished units undergo power-on and functional testing. Certificates of testing are available on request.
Q: What is the lead time?
A: In-stock units ship within 1–3 business days. Out-of-stock items typically have a 2–4 week sourcing lead time.
Q: Can you supply multiple units for a project?
A: Yes. Contact us for project/bulk pricing and availability across multiple units or related SMS1000 line cards.
