CNC & Motion Control Solution — Bosch Rexroth HMD01.1N-W0012-A-07-NNNN | HMD Series
Where This Product Is Used

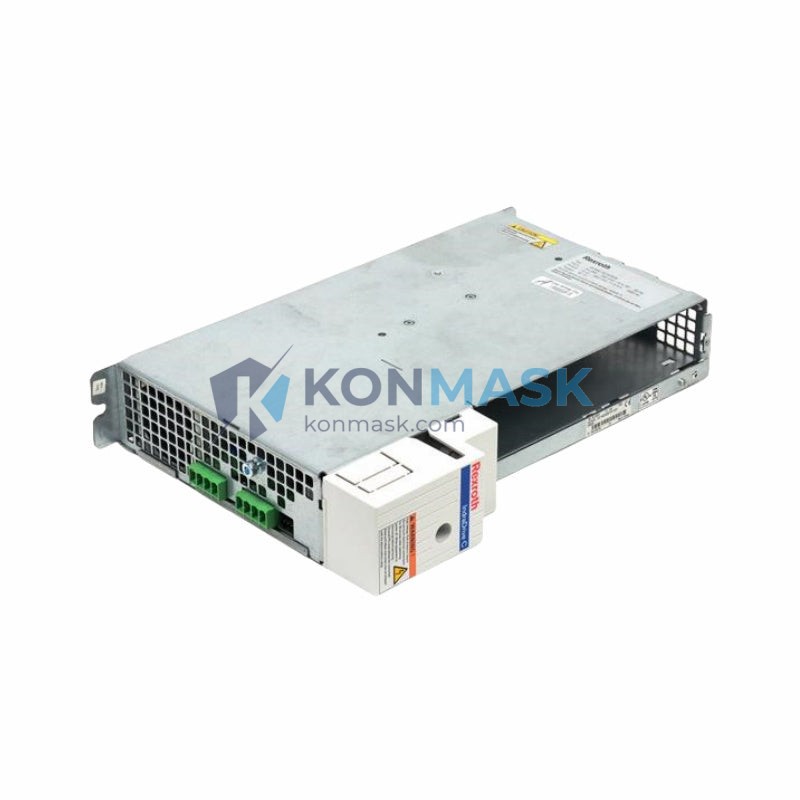

The Rexroth HMD01.1N-W0012-A-07-NNNN is a dual-axis compact servo drive module from the DIAX04 / IndraDrive HMD series, engineered for high-precision motion control in demanding industrial environments. Typical deployment scenarios include:
- CNC Machining Centers — simultaneous dual-axis interpolation for milling, turning, and grinding spindles
- Industrial Robotics — coordinated joint control in 6-axis articulated arms and SCARA robots
- Printing & Packaging Machinery — register control and web tension management requiring sub-millisecond response
- Semiconductor & Electronics Assembly — pick-and-place gantries demanding micron-level positioning repeatability
- Injection Molding Machines — clamp and injection axis synchronization for cycle-time optimization
- Textile & Winding Equipment — tension-controlled winding with dual-axis torque regulation
Technical Specifications
| Parameter | Value |
|---|---|
| Part Number | HMD01.1N-W0012-A-07-NNNN |
| Series | HMD (DIAX04 / IndraDrive Compact) |
| Axes | Double Axis (2-axis) |
| Continuous Output Current | 12 A (per axis) |
| Supply Voltage | 3 × 400–480 V AC, 50/60 Hz |
| DC Bus Voltage | 540–750 V DC |
| Cooling Method | Forced air (internal fan) |
| Communication Interface | SERCOS II / Analog (suffix -A-07) |
| Feedback Compatibility | Resolver, EnDat, Hiperface, TTL encoder |
| Protection Class | IP20 |
| Weight | 5.6 kg |
| Manufacturer | Bosch Rexroth AG |
| Country of Origin | Germany |
Why Engineers Specify This Model
- Dual-axis density — two fully independent servo axes in a single drive slot, reducing cabinet footprint by up to 40% versus single-axis alternatives
- SERCOS II real-time bus — deterministic 2 ms cycle time enables tight multi-axis synchronization without external motion controllers
- Wide feedback compatibility — supports resolver, EnDat 2.1, Hiperface, and TTL encoders, simplifying motor substitution and retrofits
- Integrated safety functions — Safe Torque Off (STO) and Safe Stop 1 (SS1) reduce external safety relay count
- Rexroth IndraWorks commissioning — parameter upload/download and oscilloscope diagnostics via standard USB/Ethernet without proprietary hardware
Complete System Bill of Materials
For a fully operational HMD01.1N-W0012-A-07-NNNN servo axis, the following components are typically required:
- Power Supply Unit — Rexroth HMV01 or HMV02 mains supply module
- DC Bus Capacitor Module — Rexroth HLC01 (for energy buffering)
- Servo Motor — Rexroth MKD / MHD / MSK series (matched to 12 A rating)
- Feedback Cable — Rexroth IKS series (motor-specific, shielded)
- Power Cable — Rexroth IKL series (motor power, UL/CE rated)
- SERCOS Fiber Optic Ring Cable — for multi-drive topology
- Control Cabinet — minimum 400 mm depth, IP54 enclosure recommended
Compliance & Industry Standards
- CE Marking — Low Voltage Directive 2014/35/EU & EMC Directive 2014/30/EU
- UL 508C — Power Conversion Equipment
- IEC 61800-5-1 — Adjustable Speed Electrical Power Drive Systems Safety
- IEC 61800-3 — EMC requirements, Category C2
- EN ISO 13849-1 — Safety function STO rated PLd / Cat. 3
Quality Assurance & Sourcing
Every unit offered by Konmask.com undergoes a structured inspection protocol before dispatch:
- Visual inspection — housing, connectors, label integrity, and firmware version verification
- Power-on functional test — DC bus charge, fan operation, and fault-code readout via IndraWorks
- Insulation resistance check — per IEC 60204-1 requirements
- Serialization logging — unit serial number recorded against order for full traceability
Units are sourced from authorized Bosch Rexroth distributors, OEM decommissions, and certified refurbishers. Condition (new, surplus, or refurbished) is explicitly stated on each listing.
How to Source This Part
To place an order or request a quotation for the HMD01.1N-W0012-A-07-NNNN:
- Online — add to cart directly on this page; stock availability is updated in real time
- Email RFQ — send your BOM or quantity requirement to support@konmask.com
- Phone / WhatsApp — +0086 19859288691 (Mon–Fri, 09:00–18:00 CST)
- Lead time — in-stock units ship within 1–3 business days; sourced units 7–15 business days
- Export — worldwide shipping available; export documentation (CO, packing list, commercial invoice) provided on request
Application-Specific FAQ
Q: Can the HMD01.1N-W0012-A-07-NNNN replace an HMD01.1N-W0012-A-07-NNBV?
A: The suffix positions 8–11 (NNNN vs NNBV) denote optional features such as braking resistor and safety options. Verify your system’s safety wiring before substituting; the core drive functionality is identical.
Q: Is SERCOS III backward compatible with this drive?
A: No. This unit uses SERCOS II (fiber optic ring). SERCOS III (Ethernet-based) requires a different firmware and hardware variant. Confirm your controller’s SERCOS generation before ordering.
Q: What IndraWorks version is required for commissioning?
A: IndraWorks DS 12.x or later is recommended. Older versions (10.x) may not support all parameter sets for the -A-07 interface variant.
Q: Can this drive operate in torque mode for winding applications?
A: Yes. The HMD01 series supports velocity, position, and torque operating modes selectable via SERCOS parameter P-0-0032.
Q: What is the warranty on refurbished units?
A: Konmask.com provides a 12-month functional warranty on all tested refurbished units, covering drive-related faults under normal operating conditions.
