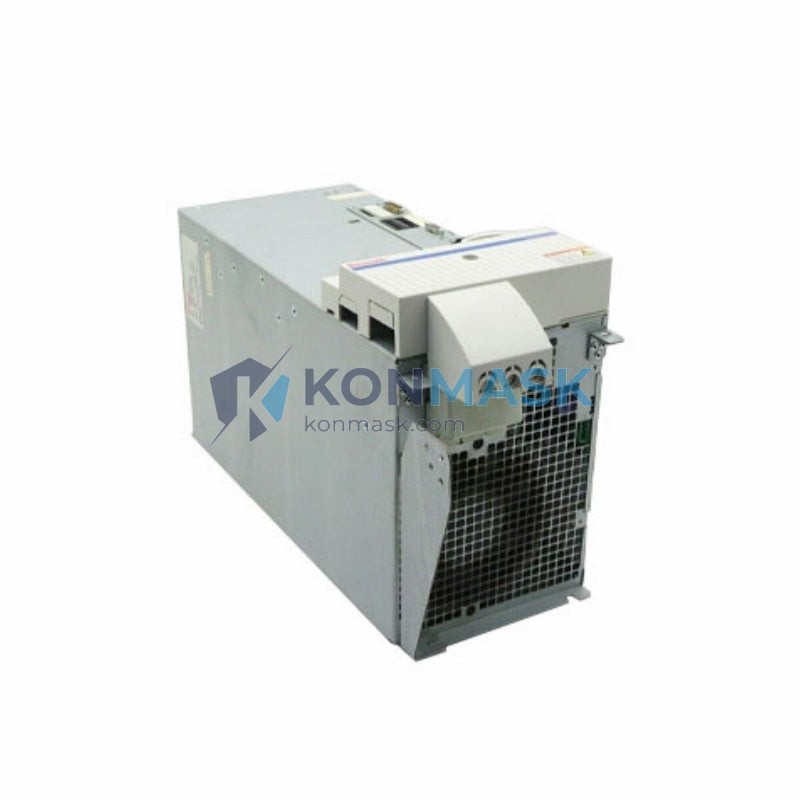

Bosch Rexroth HMS01.1N-W0070-A-07-NNNN Single Axis Servo Inverter | Replacement, Equivalent & Selection Guide
The Rexroth HMS01.1N-W0070-A-07-NNNN is a high-performance single-axis servo inverter from the IndraDrive HMS series, designed for demanding motion control applications in industrial automation. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make confident sourcing decisions.
Technical Specifications
- Part Number: HMS01.1N-W0070-A-07-NNNN
- Brand: Bosch Rexroth
- Series: IndraDrive HMS (Single Axis Inverter)
- Type: HMS01.1N (Standard, non-regenerative)
- Continuous Current: 70 A
- Supply Voltage: 3 × AC 200–480 V, 50/60 Hz
- DC Bus Voltage: 750 V DC (nominal)
- Cooling: Forced air (integrated fan)
- Communication Interface: SERCOS II / PROFIBUS (slot A, position 07)
- Firmware Slot: Position 07
- Safety Option: NNNN (no integrated safety)
- Weight: Approx. 5.3 kg
- Protection Class: IP20
- Standards: CE, UL, cUL
Compatible Replacement & Equivalent Models
The following models are functionally compatible or serve as direct/near-direct replacements for the HMS01.1N-W0070-A-07-NNNN in most application scenarios. Always verify firmware version and communication slot compatibility before substitution.
- HMS01.1N-W0054-A-07-NNNN — Lower current (54 A) variant; suitable if load current allows downgrade
- HMS01.1N-W0110-A-07-NNNN — Higher current (110 A) upward-compatible replacement
- HMS01.1E-W0070-A-07-NNNN — Economy variant with same current rating; verify feature parity
- HMD01.1N-W0036-A-07-NNNN — Double-axis inverter alternative for dual-axis applications
- Siemens SINAMICS S120 6SL3120-1TE21-8AA3 — Cross-brand equivalent (70 A class, requires adapter/reconfiguration)
- Lenze i700 Series — Alternative single-axis servo inverter for retrofit projects
Contact Konmask for cross-reference verification and application-specific compatibility assessment.
Why Choose the Original Model
- Guaranteed firmware and parameter compatibility with existing Rexroth IndraDrive systems
- Seamless integration with Rexroth IndraDrive C, M, and Mi topologies
- Full support for Rexroth IndraWorks engineering software
- Validated CE/UL certifications for global deployment
- OEM-level traceability and warranty support
Typical Applications
- CNC machine tool spindle and feed axis control
- Packaging and labeling machinery
- Printing press servo drives
- Injection molding machine axes
- Robotics and gantry systems
- Semiconductor and electronics manufacturing equipment
System Compatibility
- Compatible Controllers: Rexroth IndraMotion MLC, MTX, MLD; Siemens SINUMERIK (via gateway)
- Compatible Motors: Rexroth MSK, MKD, MHD, LSF series synchronous servo motors
- Power Supply Units: Rexroth HMV01, HMV02 supply modules
- Communication: SERCOS II ring topology; PROFIBUS DP (slot-dependent)
- Engineering Software: IndraWorks DS / IndraWorks MLD
Selection Guide
Use the following criteria to confirm the HMS01.1N-W0070-A-07-NNNN is the correct model for your application:
- Step 1 – Current Rating: Confirm motor continuous current ≤ 70 A (peak current per datasheet)
- Step 2 – Supply Voltage: Verify 3-phase AC 200–480 V availability at cabinet
- Step 3 – Communication Protocol: Confirm SERCOS II or PROFIBUS DP is used (slot 07)
- Step 4 – Safety Requirements: NNNN = no integrated safety; if STO/SS1 required, select HMS01.1N-W0070-A-07-NNNV or similar
- Step 5 – Axis Count: HMS = single axis; for dual-axis, consider HMD series
- Step 6 – Firmware: Match firmware version to existing system to avoid parameter incompatibility
Quality Assurance & Sourcing
- All units sourced from authorized distributors or verified surplus channels
- Pre-shipment functional inspection and visual QC
- Original packaging preserved where available
- Traceable batch documentation provided on request
- 12-month warranty on new units; 90-day warranty on refurbished/tested units
- Export compliance: HS Code 8504.40 (static converters)
How to Order
- Confirm part number: HMS01.1N-W0070-A-07-NNNN
- Specify quantity and required delivery timeline
- Submit RFQ via support@konmask.com or add to cart directly
- Receive quotation with lead time, warranty terms, and shipping options within 24 hours
- Payment via T/T, PayPal, or credit card; DDP/DAP shipping available worldwide
Replacement & Compatibility FAQ
Q: Can I replace HMS01.1N-W0070-A-07-NNNN with an HMS01.1E variant?
A: The HMS01.1E (Economy) series shares the same power stage but may have reduced feature sets. Verify IndraWorks compatibility and firmware support before substitution.
Q: Is the communication slot (07) field-configurable?
A: No. The communication option is factory-configured. Ensure your system uses SERCOS II or PROFIBUS DP before ordering.
Q: What is the difference between HMS and HMD series?
A: HMS = single-axis inverter; HMD = double-axis inverter. Both share the same IndraDrive platform and supply module infrastructure.
Q: Can this unit work with non-Rexroth motors?
A: Yes, with proper motor data configuration in IndraWorks. Third-party motor commissioning requires manual parameter entry and may void warranty.
Q: Do you offer repair or exchange service?
A: Yes. Contact us for repair evaluation, exchange programs, and emergency loan units for critical downtime situations.
