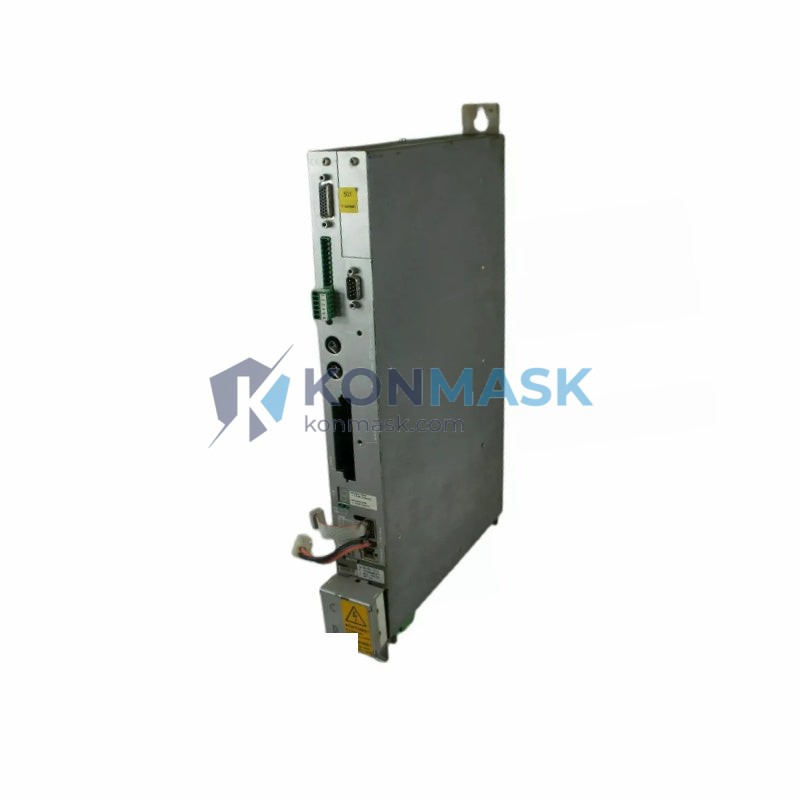

Bosch Rexroth 30K 1101-D – AC Servo Drive Controller | ServoDyn-D Platform
Engineering Background: The ServoDyn-D series represents Bosch Rexroth’s legacy of precision motion control engineering, developed for demanding industrial servo applications requiring high dynamic response, robust closed-loop control, and seamless integration into multi-axis automation architectures. The 30K 1101-D is a field-proven drive controller widely deployed in machine tool, packaging, and press automation environments.
Product Positioning: Designed for procurement engineers and system integrators sourcing reliable replacement or expansion components for existing ServoDyn-D installations. The 30K 1101-D delivers deterministic servo performance in environments where downtime is not an option. Konmask.com supplies this unit as a verified, tested component with full traceability documentation available upon request.
Complete Technical Specifications
- Manufacturer: Bosch Rexroth AG
- Part Number / SKU: 30K 1101-D
- Series / Platform: ServoDyn-D
- Device Type: AC Servo Drive Controller
- Country of Origin: Germany (DE)
- Drive Topology: Closed-loop AC servo, PWM-controlled
- Control Mode: Position / Velocity / Torque (configurable)
- Feedback Interface: Resolver and incremental encoder compatible
- Communication: Analog ±10 V reference input; digital I/O interface
- Protection Class: IP20 (panel-mount installation)
- Cooling: Forced air / integrated heatsink
- Weight: 5.3 kg
- Compliance: CE marked; EN 61800 series standards
Note: Full electrical ratings (input voltage, output current, power rating) are available in the official Bosch Rexroth ServoDyn-D documentation. Contact Konmask for datasheet access.
Proven Application Environments
- CNC machine tool spindle and axis drives
- Industrial press and stamping machine servo axes
- Packaging line pick-and-place and indexing systems
- Injection molding machine servo pump drives
- Robotic arm joint control in multi-axis cells
- Textile and printing machine web tension control
- Semiconductor handling and precision positioning stages
Engineering Advantages
- High Dynamic Response: ServoDyn-D architecture delivers fast current loop bandwidth for tight position and velocity regulation
- Robust EMC Design: Integrated EMC filtering reduces interference in noise-sensitive plant environments
- Modular Architecture: Drop-in replacement compatibility within existing ServoDyn-D multi-axis cabinets
- Proven Field Reliability: Thousands of units deployed globally across heavy industrial sectors since series introduction
- Simplified Commissioning: Parameter-based setup via Bosch Rexroth drive configuration tools
- Wide Motor Compatibility: Supports Bosch Rexroth SD series servo motors and compatible third-party motors
System Architecture & Signal Flow
The 30K 1101-D operates as a standalone axis drive within the ServoDyn-D cabinet architecture. The control signal path is as follows:
- Reference Input: Analog ±10 V velocity/torque command received from CNC controller or PLC analog output module
- Drive Controller: Internal DSP processes command signal against feedback data and generates PWM switching signals
- Power Stage: IGBT-based inverter converts DC bus power to variable-frequency, variable-voltage AC output
- Motor Feedback: Resolver or encoder signal returns actual position/velocity to the drive’s closed-loop controller
- I/O Interface: Digital enable, fault, and status signals interface to the machine PLC for supervisory control
- DC Bus: Shared DC bus architecture allows regenerative energy exchange between axes in multi-axis configurations
Sourcing & Quality Verification
- Source: Konmask.com sources 30K 1101-D units from authorized industrial surplus channels, OEM overstock, and verified distributor networks
- Inspection: Each unit undergoes visual inspection, label verification, and functional pre-check prior to dispatch
- Traceability: Serial number and date code documentation available upon request for quality records
- Packaging: Anti-static ESD packaging with foam cushioning; export carton rated for international freight
- Warranty: 12-month Konmask operational warranty against manufacturing defects (terms apply)
- Counterfeit Prevention: All units verified against Bosch Rexroth part marking standards; certificates of conformity available for critical procurement
Procurement Process
- Inquiry: Submit your requirement via support@konmask.com or WhatsApp +0086 19859288691 with your target quantity and delivery timeline
- Quotation: Konmask responds within 1 business day with pricing, lead time, and stock confirmation
- Order Confirmation: Purchase order or proforma invoice issued; payment via T/T, PayPal, or credit card
- Quality Check: Pre-shipment inspection report and photos provided upon request
- Shipping: DHL / FedEx / UPS express or sea freight; export documentation (commercial invoice, packing list, COO) included
- After-Sales: Technical support available post-delivery; RMA process for warranty claims
Technical FAQ
Q: Is the 30K 1101-D compatible with my existing ServoDyn-D cabinet?
A: Yes, provided your cabinet uses the same DC bus voltage and connector interface. Share your cabinet model number with our engineers for confirmation.
Q: Can this drive be used with non-Bosch servo motors?
A: The ServoDyn-D platform supports third-party motors with compatible feedback devices. Motor parameter configuration is required during commissioning.
Q: Do you provide the Bosch Rexroth commissioning software?
A: We can advise on software sourcing. The drive is compatible with Bosch Rexroth’s standard ServoDyn-D parameterization tools.
Q: What is the lead time for this part?
A: In-stock units ship within 2–3 business days. For bulk orders or out-of-stock situations, typical lead time is 2–4 weeks. Contact us for real-time availability.
Q: Can you provide a test report before shipment?
A: Yes. Pre-shipment functional test reports are available upon request for orders above minimum quantity thresholds.
