Bosch Rexroth VT-HACD-DPQ-1-20/V0/1-0-0 R901054664 – Hydraulic Axis Control Driver Card | VT-HACD Series

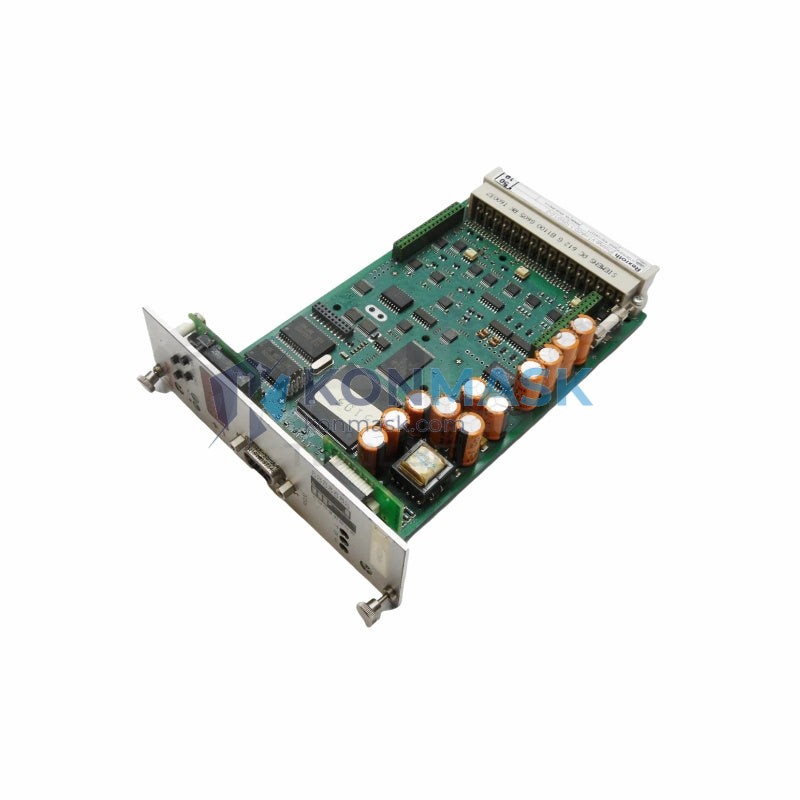

The Bosch Rexroth VT-HACD-DPQ-1-20/V0/1-0-0 (Material No. R901054664) is a high-performance digital hydraulic axis control driver card engineered for precision closed-loop control of proportional and servo hydraulic axes. Designed for demanding industrial automation environments, this card integrates seamlessly into Rexroth’s modular control architecture, delivering deterministic response and superior signal fidelity for mission-critical hydraulic motion control applications.
Product Positioning: Targeted at OEM machine builders, system integrators, and MRO procurement engineers requiring a drop-in replacement or new-build component for Rexroth VT-HACD series hydraulic axis control systems. Konmask.com maintains verified stock sourced directly from authorized distribution channels, ensuring full traceability and authenticity.
Complete Technical Specifications
- Part Number: VT-HACD-DPQ-1-20/V0/1-0-0
- Material Number: R901054664
- Series: VT-HACD (Hydraulic Axis Control Driver)
- Manufacturer: Bosch Rexroth AG
- Country of Origin: Germany
- Control Type: Digital closed-loop proportional / servo hydraulic axis control
- Axis Configuration: Single axis (DPQ – Dual Proportional Valve output capable)
- Firmware Version: V0/1-0-0
- Interface: Analog command input, digital enable/status I/O, fieldbus-ready (platform dependent)
- Supply Voltage: 24 VDC (nominal), per Rexroth VT-HACD platform specification
- Output: Proportional valve driver output, ±10 V / current output (valve-dependent)
- Control Loop: Position, velocity, force/pressure (configurable)
- Parameterization: Via Rexroth IndraWorks or dedicated commissioning software
- Weight: Approx. 1.53 kg (module with housing)
- Compliance: CE marked; RoHS compliant
Proven Application Environments
- Injection molding machines – precision clamp and injection axis control
- Metal forming presses – synchronized multi-axis hydraulic motion
- Die casting machines – high-speed shot control with position feedback
- Steel mill rolling stands – force/position cascade control
- Offshore and marine hydraulic actuator systems
- Test bench and simulation rigs requiring deterministic hydraulic response
- Industrial robots with hydraulic joint actuation
Engineering Advantages
- Digital closed-loop architecture eliminates analog drift, ensuring long-term repeatability
- Dual proportional valve output (DPQ) enables differential or redundant valve configurations
- Integrated diagnostics with real-time fault detection and status reporting
- Modular form factor allows hot-swap replacement within Rexroth VT-HACD rack systems
- Wide control loop configurability – position, velocity, pressure/force selectable per axis
- Firmware V0/1-0-0 – stable production release with full Rexroth support lifecycle
- EMC-hardened design for operation in electrically noisy industrial environments
System Architecture & Signal Flow
The VT-HACD-DPQ-1-20/V0/1-0-0 operates as a standalone axis controller within the Rexroth VT-HACD modular rack. Command signals (analog ±10 V or digital setpoint via fieldbus) are received by the onboard DSP, which executes the configured PID/cascade control algorithm. The computed output drives the proportional valve amplifier stage (DPQ dual-channel output), which directly actuates the hydraulic proportional or servo valve. Actual position/velocity feedback is acquired via encoder or analog transducer inputs, closing the control loop at the card level. Status and fault signals are routed to the host PLC via discrete I/O or fieldbus interface.
Sourcing & Quality Verification
- Source: Authorized Bosch Rexroth distribution network and verified surplus channels
- Inspection: Each unit undergoes visual inspection, label verification (R901054664), and functional pre-check prior to shipment
- Packaging: Original or equivalent ESD-safe anti-static packaging
- Traceability: Material number and serial number recorded for full supply chain traceability
- Warranty: 12-month Konmask warranty against manufacturing defects
- Counterfeit Prevention: All units verified against Rexroth material number database; no grey-market or refurbished units without explicit disclosure
Procurement Process
- Inquiry: Submit RFQ via Konmask.com product page or email support@konmask.com with quantity and delivery requirements
- Quotation: Receive formal quotation with lead time, unit price, and shipping options within 24 business hours
- Order Confirmation: Purchase order accepted; payment via T/T, PayPal, or approved credit terms
- Inspection & Dispatch: Unit inspected, documented, and dispatched with packing list and test record
- Delivery: DHL / FedEx / UPS express worldwide; sea freight available for bulk orders
- After-Sales: Technical support available for commissioning and integration queries
Technical FAQ
Q: Is the VT-HACD-DPQ-1-20/V0/1-0-0 compatible with Rexroth IndraControl platforms?
A: The VT-HACD series is designed as a standalone hydraulic axis controller. Integration with IndraControl PLC platforms is achieved via analog I/O or fieldbus (platform-specific). Consult Rexroth application documentation for your specific IndraControl variant.
Q: Can this card control servo valves as well as proportional valves?
A: Yes. The DPQ output stage supports both proportional and servo valve types, subject to valve current/voltage rating compatibility. Parameterization via commissioning software is required to match valve characteristics.
Q: What is the difference between VT-HACD-DPQ-1-20 and other VT-HACD variants?
A: The DPQ-1-20 designates a single-axis, dual proportional valve output configuration with a 20-slot rack position assignment. Other variants may differ in axis count, output configuration, or rack slot designation.
Q: Do you provide commissioning support?
A: Yes. Konmask technical engineers can provide remote commissioning guidance, parameter file templates, and wiring diagrams for standard VT-HACD applications. Contact support@konmask.com.
Q: What is the lead time for R901054664?
A: In-stock units ship within 3–5 business days. For out-of-stock inquiries, lead time is confirmed at quotation stage, typically 2–6 weeks depending on source availability.
