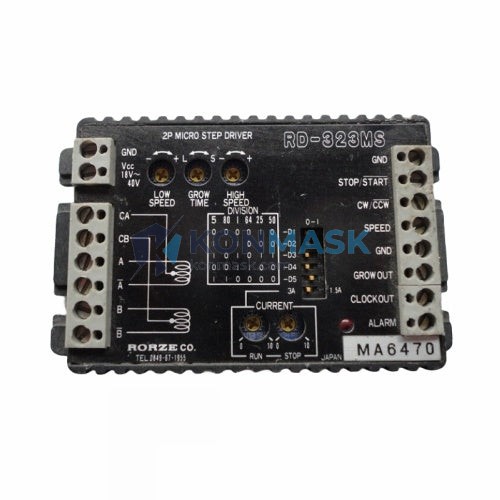

RORZE RD-323MS – Microstepping Motor Driver | RD Series Stepper Drive Platform
Engineering Background
RORZE Corporation is a Japanese precision automation manufacturer with decades of expertise in semiconductor handling, clean-room robotics, and motion control systems. The RD Series motor drivers are engineered to deliver high-resolution, low-vibration stepper motor control for demanding industrial and laboratory environments where positional accuracy and repeatability are non-negotiable.
Product Positioning
The RD-323MS is a compact microstepping motor driver designed for integration into multi-axis motion systems, wafer-handling equipment, and precision positioning stages. It is the preferred choice for OEM machine builders and MRO engineers who require a drop-in replacement or system upgrade with full RORZE ecosystem compatibility.
Complete Technical Specifications
| Manufacturer | RORZE Corporation (Japan) |
| Model | RD-323MS |
| SKU | RD-323MS |
| Drive Type | Microstepping Motor Driver |
| Compatible Motor Type | 2-phase / 4-phase hybrid stepper motors |
| Microstep Resolution | Up to 1/16 step (model-dependent; confirm with datasheet) |
| Input Voltage | Refer to OEM datasheet (typically 24–48 VDC) |
| Output Current | Refer to OEM datasheet |
| Control Interface | Pulse/Direction (STEP/DIR) signal input |
| Protection Features | Overcurrent, overheat, and short-circuit protection |
| Mounting | DIN rail / panel mount (confirm with unit label) |
| Weight | 250 g (approx.) |
| Origin | Japan |
| Condition | New / Surplus / Refurbished (specify at order) |
Note: Always cross-reference with the official RORZE RD-323MS datasheet for application-critical parameters. Contact us for the full technical document.
Proven Application Environments
- Semiconductor wafer-handling and FOUP transport systems
- LCD / OLED panel alignment and inspection equipment
- Precision XY / XYZ positioning stages in metrology labs
- Automated optical inspection (AOI) gantry systems
- Cleanroom robotics and SCARA arm motion control
- PCB drilling, routing, and pick-and-place machines
- Medical device assembly and dispensing automation
Engineering Advantages
- High-resolution microstepping — reduces resonance and audible noise versus full/half-step operation, enabling smoother motion profiles at low speeds.
- RORZE ecosystem compatibility — designed to interface natively with RORZE controllers and motion cards, minimising integration risk in existing machine architectures.
- Compact form factor — space-efficient design suited for dense control cabinet layouts common in semiconductor fab tooling.
- Robust protection circuitry — built-in overcurrent and thermal shutdown safeguards extend MTBF and protect downstream motor windings.
- Stable current control — constant-current chopper drive maintains torque consistency across the full speed range.
System Architecture & Signal Flow
The RD-323MS operates within a standard open-loop stepper drive architecture:
- Motion Controller / PLC — generates STEP pulse train and DIR signal (TTL/optocoupled).
- RD-323MS Driver — receives STEP/DIR, applies microstepping current waveforms to motor phases A and B.
- Stepper Motor — converts electrical phase excitation into precise angular displacement.
- Mechanical Load — lead screw, belt drive, or direct-coupled stage.
For closed-loop configurations, pair with a RORZE encoder feedback card or an external motion controller supporting encoder correction.
Sourcing & Quality Verification
- All units sourced through verified industrial supply channels — no grey-market or counterfeit stock.
- Each unit inspected for label integrity, connector condition, and firmware/hardware revision consistency prior to dispatch.
- Traceability documentation (lot number, revision, condition report) available upon request for regulated industries.
- Konmask.com maintains a zero-tolerance policy on misrepresented specifications — what you order is what ships.
Procurement Process
- Confirm compatibility — share your machine model or existing driver part number with our team for cross-reference validation.
- Request a quote — contact support@konmask.com or call +0086 19859288691 for volume pricing, lead time, and stock status.
- Place order — secure checkout via Konmask.com; B2B invoicing and wire transfer available.
- Shipping — DHL / FedEx express worldwide; export documentation and customs HS code provided.
- After-sales support — technical assistance available for installation, parameter setup, and fault diagnosis.
Technical FAQ
Q: Is the RD-323MS compatible with third-party stepper motors?
A: Yes, provided the motor’s phase current and voltage ratings fall within the driver’s output specifications. Consult the datasheet or contact us for motor matching guidance.
Q: Can I use this driver as a direct replacement for another brand’s driver?
A: In many cases yes, if the STEP/DIR interface and power supply voltage are compatible. We recommend bench-testing before full machine integration.
Q: Do you provide the original RORZE datasheet?
A: Yes. Request the technical document via email and we will supply it with your order confirmation.
Q: What warranty applies?
A: New units carry the standard Konmask 90-day DOA warranty. Surplus/refurbished units are sold as-is with inspection report. Extended warranty available on request.
Q: Can you supply multiple units for a production line retrofit?
A: Yes. Contact us for volume availability and lead time. We support both spot-buy and blanket-order arrangements.
