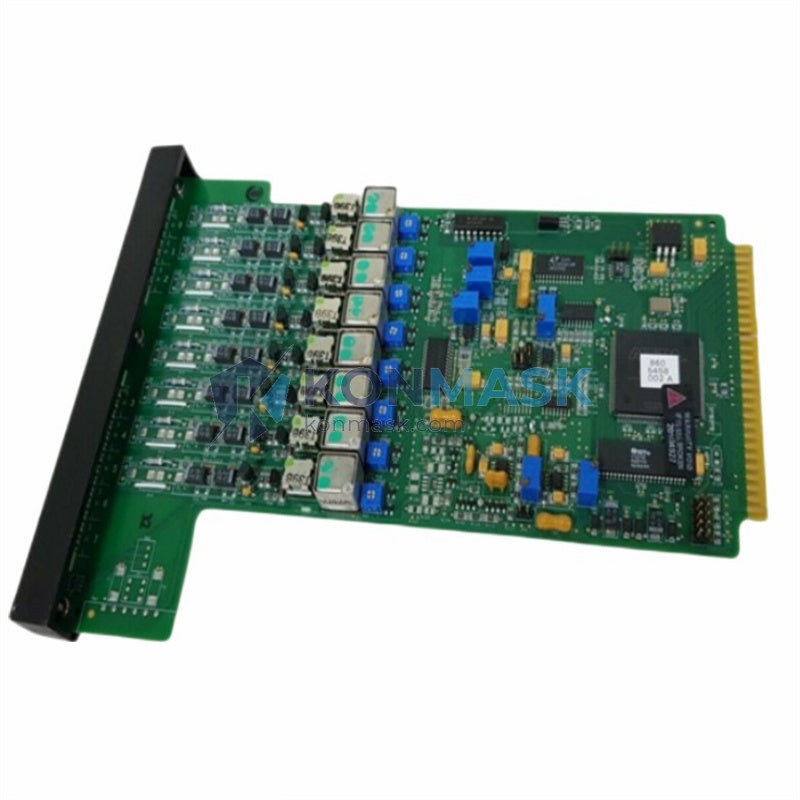

RTP NEQ8436/32-001 — 32-Channel Isolated Thermocouple Input Card | RTP 3000 Series DCS Platform
Engineering Background
The RTP 3000 Series is a fault-tolerant distributed control system platform engineered for continuous-process industries where unplanned downtime carries significant operational and safety consequences. The NEQ8436/32-001 is the high-density thermocouple acquisition card within this ecosystem, designed to deliver galvanically isolated, multi-type thermocouple signal conditioning across 32 independent channels in a single module footprint. It is the preferred solution for engineers who must maximize channel density while maintaining strict signal integrity in electrically noisy plant environments.
Product Positioning
Targeted at process control engineers and instrumentation specialists in oil & gas, petrochemical, power generation, and specialty chemical facilities, the NEQ8436/32-001 eliminates the ground-loop interference that plagues non-isolated designs. Each channel’s full galvanic isolation ensures that a fault or ground potential difference on one sensor loop cannot propagate to adjacent channels or the control backplane — a critical requirement for SIL-rated and high-availability architectures.
Complete Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NEQ8436/32-001 |
| Manufacturer | RTP Corporation |
| Platform | RTP 3000 Series DCS |
| Module Type | Analog Input — Thermocouple |
| Channel Count | 32 channels per module |
| Isolation | Full galvanic isolation, channel-to-channel and channel-to-backplane |
| Thermocouple Types Supported | J, K, T, E, R, S, B, N (IEC 60584 / NIST) |
| Input Range | Per TC type; millivolt-level differential input |
| Cold Junction Compensation (CJC) | Automatic, internal reference sensor |
| Resolution | 16-bit ADC per channel |
| Accuracy | ±0.1°C typical (K-type, 25°C ambient) |
| Common Mode Rejection Ratio (CMRR) | ≥120 dB @ 50/60 Hz |
| Normal Mode Rejection (NMR) | ≥60 dB @ 50/60 Hz |
| Open-Circuit / Burnout Detection | Per channel, configurable upscale/downscale |
| Scan Rate | Configurable; all 32 channels updated within system scan cycle |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% non-condensing |
| Power Consumption | Supplied via RTP 3000 backplane (consult system power budget) |
| Backplane Compatibility | RTP 3000 Series I/O chassis |
| Certifications | CE, UL/cUL (verify current listing with RTP) |
| Form Factor | Single-slot RTP 3000 I/O module |
| Weight | ~500 g |
| Part Number | NEQ8436/32-001 |
Proven Application Environments
- Oil & Gas Processing: Wellhead temperature monitoring, separator and heat exchanger control, fired heater tube-skin measurement
- Petrochemical & Refining: Reactor temperature profiling, distillation column tray temperatures, catalyst bed monitoring
- Power Generation: Turbine exhaust gas temperature (EGT) arrays, boiler furnace zone monitoring, steam header instrumentation
- Specialty Chemical: Exothermic reactor safety interlocks, batch process temperature logging, dryer and kiln profiling
- Pulp & Paper / Metals: Kiln and furnace zone control, rolling mill temperature tracking
- Pharmaceutical / Food & Beverage: CIP/SIP validation, autoclave cycle monitoring, pasteurization control
Engineering Advantages
- Full Per-Channel Galvanic Isolation: Eliminates ground loops and prevents fault propagation between sensor circuits — essential for multi-point installations across large plant structures with differing ground potentials.
- High Channel Density: 32 TC inputs in a single module slot reduces chassis space, wiring complexity, and total installed cost versus 8- or 16-channel alternatives.
- Universal TC Type Support: J, K, T, E, R, S, B, N types configurable per channel — one module covers the full range of process and high-temperature measurement requirements.
- Automatic Cold Junction Compensation: Internal CJC reference eliminates the need for external isothermal terminal blocks, simplifying field wiring and reducing calibration overhead.
- Open-Circuit Burnout Detection: Per-channel upscale/downscale burnout detection enables the DCS to take safe-state action immediately upon sensor failure, supporting SIL and functional safety requirements.
- High CMRR (≥120 dB): Rejects 50/60 Hz power-line interference and VFD-induced noise common in industrial environments, ensuring measurement integrity without additional signal conditioning hardware.
- Native RTP 3000 Integration: Hot-swap capable within the RTP 3000 chassis; configuration managed through the RTP engineering workstation with no external programming hardware required.
System Architecture & Signal Flow
The NEQ8436/32-001 resides in the RTP 3000 I/O chassis and communicates with the RTP controller module via the proprietary high-speed backplane bus. Signal flow is as follows:
- Field Wiring: Thermocouple pairs connect to the module’s front-panel terminal block (or rear-panel I/O assembly, depending on chassis configuration). Observe correct polarity per TC type.
- Input Conditioning: Each channel passes through a dedicated isolation barrier and EMI filter stage before reaching the 16-bit sigma-delta ADC.
- Cold Junction Compensation: The on-board CJC sensor measures terminal block temperature; firmware applies the appropriate correction to each channel’s raw millivolt reading.
- Linearization: Firmware applies IEC 60584-compliant polynomial linearization to convert compensated millivolt values to engineering units (°C or °F).
- Backplane Transfer: Linearized values and channel status (open-circuit flag, out-of-range flag) are transferred to the controller module each scan cycle.
- DCS Integration: Values appear as standard analog input tags in the RTP configuration database, available to control strategies, historian, and HMI without additional scaling.
Sourcing & Quality Verification
- Authorized Distribution Network: Konmask.com sources RTP modules through established industrial automation distribution channels. Each unit is inspected for physical integrity, label authenticity, and firmware revision prior to dispatch.
- Serialization Traceability: Module serial numbers are logged at receipt and available upon request for customer records and maintenance management systems.
- Condition: Units are offered as new surplus (factory-sealed where available) or refurbished-to-specification with documented test results. Condition is stated explicitly on each listing.
- Warranty: 12-month operational warranty against manufacturing defects. Warranty claims processed within 5 business days of receipt.
- Export Compliance: Customers are responsible for verifying import/export regulations applicable to their jurisdiction. EAR99 classification typical; confirm with Konmask for specific shipment requirements.
Procurement Process
- Confirm Compatibility: Verify your RTP 3000 chassis revision and controller firmware version support the NEQ8436/32-001. Consult the RTP 3000 Series Hardware Reference Manual (HRM) or contact Konmask technical support.
- Request a Quote: For volume orders (>2 units) or urgent delivery requirements, email [email protected] with quantity, required delivery date, and destination port.
- Place Order: Add to cart and complete checkout. Accepted payment methods include T/T (bank transfer), PayPal, and major credit cards. Net-30 terms available for qualified accounts.
- Shipping: Standard dispatch within 2–5 business days. Express DHL/FedEx available. Export documentation (commercial invoice, packing list, COO) provided for international shipments.
- Incoming Inspection: Upon receipt, verify serial number against Konmask dispatch record. Inspect for transit damage before installation. Contact support within 48 hours of delivery for any discrepancies.
Technical FAQ
Q: Can the NEQ8436/32-001 be used in a non-RTP DCS or third-party PLC system?
A: No. The module communicates exclusively via the RTP 3000 proprietary backplane protocol and requires the RTP engineering workstation for configuration. It is not compatible with third-party I/O buses (PROFIBUS, EtherNet/IP, HART, etc.) without an RTP gateway.
Q: Is hot-swap (live insertion/removal) supported?
A: Yes, within an RTP 3000 chassis configured for redundant power. The controller will flag the slot as faulted during removal and resume scanning automatically upon reinsertion and initialization. Consult the RTP HRM for hot-swap procedures.
Q: What is the maximum cable length for thermocouple field wiring?
A: RTP does not publish a hard maximum; practical limits depend on TC wire gauge, shielding, and ambient EMI. Industry practice for industrial TC installations is ≤300 m with shielded, twisted-pair extension wire matched to the TC type. Use the module’s high CMRR to your advantage in noisy environments.
Q: How is the module configured — DIP switches or software?
A: All channel configuration (TC type, burnout direction, engineering unit range) is performed via the RTP engineering workstation software. There are no user-accessible DIP switches or jumpers on the NEQ8436/32-001.
Q: Does Konmask provide calibration certificates?
A: Factory calibration data is embedded in the module firmware. Konmask can provide third-party calibration services upon request (additional lead time and cost apply). Contact [email protected] for details.
Q: What is the lead time for out-of-stock units?
A: Typical sourcing lead time for RTP legacy modules is 4–12 weeks depending on global availability. Konmask maintains a watch-list service — register your requirement and we will notify you when stock is located.
