Saia PCD3.A465 16-Channel Transistor Digital Output Module | Replacement, Equivalent & Selection Guide

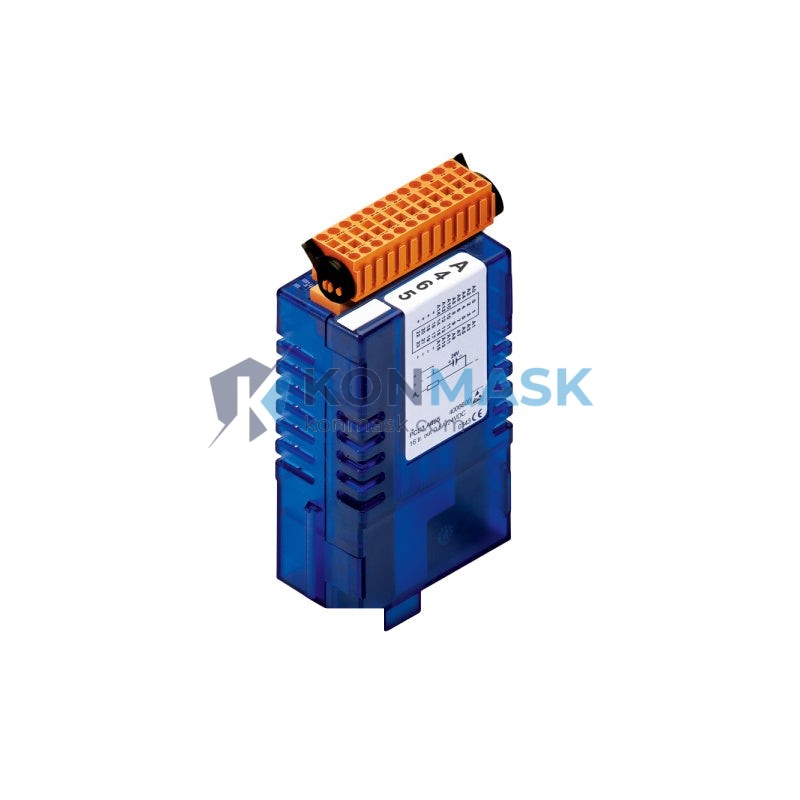

The Saia PCD3.A465 is a 16-channel transistor (PNP) digital output module designed for the Saia PCD3 programmable controller platform. It delivers reliable, high-speed switching for industrial automation, process control, and building management systems. This page provides full technical specifications, compatible replacement models, and a structured selection guide to help engineers and procurement teams make informed decisions.
Technical Specifications
| Part Number | PCD3.A465 |
| Brand | Saia-Burgess (Saia PCD) |
| Module Type | Digital Output Module |
| Output Channels | 16 × Transistor (PNP, sourcing) |
| Output Voltage | 24 V DC |
| Output Current | 0.5 A per channel |
| Total Load Current | 4 A max (per module) |
| Short-Circuit Protection | Yes (electronic) |
| Isolation | Optocoupler isolated |
| Backplane Bus | PCD3 system bus |
| Operating Temperature | 0 °C to +55 °C |
| Dimensions (W×H×D) | Approx. 35 × 130 × 110 mm |
| Weight | Approx. 200 g |
| Certifications | CE, UL (refer to datasheet) |
Compatible Replacement & Equivalent Models
When the PCD3.A465 is unavailable or end-of-life, the following models offer functional equivalence or direct drop-in replacement capability:
| Model | Brand | Channels | Output Type | Compatibility Notes |
|---|---|---|---|---|
| PCD3.A460 | Saia-Burgess | 16 | Transistor PNP | Same series; verify firmware version |
| PCD3.A480 | Saia-Burgess | 16 | Relay | Relay variant; different wiring required |
| PCD2.A465 | Saia-Burgess | 16 | Transistor PNP | PCD2 platform; not plug-compatible |
| SM322 DO16×DC24V/0.5A | Siemens S7-300 | 16 | Transistor PNP | Cross-brand; requires rewiring & reprogramming |
| QY10 | Mitsubishi MELSEC-Q | 16 | Transistor (sink) | Cross-brand; NPN type, polarity differs |
| 1756-OB16D | Allen-Bradley ControlLogix | 16 | Transistor PNP | Cross-brand; different platform entirely |
Always verify electrical ratings, bus compatibility, and firmware requirements before substitution.
Why Choose the Original Model
- Native PCD3 bus integration — zero configuration overhead, plug-and-play on PCD3 racks
- Saia SG5 / FUPLA programming compatibility — no I/O mapping rework required
- Electronic short-circuit protection — reduces field wiring damage risk
- Proven reliability in HVAC, building automation, and industrial process control
- Long-term Saia ecosystem support — firmware updates and diagnostics via PG5 software
Typical Applications
- Building Management Systems (BMS) — HVAC actuator and valve control
- Industrial process automation — conveyor, pump, and motor on/off control
- Energy management systems — load switching and demand control
- Water treatment plants — solenoid valve and dosing pump control
- Factory automation — signal output to drives, relays, and indicators
System Compatibility
| Platform | Compatible | Notes |
|---|---|---|
| Saia PCD3.Mxxx CPUs | ✅ Yes | Direct plug-in, full diagnostics |
| Saia PCD3 Expansion Racks | ✅ Yes | Up to max I/O per rack rules |
| Saia PCD2 Platform | ❌ No | Different bus connector |
| Saia PCD1 Platform | ❌ No | Incompatible form factor |
| Third-party PLC racks | ❌ No | Proprietary bus |
Selection Guide
Use the following criteria to confirm the PCD3.A465 is the right module for your application:
- Output type needed: Transistor PNP (sourcing) — if NPN (sinking) is required, select PCD3.A460 or equivalent NPN variant
- Channel count: 16 DO — if fewer channels suffice, consider PCD3.A400 (8-ch) to reduce cost
- Load current: ≤ 0.5 A per channel and ≤ 4 A total — for higher loads, use relay output modules (PCD3.A480)
- Voltage: 24 V DC loads only — for 120/230 V AC loads, relay modules are required
- Platform: Must be PCD3 rack — confirm CPU and rack generation before ordering
Quality Assurance & Sourcing
At Konmask.com, every PCD3.A465 unit is:
- Sourced from authorized distributors or verified surplus channels
- Inspected for physical integrity, label authenticity, and firmware version
- Tested for basic I/O functionality prior to shipment
- Shipped with anti-static packaging and full traceability documentation
We supply both new original and refurbished/tested units. Condition is clearly stated on each listing. Bulk orders and long-term supply agreements are available — contact us for pricing.
How to Order
- Confirm your PCD3 CPU model and rack generation (M5, M6, etc.)
- Verify required output type: PNP (sourcing) vs NPN (sinking)
- Check total channel count and per-channel current requirements
- Add PCD3.A465 to cart or contact us for bulk/project pricing
- Provide your project details for expedited sourcing if stock is limited
📧 support@konmask.com | 📞 +0086 19859288691
Replacement & Compatibility FAQ
Q: Can I replace PCD3.A465 with PCD3.A460?
A: Both are 16-channel transistor output modules in the PCD3 series. The A460 is typically NPN (sinking) while the A465 is PNP (sourcing). Wiring polarity must be reversed — not a direct drop-in without field changes.
Q: Is PCD3.A465 compatible with PCD2 CPUs?
A: No. The PCD3 and PCD2 platforms use different backplane bus connectors and are not interchangeable.
Q: Can I use a Siemens SM322 as a replacement?
A: Functionally similar (16 DO, 24 V DC, PNP), but it requires a completely different rack, CPU, and programming environment. Only viable as a full platform migration, not a module swap.
Q: What is the lead time for PCD3.A465?
A: In-stock units ship within 1–3 business days. For out-of-stock items, typical sourcing lead time is 2–4 weeks. Contact us for current availability.
Q: Do you provide a warranty?
A: Yes. New original units carry the manufacturer warranty. Refurbished units include a 90-day Konmask functional warranty.
