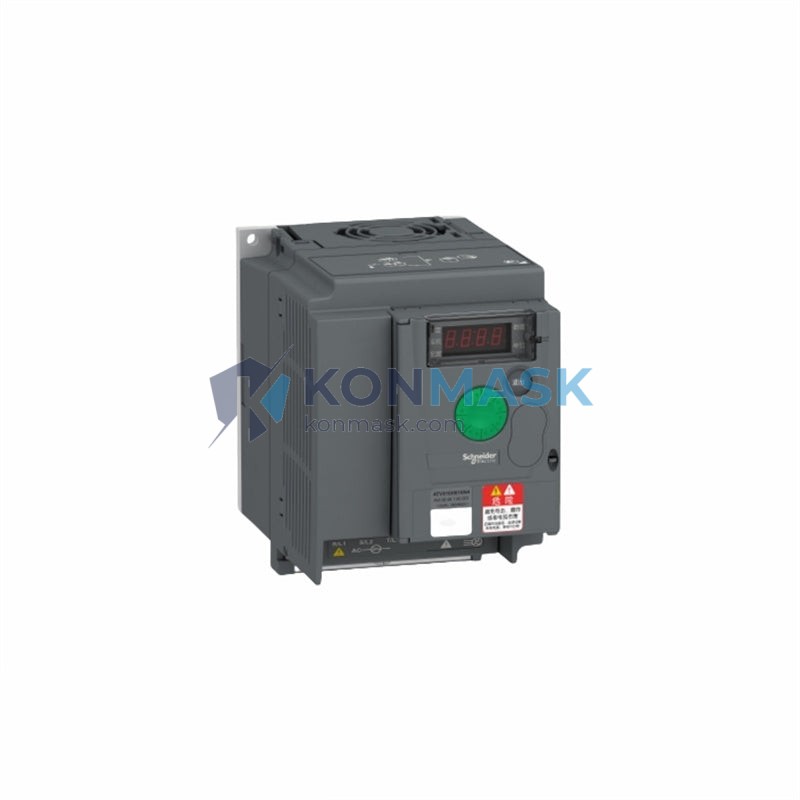

Schneider Electric ATV310HU30N4 – 3kW 400V Three-Phase Variable Speed Drive | Altivar 310 Series
Engineering Background
The Altivar 310 series represents Schneider Electric’s purpose-built solution for simple machine applications demanding reliable, energy-efficient motor control. Designed for OEM integration and panel-building environments, the ATV310 platform delivers consistent performance across pumping, fan, conveyor, and compressor applications without the complexity overhead of full-featured drives.
Product Positioning
The ATV310HU30N4 targets procurement engineers sourcing a compact, DIN-rail-compatible 3kW drive for 380–460V three-phase networks. Its plug-and-play commissioning, integrated EMC filter, and IP20 enclosure make it the default choice for control cabinet integration where space, compliance, and commissioning time are primary constraints.
Complete Technical Specifications
| Part Number | ATV310HU30N4 |
| Brand | Schneider Electric |
| Series | Altivar 310 (ATV310) |
| Motor Power | 3 kW (4 HP) |
| Supply Voltage | 380–460 V AC, 3-Phase ±10% |
| Output Current | 8.5 A (nominal) |
| Frequency Range | 0.5–500 Hz |
| Control Method | V/f (Voltage/Frequency), Sensorless Flux Vector |
| Enclosure Rating | IP20 |
| EMC Filter | Integrated (Class C2) |
| Braking | Dynamic braking transistor integrated |
| Communication | Modbus RTU (RJ45), CANopen optional |
| Digital Inputs | 6 × DI (24V logic) |
| Analog Inputs | 2 × AI (0–10V / 4–20mA) |
| Relay Outputs | 2 × relay (fault + run) |
| Ambient Temperature | -10°C to +50°C (operating) |
| Altitude | Up to 1000 m without derating |
| Humidity | 5–95% RH, non-condensing |
| Mounting | DIN rail / panel mount |
| Dimensions (H×W×D) | 170 × 90 × 156 mm |
| Weight | ~2.0 kg |
| Certifications | CE, UL, cUL, RoHS |
| Country of Origin | China (CN) |
Proven Application Environments
- HVAC Systems – Fan and pump speed regulation in building management systems
- Conveyor Lines – Smooth start/stop and speed profiling for material handling
- Compressor Control – Pressure-based PID closed-loop regulation
- Water Treatment – Variable-flow pump control for energy savings up to 50%
- Packaging Machinery – Precise speed synchronization in OEM machine builds
- Food & Beverage – Hygienic-compatible panel integration with IP20 enclosure
Engineering Advantages
- Integrated EMC Filter – Eliminates external filter BOM cost; meets EN 61800-3 Class C2 out of the box
- Sensorless Flux Vector Control – Delivers ±0.5% speed accuracy without encoder feedback
- Auto-tuning – One-button motor parameter identification reduces commissioning to under 5 minutes
- Embedded Modbus RTU – Native SCADA/PLC integration via standard RJ45 without gateway hardware
- Dynamic Braking Transistor – Supports external braking resistor for high-inertia load deceleration
- Compact Footprint – 90 mm width enables high-density panel layouts
System Architecture & Signal Flow
The ATV310HU30N4 operates on a standard AC-DC-AC conversion topology. Three-phase 400V input is rectified to a DC bus (~565V), then pulse-width modulated (PWM) at 4–16 kHz to synthesize variable-frequency AC output. The integrated flux vector algorithm continuously estimates rotor flux position from stator current feedback, enabling torque control without a physical encoder.
Typical wiring architecture: PLC analog output (0–10V) → AI1 setpoint → ATV310 speed reference → PWM output → 3-phase induction motor. Fault relay (R1A/R1B/R1C) wired to PLC DI for supervisory monitoring. Modbus RTU over RS-485 (RJ45) for parameter read/write and status polling.
Sourcing & Quality Verification
- Origin: Sourced from authorized Schneider Electric distribution channels
- Inspection: Each unit undergoes incoming inspection including label verification, firmware version check, and functional power-on test
- Packaging: Ships in original OEM packaging with factory seal intact
- Documentation: Certificate of conformity and installation manual available on request
- Traceability: Serial number and date code recorded at dispatch for full supply chain traceability
Procurement Process
- Submit RFQ or place order directly via Konmask.com
- Receive proforma invoice with lead time confirmation within 24 hours
- Payment via T/T, PayPal, or trade assurance
- Dispatch within 1–3 business days; DHL / FedEx / UPS express available
- Tracking number and commercial invoice provided at shipment
- Post-delivery technical support via email or WhatsApp
Technical FAQ
Q: Is the ATV310HU30N4 compatible with single-phase 220V input?
A: No. This model requires three-phase 380–460V supply. For single-phase applications, refer to the ATV310H series with suffix N4E or HU variants rated for 1-phase input.
Q: Can I use an external EMC filter?
A: The integrated Class C2 filter is sufficient for most industrial environments. For Class C1 (residential proximity) requirements, an additional external filter may be added.
Q: What motor types are compatible?
A: Standard three-phase asynchronous (induction) motors. Permanent magnet synchronous motors (PMSM) are not supported on the ATV310 platform.
Q: Is a braking resistor included?
A: No. The internal braking transistor is included; an external resistor must be sized and sourced separately based on load inertia and deceleration requirements.
Q: What is the warranty?
A: Konmask.com provides a 12-month warranty against manufacturing defects from date of dispatch.
